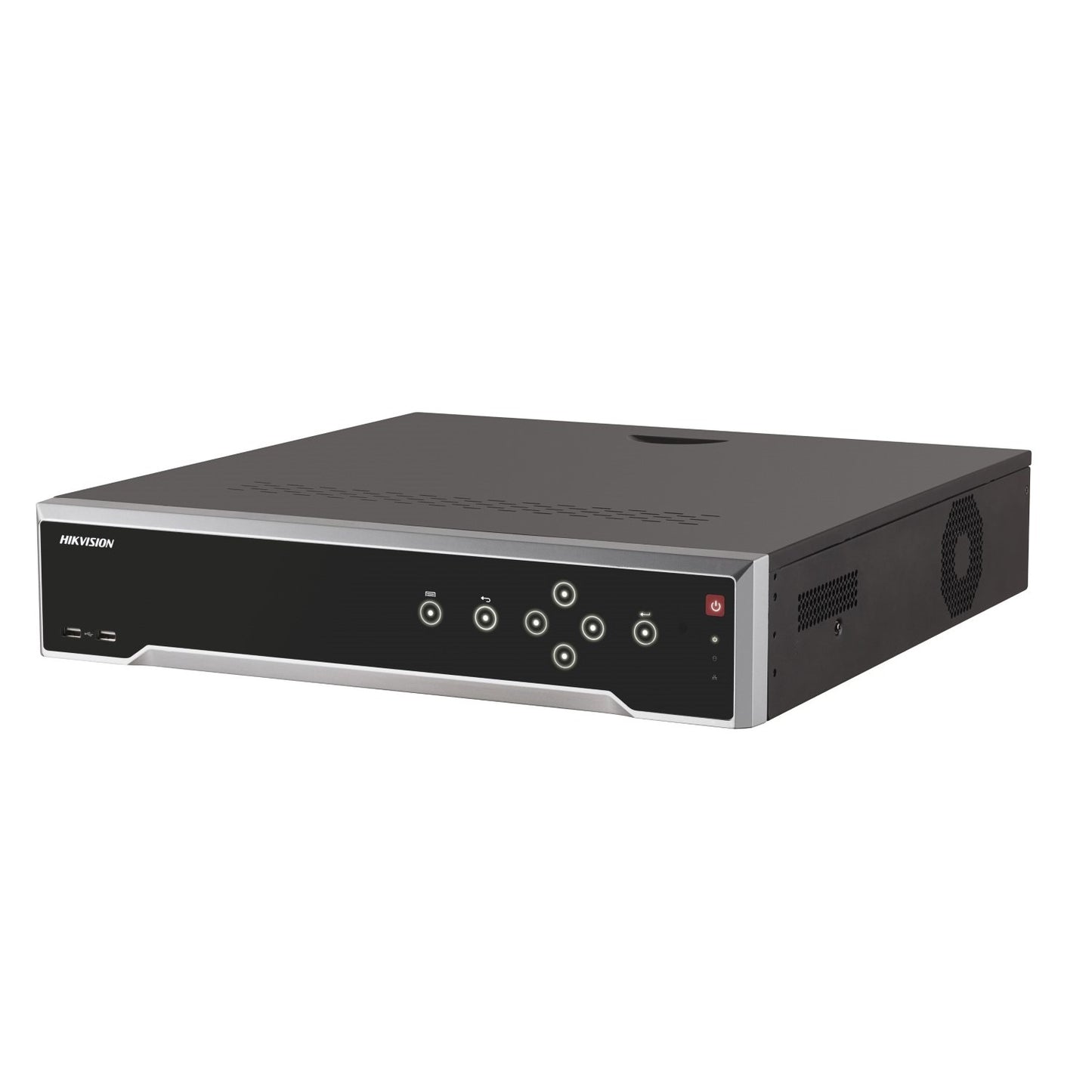

Hikvision DS-7732NI-I4-16 32ch CCTV NVR, 16 PoE Ports, 256Mbps, H.265, 4K, 1.5RU, 4 x HDD Bays + 4TB Hard Drive

Model: DS-7732NI-I4-16

Who This Is For

Property managers specifying surveillance infrastructure for medium-to-large sites - commercial buildings, multi-tenancy facilities, warehouses, or education campuses - where a single NVR needs to anchor 32 cameras without compromise on resolution or storage longevity. The Hikvision DS-7732NI-I4-16 is built for exactly this scale: 32 channels, 16 built-in PoE ports that eliminate the need for a separate PoE switch for up to half the camera count, and 4 HDD bays that support up to 40TB of raw storage. This unit ships with a 4TB hard drive already installed, so it's ready to record from day one. At 1.5RU, it fits neatly into a standard rack without consuming full 2RU rack space. Installers running H.265+ cameras across the channel count will see genuine storage savings compared to H.264 deployments - an important consideration when specifying retention periods against available HDD capacity.

What This NVR Actually Does

Who Buys This Model

• Security integrators: Running 20-32 camera deployments at commercial or industrial sites who need a rack-mountable 1.5RU unit with sufficient incoming bandwidth to handle high-resolution streams without frame-drop or buffering at the NVR level.
• Facilities and IT managers: Overseeing multi-building or multi-floor CCTV infrastructure who require remote access via Hik-Connect alongside TLS-encrypted streaming to meet internal data security requirements.
• Education and healthcare site managers: Specifying long-retention CCTV systems where H.265+ compression and 4 HDD bays provide the storage capacity needed for 30-plus day footage retention across a large camera count.
• Retail and hospitality operators: Managing multiple internal camera zones who need 16-channel synchronous playback to investigate incidents efficiently without dedicating excessive staff time to footage review.

Honest Assessment

The DS-7732NI-I4-16 handles the core demands of a 32-channel deployment well. The 256Mbps bandwidth ceiling, 4K HDMI output, H.265+ compression, and 16 integrated PoE ports give installers genuine headroom for high-resolution multi-camera sites without immediately saturating the system. The 4-bay HDD design with 40TB ceiling, combined with H.265+ efficiency, makes long-retention storage planning straightforward. The inclusion of a 4TB drive means the unit is operational on the bench without a separate HDD purchase to get started. Available through Security Australia, this unit suits sites that are Hikvision-centric - VCA event processing and Hik-Connect integration work most effectively when connected cameras are also Hikvision. The 16 onboard PoE ports cover only half the total channel count, so deployments pushing all 32 channels with PoE cameras will require a managed PoE switch for the remaining 16. Sites needing advanced AI analytics beyond standard VCA should confirm camera-level feature support before specifying.

Before You Buy

Quick Fit Check

• Good match if: You are deploying 20-32 Hikvision IP cameras at a commercial or industrial site and need a rack-mountable NVR with 256Mbps incoming bandwidth and 4K HDMI output to handle high-resolution streams without a separate high-channel-count appliance.
• Good match if: Your site requires extended footage retention and you want to scale storage incrementally - the 4 SATA bays supporting up to 10TB each allow you to start with the included 4TB drive and add capacity as retention requirements or camera resolution increases.
• You may need a different model if: Your deployment is under 16 channels - a 16-channel NVR will deliver the same per-channel functionality at a lower cost and with a smaller rack footprint, and Security Australia stocks options at that channel count worth comparing.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single rack-mountable NVR to manage 17-32 IP cameras with 256Mbps bandwidth, built-in PoE for up to 16 cameras, and scalable storage up to 40TB - without splitting across 2 x 16-channel units.
• You may need a different model if: Your deployment is under 16 channels - a 16-channel NVR in the same Hikvision range will provide equivalent per-channel functionality at lower cost and in a smaller rack footprint.
• Pairs well with: Hikvision 4K or 8MP turret, bullet, or dome cameras with H.265+ encoding to maximise VCA event processing and take full advantage of the NVR's storage efficiency and synchronous playback capabilities.

Common Questions

1. Does this NVR support cameras from brands other than Hikvision?

   Yes, with limitations. The DS-7732NI-I4-16 accepts ONVIF-compliant third-party IP cameras, so basic recording and live view will work across compatible brands. However, VCA features such as line crossing detection, intrusion alerts, and human/vehicle classification are processed most reliably when using Hikvision cameras that pass event data in the NVR's native format. Third-party camera integration should be tested before full deployment.

2. Will this NVR handle 32 cameras all running at 4K resolution simultaneously?

   Yes, subject to bandwidth. The 256Mbps incoming bandwidth is the relevant ceiling. At 4K (8MP) with H.265+ encoding, each camera stream typically consumes 4-8Mbps depending on scene complexity and frame rate. Running 32 cameras at 8Mbps each would reach 256Mbps - the maximum. Configuring H.265+ and adjusting frame rates on high-motion cameras provides headroom. For 32-camera deployments at maximum resolution, verify per-camera bitrates during commissioning.

3. How much footage will the included 4TB HDD store?

   It varies significantly by resolution, frame rate, and compression. As a rough guide, a single 4MP H.265+ camera at 15fps in a moderate-motion environment consumes approximately 15-25GB per day. Across 32 cameras, 4TB would provide less than a week of retention. For typical 30-day retention requirements across a full 32-channel deployment, plan to populate 3 to 4 bays with large-capacity surveillance-rated HDDs. Security Australia recommends using a storage calculator specific to your camera resolution and frame rate targets before specifying HDD capacity.

4. Does this NVR support remote viewing and is the connection encrypted?

   Yes on both counts. The DS-7732NI-I4-16 supports Hik-Connect for remote access from mobile devices and web browsers. Stream transmission uses TLS encryption, which protects video data in transit against interception. Double verification is also required for playback and download of recorded footage, adding an additional access control layer for sensitive footage retrieval.

5. What PoE standard do the 16 built-in ports support, and is there a total power budget to consider?

   The confirmed specification lists 16 PoE ports for direct camera connection - the PoE standard (802.3af or 802.3at) and total PoE power budget for the onboard switch are not detailed in the available product data. Before connecting high-power PoE devices such as PTZ cameras or cameras with integrated heaters, confirm the per-port and aggregate PoE power budget from the Hikvision DS-7732NI-I4-16 datasheet to avoid tripping the NVR's internal PoE protection.

6. Does this NVR fit in a standard server rack and how much rack space does it occupy?

   Yes. The DS-7732NI-I4-16 is a 1.5RU rack-mount unit measuring 445 x 355 x 88 mm. It fits in a standard 19-inch equipment rack and occupies 1.5 rack units of vertical space - useful when rack space is limited and a full 2RU appliance would waste usable height. Ensure adequate depth clearance behind the unit for cabling, particularly with 4 SATA drives and multiple rear-panel connections installed.

7. Can both the HDMI and VGA outputs be used at the same time for separate monitors?

   Yes. The HDMI and VGA outputs are independent, allowing simultaneous connection to 2 separate displays. A common use case is driving a full 4K monitor via HDMI for the control room workstation while the VGA output feeds a secondary display at a reception desk or security station. The HDMI output supports up to 4K resolution for the primary monitoring position.
