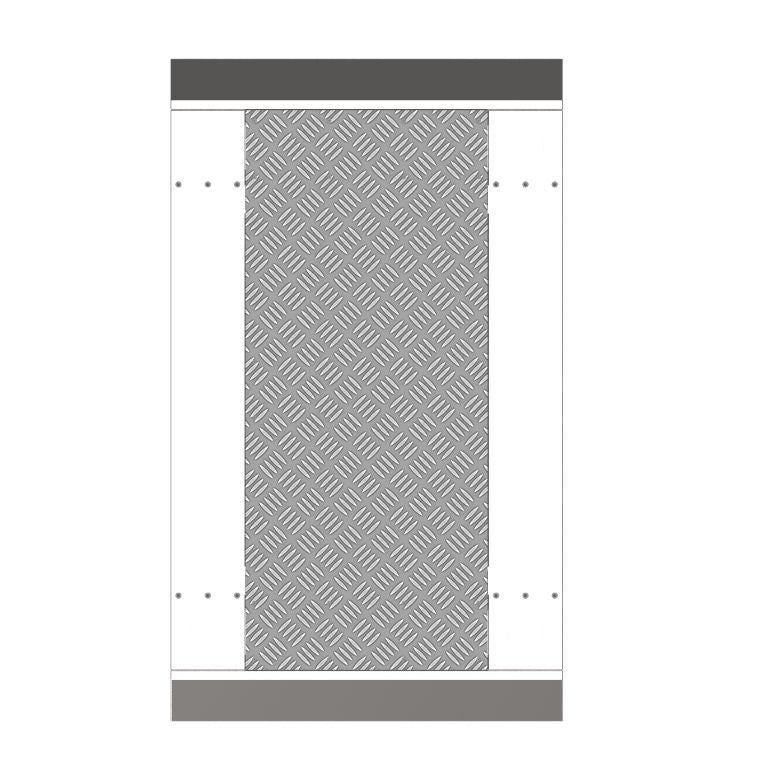

Hikvision DS-K3B601-BASE Turnstiles Base Module, Middle Lane, 650mm lanes

Model: DS-K3B601-BASE

Who This Is For

When pedestrian access control infrastructure needs to be built to last, the Hikvision DS-K3B601-BASE turnstile base module is the foundation component that makes it possible. Designed for middle-lane positions within the DS-K3B601 series modular system, this base suits integrators and facilities managers specifying multi-lane pedestrian entry points in commercial buildings, transport terminals, stadiums, corporate campuses, and other high-traffic environments. The 650 mm lane width configuration targets standard pedestrian throughput lanes where controlled, single-file access is required. With a 1775 mm x 850 mm x 35 mm footprint and SUS304 stainless steel construction in the pedestal installation area, this base is engineered for permanent, flush-to-floor installation where structural stability and corrosion resistance matter. Cable routing is handled through built-in cable holes, keeping wiring contained and installation clean. If you are planning a multi-lane turnstile deployment and need the middle-lane base component, this is the specific part you require.

What This Module Actually Does

Who Buys This Module

• Security Integrators: Specifying and installing multi-lane DS-K3B601 series turnstile deployments who need the correct middle-lane base component to complete a full lane set.
• Facilities Managers at Corporate Campuses: Managing lobby access control upgrades where permanent, flush-mounted turnstile bases in a 650 mm lane width are required for controlled single-file entry.
• Transit and Stadium Operators: Specifying high-traffic pedestrian management systems where the structural durability of SUS304 stainless steel and galvanised framework is a procurement requirement.
• Building Contractors on Commercial Fitouts: Coordinating floor-level access control rough-in where the base module needs to be set before final floor finishes, using the cable holes to pre-run wiring.

Honest Assessment

The DS-K3B601-BASE does one job and does it precisely: it provides a correctly dimensioned, materials-grade foundation for the DS-K3B601 series turnstile system in a middle-lane, 650 mm configuration. The mixed-material construction - SUS304 pedestal area, patterned aluminium lane surface, galvanised framework - reflects deliberate material selection for load, appearance, and corrosion resistance rather than a single-material approach. Integrated cable holes are a practical detail that reduces installation time and keeps finished works tidy. What this base will not do is serve as a standalone product - it has no access control function of its own and must be paired with the appropriate DS-K3B601 series barrier and controller components. It is also specific to the 650 mm lane width; if your lane design calls for a different width, a different base variant is required. This module is available through Security Australia for integrators working on configured multi-lane deployments.

Before You Buy

Quick Fit Check

• Good match if: You are installing a DS-K3B601 series multi-lane turnstile system and need the middle-lane base component in the 650 mm lane width configuration.
• Good match if: Your project specifies SUS304 stainless steel and galvanised construction for the base assembly due to durability, corrosion resistance, or materials specification requirements.
• You may need a different model if: Your lane width is not 650 mm, or you require an end-lane rather than middle-lane base - check the DS-K3B601 series base range for the correct width and position variant to suit your floor plan.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You are deploying a DS-K3B601 series multi-lane system and specifically need the middle-lane base for a 650 mm lane width configuration.
• You may need a different model if: Your lane width differs from 650 mm, or you need an end-lane rather than a middle-lane base - other variants in the DS-K3B601 base range cater to different lane widths and positions.
• Pairs well with: DS-K3B601 series swing barrier or flap barrier units, DS-K3B601 Base-Single end modules, and a compatible Hikvision access controller and card reader for a complete pedestrian access lane.

Common Questions

1. Is this base module a complete turnstile, or just the floor base?

   This is the floor base component only - not a complete turnstile. The DS-K3B601-BASE is the structural base platform on which the DS-K3B601 series barrier unit is mounted. It does not include the barrier mechanism, access control reader, or controller. You will need to order the barrier assembly and access control components separately to complete the lane.

2. What does the middle-lane designation mean, and do I need a different base for the end positions?

   Yes, end-lane positions require a different base variant. A middle-lane base sits between 2 active lanes and is shared by barriers on both sides. An end-lane base terminates a lane on one side only. For a 3-lane installation, you need 2 x Base-Single end modules (one for each outer lane) and 1 x this middle-lane base. For a 4-lane installation, you would need 2 end modules and 2 middle-lane bases.

3. Will this base work with a 700 mm or 900 mm lane width layout?

   No. This base is dimensioned specifically for the 650 mm lane width at 1775 mm x 850 mm x 35 mm. The base size varies according to lane width within the DS-K3B601 series, so if your design specifies a different lane width, you need the corresponding base variant for that dimension.

4. Does this base suit outdoor or covered external entry points?

   Yes, the material selection supports use in covered outdoor environments. The SUS304 stainless steel pedestal area and galvanised panel framework both provide corrosion resistance suitable for environments with moisture exposure, humidity, and regular cleaning. For fully exposed outdoor installations with direct rain exposure, confirm the barrier unit's IP rating is also rated for that environment.

5. When should the base be installed relative to the floor finish?

   The base should be set before the final floor finish is laid where possible. At 35 mm height and 58 kg, the base sits flush and low to the floor, and the cable holes need to align with your pre-run conduit or cable penetrations in the slab. Running cables after the base and barrier assembly are fully installed is significantly more difficult. Confirm cable run positions with your electrical contractor before concrete or screed is poured. This module is stocked by Security Australia for integrators requiring project quantities.

6. What is the footprint of the assembled base, and how much floor space does a multi-lane installation require?

   This base measures 1775 mm long x 850 mm wide x 35 mm high. In a multi-lane layout, end-lane bases and middle-lane bases are placed side by side. The total floor plan width depends on the number of lanes and the specific base widths in your configuration. Confirm total lane count, base widths, and any required clearance zones against your architectural floor plan before specifying quantities.

Cabling Considerations

• Cable Routing: Route power and data cables through the floor slab or screed to align with the cable holes in the base before setting the base module. Post-installation cable access is limited once the barrier assembly is mounted.
• Cable Types: Confirm cable specifications with the barrier unit and access controller you are pairing this base with - typically Cat5e or Cat6 for data and appropriately rated cable for power supply to the barrier mechanism.
• Conduit: Where slab penetrations are used, install conduit to the cable hole positions during the construction phase to allow cable pull-through after the base is set and before the barrier is mounted.
• Controller Distance: Plan cable run lengths from each lane position to the central access controller location. In multi-lane installations with 4 or more lanes, total cable run distances can be significant - factor this into your infrastructure planning.

Downloads & Resources

No downloads available for this product.
