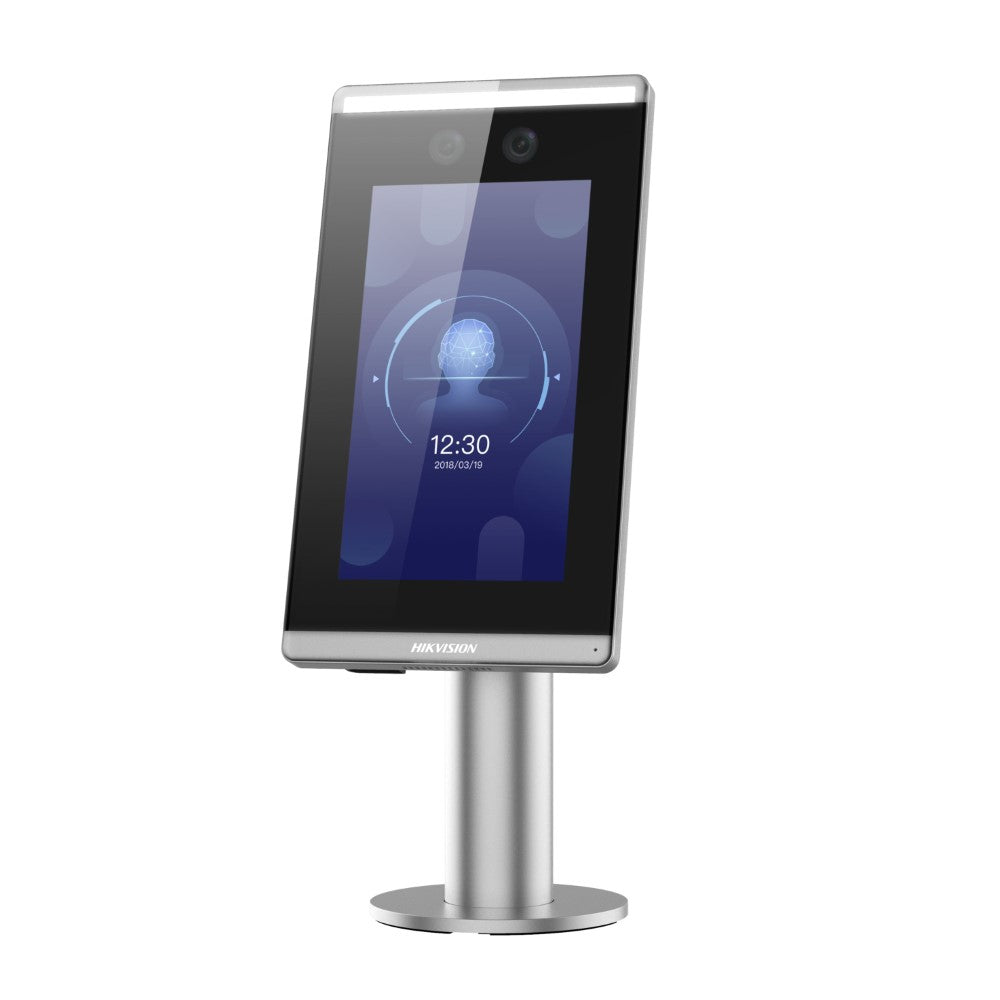

Hikvision DS-K5671-ZU 7" Face Recognition Terminal For Turnstile Type 2

Model: DS-K5671-ZU

Who This Is For

Security integrators specifying pedestrian access control for high-throughput environments will find the Hikvision DS-K5671-ZU a purpose-built solution for turnstile integration. Designed specifically to mount on or alongside third-party turnstile systems, this 7-inch face recognition terminal handles identity verification before a gate or barrier acts - keeping entry lanes moving without bottlenecks. Corporate office lobbies, transit facilities, university campuses, and stadiums are typical deployments where fast, contactless verification matters. With a recognition time under 0.2 seconds per user and a database capacity of up to 50,000 faces, the DS-K5671-ZU suits environments where staff or visitor volumes are large and credential management needs to be centralised. The built-in IO and Wiegand outputs make it straightforward to integrate into existing turnstile hardware from most major manufacturers, reducing the need for additional middleware or custom wiring.

What This Terminal Actually Does

Who Buys This Model

• Corporate Campus Integrators: Specifying touchless entry for high-footfall lobbies where a 50,000-face database and sub-0.2 second verification keeps turnstile lanes clear during peak entry periods.
• Stadium and Events Venue Operators: Using QR code and face recognition together to manage ticketed entry through existing turnstile infrastructure without replacing gate hardware.
• University and TAFE Facilities Managers: Managing access across large student populations where contactless, credential-free entry reduces help desk calls for lost cards or forgotten PINs.
• Healthcare and Aged Care Facilities: Deploying mask detection and temperature screening at controlled entry points as part of an infection control access policy.
• Industrial Site Access Controllers: Integrating with existing Wiegand-compatible turnstiles at site entry gates where IP65-rated outdoor durability and a -30°C to 60°C operating range are required.

Honest Assessment

The DS-K5671-ZU does the core job well: it verifies identities fast, holds a large local face database, and connects directly to third-party turnstiles via Wiegand or IO without additional interface hardware. The IP65 rating and -30°C to 60°C operating range make it usable in covered outdoor lanes, not just climate-controlled lobbies. The dual mask detection modes and temperature screening add genuine utility for facilities with health compliance obligations. Where this terminal has limits: it is a fixed terminal designed for turnstile mounting at a controlled lane - it is not suitable as a general-purpose door controller where a compact reader-size footprint is needed. For access points that require multi-door management or card-only credential options, a different product type within the Hikvision access control range supplied by Security Australia would be a more appropriate fit.

Before You Buy

Quick Fit Check

• Good match if: You are retrofitting face recognition onto an existing Wiegand or IO-compatible turnstile and need a terminal that can hold up to 50,000 enrolled faces for a large workforce or student body.
• Good match if: Your site requires mask detection or temperature screening at the entry lane alongside identity verification, and you want all three functions in a single IP65-rated device.
• You may need a different model if: Your application is standard door access control rather than a turnstile lane - a compact Hikvision face recognition door terminal would be a better fit for that scenario and is worth reviewing on securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a face recognition terminal that integrates directly with a third-party turnstile via Wiegand or IO output, with a large on-device face database and built-in mask and temperature screening.
• You may need a different model if: Your application is standard door access rather than a turnstile lane - a compact face recognition door terminal with built-in door control relay would be more appropriate for that use case.
• Pairs well with: A Hikvision HikCentral Professional or Hik-ProConnect platform deployment, allowing centralised face enrolment, event management, and remote monitoring across multiple terminals and sites.

Common Questions

1. Will this terminal work with my existing turnstile brand?

   In most cases, yes - provided your turnstile controller accepts a Wiegand or dry-contact IO input signal. The DS-K5671-ZU outputs both Wiegand and IO signals to trigger third-party turnstile mechanisms. Before installing, confirm which input type your gate controller accepts and wire accordingly. The terminal does not replace your turnstile's own gate controller - it acts as the credential verification device that tells the controller to open.

2. How many faces can the DS-K5671-ZU store, and does it need a server connection to verify?

   It stores up to 50,000 faces on the device itself and logs up to 100,000 events locally. Verification decisions are made on-device - a live server connection is not required for each authentication. Network connectivity is used for enrolment management, event synchronisation, and remote monitoring via RTSP, but the gate will still function during a temporary network outage.

3. Does the temperature detection replace a dedicated thermal camera?

   No. The built-in temperature screening covers the 30°C to 45°C range and is intended as a supplementary screening layer at an access point - not as a clinical-grade or high-throughput fever detection system. For applications requiring certified medical accuracy or screening of large crowds at distance, a dedicated thermal imaging solution would be more appropriate.

4. Does this work for outdoor turnstile installations?

   Yes, within a covered outdoor environment. The DS-K5671-ZU carries an IP65 rating and operates from -30°C to 60°C, making it suitable for covered entry lanes exposed to wind and dust. It is not rated for direct rain ingress on the face of the unit, so a canopy or overhead cover is recommended for any exposed outdoor position.

5. What is the difference between the two mask detection modes?

   The 2 modes differ in what happens when no mask is detected. In the alert-only mode, the device voices a reminder but authentication still proceeds and access is granted. In the enforcement mode, authentication fails and the turnstile does not open until the user presents with a mask. The appropriate mode depends on whether your site policy is advisory or mandatory.

6. Does the DS-K5671-ZU support Wi-Fi, or does it need a wired network connection?

   It supports both TCP/IP (wired Ethernet) and Wi-Fi. For a permanently installed turnstile terminal, a wired connection is strongly recommended for reliability and consistent enrolment sync. Wi-Fi support is useful during commissioning or in locations where running a data cable to the turnstile position is not practical. The unit is powered by a dedicated 12 VDC, 2 A supply - network and power are separate connections.

7. Will this terminal integrate with Hikvision's management software?

   Yes. The DS-K5671-ZU is compatible with both HikCentral Professional and Hik-ProConnect, which are available through Security Australia. These platforms allow centralised face enrolment across multiple terminals, access schedule management, and event reporting without logging into each device individually. For large deployments across multiple sites, using one of these platforms significantly reduces ongoing management time.

Downloads & Resources

No downloads available for this product.
