Hikvision 8MP Colorvu 3.0 Hybrid CCTV Kit: 2 x Liveguard Gen3 Cameras + 4CH M Series NVR

Model: 2x DS-2CD2387G3-LIS2UY/SL + DS-7604NI-M1

Who This Is For

For property owners and small business operators who need a ready-to-run system covering 2 priority zones with full-colour night vision and active deterrence built in. This kit pairs 2 Hikvision 8MP ColorVu 3.0 LiveGuard Gen3 turret cameras with a 4-channel M Series NVR, targeting driveways, side gates, rear entries, and shopfronts where visible after-dark detail matters and passive recording alone is not enough. The LiveGuard Gen3 cameras add a strobe light and audible alarm that fire on AI-confirmed human or vehicle detections, shifting the system from reactive to active. The 4-channel NVR leaves 2 spare ports, so the system can grow without replacing the recorder. It suits installers doing residential and small commercial jobs who want an AI-capable, full-colour active deterrence kit they can deploy in a single run.

What This System Actually Does

Who Buys This Model

• Residential installers: Running a 2-camera job on a home with a front driveway and rear gate, where the client wants full-colour night footage and an active deterrent without a complex multi-camera specification.
• Small retail and hospitality operators: Covering a shopfront and a rear delivery area with cameras that produce usable colour footage under mixed or low artificial light, and that respond visibly to after-hours detections.
• Property developers and body corporates: Staging an initial 2-camera install at a townhouse or small strata site with the NVR positioned to accept additional cameras as the site develops.
• Owner-operators upgrading from analogue: Replacing a legacy DVR system with a current-generation IP platform that offers 8MP resolution and AI classification without requiring a custom build or separate deterrence devices.

Honest Assessment

This kit does two things well: it delivers genuine full-colour night vision through ColorVu 3.0 technology, and it adds an on-camera active deterrence response through the LiveGuard Gen3 strobe and siren. At 8MP with smart human and vehicle classification, the deterrence trigger is tied to AI-confirmed events rather than raw motion, which keeps false alarms low enough for the feature to remain useful rather than disruptive. The 4-channel NVR adds practical value for sites that may need a 3rd or 4th camera later. What this kit will not do is cover more than 2 zones out of the box - sites needing 4 or more cameras from day one should look at a larger bundle. The white supplemental light used by ColorVu is also visible at night, which suits deterrence applications but is not appropriate for discreet covert monitoring. Available through Security Australia, this kit is best suited to straightforward installs where active deterrence and colour night vision are the primary brief.

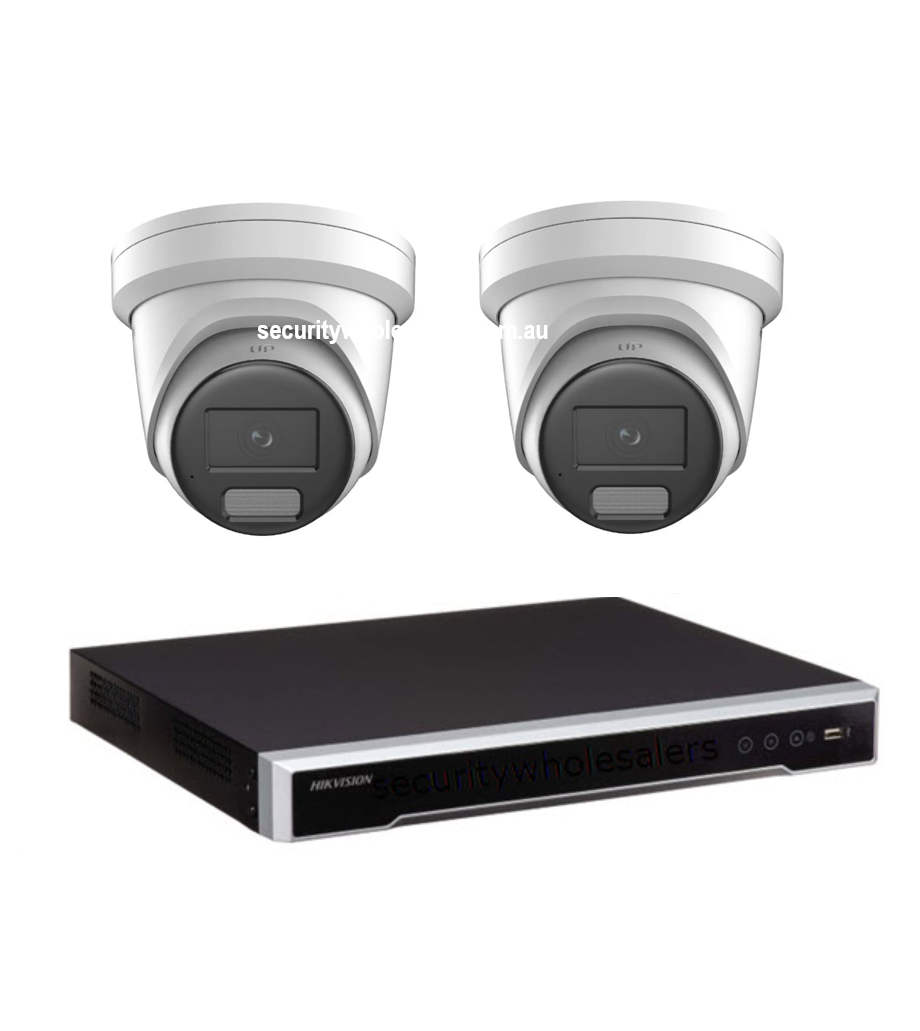

Complete Package Contents

• 2 x Hikvision DS-2CD2387G3-LIS2UY/SL - 8MP ColorVu 3.0 LiveGuard Gen3 turret camera, 2.8mm lens, strobe and audible deterrence, smart hybrid AI detection

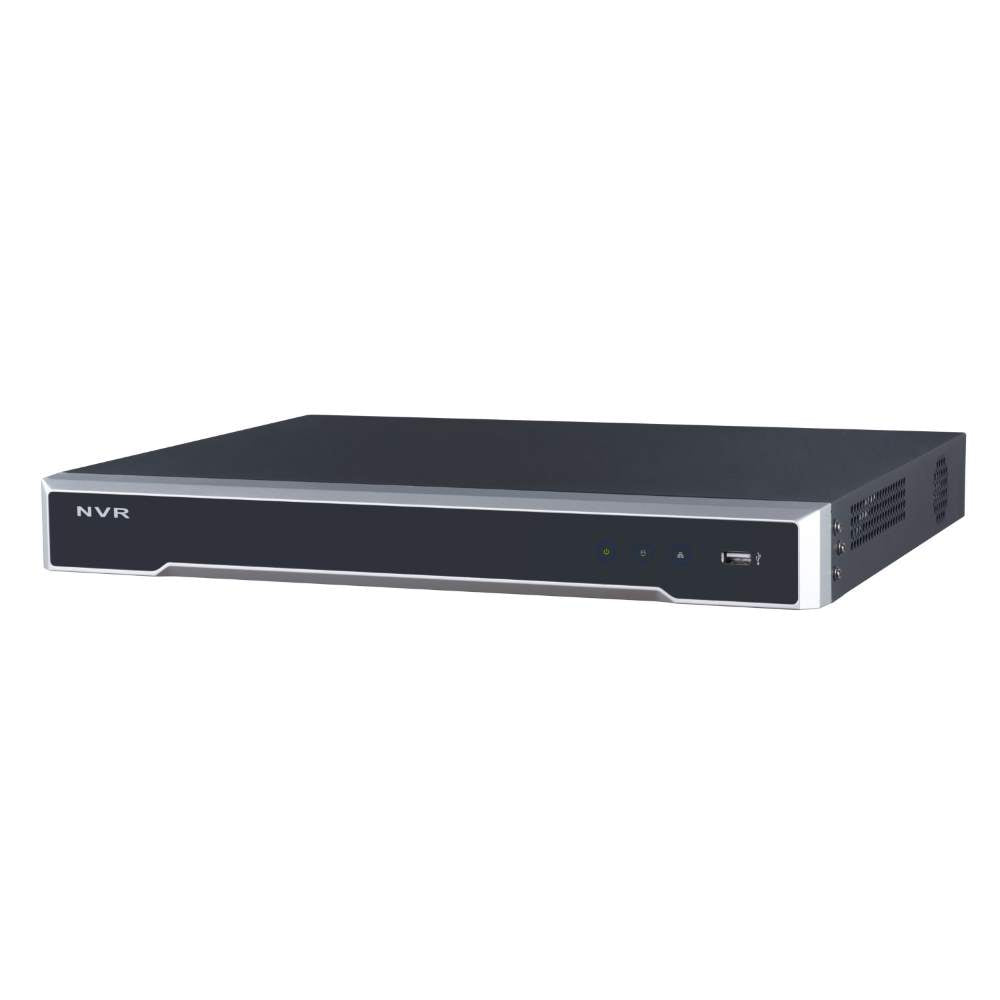

• 1 x Hikvision DS-7604NI-M1 - 4-channel M Series NVR, supports up to 8MP streams, 2 channels remaining for expansion

Before You Buy

Quick Fit Check

• Good match if: You need to cover 2 defined entry points with full-colour night vision and want an active deterrence response that fires automatically on AI-confirmed detections without requiring a separate alarm panel or app interaction.
• Good match if: The site has a known expansion requirement - the 4-channel NVR means a 3rd or 4th camera can be added later without replacing the recorder, protecting the initial investment.
• You may need a different model if: You need to cover 4 or more zones from day one - a 4-camera or 8-camera kit with a higher-channel NVR will be better suited and more cost-effective than expanding this kit with add-on cameras later.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need full-colour night vision with an active deterrence response (strobe and siren) on 2 zones, and want the option to add up to 2 more cameras later without replacing the NVR.
• You may need a different model if: You need to cover 4 or more zones from the outset - a 4-camera or 8-camera kit with a larger NVR will deliver better value and avoid the cost of purchasing add-on cameras to fill the remaining 2 channels.
• Pairs well with: A surveillance-grade SATA hard drive (2TB minimum, 4TB recommended for extended retention at 8MP across 2 channels), and a PoE network switch if cameras are being run from a central comms cabinet rather than direct NVR connections.

Common Questions

1. Does the active deterrence trigger automatically or does someone have to press a button?

   Automatically - no manual input is required. The LiveGuard Gen3 cameras use the onboard smart hybrid AI to classify a detection as a human or vehicle, and when that classification is confirmed the strobe light and audible siren fire directly from the camera. The NVR does not need to be involved and no app action is required, meaning the deterrence response occurs even if no one is watching a live feed.

2. Will this kit work with a hard drive I already have?

   Possibly, but it needs to be checked. The DS-7604NI-M1 NVR uses a standard 3.5-inch SATA interface, so most desktop-format hard drives will physically fit. However, Hikvision publishes a compatibility list for the M Series NVR and surveillance-grade drives (such as those from the WD Purple or Seagate SkyHawk lines) are recommended over standard desktop drives for continuous 24-hour recording reliability. Confirm your drive model against the NVR compatibility list before reusing an existing drive.

3. Does ColorVu 3.0 produce colour footage in total darkness or only under some light?

   Total darkness is supported. ColorVu 3.0 cameras include a built-in white light illuminator that activates in low-light conditions, providing the scene illumination needed for the colour sensor to produce a full-colour image. Unlike traditional IR cameras, the supplemental light is in the visible spectrum - this means the illumination is visible to people in the scene, which reinforces the deterrence function but means these cameras are not suitable for covert monitoring.

4. Can I add more cameras to this system later, and what is the maximum?

   Yes, up to 2 additional cameras. The DS-7604NI-M1 is a 4-channel NVR and this kit connects 2 cameras, leaving 2 ports open. The NVR will accept any Hikvision IP camera up to 8MP on those remaining channels - they do not need to be the same LiveGuard model. If you anticipate needing more than 4 cameras in total, it is more cost-effective to start with an 8-channel NVR kit rather than reach the channel limit and replace the recorder later.

5. Does this kit include PoE, or do the cameras need separate power supplies?

   The DS-7604NI-M1 NVR includes built-in PoE ports, so both cameras are powered over the network cable - no separate power adapters or power points at the camera location are required. A single Cat5e or Cat6 cable from the NVR to each camera carries both data and power, which simplifies the install and reduces cable runs. Confirm the maximum PoE cable run distance (typically 100 metres per run) when planning camera placement.

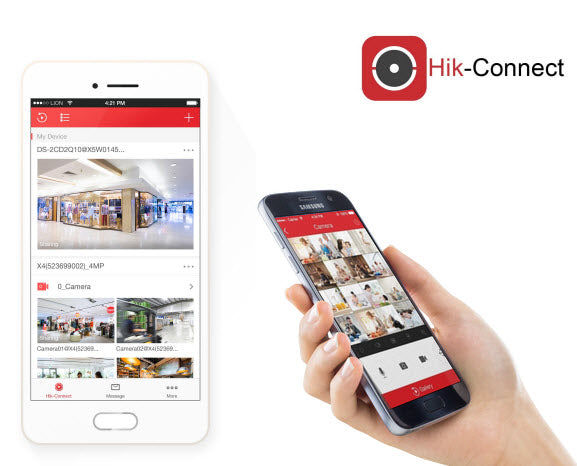

6. Will this system work with Hik-Connect for remote viewing on a phone?

   Yes. The DS-7604NI-M1 NVR supports Hik-Connect, Hikvision's remote viewing platform, available as a free app for iOS and Android. Once the NVR is connected to a network and registered to a Hik-Connect account, live view, event notifications, and recorded footage playback are accessible remotely. AI event alerts - including human and vehicle detections and LiveGuard triggers - are pushed as notifications through the app. For remote access questions specific to network configuration, the team at Security Australia can advise during the sales process.

7. Are the cameras in this kit suitable for outdoor installation?

   Yes, provided the IP rating is confirmed for the installation environment. The DS-2CD2387G3-LIS2UY/SL is designed for outdoor use and carries an IP67 weather resistance rating, meaning it is protected against dust ingress and sustained water jets. It is suitable for eave, soffit, and wall mounting in standard Australian weather conditions. In environments with significant condensation risk or salt air exposure (coastal sites), ensure mounting surfaces are properly sealed and cable entry points are weatherproofed during installation.

Cabling Considerations

• Cable Type: Cat5e minimum, Cat6 recommended for clean signal integrity over longer runs or in environments with electrical interference.
• Max Cable Run: 100 metres per camera from the NVR PoE port to the camera. Runs exceeding this require a PoE extender or an intermediate network switch with PoE capability.
• PoE Notes: The DS-7604NI-M1 provides built-in PoE power to all 4 channels. No separate PoE injectors or power adapters are needed for the 2 included cameras. If adding cameras on the remaining 2 channels, confirm the NVR's total PoE power budget covers all connected cameras simultaneously.
• Wiring Tips: Run cable before mounting camera brackets and leave at least 300mm of slack at the camera end to allow for angle adjustment. Seal cable entry points at the wall or soffit penetration with appropriate weatherproof gland or silicone to prevent moisture tracking along the cable into the building.
