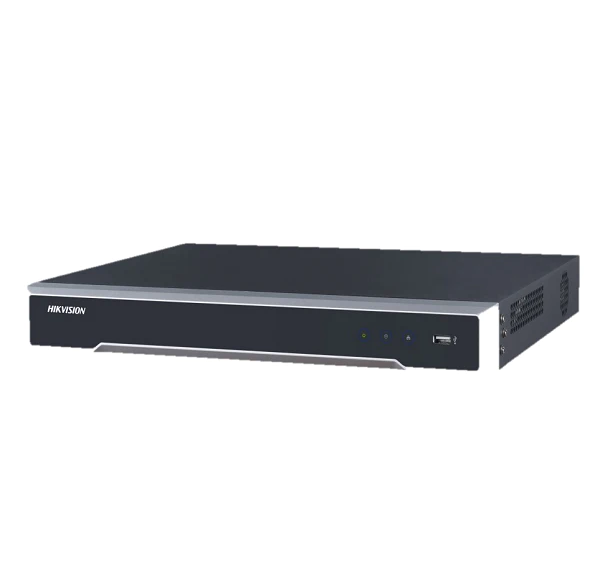

Hikvision DS-7604NI-M1-4P 4ch PoE CCTV NVR 4K - NO HARD DRIVE
This 4-channel NVR is designed for seamless and efficient operation, housing a powerful chipset capable of running the advanced version 4 graphical user interface (GUI) as the I-series. It does not include a hard disk drive (NO HDD). It fully supports a range of advanced features including AcuSense, ColorVu, ANPR, people counting, thermal, and heatmap cameras, aligning it with the capabilities of the broader I-series range of network video recorders.
Features
Code/SKU: DS-7604NI-M1/4P
Quick Specs:
| Video and Audio | |
|---|---|
| IP Video Input | 4-ch, Up to 32 MP resolution, Incoming Bandwidth 40Mbps, Outgoing Bandwidth 80 Mbps |
| HDMI Output | 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60 Hz |
| VGA Output | 1920 × 1080/60 Hz |
| Video Output Mode | HDMI/VGA independent output |
| CVBS Output | NA |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Decoding | |
| Dual-Stream Recording | Support |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Decoding Capability | 4-ch@8 MP (30 fps), 8-ch@4 MP (30 fps), 16-ch@1080p (30 fps) |
| Synchronous Playback | 4-ch |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
| Network | |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| PoE | |
| Interface | 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 60 W |
| Standard | IEEE 802.3 af/at |
| Auxiliary Interface | |
| SATA | 1 SATA interface |
| Capacity | Up to 16 TB capacity for each HDD |
| Alarm In/Out | 4/1 |
| USB Interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 |
| General | |
| Power Supply | 48 VDC, 1.875 A |
| Consumption | ≤ 15 W (without HDD and PoE off) |
| Working Temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 320× 240 × 48 mm (12.4" × 9.4" × 1.9") |
| Weight | ≤ 1.2 kg (without HDD, 2.6 lb.) |
| Certification | |
| CE | EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020 |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hikvision DS-7604NI-M1-4P 4ch PoE CCTV NVR 4K - NO HARD DRIVE
The Hikvision DS-7604NI-M1-4P is a high-performance Network Video Recorder (NVR) engineered to deliver comprehensive surveillance solutions. Supporting up to four IP camera inputs, it decodes 8MP for high-resolution applications, perfect for small to medium-sized businesses.
With advanced video compression formats, it optimizes both storage efficiency and network bandwidth. This NVR features dual stream recording, enhancing flexibility and accessibility during monitoring tasks. Its secure video transmission is bolstered by TLS encryption technology to prevent unauthorized access.
The device boasts independent HDMI and VGA outputs, with HDMI supporting outputs up to 8K resolution. Designed for easy setup and reliability, it includes four PoE network interfaces for seamless power and data transmission to IP cameras. Ideal for those needing a robust security setup, it is a practical choice for both domestic and small commercial use.
Features:
Functions:
Dual Stream Recording:
Provides simultaneous recording capabilities at different resolutions, optimizing bandwidth and storage according to specific channel needs for enhanced flexibility in video management.
Remote Monitoring:
Seamlessly supports remote access through Hik-Connect, allowing users to live view, playback, and configure settings from anywhere, ensuring constant surveillance oversight.
Smart Search:
Integrated smart search feature enhances playback efficiency by quickly locating specific footage based on set parameters, improving response and analysis times significantly.
Video Content Analytics:
Offers sophisticated analytics options including motion detection, line crossing, and intrusion alerts for proactive monitoring, boosting security response capabilities.
Privacy Masking:
Allows customizable privacy zones to exclude specific areas from surveillance, ensuring compliance with regulations while maintaining critical monitoring.
Auto Network Replenishment (ANR):
ANR technology maintains data recording on IP cameras during network disruptions, ensuring no footage loss and continuous surveillance even in connectivity issues.
Simplified Installation:
Utilizing PoE, the NVR streamlines the installation process by providing power and data over a single cable, reducing setup time and infrastructure costs.
Event Notifications:
Sends instant alerts when the system detects predefined security events, enabling swift action and enhancing overall system responsiveness.
Technical Specifications:
| Model | DS-7604NI-M1-4P |
| Camera Inputs | Up to 4-ch IP camera inputs |
| Decoding Capacity | Up to 4-ch @ 8 MP |
| Incoming Bandwidth | Up to 40 Mbps |
| Outgoing Bandwidth | Up to 80 Mbps |
| HDMI Output | Up to 8K resolution |
| VGA Output | Up to 1080p resolution |
| Storage Capacity | 1 SATA interface, compatible with HDDs (No HDD included) |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Operating Temperature | -10°C to +55°C |
| Dimensions | 445 × 400 × 71 mm (17.5" × 15.7" × 2.8") |
| Weight | Less than 2 kg (4.4 lb) without HDD |
