Hikvision 6MP AcuSense DS-2CD2T66G2H-2I Black Bullet 10 Camera Kit with DS-7616NI-M2/16P 16CH PoE 8K NVR, 60m IR, NO HDD INCLUDED

Model: DS-2CD2T66G2H-2I / DS-7616NI-M2/16P-NO-HDD-10-CAM-KIT

Who This Is For

When wide-area outdoor coverage with accurate AI detection is the priority, this 10-camera kit is built for the job. Combining 10 x DS-2CD2T66G2H-2I 6MP AcuSense black bullet cameras with a DS-7616NI-M2/16P 16-channel PoE NVR, it suits commercial properties, industrial yards, warehouses, and medium-sized residential estates where a single integrated system needs to cover long approaches, perimeter fencing, loading areas, and entry points simultaneously. The black bullet housing suits sites that favour a visible, industrial-style deterrent rather than a discreet camera profile. With 60m IR range per camera and AcuSense human and vehicle classification, operators get targeted alerts rather than constant motion-triggered notifications. The 16-channel NVR leaves 6 ports free for future expansion, and the PoE architecture means a single Cat6 cable per camera handles both power and data - no separate power runs required. No HDD is included, giving installers the flexibility to specify drive capacity to match recording requirements.

What This System Actually Does

Who Buys This Model

• Industrial Site Managers: Warehouses, manufacturing yards, and logistics depots that need 60m IR reach to cover long bay approaches and perimeter lines with AI-filtered alerts rather than constant motion noise.
• Commercial Property Installers: Security integrators deploying turnkey systems across retail centres, office parks, or mixed-use developments who need a pre-matched camera-NVR kit with room to expand using the remaining 6 PoE ports.
• Rural and Semi-Rural Property Owners: Acreage properties, hobby farms, and rural businesses where long unlit approaches and wide open areas demand longer IR range and 6MP detail to maintain identification-quality footage.
• Construction Site Supervisors: Temporary or semi-permanent installs where the black bullet form factor provides visible deterrence, PoE simplifies cable routing, and the 16-channel NVR accommodates a growing number of camera positions as the site expands.
• Body Corporate and Estate Managers: Gated communities and residential estates specifying a shared perimeter system where centralised NVR management, AI event filtering, and 6MP detail across 10 positions deliver a professional monitoring baseline.

Honest Assessment

This kit delivers genuine value for outdoor sites that need AI-filtered detection, long IR reach, and room to grow. The combination of AcuSense classification across 10 cameras and the 16-channel NVR means the system produces actionable alerts rather than constant motion noise - a meaningful operational difference on sites with vehicle movement throughout the day and night. The 60m IR range is a confirmed hardware advantage for open-area and perimeter applications where lighting infrastructure is absent. The 6 unused PoE ports are a practical staging benefit for phased deployments. What this kit does not provide: no HDD is included, so storage must be budgeted and specified separately before commissioning. The bullet form factor is not suited to confined indoor environments or locations where a low-profile ceiling mount is required - a dome or turret kit available through Security Australia would be a better fit in those scenarios. Sites needing active deterrence via white light and audio challenges should look at a TiOC-based system instead.

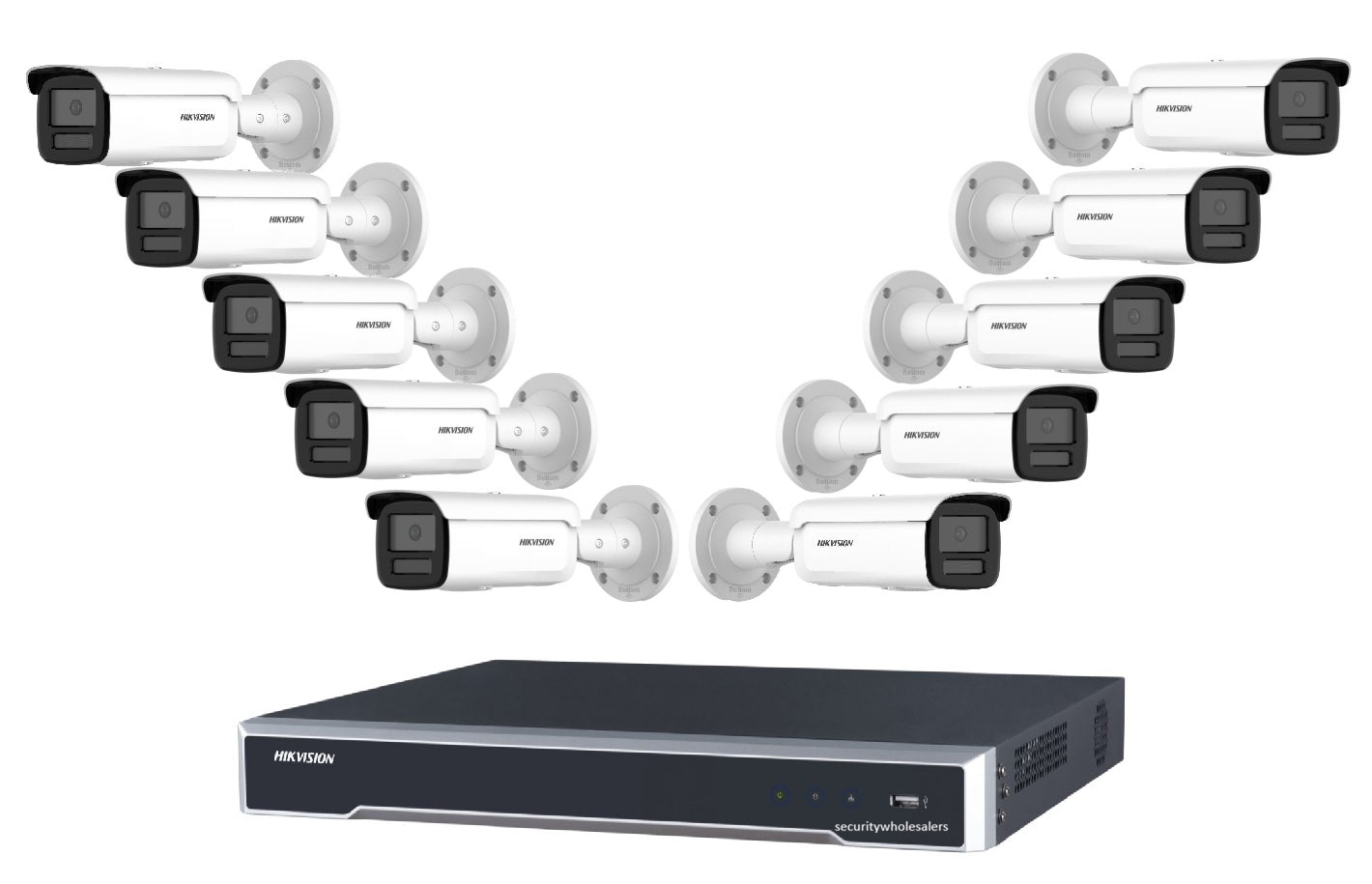

Complete Package Contents

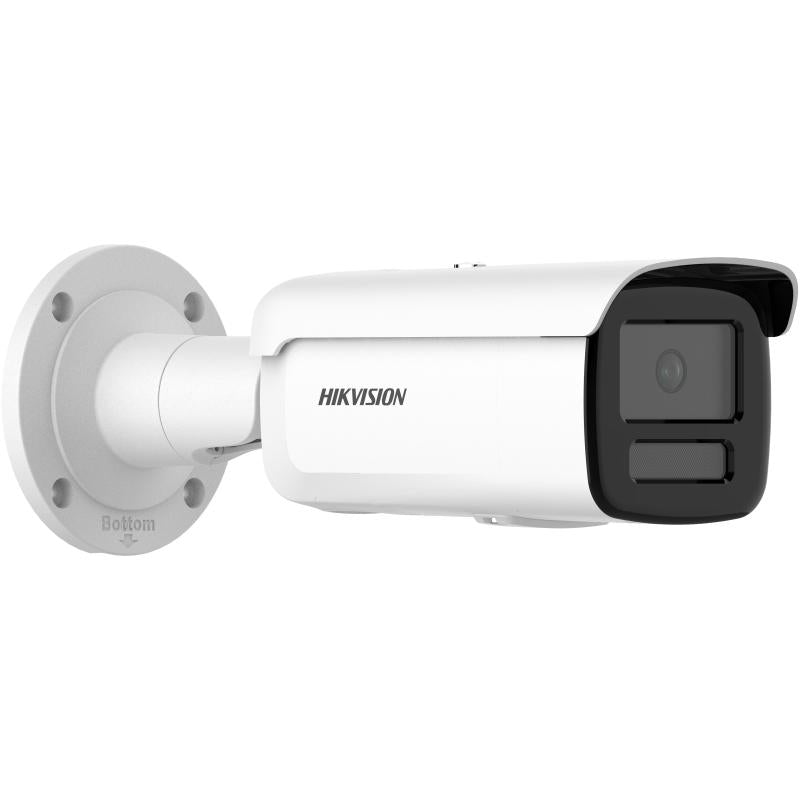

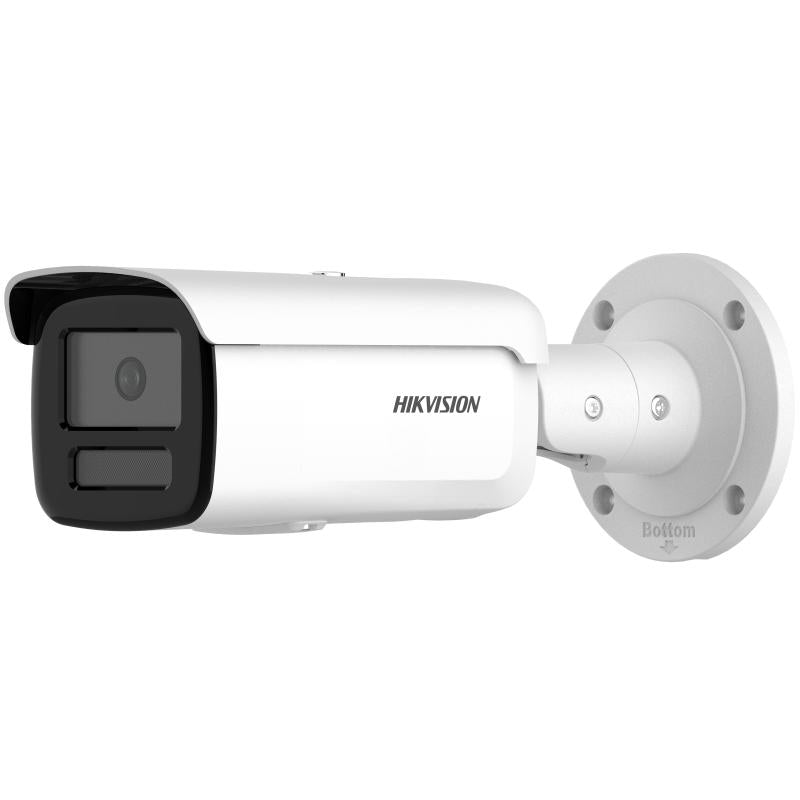

• 10 x Hikvision DS-2CD2T66G2H-2I AcuSense 6MP Black Bullet Camera - 60m IR, H.265+, outdoor IP67 rated

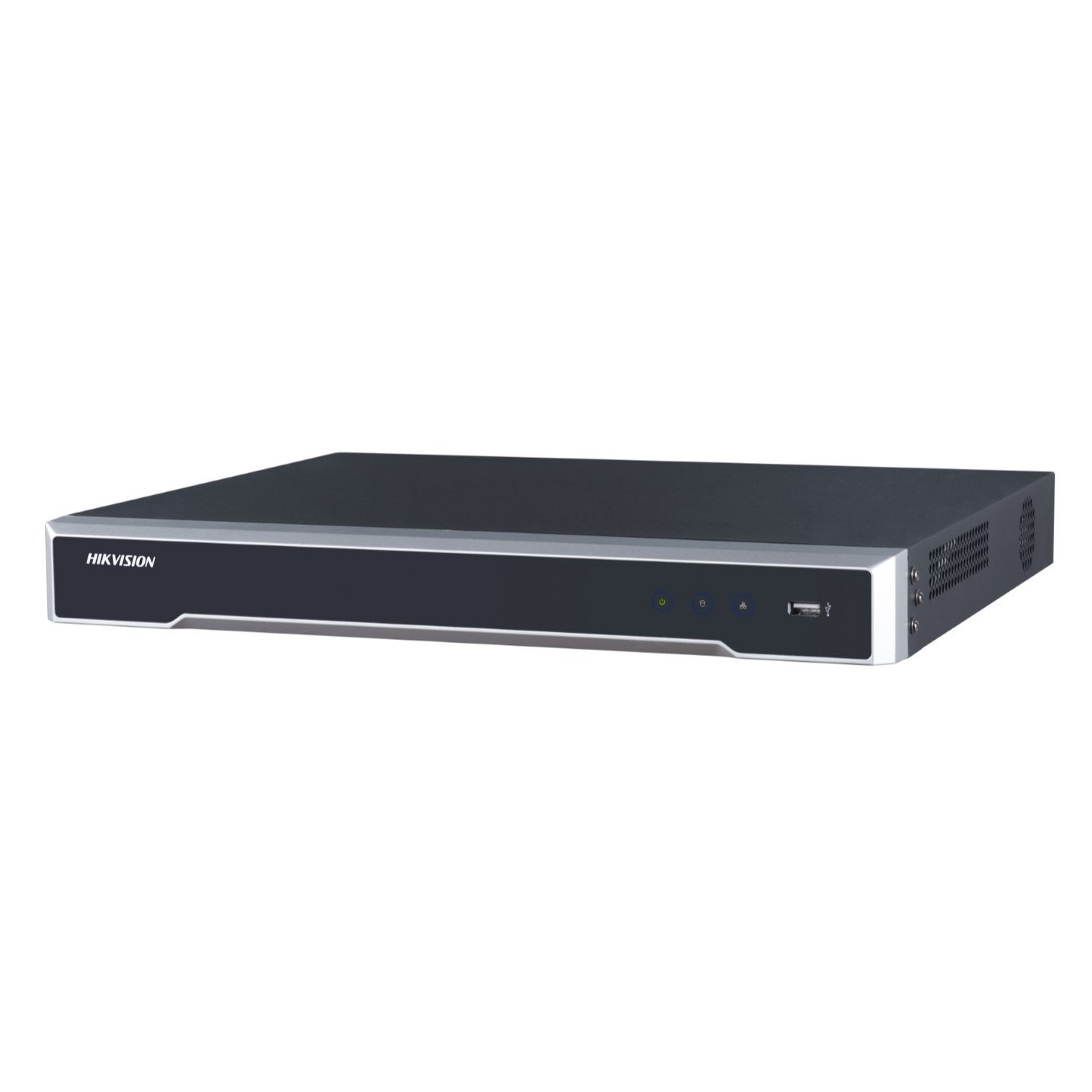

• 1 x Hikvision DS-7616NI-M2/16P 16-Channel PoE NVR - 16 PoE ports, 8K decoding, 2x SATA HDD bays, no HDD included

Before You Buy

Quick Fit Check

• Good match if: You need to cover long outdoor approaches, perimeter lines, or open yards in low-light conditions - the 60m IR range and 6MP resolution on each camera gives you the reach and detail needed without additional lighting infrastructure.
• Good match if: Your site generates high volumes of irrelevant motion alerts and you need AI-based filtering - AcuSense human and vehicle classification on both the cameras and the NVR reduces false alarm fatigue without requiring a third-party analytics platform.
• You may need a different model if: Your primary installation locations are indoor ceilings, retail aisles, or reception areas - a dome or turret camera kit would be a more appropriate form factor for those environments, and other options are available on the site.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 10 cameras with AI-filtered human and vehicle detection, 60m IR reach for unlit outdoor areas, and a 16-channel NVR with expansion capacity - all pre-matched and ready to deploy.
• You may need a different model if: Your primary requirement is active deterrence - strobing white light and audio warnings triggered by AI detection - in which case a TiOC-based kit would be a more appropriate system type for those sites.
• Pairs well with: A surveillance-grade HDD (purchased separately) matched to your desired recording retention, and a PoE-compatible network switch if additional cameras beyond the 16-channel limit are needed in future.

Common Questions

1. Does this kit include a hard drive for recording?

   No. This kit is supplied without a HDD. The DS-7616NI-M2/16P NVR has 2 SATA bays, and you will need to purchase compatible surveillance-grade drives separately before the system can record. The drive capacity you need depends on how many cameras are recording continuously and how many days of footage retention you require - with 10 x 6MP cameras at H.265+ compression, storage consumption is considerably higher than a standard 1080p system, so factor this into your budget before ordering.

2. Will this camera work in complete darkness without any external lighting?

   Yes. Each DS-2CD2T66G2H-2I has built-in IR illuminators rated to 60 metres, so the camera produces a usable greyscale image in zero ambient light conditions without requiring any external lighting. Performance at the full 60m range depends on the target's reflectivity and the absence of IR obstructions. For colour night footage, external lighting or a different camera type with white light capability would be required.

3. How does AcuSense reduce false alarms compared to standard motion detection?

   AcuSense uses deep learning to classify detected objects as humans or vehicles before triggering an alert. Standard motion detection responds to any pixel change in the frame - insects, light shifts, foliage movement - which generates high false alarm volumes outdoors. AcuSense ignores those non-human, non-vehicle triggers and only sends a notification when it classifies the target as a person or a vehicle. The DS-7616NI-M2/16P NVR also supports AcuSense-based smart search, allowing you to filter recorded footage by target type rather than manually scrubbing through recordings.

4. Does the NVR have enough PoE capacity to power all 10 cameras simultaneously?

   Yes, provided the total power draw of the connected cameras stays within the NVR's total PoE budget. The DS-7616NI-M2/16P has 16 PoE ports. When planning your install, account for the fact that IR illuminators draw additional current at night and that cable runs over approximately 80m can affect PoE delivery efficiency. For very long cable runs, verify PoE performance before finalising bracket and conduit positions. Security Australia stocks this kit as a confirmed matched configuration.

5. Can I add more cameras to this system later?

   Yes. The DS-7616NI-M2/16P has 16 PoE ports, and this kit connects 10 cameras - leaving 6 ports available for future expansion. Additional compatible IP cameras can be connected to those remaining ports without replacing the NVR or adding a separate PoE switch. Cameras added must be compatible with the NVR's maximum channel resolution and AI feature support - confirm specifications of any additional cameras before purchasing.

6. Is the DS-2CD2T66G2H-2I weatherproof enough for Australian outdoor conditions?

   Yes. The camera carries an IP67 rating, which means it is fully dust-tight and protected against temporary immersion in water - appropriate for exposed outdoor installations in Australian conditions including heavy rainfall. The bullet housing also provides directional shielding for the lens from direct sun and rain. For coastal installations with high salt air exposure, additional mounting considerations apply, but the IP67 rating covers the core weatherproofing requirement.

7. Does the NVR support remote viewing on a phone or computer?

   Yes. The DS-7616NI-M2/16P supports remote access via Hikvision's iVMS-4200 desktop software and the Hik-Connect mobile application. Remote viewing requires the NVR to be connected to a network with internet access. For stable remote access, a static IP address or DDNS configuration is recommended - dynamic IP environments may require additional router configuration to maintain a reliable remote connection.

Cabling Considerations

• Cable Type: Cat5e minimum, Cat6 recommended for all camera runs. Cat6 provides better headroom for 6MP data throughput and reduces signal degradation on longer runs.
• Max Cable Run: 100m per PoE run from NVR to camera as per IEEE 802.3 standard. Runs approaching or exceeding 80m should be tested under live PoE load before finalising the installation.
• PoE Notes: All 16 ports on the DS-7616NI-M2/16P supply PoE. No separate power injectors or adapters are required for the 10 kit cameras. Ensure total PoE draw across connected cameras does not exceed the NVR's total PoE power budget, particularly when IR illuminators are active at night.
• Wiring Tips: Run cable through conduit wherever it crosses roof spaces, exterior walls, or outdoor spans to protect against UV degradation, rodent damage, and water ingress at entry points. Use outdoor-rated Cat6 with UV-stabilised jacket for any above-ground exterior cable runs that cannot be enclosed in conduit. Seal all external wall penetrations with appropriate weatherproof compound to prevent water tracking along the cable into the wall cavity.
