Hikvision 6MP 4CH CCTV Kit: 4x Black Liveguard Acusense Turret Cameras with Strobe, Audio, Smart Light + 4CH PoE NVR (DS-2CD2366G2H-IS2U-SL-BLK, DS-7604NI-M1-4P)

Model: DS-2CD2366G2H-IS2U-SL-BLK / DS-7604NI-M1-4P

Who This Is For

When active deterrence across a small property needs to be operational from day one, this kit is built around that brief. The Hikvision 6MP 4-Channel Liveguard AcuSense Kit pairs 4 black DS-2CD2366G2H-IS2U-SL turret cameras with an integrated 4-channel PoE NVR, delivering a plug-and-play system that goes beyond passive recording. Each camera carries a built-in strobe light and two-way audio - triggered automatically when AcuSense AI classifies a confirmed human or vehicle intrusion, not a tree or passing car. The black housing makes these cameras a strong fit for properties where aesthetics matter: residential builds, small commercial premises, and rental properties where the camera needs to blend into a modern facade while still functioning as a visible, active deterrent. A single Cat5e or Cat6 cable per camera handles both power and video, keeping the install clean and straightforward.

What This System Actually Does

Who Buys This Model

• Residential builders and custom home clients: The black housing suits contemporary builds with dark rooflines or timber cladding where a white camera would look out of place. Active deterrence without compromising the facade.
• Small business owners wanting active deterrence: Retail carparks, small warehouses, and trade premises where the strobe and audio features are expected to discourage after-hours trespassers before damage occurs - not just document it afterwards.
• Installers completing fast residential or light-commercial jobs: The 4-channel PoE NVR eliminates a separate switch from the equipment list. All 4 cameras wire directly back to one box, reducing installation time and cable runs.
• Property investors and managers with rental assets: A complete kit means consistent hardware across multiple properties, easier spares management, and a proven system that does not require sourcing components individually from different suppliers.

Honest Assessment

This kit does active deterrence well within a compact 4-camera footprint. AcuSense classification reduces nuisance alerts to a practical minimum, the strobe response is automatic rather than requiring manual intervention, and 6MP resolution gives footage that holds up under digital zoom for face and vehicle plate detail at entry distances. The black housing variant adds genuine value for modern builds where aesthetics are part of the brief. Two-way audio per camera is a meaningful feature, not a checkbox - it works through the Hik-Connect app without additional hardware. Where this kit reaches its limits: 4 channels will not cover a site with more than 4 coverage points, and the system lacks thermal or radar capability for perimeter detection across large open areas. Properties requiring long-range deterrence or wide-area coverage would be better served by a higher-channel NVR system or a kit that includes bullet-format cameras. The full range is available through Security Australia for comparison before purchase.

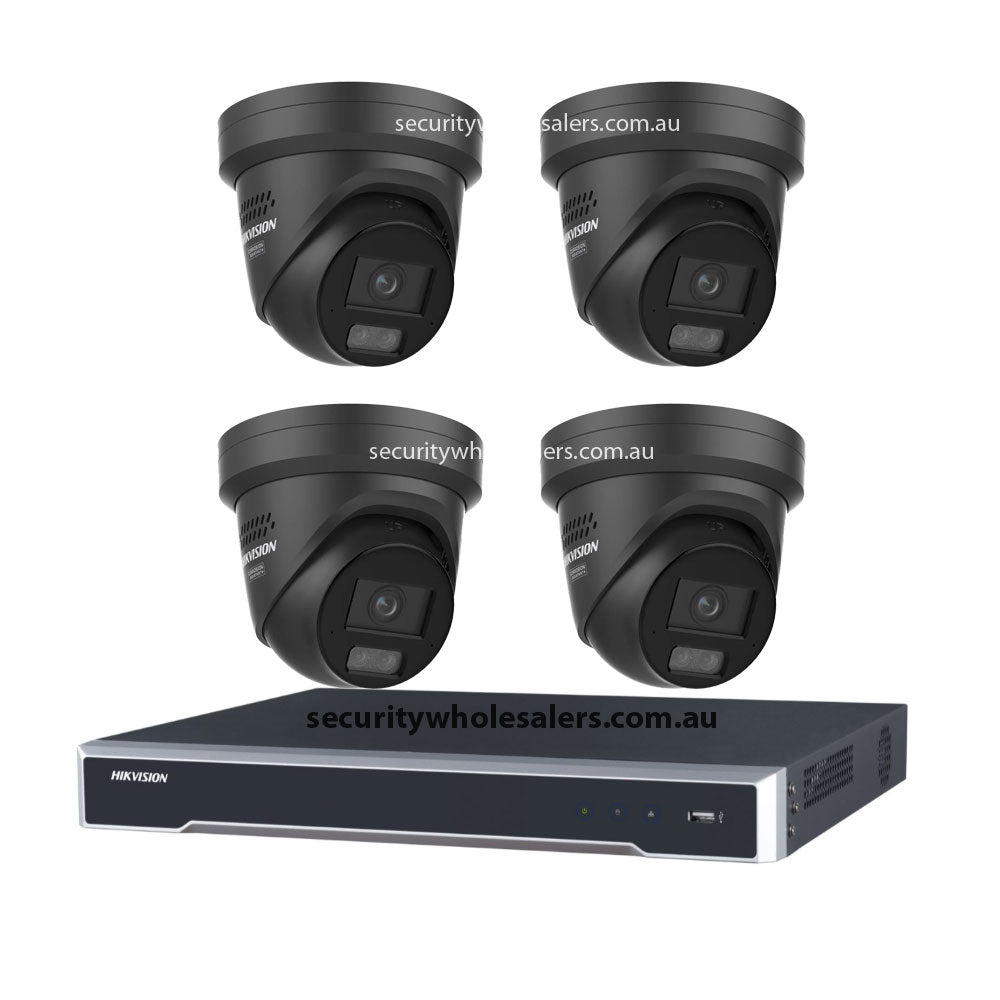

Complete Package Contents

• 4 x Hikvision DS-2CD2366G2H-IS2U-SL-BLK - 6MP AcuSense Liveguard Turret Camera, Black, Strobe, Two-Way Audio, Smart Light, IP67
• 1 x Hikvision DS-7604NI-M1-4P - 4-Channel PoE NVR, 4 Built-In PoE Ports, H.265+, HDMI/VGA Output

Before You Buy

Quick Fit Check

• Good match if: You are covering 4 specific entry points - front door, driveway, side gate, and backyard - and want each camera to actively respond with strobe and audio when AcuSense confirms a human or vehicle, not just record passively.
• Good match if: The property has a dark or contemporary exterior and a standard white camera housing would look out of place - the black variant integrates cleanly without a paint job or custom housing.
• You may need a different model if: Your site has more than 4 coverage zones, long perimeter fence lines, or requires optical zoom for monitoring approaches beyond 30-40 metres - an 8-channel kit with PTZ capability or long-range bullet cameras would serve that requirement better.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need active deterrence with AI-filtered strobe and two-way audio across up to 4 positions, and the installation site has a dark or contemporary exterior where the black housing variant is the right aesthetic fit.
• You may need a different model if: The site requires more than 4 camera positions, long-range coverage of approaches beyond 40 metres, or optical zoom capability - an 8-channel kit or a system incorporating PTZ cameras would be more appropriate for those requirements.
• Pairs well with: A surveillance-grade 3.5-inch internal hard drive (4TB minimum recommended for 6MP 4-camera continuous recording) and a UPS battery backup unit to keep the NVR running through power interruptions.

Common Questions

1. Does the strobe light fire on every motion event or only on confirmed people and vehicles?

   Only on confirmed human or vehicle classifications. AcuSense AI processes each detection and the strobe trigger only activates when the camera identifies a person or vehicle as the source of motion - not animals, blowing trees, headlight wash, or insects near the lens. This is the core difference between AcuSense cameras and standard motion-detection models, and it directly determines how frequently the strobe fires in a real installation.

2. Will the two-way audio work remotely through my phone, or does it only work on the local network?

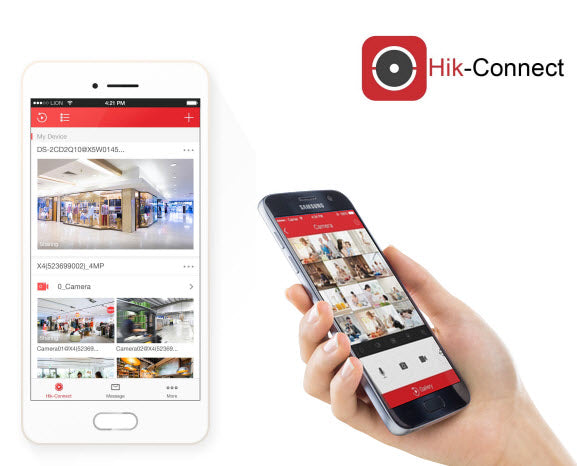

   Yes, remotely. The Hik-Connect app allows live two-way audio from any internet-connected device - you can listen through the camera microphone and speak through the camera speaker whether you are in the next room or interstate. Remote audio access requires the NVR to be connected to your network and a Hik-Connect account configured during setup.

3. Does this kit record in colour at night or does it switch to black-and-white infrared?

   Full colour at night. The DS-2CD2366G2H-IS2U-SL uses a smart supplemental white light rather than infrared illumination. In low-light conditions the camera activates this light to maintain colour output - clothing colours, vehicle colours, and skin tones are all visible in recorded footage, which is meaningfully more useful for identification than greyscale IR imagery.

4. What hard drive do I need, and is it included?

   No HDD is included. You need to purchase and fit a surveillance-grade 3.5-inch SATA hard drive separately before the NVR can record. Hikvision and Seagate SkyHawk or Western Digital Purple drives are the standard recommendation for NVR use - consumer desktop drives are not rated for the continuous read/write cycles a recording NVR generates. At 6MP with 4 cameras on H.265+ compression, a 4TB drive provides approximately 7-10 days of continuous recording depending on scene activity.

5. How far can I run the Cat cable from each camera back to the NVR?

   Up to 100 metres per cable run using Cat5e or Cat6. This is the standard PoE Ethernet limit and applies to each camera individually - so a camera 80 metres from the NVR location is well within spec. If your layout requires runs beyond 100 metres, a PoE extender or a separate PoE switch placed mid-run can extend this, though that adds complexity outside the base kit.

6. Can I expand the system to more than 4 cameras later?

   Not on this NVR. The DS-7604NI-M1-4P is a 4-channel unit with 4 PoE ports and no additional channel licensing available. If you anticipate needing more than 4 cameras within 12-24 months, it is worth considering an 8-channel NVR kit from the outset rather than replacing the NVR later. The camera model itself is compatible with higher-channel Hikvision NVRs if you choose to upgrade the recorder separately. The full range of expandable systems is available through Security Australia.

7. Is the black housing just cosmetic, or does it affect the camera's optical performance?

   Purely cosmetic. The BLK suffix on the DS-2CD2366G2H-IS2U-SL-BLK refers only to the housing colour - the sensor, lens, AI processing, strobe, audio components, and IP67 weatherproofing are identical to the white variant. There is no optical or functional difference between the two colour options.

Downloads & Resources

No downloads available for this product.
