Hikvision 6MP 4CH CCTV Kit: 2x Turret Cameras with AcuSense + 4CH PoE NVR (DS-2CD2366G2H-IU, DS-7604NI-I1-4P without HDD)

Model: 2x DS-2CD2366G2H-IU / DS-7604NI-I1-4P

Who This Is For

Property managers specifying a compact, AI-capable CCTV system for small commercial premises, residential driveways, or entry points will find this Hikvision 6MP 4-channel kit a well-matched starting point. The bundle pairs 2 of the DS-2CD2366G2H-IU turret cameras - 6MP AcuSense models with a built-in microphone - with the DS-7604NI-I1-4P 4-channel PoE NVR, delivered without a hard drive so buyers can select storage to suit their retention requirements. The NVR's built-in PoE ports mean both cameras run on a single Cat5e or Cat6 cable each, with no separate injectors or switches needed. With 2 remaining NVR channels free, the system is straightforward to expand to 4 cameras as coverage needs grow. This kit suits small retail tenancies, home garages, childcare entry zones, and strata-managed buildings where verified human and vehicle detection is a priority over basic motion alerts.

What This Kit Actually Does

Who Buys This Model

• Small Retail Operators: Shop owners covering a front entrance and rear access door who want AI-filtered alerts rather than constant motion notifications from foot traffic on the street.
• Residential Installers: Electricians and security techs setting up a first-time system on a home with a driveway and front door to monitor, where PoE simplicity and a tidy NVR footprint matter.
• Strata and Body Corporate Managers: Those specifying a verifiable, Hikvision-warranted system for a building lobby and car park entry, with the option to add cameras to unused NVR channels as the building committee approves expansion.
• Childcare and Allied Health Facilities: Operators needing 6MP detail and audio recording at entry and exit points for duty-of-care documentation, in a turret form factor that suits eave and soffit mounting above doors.

Honest Assessment

This kit does two things well: it removes the guesswork from a starter system by pairing AcuSense cameras with a matched PoE NVR, and it gives buyers room to grow with 2 open channels from day one. The 6MP resolution on the DS-2CD2366G2H-IU cameras is a meaningful step up for entry-point coverage where face and plate detail during footage review genuinely matters. The built-in microphone on each camera adds audio context without additional hardware. Where this kit has limits: it ships without a hard drive, so storage planning is the buyer's responsibility before the system goes live. With only 4 channels maximum, sites needing 6 or more camera positions will outgrow this NVR quickly - a higher-channel NVR kit is the more appropriate choice in that case. For installations where 2 cameras cover the requirement now and possible expansion to 4 is the realistic ceiling, this system available through Security Australia is a straightforward, well-matched bundle.

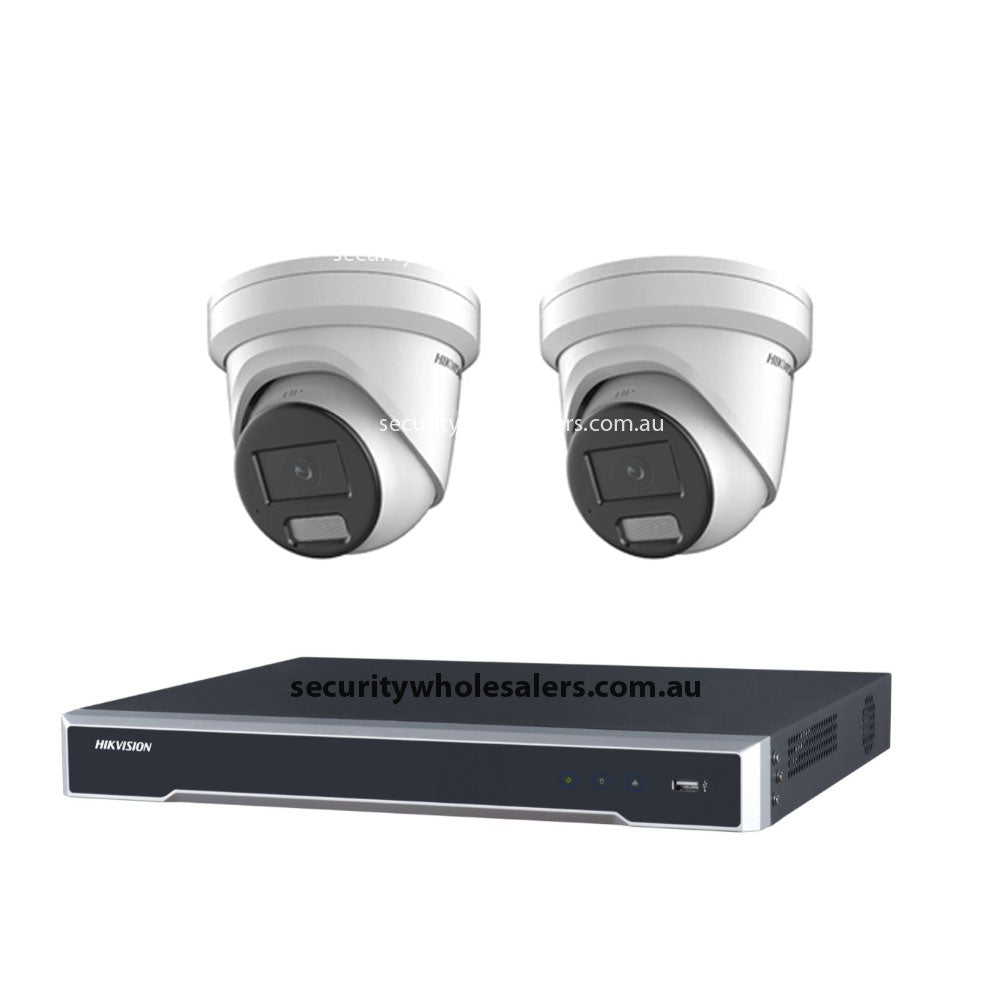

Complete Package Contents

• 2 x Hikvision DS-2CD2366G2H-IU - 6MP AcuSense Hybrid Light turret camera, built-in microphone
• 1 x Hikvision DS-7604NI-I1-4P - 4-channel PoE NVR, 1x HDD bay, no HDD included

Before You Buy

Quick Fit Check

• Good match if: You need to cover 2 fixed points now - such as a driveway and a front door - with 6MP AcuSense cameras, and want the option to add up to 2 more cameras to the same NVR later without any additional infrastructure.
• Good match if: Your installation runs structured cabling from a central NVR location and you want to avoid a separate PoE switch entirely - the NVR's 4 built-in PoE ports handle both cameras directly.
• You may need a different model if: Your site requires more than 4 camera positions now or in the near future - a higher-channel NVR kit (8-channel or 16-channel) will serve the site without requiring an NVR replacement down the track. Security Australia stocks expanded-channel Hikvision kits for larger coverage requirements.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a complete, matched 6MP AcuSense system with built-in PoE for 2 camera positions now, with capacity to grow to 4 on the same NVR - no additional switching hardware required.
• You may need a different model if: Your site requires 5 or more camera positions - an 8-channel or 16-channel PoE NVR kit will serve the site without forcing an NVR upgrade shortly after installation.
• Pairs well with: A surveillance-grade SATA hard drive (2TB to 4TB) to complete the system, and a compatible mounting bracket or junction box if surface conduit is being used at camera locations.

Common Questions

1. Does this kit include a hard drive?

   No. The DS-7604NI-I1-4P NVR includes 1 internal SATA HDD bay but ships without a hard drive. You will need to add a surveillance-rated SATA drive before the system can record. For 2 cameras at 6MP recording continuously, a 2TB to 4TB drive covers typical retention requirements of 7 to 30 days depending on motion-triggered versus continuous recording settings.

2. Will this camera system work with my existing PoE switch, or does it need the NVR's built-in PoE?

   Yes, the cameras can operate through a separate PoE switch. The DS-2CD2366G2H-IU cameras are standard PoE (IEEE 802.3af/at) devices and will power up from any compatible PoE switch or injector. However, connecting them directly to the DS-7604NI-I1-4P's built-in PoE ports is the simpler and more cost-effective approach for most installations, as it eliminates the need for additional switching hardware.

3. Does AcuSense actually reduce false alarms compared to standard motion detection?

   Yes, meaningfully so in outdoor environments. AcuSense on the DS-2CD2366G2H-IU uses deep learning to classify targets as human or vehicle before triggering an alert. In practice this filters out motion from trees, animals, rain, and headlights that would trigger a standard pixel-based motion zone. The result is fewer notifications and a higher proportion of alerts that correspond to an actual person or vehicle entering the monitored area.

4. Can I add more cameras to this NVR later?

   Yes. The DS-7604NI-I1-4P has 4 channels and 4 PoE ports. This kit uses 2 of them, leaving 2 ports available for additional cameras. Any Hikvision IP camera compatible with the NVR can be added to those spare channels. No firmware changes or NVR replacement are required - connect the camera via Cat5e or Cat6 to the spare PoE port and the NVR will detect it during setup.

5. Do the cameras in this kit record audio?

   Yes. The DS-2CD2366G2H-IU cameras include a built-in microphone (confirmed by the IU suffix in the model number). Audio is captured at each camera and recorded alongside video on the NVR. This is relevant for sites where ambient sound context is useful for incident review - reception areas, entry points, or any zone where verbal interactions may be relevant. Note that audio recording laws vary by state in Australia; confirm compliance with local regulations before enabling audio recording in shared or public spaces.

6. Is this kit suitable for outdoor installation?

   Yes, provided the cameras are positioned under an eave or soffit. The DS-2CD2366G2H-IU is designed for outdoor use. For confirmation of the specific IP ingress rating and whether direct rain exposure is supported for your intended mounting position, refer to the Hikvision datasheet for this model, which is available through Security Australia or the Hikvision Australia product page. Turret cameras in general perform well under eave and soffit mounts where the housing is shielded from direct downward rainfall.

Cabling Considerations

• Cable Type: Cat5e or Cat6 solid-core, preferably shielded (FTP/STP) for outdoor runs or runs near electrical conduit.
• Max Cable Run: 100 metres per camera from the NVR PoE port. Beyond this, use a PoE extender rated for IEEE 802.3af/at.
• PoE Notes: The DS-7604NI-I1-4P has a shared total PoE budget across all 4 ports. Running 2 cameras uses a fraction of the available budget, leaving ample headroom when the remaining 2 channels are populated.
• Wiring Tips: Terminate cables with RJ45 connectors rated for outdoor or direct-burial use if any portion of the run is exposed. For wall-entry penetrations, seal with silicone to prevent moisture ingress. Label cables at both ends during installation - it simplifies camera identification when the system is expanded later.
