Hikvision 10 Camera 8MP AcuSense Security Kit with DS-7616NI-M2/16P 16CH 16 PoE 8K NVR, 10x DS-2CD2186G2H-ISU Fixed Turret Cameras, Built-In Microphone, No HDD Included

Model: DS-2CD2186G2H-ISU / DS-7616NI-M2/16P-NOHDD

Who This Is For

When covering a large residential property, commercial premises, or multi-tenancy site without running separate power to every camera location is the priority, this Hikvision 10 camera 8MP AcuSense kit is built for that brief. The bundle pairs 10 DS-2CD2186G2H-ISU fixed turret cameras - each delivering 8MP resolution with AcuSense human and vehicle classification - with a DS-7616NI-M2/16P 16-channel, 16-port PoE NVR capable of 8K display output. Every camera draws power directly from the NVR over a single Cat5e or Cat6 run, keeping installation clean and cabling costs predictable. With 6 spare NVR channels available from the outset, this kit suits buyers who want to start with 10 cameras and expand the system later without replacing any core hardware. No HDD is included, allowing storage to be sized to suit the recording schedule and retention requirements of each individual site.

What This System Actually Does

Who Buys This Model

• Residential Installers on Large Homes: Properties with 4 or more external zones benefit from 10 camera positions at 8MP, each powered from a single NVR location without separate electrician involvement for power points at each camera.
• Small Business Owners Handling Their Own Install: Retail premises, warehouses, and workshops where the owner wants AcuSense alert filtering to avoid constant false notifications during business hours, particularly from vehicle traffic near the entry.
• Commercial Installers Spec-ing Multi-Zone Sites: Sites with separate buildings, yards, and access points where a 16-channel PoE NVR gives the capacity to cover all current positions plus planned additions in a single rack location.
• Strata and Property Managers: Apartment complexes and commercial strata properties where audio recording at camera positions is a requirement for incident documentation and the built-in microphone on each turret removes the need for separate audio hardware.
• Buyers Choosing Their Own Storage: Sites where retention requirements vary - a week's rolling footage versus 30 days - and selecting a specific HDD capacity at purchase makes more sense than accepting a bundled drive that may be undersized for the recording schedule.

Honest Assessment

This kit does several things well. The combination of 8MP resolution and AcuSense classification across all 10 cameras means both image quality and alert quality are consistent across every position - you are not mixing camera tiers on one NVR. The 16-port PoE NVR simplifies installation considerably on multi-zone sites, and the 6 spare channels give genuine expansion headroom without requiring a recorder upgrade. Audio at every camera position, included by default, is a genuine advantage over kits that treat microphones as an optional extra. What this kit will not do: it does not include a hard drive, so storage must be budgeted separately before the system can record. If your site needs active deterrence with strobe and audio warnings triggered on detection, a TiOC camera variant would be more suitable. If the installation spans very long cable runs beyond 100 metres, an intermediate switch will be required. This kit is supplied by Security Australia and is suited to buyers who want a scalable, capable starting point at 10 cameras with room to grow.

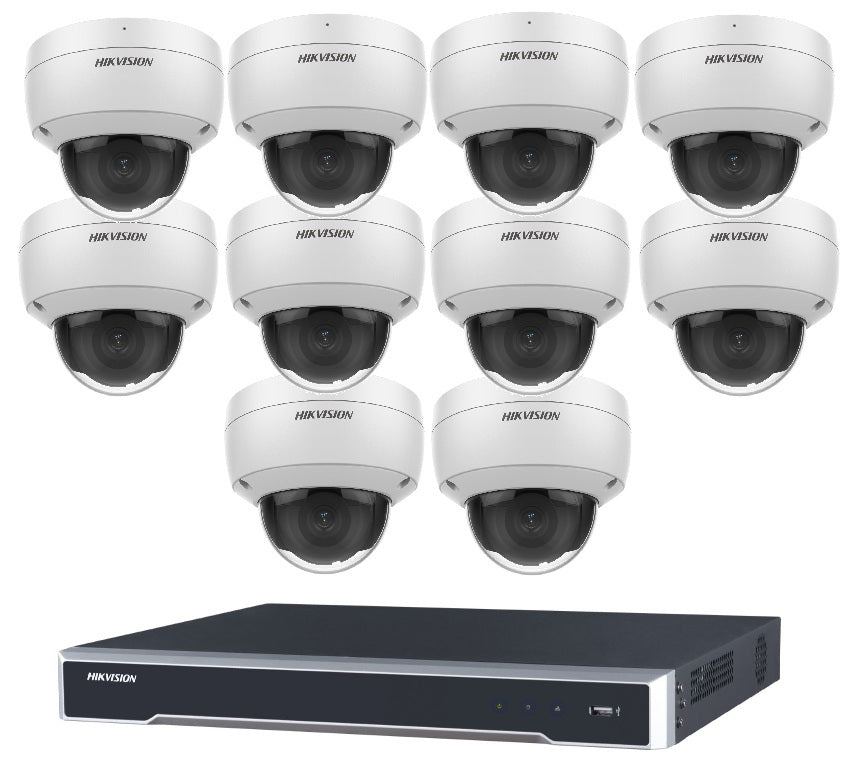

Complete Package Contents

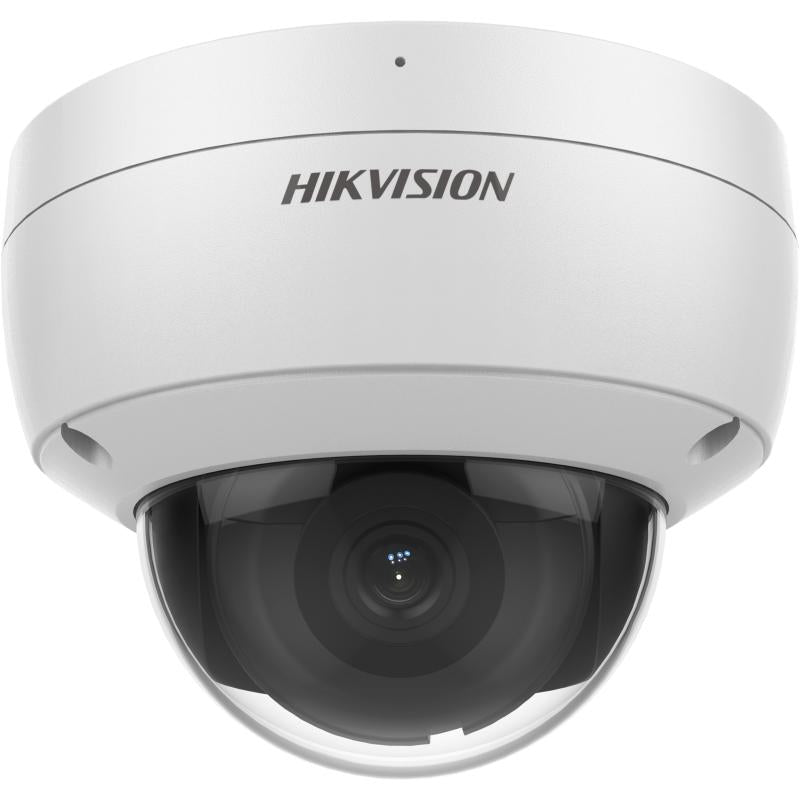

• 10 x Hikvision DS-2CD2186G2H-ISU - 8MP AcuSense Fixed Turret Camera, Built-In Microphone, PoE

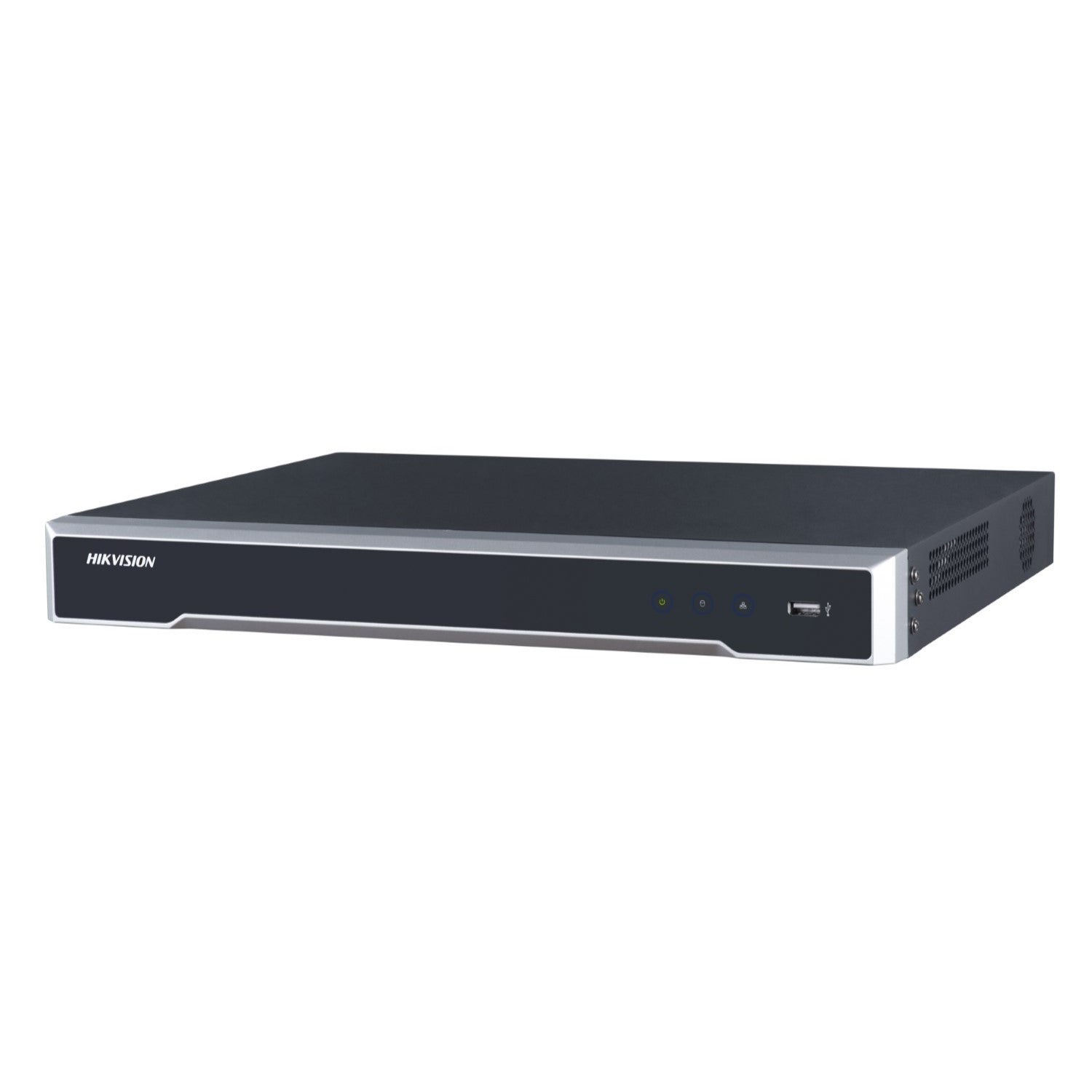

• 1 x Hikvision DS-7616NI-M2/16P - 16-Channel 16-Port PoE NVR, 8K Display Output, No HDD

Before You Buy

Quick Fit Check

• Good match if: You need to cover 10 camera positions across a residential or commercial site with a single PoE NVR, keeping all cabling back to one central location and leaving capacity to add up to 6 more cameras later.
• Good match if: AcuSense alert filtering is a specific requirement - you want push notifications for confirmed human and vehicle detections only, without sorting through constant false triggers from environmental motion.
• You may need a different model if: Your site requires active deterrence at detection points - a kit built around TiOC cameras with on-camera strobe and audio warnings would be more appropriate for that use case. Browse the Hikvision TiOC kits range on securityaustralia.com.au for alternatives.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 10 camera positions at 8MP with AcuSense classification, all powered from one 16-port PoE NVR, and want 6 spare channels available for site expansion without replacing the recorder.
• You may need a different model if: Active deterrence at detection points is a requirement - a kit based on TiOC cameras with on-camera strobe lighting and audio warnings addresses that use case more directly than a standard AcuSense turret.
• Pairs well with: A surveillance-grade hard drive (1 or 2 SATA drives up to the NVR's supported capacity), a UPS for power continuity at the NVR location, and Cat6 cabling for all camera runs.

Common Questions

1. Does this kit include a hard drive?

   No. This kit ships without a HDD. The DS-7616NI-M2/16P NVR has 2 SATA bays and you will need to add at least one surveillance-grade hard drive before the system can record. The right drive size depends on how many cameras are set to record, whether recording is continuous or motion-triggered, and how many days of footage you need to retain. At 8MP across 10 cameras with H.265+ compression on motion-triggered recording, a 6TB or 8TB drive is a practical starting point for most sites.

2. Will this camera system work for a large home with multiple outdoor zones?

   Yes. 10 camera positions at 8MP is well suited to larger residential properties with separate zones - front entry, driveway, rear yard, side gates, and outbuildings can all be covered from a single NVR location. AcuSense on each DS-2CD2186G2H-ISU camera reduces overnight false alerts from animals and environmental movement, which is a practical advantage on properties surrounded by trees or near wildlife corridors.

3. Can I add more cameras to this system later?

   Yes. The DS-7616NI-M2/16P NVR has 16 channels and 16 PoE ports, and this kit uses 10 of them. The remaining 6 channels and PoE ports are available for additional compatible Hikvision IP cameras. No licence upgrade or NVR replacement is required for additions up to the 16-camera limit. Cameras must be connected within the 100-metre PoE cable run limit per port, or via an intermediate PoE switch for longer runs.

4. What does AcuSense actually do differently from standard motion detection?

   AcuSense uses AI on the camera to classify detected motion by target type before triggering an alert. Standard motion detection triggers on any pixel change - a passing car, a blowing branch, rain, or an animal all generate the same event. AcuSense identifies whether the detected object is a person or a vehicle, and only sends a push notification for those classifications. For a 10-camera site, the reduction in irrelevant alerts is significant, particularly on cameras covering outdoor areas with natural movement.

5. Does the built-in microphone record audio to the NVR?

   Yes. Each DS-2CD2186G2H-ISU has a built-in microphone, and audio is recorded to the NVR alongside the video stream. Playback includes audio from the camera position. This is relevant for premises where audio documentation of incidents is required, or where verifying what was said during a confrontation is part of the evidence review process. Note that recording audio in some states may require signage - check applicable state regulations before deployment.

6. Will this kit work with my existing Hikvision cameras or NVR?

   Partially. The DS-7616NI-M2/16P NVR is compatible with a broad range of Hikvision IP cameras, and existing Hikvision cameras can generally be added to the spare channels. However, AcuSense features require both the camera and NVR to support that capability - mixing in non-AcuSense cameras means those positions will use standard motion detection only. If you are looking to integrate this kit into an existing setup, the team at Security Australia can assist with compatibility checks before purchase.

7. What cabling do I need for the cameras?

   Cat5e or Cat6 Ethernet cable is required for each camera. Each cable run carries both power (via PoE from the NVR) and data, so no separate power cabling is needed at the camera end. The maximum supported run per PoE port is 100 metres. For camera positions beyond 100 metres from the NVR, an intermediate PoE switch will be needed. All 10 cameras in this kit connect directly to the NVR's built-in PoE ports - no separate switch is required within the 100-metre limit.

Cabling Considerations

• Cable Type: Cat5e minimum, Cat6 recommended for all camera runs.
• Max Cable Run: 100 metres per PoE port from the NVR to the camera. Beyond 100m, install an intermediate PoE switch.
• PoE Notes: All 16 PoE ports are built into the DS-7616NI-M2/16P NVR. No external PoE switch is required for the 10 cameras in this kit, provided all runs are within 100 metres.
• Wiring Tips: Run a dedicated cable from each camera position back to the NVR location. Avoid joining or extending Cat cable mid-run with patch leads - a single continuous run per camera is the correct approach for reliable PoE power delivery at the camera end.
