Hikvision 10 Camera 8MP AcuSense Active Deterrence Turret Kit with DS-7616NI-M2/16P 16CH PoE 8K NVR, 2.8mm Lens, IR 30m - no HDD included

Model: DS-2CD2386G2H-IS2U/SL / DS-7616NI-M2/16P - 10 Camera Kit (No HDD)

Who This Is For

For installers and property owners who need a complete active deterrence system that goes beyond recording and actually intervenes when a human or vehicle is detected. This 10-camera kit pairs Hikvision's DS-2CD2386G2H-IS2U/SL 8MP AcuSense turret cameras with the DS-7616NI-M2/16P 16-channel PoE NVR, delivering a fully matched system ready to deploy across medium to large residential properties, commercial premises, warehouses, and multi-building sites. The cameras carry AcuSense AI classification to separate people and vehicles from irrelevant motion triggers, then fire a visible strobe and audible warning on confirmed detection. The 16-channel NVR with 16 onboard PoE ports means all 10 cameras run from a single switch-free connection point, leaving 6 channels free for future expansion. No HDD is included, so storage capacity is selected to match your retention requirements at installation.

What This System Actually Does

Who Buys This Model

• Security Installers: Specifying a complete, pre-matched AcuSense active deterrence kit for medium to large commercial fit-outs where the client wants a system that reacts to intrusions, not just records them.
• Warehouse and Industrial Site Operators: Covering large external perimeters, loading dock approaches, and yard areas where unattended after-hours intrusions are the primary risk and a visible strobe response is a practical first line of defence.
• Large Residential Property Owners: Installing a multi-camera perimeter system across acreage, rural properties, or large suburban blocks where 10 camera positions are required to cover all entry points and outbuildings.
• Retail and Hospitality Operators: Protecting car parks, rear access lanes, and after-hours entry points with cameras that both record and actively warn off intruders before a break-in occurs.
• Schools and Childcare Centres: Deploying perimeter coverage across multiple building facades and play area boundaries where AI-filtered alerts reduce out-of-hours false alarm fatigue for staff receiving mobile notifications.

Honest Assessment

This kit does two things particularly well: it filters alarm events accurately using AcuSense AI at the camera level, and it responds to confirmed detections with an immediate on-site strobe and siren rather than relying purely on remote monitoring. The 16-channel NVR with built-in PoE removes the need for a separate switch, keeping rack space and cabling costs down. The 8MP resolution at a 2.8mm focal length gives a wide field of view suited to eave and soffit mounting on building exteriors. The no-HDD configuration is a genuine benefit here - it means storage is sized correctly at installation rather than defaulted to an undersized drive. Where this system has limits: the 2.8mm fixed lens is not suited to long narrow approaches or lane-style coverage where a varifocal or longer focal length would provide better subject size at distance. The NVR's 2-bay design also caps total raw storage, so sites with long mandatory retention requirements should confirm drive capacity at time of purchase. Available through Security Australia with full Hikvision warranty support.

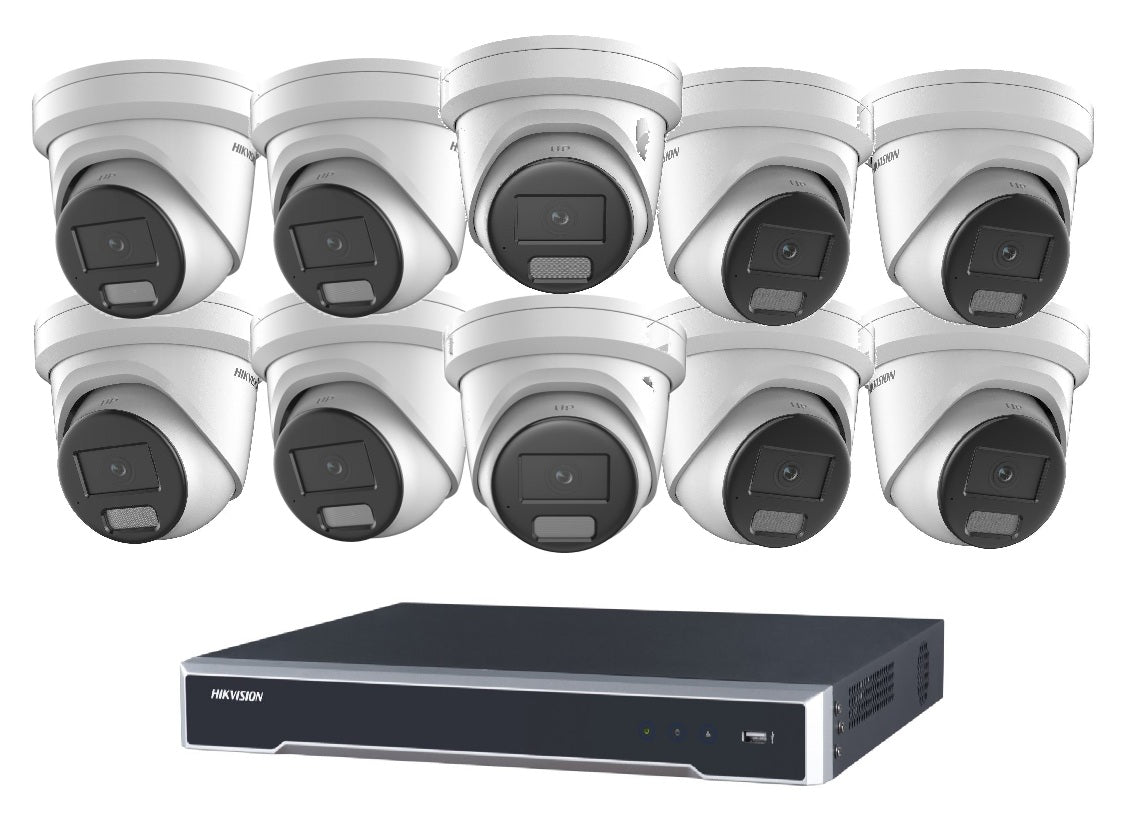

Complete Package Contents

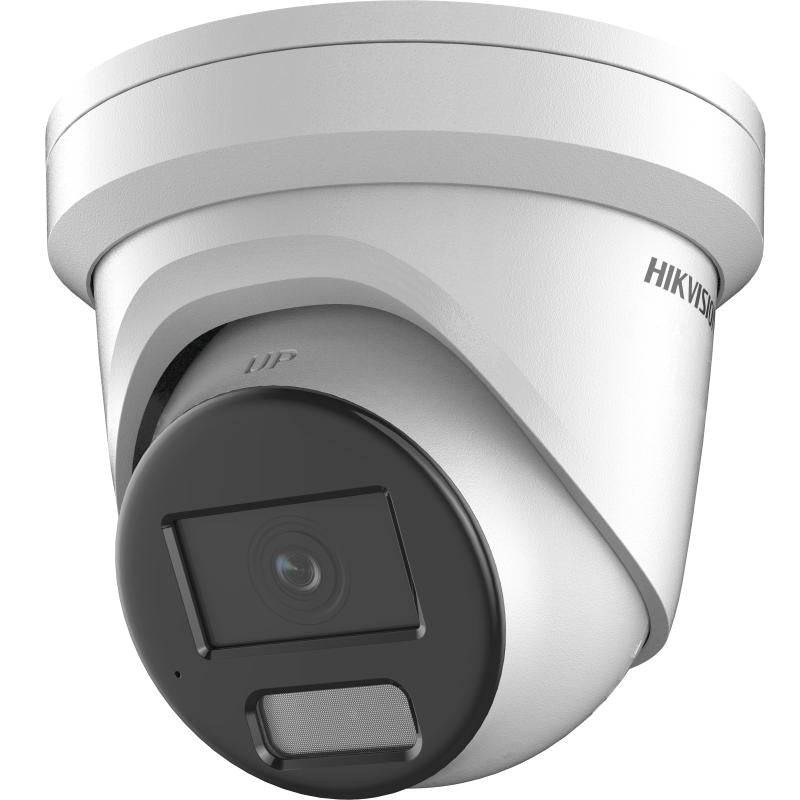

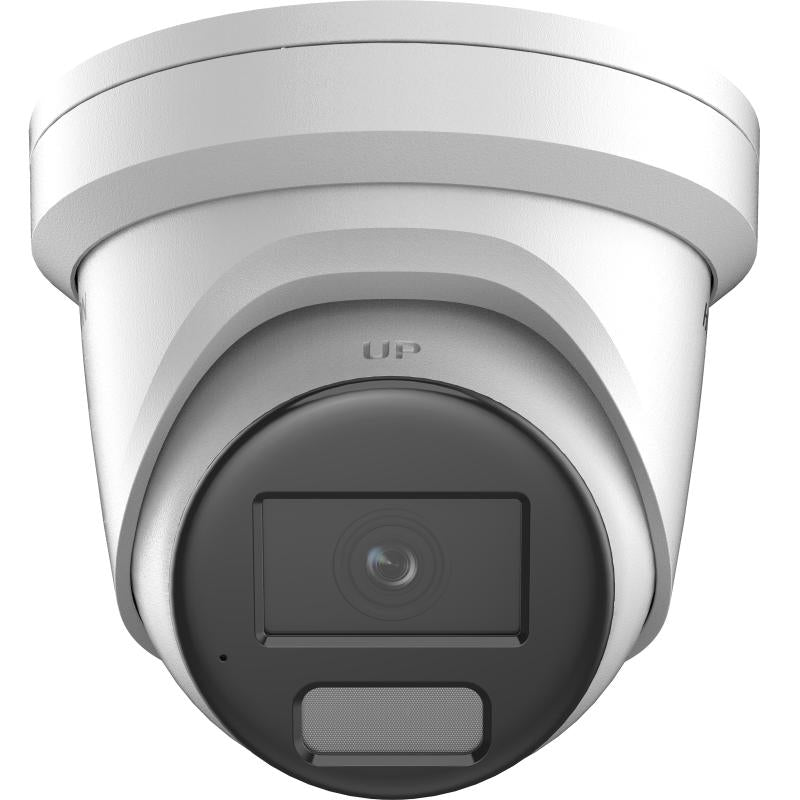

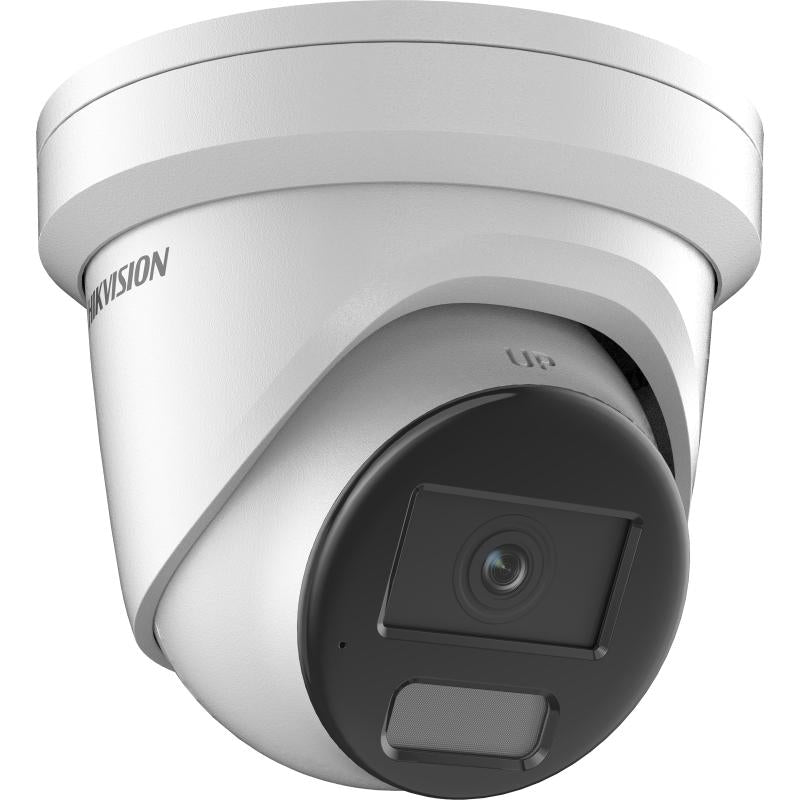

• 10 x Hikvision DS-2CD2386G2H-IS2U/SL - 8MP AcuSense Active Deterrence Turret Camera, 2.8mm Fixed Lens, IR 30m, Built-in Strobe and Siren

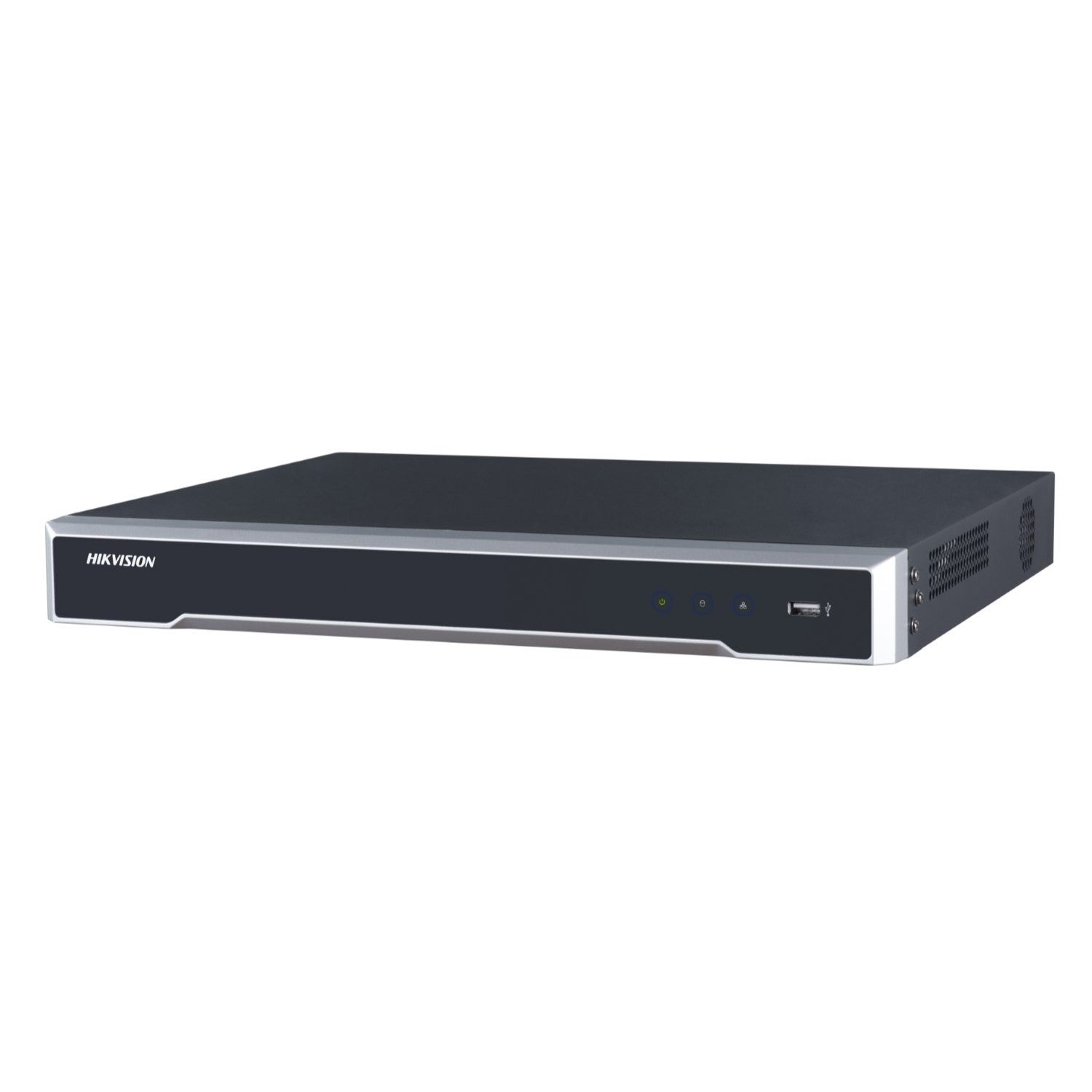

• 1 x Hikvision DS-7616NI-M2/16P - 16-Channel 8K PoE NVR, 16 PoE Ports, 2 SATA Bays, No HDD Included

Before You Buy

Quick Fit Check

• Good match if: You need to cover 10 external positions across a medium to large site and want AI-filtered alerts combined with an on-site strobe and siren response that activates without operator input.
• Good match if: Your site uses PoE cabling and you want all cameras to connect directly to the NVR without a separate managed switch - the DS-7616NI-M2/16P's 16 onboard PoE ports handle all 10 cameras with 6 ports in reserve.
• You may need a different model if: Your site has long straight approaches - driveways, access roads, or perimeter fences over 20 metres - where a bullet camera kit with varifocal or long-focal-length lenses would maintain subject detail at greater distances than a 2.8mm turret lens allows.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 10 camera positions with both AcuSense AI classification and on-site active deterrence in a single pre-matched kit, connected directly to a 16-channel PoE NVR without a separate switch.
• You may need a different model if: Your site requires coverage of long driveways, access roads, or perimeter fencing runs over 20 metres - a bullet camera kit with varifocal or telephoto lenses would maintain useful subject detail at those distances better than a 2.8mm fixed turret.
• Pairs well with: Surveillance-grade SATA hard drives (2-8TB per bay), Cat6 cable for all PoE runs, and a UPS unit to keep the NVR and PoE switch online during brief power interruptions.

Common Questions

1. Does this kit include a hard drive?

   No. This kit ships without an HDD. The DS-7616NI-M2/16P NVR has 2 SATA bays that accept standard surveillance-grade hard drives purchased separately. Omitting the drive at kit level lets installers and end users select the exact storage capacity required for their retention period and number of active cameras rather than defaulting to an undersized bundled drive.

2. Does the active deterrence strobe and siren fire automatically, or does someone need to trigger it?

   It fires automatically when configured correctly. The DS-2CD2386G2H-IS2U/SL cameras use AcuSense to classify the detected target as a human or vehicle, then trigger the built-in strobe and siren in real time without any operator input. The deterrence schedule, arming periods, and sensitivity levels must be configured during commissioning - the cameras do not activate deterrence by default out of the box.

3. Will this system work with cameras I already own from another brand?

   Partially. The DS-7616NI-M2/16P is an ONVIF-compatible NVR and will connect to many third-party IP cameras for basic recording. However, AcuSense event integration, active deterrence co-ordination, and AI alert classification through the NVR interface will only function fully with Hikvision AcuSense cameras. Third-party cameras on the remaining 6 channels will typically record video but will not pass AI metadata to the NVR's event management system.

4. How much hard drive storage do I need for 10 cameras at 8MP?

   For most sites, 2 x 8TB surveillance-grade drives is a practical starting point. Exact storage consumption depends on recording mode (continuous vs motion-triggered), scene complexity, H.265+ compression efficiency, and the frame rate configured per camera. A site using motion-triggered recording with H.265+ will retain significantly more footage per terabyte than a site set to continuous recording at maximum frame rate. Calculating retention requirements before purchasing drives is strongly recommended - the team at Security Australia can assist with storage calculations for specific deployments.

5. Can I view this system remotely on my phone?

   Yes. The DS-7616NI-M2/16P supports remote access via the Hik-Connect app and iVMS-4200 software. Live view, playback, and push notifications for AcuSense events are accessible from iOS and Android devices. Remote access requires the NVR to be connected to the internet via a router - either through Hik-Connect's cloud relay or direct port forwarding depending on the network setup.

6. Do all 10 cameras connect directly to the NVR, or do I need a separate PoE switch?

   All 10 cameras connect directly to the NVR. The DS-7616NI-M2/16P has 16 individual onboard PoE ports, so each camera requires only a single Cat5e or Cat6 cable run from the camera to the NVR. No separate PoE switch is required. The 6 remaining ports can be used for additional cameras without any additional switching hardware.

7. Will the 2.8mm lens cover a wide area, or is it better for a narrow field of view?

   The 2.8mm lens produces a wide field of view, suited to covering broad areas at close to medium range. It is well matched to eave and soffit mounting positions overlooking building exteriors, car parks, yards, and entry points where the camera is 3-8 metres above the subject area. For long narrow approaches - driveways over 15-20 metres, access lanes, or fence-line runs - a longer focal length or varifocal lens would maintain better subject size and facial detail at distance than the 2.8mm fixed option.

Cabling Considerations

• Cable Type: Cat5e minimum, Cat6 recommended for all camera runs.
• Max Cable Run: Up to 100 metres per camera from NVR PoE port to camera using standard Ethernet PoE - no extender required within this distance.
• PoE Notes: The DS-7616NI-M2/16P provides PoE power to all 10 cameras directly from the NVR. Confirm the total PoE budget of the NVR against the combined power draw of all connected cameras, particularly if additional cameras are added to the remaining 6 ports.
• Wiring Tips: Run cables through conduit on external walls to protect against UV degradation and rodent damage. Label each cable at both the camera end and the NVR patch point before commissioning to simplify future camera swaps or fault diagnosis.
