Hikvision 10 Camera 6MP ColorVu Security Kit with DS-7616NI-M2/16P 16CH 16 PoE 8K NVR, 10x DS-2CD2067G3-LI2UY/SL Fixed Mini Bullet Cameras, Dual Microphones, Active Strobe Light, No HDD Included

Model: DS-2CD2067G3-LI2UY/SL / DS-7616NI-M2/16P - No HDD - 10 Camera Kit

Who This Is For

For property owners and installers who need full-colour night visibility across a large site without relying on external lighting - this kit is built around that specific outcome. The 10 DS-2CD2067G3-LI2UY/SL mini bullet cameras deliver 6MP ColorVu imaging, meaning every camera produces colour footage after dark, not monochrome. Each camera also carries dual microphones and an active strobe light, making this a genuinely active deterrence setup rather than a passive recording system. The DS-7616NI-M2/16P NVR supports 16 channels with 16 built-in PoE ports, so all 10 cameras run off a single switch-free installation, and the remaining 6 ports leave room to expand without buying new hardware. This kit suits commercial properties, warehouses, retail precincts, schools, and multi-building residential sites where coverage, deterrence, and colour detail at night are all non-negotiable requirements.

What This System Actually Does

Who Buys This Model

• Warehouse and logistics facility managers: Sites with loading docks, yard areas, and vehicle movement after hours benefit from colour imaging at night and per-camera strobe deterrence without needing site lighting upgrades.
• Retail strip and shopping centre operators: Multi-tenancy sites requiring coverage across car parks, entry points, and service corridors where 6MP detail supports licence plate and facial identification from a distance.
• Schools and education facilities: Perimeter and building coverage across a campus, where AcuSense filtering reduces false alarm fatigue on monitored systems and audio recording at camera points supports incident documentation.
• Electrical and security installers taking on mid-size commercial jobs: The 16-port PoE NVR removes the need for a separate managed switch, simplifying rack design and cable planning on sites with 10 camera positions and room to grow.

Honest Assessment

This kit does several things well in combination. ColorVu full-colour night imaging, AcuSense human and vehicle classification, active strobe deterrence, dual microphones, and a 16-port PoE NVR in a single purchase - these are not common inclusions at this camera count. The 6MP resolution across 10 positions gives substantial detail for a mid-size commercial installation, and the 6 spare NVR ports mean the system has genuine expansion headroom without hardware replacement. Where this kit has limits: the cameras are fixed lens mini bullets, so they are not suited to applications requiring optical zoom, wide-area PTZ coverage, or long-range IR beyond their specified distance. Sites needing ANPR-grade plate capture, thermal imaging, or panoramic single-point coverage will require different camera types. This kit is supplied by Security Australia and ships without a hard drive - storage planning must be completed before installation.

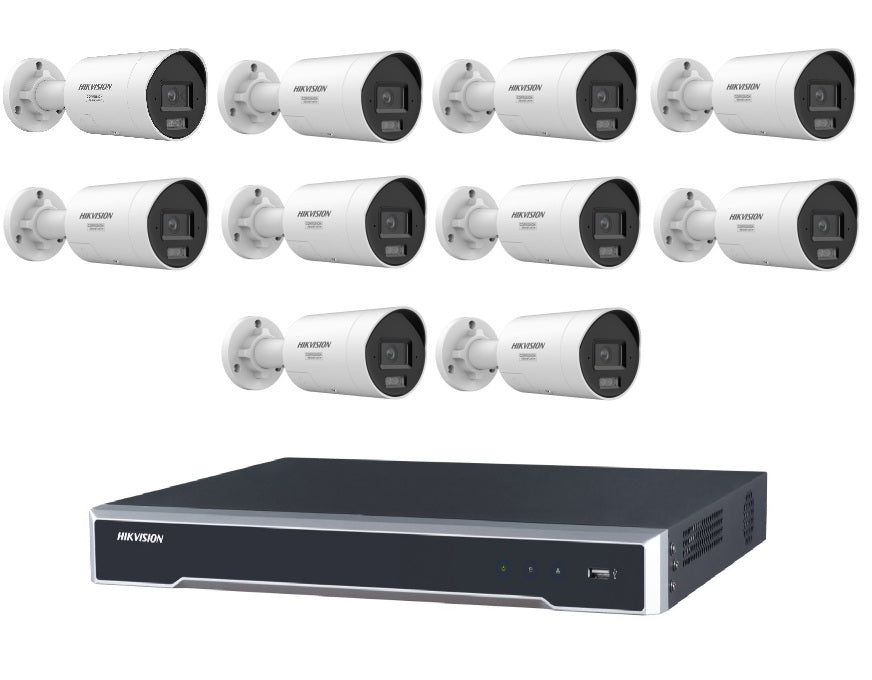

Complete Package Contents

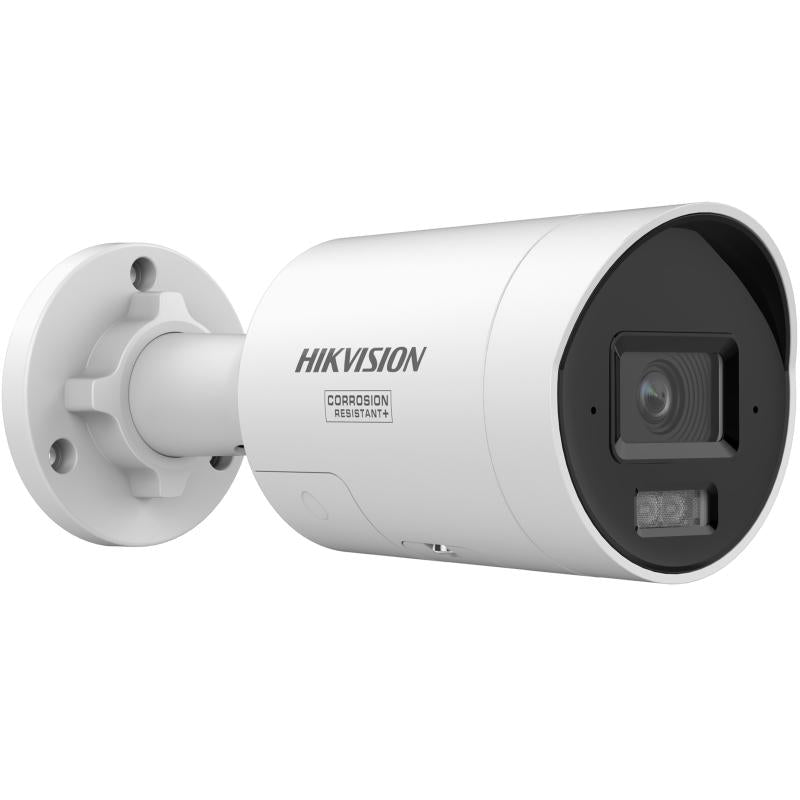

• 10 x Hikvision DS-2CD2067G3-LI2UY/SL - 6MP ColorVu AcuSense Fixed Mini Bullet Camera, Active Strobe, Dual Microphones
• 1 x Hikvision DS-7616NI-M2/16P - 16 Channel 16-Port PoE 8K NVR, No HDD

Before You Buy

Quick Fit Check

• Good match if: You need full-colour night footage across 10 outdoor positions with active deterrence capability - the ColorVu imaging and built-in strobe lights on each camera address both requirements without supplemental lighting or separate alarm devices.
• Good match if: Your site has 10 camera runs and room to grow - the DS-7616NI-M2/16P provides 16 PoE ports, meaning 6 channels are free for future cameras without purchasing a new NVR or adding an external switch.
• You may need a different model if: Your application requires optical zoom for long-distance identification, wide-area single-point coverage, or ANPR-grade plate capture - a PTZ or multi-sensor camera kit would be more appropriate for those requirements.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need full-colour night imaging, AI-filtered alerts, and per-camera active deterrence across 10 positions, all managed through a single 16-port PoE NVR without a separate switch.
• You may need a different model if: Your site requires long-range optical zoom, motorised lens adjustment, or 360-degree single-point coverage - a PTZ or multi-sensor panoramic kit would be more appropriate for those applications.
• Pairs well with: Surveillance-rated 4TB or 8TB hard drives (2 bays available), a UPS for NVR power protection, and Cat6 cable rated for external runs where cameras are mounted in exposed locations.

Common Questions

1. Does this kit include hard drives?

   No. This kit ships with no HDD installed. The DS-7616NI-M2/16P has 2 internal HDD bays. For 10 cameras recording at 6MP, surveillance-rated drives of 4TB minimum per bay are recommended - most installers use 8TB surveillance drives per bay to achieve adequate retention at this resolution and camera count. Hard drives are available through Security Australia separately.

2. Will the strobe lights trigger automatically or do they need to be manually activated?

   Automatic triggering is supported, but it requires configuration. The active strobe on each DS-2CD2067G3-LI2UY/SL camera is linked to the AcuSense detection engine. You define which target type - human, vehicle, or both - triggers the strobe through the NVR interface or Hik-Connect. Once rules are set, triggering is fully automatic. Out-of-box behaviour without configuration is passive recording only.

3. Does this system work for outdoor installation in Australian conditions?

   Yes. The DS-2CD2067G3-LI2UY/SL mini bullet cameras are rated for outdoor installation. The mini bullet housing is designed for eave, soffit, and wall mounting on building exteriors. ColorVu imaging is not affected by rain or humidity in the way that some sensor technologies can be. Cable entry points should be sealed with appropriate weatherproof conduit fittings during installation to protect the PoE connection.

4. Can I add more cameras to this system in the future?

   Yes. The DS-7616NI-M2/16P has 16 PoE ports and this kit uses 10 of them. The remaining 6 ports are available for additional Hikvision IP cameras without purchasing a new NVR or a separate PoE switch. The NVR supports up to 8K decoding, so higher-resolution cameras added in future are also compatible with the existing recorder.

5. What does AcuSense Gen 3 actually do differently compared to standard motion detection?

   Standard motion detection triggers on any pixel change - wind, passing car headlights, and animals all generate alerts. AcuSense Gen 3 classifies detected objects as human or vehicle before generating an alert. The practical result is significantly fewer false alarm notifications across a 10-camera deployment. You can also configure separate rules for each target class - for example, vehicle detection at a gate and human detection at a door can each have different alert and strobe behaviours.

6. How far does the ColorVu illumination reach at night?

   The DS-2CD2067G3-LI2UY/SL uses supplemental white light to produce colour footage in low-light conditions. The effective colour illumination range depends on the specific lens variant installed. Camera placement should be planned so the illumination range covers the intended detection zone - mounting height and angle directly affect how far usable colour detail extends in the scene.

7. Do the built-in microphones on these cameras support two-way audio?

   No. The DS-2CD2067G3-LI2UY/SL includes dual built-in microphones for audio capture and recording. Two-way audio requires both a built-in microphone and a built-in speaker - this camera includes microphones only. Audio is recorded alongside video footage and can be played back through the NVR or Hik-Connect, but outbound audio from the NVR to the camera location is not supported on this model.

Cabling Considerations

• Cable Type: Cat5e minimum, Cat6 recommended for runs over 50m or where future camera upgrades to higher bandwidth are anticipated.
• Max Cable Run: 100m per PoE run from NVR to camera. Runs approaching 90-100m should use Cat6 to maintain reliable PoE delivery at 6MP bandwidth.
• PoE Notes: All 16 ports on the DS-7616NI-M2/16P are PoE-enabled. No external switch is required for the 10 cameras in this kit. Verify PoE budget per port against the power draw of the DS-2CD2067G3-LI2UY/SL when the strobe is active, as strobe operation increases instantaneous draw.
• Wiring Tips: Run a spare cable to each camera position during initial installation - the cost is minimal at rough-in stage and eliminates the need to re-open ceilings or walls if a camera is upgraded or repositioned later. Use external-rated cable for any exposed outdoor runs.
