Hikvision 10 Camera 6MP AcuSense Security Kit with DS-7616NI-M2/16P 16CH 16 PoE 8K NVR, 10x DS-2CD2166G2H-ISU Fixed Turret Cameras, Built-In Microphone, No HDD Included

Model: DS-2CD2166G2H-ISU / DS-7616NI-M2/16P-NOHDD

Who This Is For

Security contractors and facilities managers specifying a complete 6MP AcuSense system for medium-to-large sites will find this kit structured for fast deployment. The package combines a Hikvision DS-7616NI-M2/16P 16-channel 16-port PoE NVR with 10 DS-2CD2166G2H-ISU fixed turret cameras, leaving 6 channels free for staged expansion - useful on sites where coverage requirements grow after handover. AcuSense AI classification on the cameras filters human and vehicle targets from background motion, making this setup practical for school campuses, multi-tenancy commercial buildings, warehouses, and retail precincts where nuisance alerts from wind, animals, or passing headlights would otherwise undermine operator confidence. Each camera includes a built-in microphone and speaker, so audio capture is available at every position without additional hardware. No HDD is included, allowing the installer or end user to select storage capacity appropriate to their retention schedule.

What This System Actually Does

Who Buys This Model

• Security Contractors on Commercial Projects: Installers quoting medium-scale commercial sites who want a single-order solution with a matched NVR, cameras, and PoE infrastructure already confirmed compatible out of the box.
• Facilities Managers at Multi-Building Campuses: Buyers covering schools, aged care facilities, or industrial precincts who need 10 camera positions now with documented capacity to add 6 more without recorder replacement.
• Warehouse and Logistics Operators: Sites with loading docks, yard perimeters, and internal storage areas where AcuSense vehicle classification triggers real alerts from forklift and truck movement while ignoring environmental false sources.
• Retail and Hospitality Groups: Multi-outlet or multi-floor operators who want 6MP detail at each camera position and the option to integrate two-way audio at entry and service zones without separate audio hardware.
• IT and Infrastructure Buyers Selecting Their Own Storage: Organisations with specific retention policies who prefer to source and size their own HDDs separately rather than accept a bundled drive that may not match their recording duration requirements.

Honest Assessment

This kit does several things well. The combination of 6MP AcuSense cameras and a 16-channel PoE NVR gives you a fully matched, pre-configured system with genuine AI filtering - not basic pixel-change motion detection. The 6 unused channels represent real expansion capacity, and having two-way audio at all 10 positions without additional hardware is a meaningful practical advantage on sites where staff communication or verbal deterrence is relevant. The 8K NVR handles the full camera load without compromise to recording quality or frame rate. What this system will not do: it does not include any storage, so budget for at least 1 or 2 HDDs before going live - the NVR supports up to 2 drives, and your retention period will determine the capacity you need. The fixed turret cameras are not suited to very long-range perimeter coverage where a bullet camera or PTZ with optical zoom would perform better. If wide-area outdoor monitoring at distances beyond 40 metres is a priority, Security Australia stocks PTZ and long-range IR alternatives worth reviewing alongside this kit.

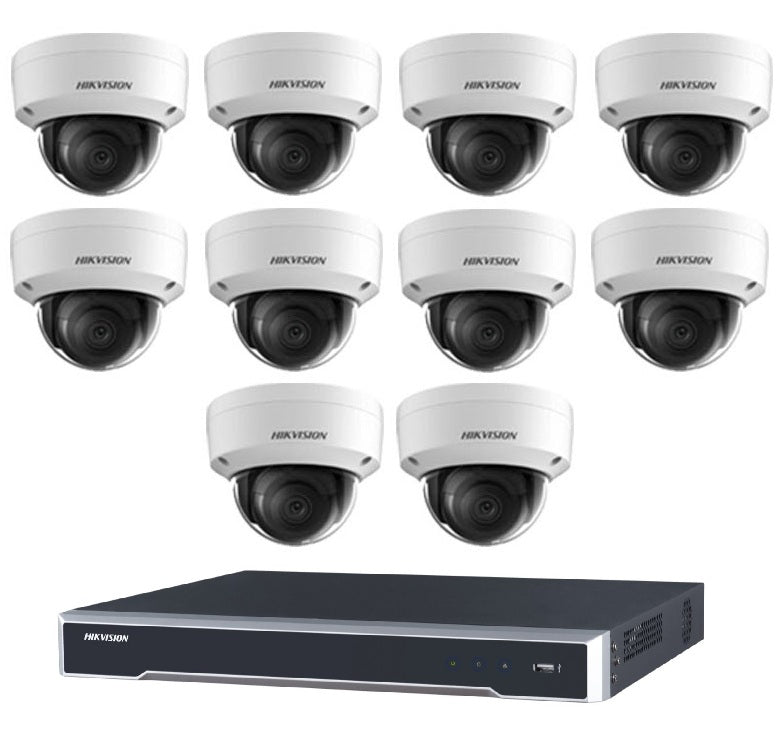

Complete Package Contents

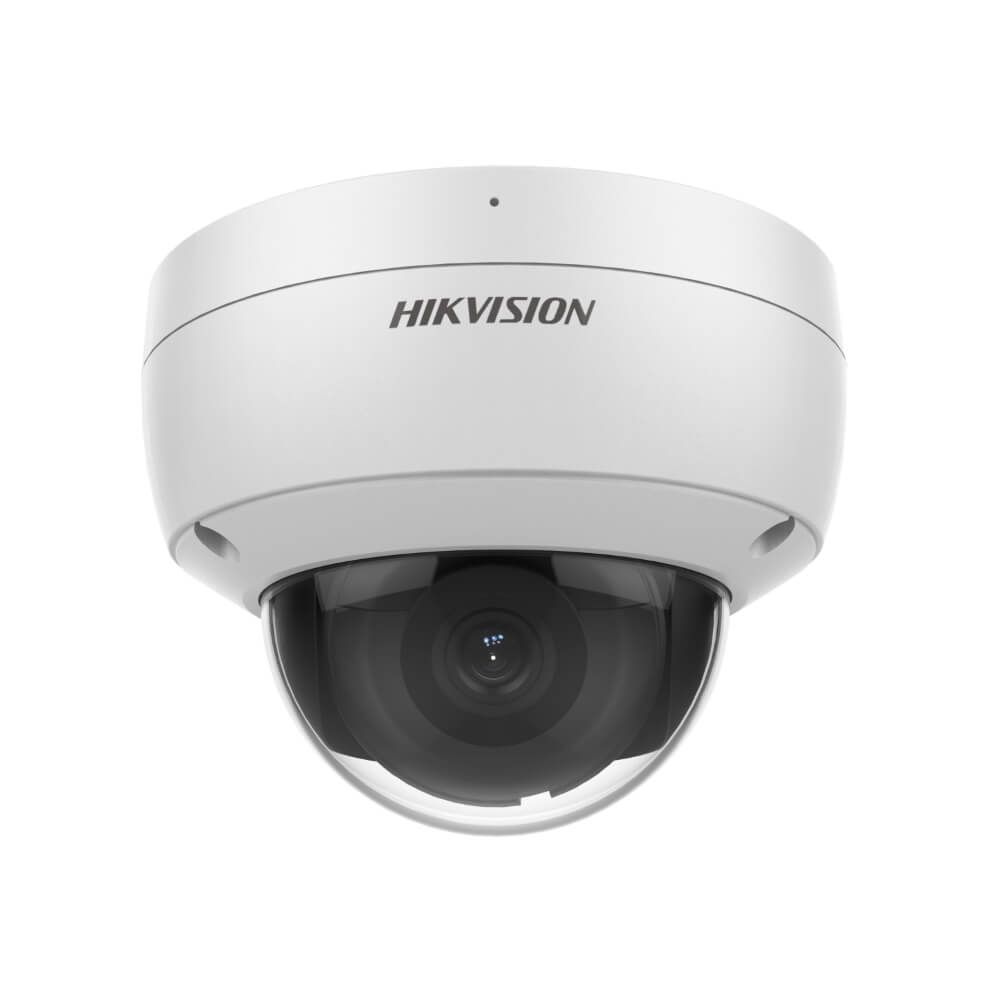

• 10 x Hikvision DS-2CD2166G2H-ISU - 6MP AcuSense Fixed Turret Camera, Built-In Microphone & Speaker, IR

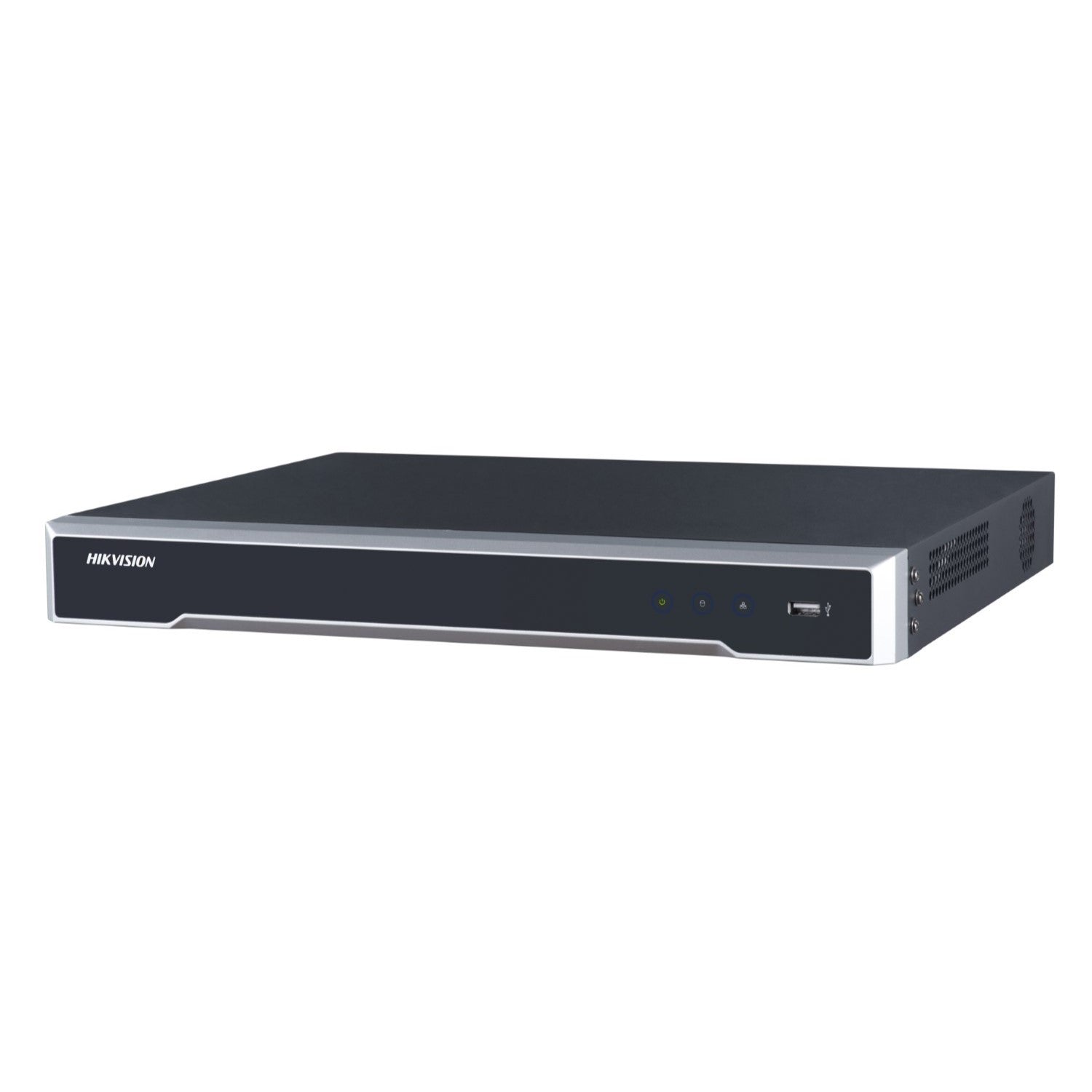

• 1 x Hikvision DS-7616NI-M2/16P - 16-Channel 16-Port PoE 8K NVR, No HDD Included

Before You Buy

Quick Fit Check

• Good match if: You need 10 camera positions now with confirmed capacity to add 6 more to the same NVR later - the DS-7616NI-M2/16P has 16 licensed channels and 16 PoE ports ready to use.
• Good match if: Your site generates nuisance alarms from animals, trees, or vehicle headlights and you need AI classification that targets only humans and vehicles at the camera level before alerts reach the NVR.
• You may need a different model if: Your installation requires coverage at distances beyond 40 metres or long perimeter runs where a long-range IR bullet camera or PTZ system would provide better detection depth and optical zoom capability.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a matched 10-camera 6MP AcuSense system with a 16-channel PoE NVR that has confirmed headroom for 6 additional cameras - and you want two-way audio at every position without separate hardware.
• You may need a different model if: Your site requires long-range perimeter monitoring at distances beyond 40 metres - a long-range IR bullet camera kit or a PTZ-based system with optical zoom will serve that application considerably better.
• Pairs well with: Surveillance-rated SATA HDDs sized to your retention requirement, and a managed PoE network switch if you plan to extend cameras beyond the NVR's built-in PoE port count.

Common Questions

1. Does this kit include a hard drive for recording?

   No. This kit ships without any HDD. The DS-7616NI-M2/16P NVR has 2 SATA bays ready to accept drives, but none are included. You will need to purchase at least 1 surveillance-rated HDD before the system can begin recording. Capacity selection depends on your camera count, resolution, compression settings, and how many days of footage you need to retain.

2. Will this system work with cameras I already own?

   Yes, in most cases. The DS-7616NI-M2/16P is an ONVIF-compatible NVR and will accept most IP cameras from other brands via ONVIF protocol. However, AcuSense AI features - including human and vehicle classification alerts - are only active with compatible Hikvision cameras. Third-party cameras will record video but will not benefit from the AI filtering capabilities that are central to this system's alert management.

3. Can I add more cameras to this system later?

   Yes. The NVR has 16 channels and 16 PoE ports, and this kit occupies 10. The remaining 6 channels and PoE ports are available for additional cameras without any recorder upgrade or relicensing. This makes the system practical for staged installations where coverage is expanded as a site grows or budget allows.

4. Does the DS-2CD2166G2H-ISU support two-way audio?

   Yes. The ISU model designation confirms a built-in microphone (U) and built-in speaker (S) in each camera. Two-way audio is available at all 10 camera positions, allowing remote communication or verbal deterrence through the camera without any additional audio hardware at the camera mounting point.

5. What does AcuSense actually do differently from standard motion detection?

   Standard motion detection triggers on any pixel change in the frame - wind, rain, shadows, animals, and headlights all generate alerts. AcuSense uses on-camera AI to classify detected objects as human, vehicle, or other before sending an alert. Only human and vehicle targets trigger notifications, which dramatically reduces nuisance alarms on outdoor-facing cameras without requiring the operator to reduce sensitivity to the point where genuine intrusions are missed.

6. How much storage will 10 cameras at 6MP actually use?

   Storage consumption depends on compression codec, frame rate, bitrate setting, and scene activity. Using H.265+ compression - which the DS-7616NI-M2/16P supports - 10 cameras recording continuously at 6MP will typically consume between 1TB and 2TB per day under moderate activity. For 14-day retention you should budget for at least 2 x 8TB surveillance-rated drives. The NVR accepts 2 drives, which is its maximum internal capacity. If you require more than 2 drives worth of retention, an external storage expansion or network-attached storage solution should be factored into the design. The team at Security Australia can assist with storage calculations if required.

7. Does this system support remote viewing on a phone or tablet?

   Yes. The DS-7616NI-M2/16P is compatible with Hikvision's remote viewing applications for iOS and Android. Remote access requires the NVR to be connected to a network with internet access, and setup typically involves either port forwarding on your router or using Hikvision's cloud-based P2P connection method. Both options allow live view and recorded footage playback from a mobile device.

8. What cabling do I need to run for each camera?

   Each camera requires a single Cat5e or Cat6 cable run from the camera position back to the NVR's built-in PoE switch. That single cable carries both power and video data - no separate power cable or injector is needed at the camera. Maximum recommended cable run length for PoE is 100 metres per standard IEEE cabling guidelines. Runs beyond that length require a PoE extender or midspan switch.
