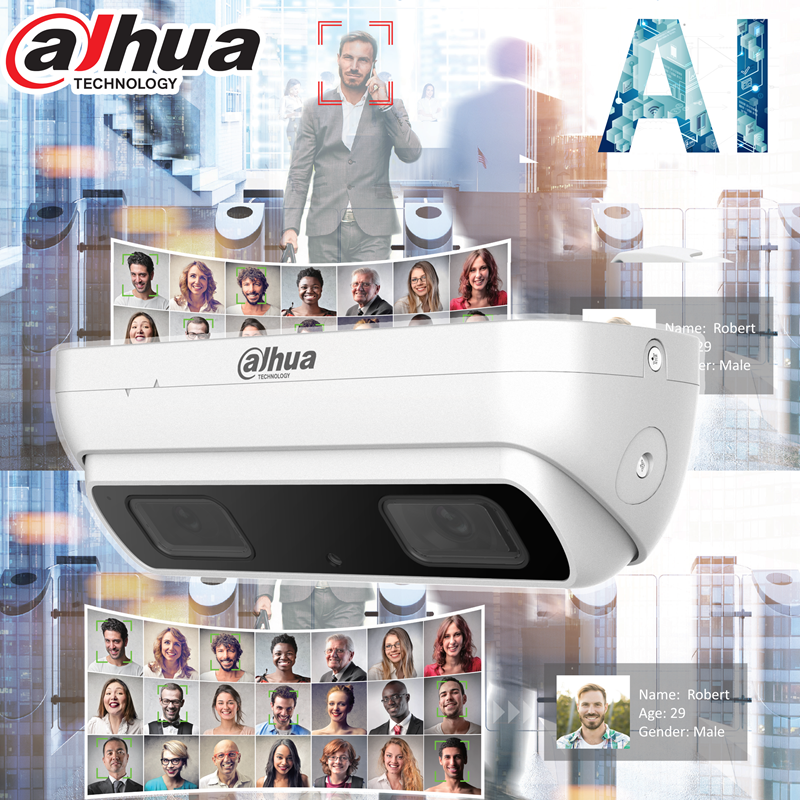

Dahua DH-IPC-HDW8341X-3D Dahua 3MP AI Starlight 3D Dual Lens People Counting IP Network Fixed 2.8mm

Model: DH-IPC-HDW8341X-3D

Who This Is For

Property managers and retail operations teams specifying an accurate, analytics-driven occupancy solution will find the Dahua DH-IPC-HDW8341X-3D built specifically for that job. Unlike a standard security camera repurposed for counting, this model uses 2 dedicated 3MP lenses working in a stereo configuration to measure people flow through a zone or line crossing - giving operators data they can act on rather than simply footage to review. The camera mounts to a ceiling above an entry point, aisle, or gate and delivers 3MP resolution at 25fps on each sensor, with 120dB WDR and Starlight-class low-light sensitivity down to 0.009 lux to maintain counting accuracy across the full trading day. IP67-rated housing and PoE connectivity make it equally suited to covered external entries and controlled internal spaces. Retail chains, transport hubs, libraries, and managed facilities are the primary buyers.

What This Camera Actually Does

Who Buys This Model

• Retail chain operators: Installing above store entrances to track daily foot traffic, compare peak trading hours across sites, and validate staffing decisions against actual customer volume - all from confirmed line crossing counting data.
• Facilities and venue managers: Using region people counting to enforce real-time occupancy limits in waiting rooms, function spaces, or licensed venues where headcount compliance is a legal or insurance requirement.
• Transport hub operators: Mounting at gate entries and concourse pinch points to monitor passenger flow, identify congestion before it becomes a safety issue, and generate accurate historical throughput data.
• Security integrators specifying analytics upgrades: Replacing standard dome cameras at entry points with a dedicated counting sensor that connects to existing PoE NVR infrastructure via standard Cat6, without a separate analytics server.
• Library and public building managers: Tracking visitor counts for council reporting, grant acquittals, or resource allocation decisions without deploying staff at entry points or adding separate footfall sensor hardware.

Honest Assessment

The DH-IPC-HDW8341X-3D does one specific job well: counting people through a defined point or zone with a purpose-built dual-lens sensor rather than a general-purpose camera with a counting add-on. The 3MP dual sensor arrangement, 120dB WDR, and Starlight-class sensitivity mean it can handle the high-contrast, variable-lighting conditions typical of retail and public building entries across the full operating day. H.265+ encoding keeps storage load controlled when running continuous dual-stream recording. Where this camera will not suit is wide-area security coverage - the 2.8mm fixed lens and 10m IR range are optimised for overhead entry monitoring at standard ceiling heights, not perimeter or car park surveillance. It also does not provide PTZ capability, optical zoom, or long-range IR for corridor or outdoor approaches. Buyers who need both counting and extended-range general security should consider pairing this with a separate outdoor camera. Available through Security Australia for verified Dahua integrators and facilities teams.

Before You Buy

Quick Fit Check

• Good match if: You need accurate entry and exit counts at a defined doorway or gate and require IP67 weatherproofing for a covered external entry with a standard PoE NVR infrastructure already in place.
• Good match if: You are managing real-time occupancy compliance in a defined zone and need a camera that distinguishes people from objects to reduce false counts, with data accessible through DSS, PSS, or DMSS.
• You may need a different model if: Your primary requirement is long-range perimeter surveillance, wide-area outdoor coverage, or optical zoom capability - a bullet or PTZ camera from the Security Australia range will serve those scenarios better than a ceiling-mount people counting sensor.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You specifically need accurate directional people counting - line crossing or region occupancy - from a single ceiling-mounted unit with IP67 weatherproofing and PoE connectivity, rather than a general-purpose dome camera running counting as a secondary feature.
• You may need a different model if: Your primary need is perimeter protection, long-range identification, or wide-area outdoor coverage - a PTZ or bullet camera from the securityaustralia.com.au range will deliver the range and flexibility that a fixed overhead counting sensor cannot.
• Pairs well with: A Dahua NVR or network video management system with analytics support (DSS/PSS) to centralise count data, generate reports across multiple camera positions, and trigger alerts when occupancy thresholds are reached.

Common Questions

1. Does this camera actually count both directions, or just total movement through a doorway?

   Yes, it counts bidirectionally. The line crossing people counting mode on the DH-IPC-HDW8341X-3D tracks entries and exits as separate figures, giving you a net occupancy number as well as individual in and out totals. Region counting tracks how many people are currently within a defined zone at any point in time, which is a different metric suited to occupancy compliance rather than throughput measurement.

2. Will this camera work over PoE from a standard NVR, or does it need a higher-power PoE+ switch?

   Standard PoE (IEEE 802.3af) is confirmed sufficient for this camera. A single Cat5e or Cat6 cable running from an 802.3af-capable NVR port or PoE switch delivers both power and data. No PoE+ (802.3at) switch or injector is required, which means it will integrate with most standard Dahua NVR deployments without additional hardware.

3. What ceiling height range does the dual-lens counting work at, and does it matter if the camera is not mounted directly overhead?

   Mounting position matters significantly. The stereo dual-lens arrangement is designed for overhead ceiling installation - typically between approximately 2.8m and 4m above the floor - positioned directly above the entry point or counting line. Mounting at an oblique angle or significantly off-axis from the traffic flow will reduce counting accuracy because the depth-sensing stereo calculation depends on a top-down perspective. Confirm ceiling height and available mounting position before ordering, and use the 2.8mm lens (wider 106 degree horizontal field) for narrower entries or the 3.6mm option for slightly wider fields.

4. Does the AI distinguish between people and objects such as shopping trolleys or prams?

   Yes. The confirmed AI classification logic is designed to distinguish humans from objects, which reduces spurious counts triggered by trolleys, prams, or objects being carried through the counting zone. This is a meaningful practical advantage over pixel-motion counting methods that treat any moving object the same way. Note that performance in extremely crowded or overlapping scenarios - such as multiple people passing through simultaneously in a tight group - will vary depending on mounting height and entry width configuration.

5. What software is needed to access the counting reports and data logs?

   Counting data is accessible through multiple confirmed platforms. The built-in web viewer provides direct browser access to live counts and stored logs without additional software. Dahua DSS (professional VMS), PSS (free client software), and DMSS (mobile app) are all confirmed compatible for centralised management across multiple cameras and for generating period-based counting reports. No third-party analytics server is required for basic reporting. Contact Security Australia to confirm which VMS tier suits your reporting requirements before deployment.

6. How does running 2 sensors simultaneously affect storage requirements?

   Running dual 3MP streams continuously does increase storage demand compared to a single-sensor camera at the same resolution. The H.265+ smart codec addresses this directly - Dahua's confirmed specification states up to 70% bit rate reduction versus standard H.264 through scene-adaptive encoding, dynamic GOP, and intelligent noise reduction. For practical planning, use a storage calculator based on your NVR's confirmed H.265+ recording bit rate at 3MP/25fps to size your hard drive allocation correctly before installation.

7. Will this camera work for a covered outdoor entry, or is it indoor only?

   Yes, it is rated for covered outdoor use. The IP67 certification confirms full dust ingress protection and protection against water immersion up to 1m for 30 minutes, making it suitable for covered external entries such as building canopies, awning-protected doorways, and enclosed walkways. It is not designed for direct rain exposure without overhead cover. The 4kV lightning protection rating (confirmed in the existing product data) provides additional resilience for outdoor-adjacent installations.
