Dahua 24/7 WizColor 8CH CCTV Kit – 6x WizColor Turrets with SMD 4.0 + 8CH PoE NVR (DH-IPC-HDW2549EMP-S-PRO-ANZ, DHI-NVR4108HS-8P-AI/ANZ)

Model: 6x DH-IPC-HDW2549EMP-S-PRO-ANZ WizColor & DHI-NVR4108HS-8P-AI/ANZ 8CH NVR

Who This Is For

When overnight colour identification is the installation priority and a greyscale IR system is no longer good enough, the Dahua 24/7 WizColor 8CH CCTV Kit addresses that problem directly. It pairs 6 WizColor turret cameras with a purpose-matched 8-channel PoE NVR, delivering full-colour video around the clock without switching to black-and-white at night. SMD 4.0 on each camera filters motion alerts down to confirmed humans and vehicles, removing the false triggers that make standard motion detection impractical on sites with passing traffic or vegetation. The built-in 8-port PoE switch on the NVR means a single Cat6 run per camera carries both data and power, eliminating separate power supplies at each camera position. With 2 spare NVR channels included, the system can accommodate additional cameras if the site requires further coverage without replacing any core hardware.

What This System Actually Does

Who Buys This Model

• Small retail and hospitality operators: Sites where overnight colour footage matters for identifying individuals in incidents involving clothing, hair colour, or vehicle colour - details that infrared simply cannot capture.
• Residential property and strata managers: Blocks requiring coverage of 4-6 key areas such as entry points, car parks, and common areas, where a single PoE NVR setup avoids ongoing management of distributed power supplies.
• Installers fitting out small commercial tenancies: Where a matched, pre-configured kit reduces sourcing time and ensures camera-to-NVR compatibility is already resolved before the job starts.
• Business owners replacing legacy analogue systems: Who need a step up to IP resolution and AI-filtered motion alerts without overspecifying on channel count or camera complexity for a site that only needs 6 coverage points.

Honest Assessment

This kit does colour-at-night well. WizColor warm-light illumination produces usable colour footage in conditions where a standard IR camera would return a grey silhouette, and the SMD 4.0 filtering genuinely reduces nuisance alerts on sites with passing traffic or foliage. The 5MP sensor adds resolution headroom that becomes relevant when reviewing footage for incident detail. The built-in PoE switch makes installation straightforward on sites where cable runs to a central location are practical. Where this kit is not the right fit: the warm-light LEDs on WizColor cameras produce a visible amber glow at night, which some end users find more intrusive than the invisible illumination from a standard IR camera. Sites requiring long-range identification beyond 30 metres, wide-area outdoor deterrence across large open spaces, or more than 8 total camera positions will need a different product type. Available through Security Australia, this kit suits structured small-site installs where colour identification and simplified cabling are the primary requirements.

Complete Package Contents

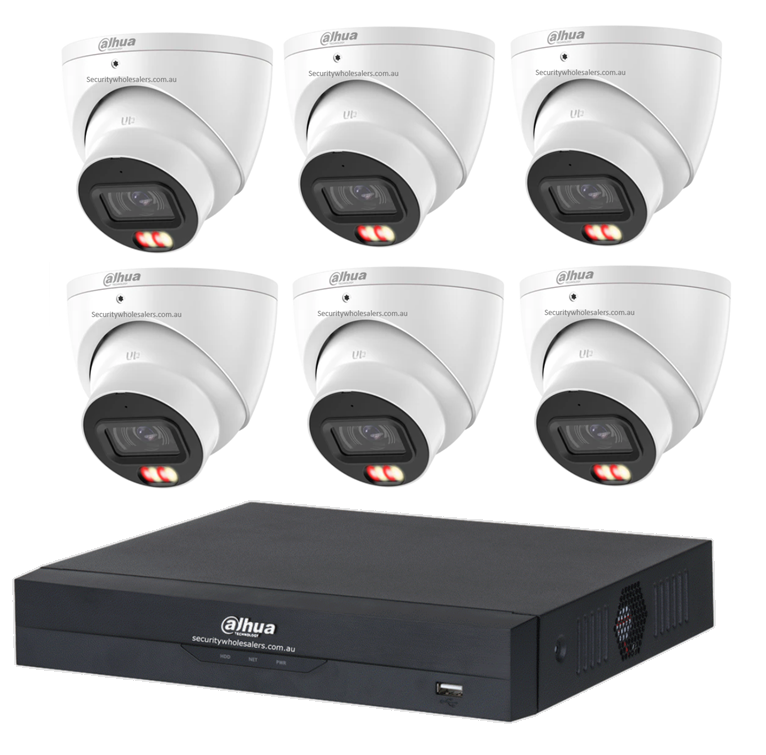

• 6 x Dahua DH-IPC-HDW2549EMP-S-PRO-ANZ - 5MP WizColor Turret Camera, SMD 4.0, Full-Colour 24/7, ANZ Variant
• 1 x Dahua DHI-NVR4108HS-8P-AI/ANZ - 8-Channel PoE NVR, AI-Enabled, 8 Built-In PoE Ports, ANZ Variant

Before You Buy

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Overnight colour identification is the priority and the site has 6 coverage points that can be cabled back to a central NVR location within standard PoE run distances.
• You may need a different model if: The site requires long-range IR coverage beyond 30 metres, large outdoor perimeter monitoring, or more than 8 total camera positions - in those cases a bullet-camera kit with extended IR range or a higher-channel NVR system will be more appropriate.
• Pairs well with: A surveillance-rated NAS-type hard drive (1TB-8TB depending on retention requirements), a UPS unit to protect the NVR from power interruptions, and a managed PoE switch if extended cable runs or additional cameras beyond 8 channels are planned in future stages.

Common Questions

1. Does this kit record in colour at night without any additional lighting?

   Yes. WizColor cameras have built-in warm-light LEDs that illuminate the scene and record in full colour regardless of ambient light. No external lighting is required. The LEDs do produce a visible low-intensity amber glow at night, which is normal and indicates the illumination is active. The cameras do not switch to infrared or black-and-white mode in low light.

2. Does this kit include a hard drive?

   No. The DHI-NVR4108HS-8P-AI/ANZ is supplied without a hard drive. A surveillance-rated HDD must be purchased and installed separately before the system can record. CMR-based NAS or surveillance drives are recommended - SMR drives are not suitable for continuous CCTV recording workloads. Capacity selection should account for 6 cameras at 5MP running continuously or on motion-triggered recording at the retention period required.

3. Will this system work with cameras I already own from a different Dahua kit?

   It depends on the camera model. The DHI-NVR4108HS-8P-AI/ANZ is compatible with Dahua IP cameras that use standard ONVIF protocol, but AI features including SMD 4.0 filtering will only function correctly with Dahua cameras that support those features natively. Mixing camera generations or brands may result in reduced AI functionality at the NVR level. Confirm compatibility before adding third-party or older-generation cameras to this recorder.

4. What does SMD 4.0 actually do differently from standard motion detection?

   SMD 4.0 classifies motion events at the camera level as human, vehicle, or neither before sending an alert. Standard motion detection triggers on any pixel change in the frame - a flag, a tree branch, a passing car's headlight sweep. SMD 4.0 filters those out and only forwards alerts that match a confirmed human or vehicle profile. This reduces nuisance notifications on sites near roads or with vegetation in the field of view without requiring zone configuration or sensitivity tuning.

5. Can I view live footage and playback remotely on a phone?

   Yes. The system supports remote access via the Dahua DMSS mobile application. Live view and playback can be accessed over a home or business internet connection on iOS or Android devices. Remote access requires the NVR to be connected to a router with internet access and basic port forwarding or P2P setup completed during commissioning. Network configuration is required and is not automatic out of the box.

6. Will this kit work if my camera cable runs are longer than 50 metres?

   Yes, up to 100 metres per run. Standard IEEE 802.3af/at PoE over Cat6 supports cable runs up to 100 metres between the NVR's PoE port and the camera. Runs beyond that length will require a PoE extender or a midspan injector. If any camera positions are beyond 100 metres from the NVR location, plan for extenders before cabling begins. The stocked range at Security Australia includes compatible PoE extender options if required.

7. How does the AI function on the NVR differ from the SMD 4.0 filtering on the cameras?

   They operate at different levels. SMD 4.0 runs on each individual camera and filters motion events before they are sent to the NVR - only human and vehicle detections generate alerts at the camera stage. The AI capability on the DHI-NVR4108HS-8P-AI/ANZ operates at the recorder level and supports NVR-side processing functions such as search filtering by object type across recorded footage. Both layers work together, but the camera-level SMD 4.0 filtering is what reduces nuisance alert volume in day-to-day use.

8. Does the NVR's built-in PoE have enough power budget for all 8 cameras if the 2 spare channels are used?

   This requires checking before filling all 8 ports. The DHI-NVR4108HS-8P-AI/ANZ has a total PoE power budget shared across all 8 ports. The 6 included WizColor turret cameras draw standard PoE power, and the 2 spare channels will draw from the same shared budget. If higher-power cameras such as PTZ units or cameras with heaters are added to the spare ports, confirm the total draw does not exceed the NVR's rated PoE budget. Standard turret cameras on the spare ports are unlikely to cause a budget issue, but this should be verified against the NVR datasheet before committing to the additional cameras.

Cabling Considerations

• Cable Type: Cat6 recommended for all camera runs. Cat5e is acceptable but Cat6 provides better headroom for 5MP data throughput and PoE stability over longer distances.
• Max Cable Run: 100 metres per camera from NVR PoE port to camera - standard PoE limitation. Plan NVR placement relative to the furthest camera position before cabling.
• PoE Notes: The DHI-NVR4108HS-8P-AI/ANZ has 8 built-in PoE ports powering cameras directly - no separate PoE switch is required for the 6 included cameras. Total PoE budget of the NVR should be confirmed against the power draw of any additional cameras added to the 2 spare channels.
• Wiring Tips: Run cables through conduit wherever possible to protect against UV degradation and physical damage, particularly on outdoor eave and soffit runs. Leave a small service loop at each camera head for future angle adjustment. Label all runs at both ends before termination to simplify any future troubleshooting.

Downloads & Resources

No downloads available for this product.
