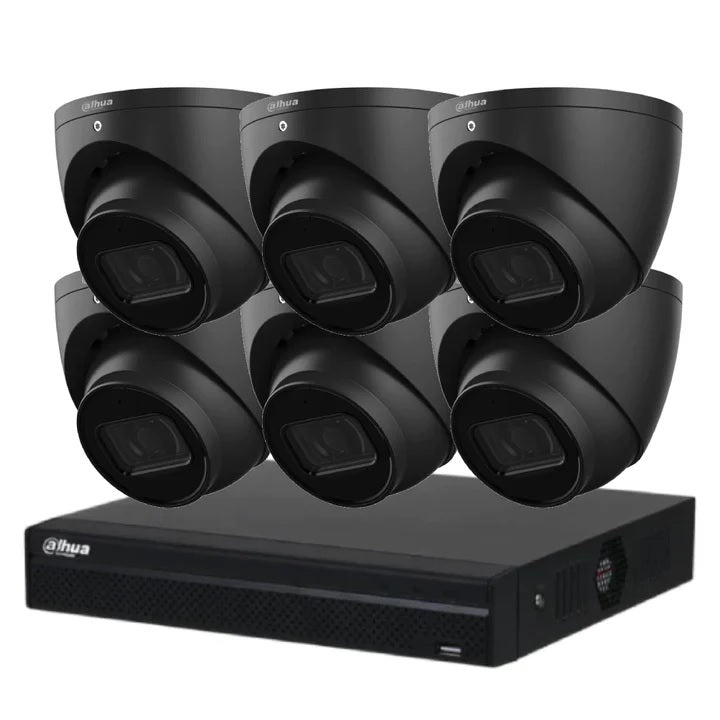

Dahua 8 MP + 8 Channels Kit: 6 x WizSense Fixed Starlight Turret Cameras, AI NVR - Black

Model: DH-3X66-K8086T-B-4TB

Who This Is For

When covering multiple external zones without running a separate power cable to every camera position is the priority, this kit removes a significant amount of installation complexity. The Dahua 8 MP WizSense AI Kit delivers 6 x 8 MP turret cameras with 30 m IR and built-in microphones, all powered directly from the included 8-channel PoE AI NVR - meaning a single Cat5e or Cat6 run per camera handles both power and data. The 4 TB HDD is pre-installed, so the system is ready to configure on arrival. It suits small commercial properties, warehouses, childcare facilities, and residential installations where the owner wants WizSense AI filtering - specifically SMD 4.0 human and vehicle classification - without investing in a larger enterprise-grade system. The 8-channel NVR leaves 2 ports open for future expansion as needs grow.

What This System Actually Does

Who Buys This Model

• Small business owners: Retail shops, cafes, and offices wanting 8 MP coverage of entry points, car parks, and stock areas without a separate PoE switch - the NVR powers everything directly.
• Residential installers and owner-builders: Properties with 4-6 external zones that need AI-filtered alerts so the homeowner is not responding to every passing car or animal trigger overnight.
• Childcare and education facility managers: Sites requiring IP67-rated outdoor cameras with a built-in microphone and high-resolution coverage of gates, playgrounds, and car park entries.
• Light commercial and industrial tenancies: Warehouses and workshops wanting perimeter tripwire and intrusion detection on loading dock approaches, with footage searchable by vehicle or human target type.
• Security installers on mid-tier projects: Integrators commissioning systems where the client wants AI analytics, a pre-loaded HDD, and 2 spare channels for future expansion without stepping up to a larger NVR platform.

Honest Assessment

This kit does several things well for its category. The 8 MP Starlight sensors deliver genuine low-light performance for outdoor fixed-focal cameras, SMD 4.0 classification at the camera level meaningfully reduces nuisance alerts, and the combination of pre-installed 4 TB storage with 8 PoE ports on the NVR makes this a straightforward commission. Smart H.265+ compression keeps storage efficient across 6 high-resolution streams. The built-in microphone on each camera adds audio detection capability without extra hardware. Available through Security Australia, this kit suits installations where 6 fixed turret positions cover the full site. Where it will not serve as well: properties needing to cover very long driveways or large perimeters where 30 m IR reach is insufficient - a bullet camera with 60 m or greater IR would be more appropriate for those runs. The NVR supports 1 HDD only, so storage expansion beyond the 4 TB drive is not possible without replacing the recorder.

Complete Package Contents

• 6 x Dahua IPC-HDW3866EMP-S-AUS WizSense Fixed Starlight Turret Camera - 8 MP, 30 m IR, IP67, built-in microphone, 12 VDC/PoE, black housing
• 1 x Dahua NVR4108HS-8P-AI/ANZ AI Network Video Recorder - 8-channel, 8 PoE ports, 1-channel face detection, 2-channel perimeter protection, compact 1U, pre-installed 4 TB HDD

Before You Buy

Quick Fit Check

• Good match if: Your site has 4-6 outdoor camera positions within 30 m IR reach and you want AI-filtered human and vehicle alerts without configuring a separate PoE switch - the NVR's 8 built-in PoE ports handle all cameras directly.
• Good match if: You need SMD 4.0 classification and perimeter tripwire or intrusion detection with a pre-installed 4 TB drive - the system arrives ready to configure without sourcing additional components.
• You may need a different model if: Your site has long driveway approaches or open perimeter runs where 30 m IR is insufficient - a kit built around long-range IR bullet cameras with 60 m or greater illumination would serve those positions better. Browse the Dahua bullet camera kits on securityaustralia.com.au for alternatives.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 8 MP AI-classified coverage across 6 positions with everything - cameras, PoE NVR, and pre-installed 4 TB storage - in a single order, and all positions fall within 30 m of the camera mounting point.
• You may need a different model if: Your site has large open areas, long driveway approaches, or exposed perimeter fencing where long-range IR of 60 m or greater is needed - a kit built around long-range IR bullet cameras will serve those distances better. Browse the industrial bullet camera kit range on securityaustralia.com.au.
• Pairs well with: A PoE network switch if you need to extend camera positions beyond the NVR's cable reach, or a Dahua-compatible network video doorbell for front gate identification to complement the perimeter camera coverage.

Common Questions

1. Do I need a separate PoE switch to run all 6 cameras?

   No. The NVR4108HS-8P-AI/ANZ has 8 built-in PoE ports, so all 6 cameras connect directly to the recorder using a single Cat5e or Cat6 cable each. There is no need for a separate PoE switch or injector in a standard installation. Two PoE ports remain spare for future camera additions.

2. Will this system work outdoors in Australian weather conditions?

   Yes. Each camera carries an IP67 weather rating, meaning the enclosure is fully dust-tight and can withstand submersion in 1 m of water for 30 minutes. The cameras also support wide voltage input tolerance, making them suitable for outdoor environments where power supply voltage may fluctuate.

3. How does SMD 4.0 reduce false alarms compared to standard motion detection?

   SMD 4.0 uses AI algorithms at the camera level to classify motion events as human, vehicle, or neither before an alert is generated. Standard motion detection triggers on any pixel change - a tree branch, a headlight sweep, or a large animal will all set it off. SMD 4.0 filters those out, so the alerts reaching your phone or NVR represent confirmed human or vehicle activity. Paired with the AI NVR's Quick Pick function, you can also search recorded SMD events by target type rather than scrubbing through hours of footage.

4. How long will 4 TB of storage last with 6 x 8 MP cameras recording?

   Storage duration depends on the recording mode and scene activity. Smart H.265+ compression reduces bitrate significantly in low-activity environments, extending recording retention compared to standard H.265. For most residential and light commercial sites recording on SMD-triggered or motion-triggered mode rather than 24/7 continuous, 4 TB will typically provide several weeks of retention. High-activity sites on continuous recording will see shorter retention. Configuring SMD-triggered recording on all 6 cameras is the most effective way to extend storage life on this system.

5. Does the NVR support face detection and how many channels does it process simultaneously?

   Yes. The NVR4108HS-8P-AI/ANZ supports 1-channel face detection and recognition, with up to 10 face databases configurable on the recorder. Perimeter protection - tripwire and intrusion zone detection - runs on 2 channels simultaneously. These are NVR-level AI functions that operate independently of the camera's own SMD processing, which runs on all 6 cameras concurrently.

6. Can I add more cameras to this system later?

   Yes, with limitations. The NVR has 8 channels and 8 PoE ports, and only 6 are used by this kit - leaving 2 spare ports for additional cameras. Beyond 8 cameras total, you would need to upgrade to a higher-channel NVR. The NVR also supports connections to third-party network cameras, not just Dahua models, though AI features such as SMD Quick Pick require compatible Dahua cameras to function.

7. Does this kit include two-way audio on the cameras?

   No. Each camera includes a built-in microphone, which enables audio detection and audio recording. However, the IPC-HDW3866EMP-S-AUS does not have a built-in speaker, so two-way talk is not available on these cameras. Audio detection - triggering an alert based on sound level changes - is supported through the built-in microphone. For two-way audio at an entry point, a Dahua-compatible video doorbell or intercom added to a spare NVR port would provide that function. The full product range is listed on the Security Australia website.

Downloads & Resources

No downloads available for this product.
