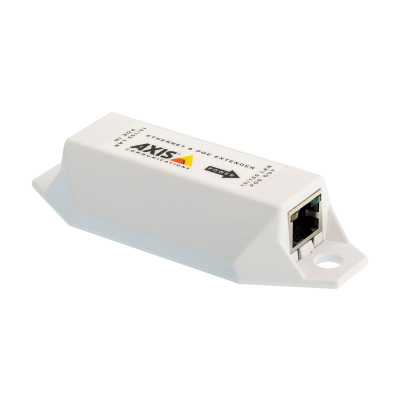

AXIS T8129 2 Port Plug & Play PoE Extender, 10/100 Mbps, IEEE 802.3af/t, Up to 200m

$0.00 AUD
 per
In stock!
Spend $100.00 to FREE SHIPPING

The smart solution for covering distances

With the AXIS T8129, Axis network video products can be installed more than 100 meters (328 feet) apart. By adding an AXIS T8129 for every additional 100 meters (328 feet) of cable, both Ethernet and PoE can be extended further, depending on the camera model and power source. The AXIS T8129 eliminates the need for an extra power supply, as the network camera is powered by a single PoE switch or midspan, streamlining the installation process. It features two Ethernet ports that are automatically configured for link speed, duplex, and crossover, while maintaining full-rate network throughput.

Key Features

  • Extend a PoE connection beyond the 100m limit
  • IEEE 802.3af, IEEE 802.3at and High PoE 60 W compatible
  • Ease of installation with no additional power supply
  • Compatible with all Axis network video products
  • Indoor use

Code/SKU: AXIS T8129
Quick Specs:

  • Dimensions: 105 x 40 x 22 mm (4.1 x 1.6 x 0.9 in)
  • Weight: 45 g (1.6 oz)

Specifications

Data rate 10/100 Mbps half/full duplex
Distance The maximum distance depends on the connected product, power source, and operating conditions.
Connectors Shielded RJ45, EIA 568A and 568B
Network cables Shielded category 5 (or higher)
Installation and management Plug-and-play installation; automatically forwards in-line power to PoE and High PoE-enabled devices
Display and indicators LED indicators are located on the RJ45 connector
Power indicator: PoE enabled (Green)
Network indicator: Link/activity (Yellow)
Compliance IEEE 802.3af, IEEE 802.3at, RoHS, WEEE, CE
Mounting Wall or shelf
Environment Indoor
Operating conditions -10 °C to 50 °C (14 °F to 122 °F)
Humidity max. 85% RH (non-condensing)
Storage conditions -40 °C to 74 °C (-40 °F to 165 °F)
Approvals EN 55022 Class B, EN 55024, FCC Part 15 Subpart B Class B with FTP cabling
Dimensions 105 x 40 x 22 mm (4.1 x 1.6 x 0.9 in)
Weight 45 g (1.6 oz)

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

AXIS T8129 2 Port Plug & Play PoE Extender, 10/100 Mbps, IEEE 802.3af/t, Up to 200m

$0.00 AUD
 per

The AXIS T8129 PoE Extender is a high-performance device designed to extend Power over Ethernet (PoE) connections up to 100 meters, ensuring flexibility and reliability in network setups. It supports both PoE and PoE+ standards, making it versatile for various applications and compatible with a range of network devices. The extender features an IP66-rated weatherproof housing, making it suitable for outdoor installations in harsh environments. With its simple plug-and-play installation, the AXIS T8129 minimizes setup time and reduces the need for complex configurations. It also includes integrated surge protection to safeguard against electrical surges and ensure long-term reliability. This device is ideal for extending the reach of PoE connections in surveillance systems and other network setups where additional distance is required.

Features

  • Extended Distance: AXIS T8129 allows Axis network video products to be installed at distances greater than 100 m (328 ft) apart.
  • Cable Extension: By connecting an AXIS T8129 for every additional 100 m (328 ft) of cable, both Ethernet and PoE can be extended further, depending on the camera model and power source.
  • No Additional Power Supply Required: AXIS T8129 does not need an extra power supply; the connected network camera is powered by a single PoE switch or midspan.
  • Simplified Installation: Reduces complexity in installation by utilizing a single PoE source.
  • Dual Ethernet Ports: Offers two Ethernet ports, which are automatically configured for link speed, duplex, and crossover.
  • Maintained Throughput: Ensures full-rate network throughput is maintained.
Technical Specifications
Data rate 10/100 Mbps half/full duplex
Distance The maximum distance depends on the connected product, power source, and operating conditions.
Connectors Shielded RJ45, EIA 568A and 568B
Network cables Shielded category 5 (or higher)
Installation and management Plug-and-play installation; automatically forwards in-line power to PoE and High PoE-enabled devices
Display and indicators LED indicators are located on the RJ45 connector
Power indicator: PoE enabled (Green)
Network indicator: Link/activity (Yellow)
Compliance IEEE 802.3af, IEEE 802.3at, RoHS, WEEE, CE
Mounting Wall or shelf
Environment Indoor
Operating conditions -10 °C to 50 °C (14 °F to 122 °F)
Humidity max. 85% RH (non-condensing)
Storage conditions -40 °C to 74 °C (-40 °F to 165 °F)
Approvals EN 55022 Class B, EN 55024, FCC Part 15 Subpart B Class B with FTP cabling
Dimensions 105 x 40 x 22 mm (4.1 x 1.6 x 0.9 in)
Weight 45 g (1.6 oz)
