6MP 4CH Hikvision CCTV Kit: 2 x Outdoor Turret Cameras + 4CH NVR

Model: 2x DS-2CD2366G2-I / DS-7604NI-I1/4P

Who This Is For

For property owners and small business operators who need a structured starting point rather than buying cameras and a recorder separately and hoping they work together. This 6MP 4CH Hikvision CCTV Kit pairs 2 Hikvision DS-2CD2366G2-I AcuSense turret cameras with a 4-channel PoE NVR, and it suits residential installs covering a front entry and a rear yard, small retail shops protecting a shopfront and a back-of-house area, or light commercial premises needing a clean, verified setup out of the box. The 4-channel NVR ships with 2 channels unused, so adding a 3rd or 4th camera later is straightforward without touching the recorder. Installers specifying a first-time system for a client who wants high-resolution footage with intelligent human and vehicle classification will find this kit covers the essentials without overcomplicating the build.

What This System Actually Does

Who Buys This Model

• Homeowners installing for the first time: Buyers who want a matched, pre-configured Hikvision system covering a front door and backyard without sourcing cameras and an NVR separately and dealing with compatibility questions.
• Small retail and cafe operators: Business owners who need AcuSense alert filtering so they are not flooded with motion notifications from foot traffic passing the building overnight, while still capturing 6MP detail on entry points.
• Installers on fixed-budget residential jobs: Trade installers who need a verified camera-to-NVR combination on a 2-camera job and want 2 spare channels available if the client expands to a 3rd or 4th position later.
• Body corporate managers on smaller complexes: Sites covering 2 key areas - a pedestrian entry and a carpark approach - where 6MP resolution and IP67-rated outdoor housings are specified but budget does not justify a larger channel system.

Honest Assessment

This kit does several things genuinely well. The DS-2CD2366G2-I cameras bring confirmed 6MP resolution, AcuSense classification, DarkFighter low-light sensitivity, and true 120dB WDR into a matched bundle with a 4-channel PoE NVR. The PoE delivery simplifies installation to a single Cat cable run per camera, and the 2 spare NVR channels make phased expansion straightforward. For a 2-camera residential or small commercial install, the pairing is a practical way to get a high-resolution, AI-filtered system running without compatibility risk.

What this kit will not do: it does not include storage - an HDD must be sourced and installed in the NVR separately. The cameras have a fixed IR range of 30m, so long approaches, carparks deeper than 30m, or sites needing 50m+ night coverage would be better served by a bullet-format camera with extended IR. No built-in microphone is confirmed on these cameras, so two-way audio is not available. Available through Security Australia, this kit suits 2-point installs; larger sites covering 5 or more positions should look at a higher-channel NVR system.

Complete Package Contents

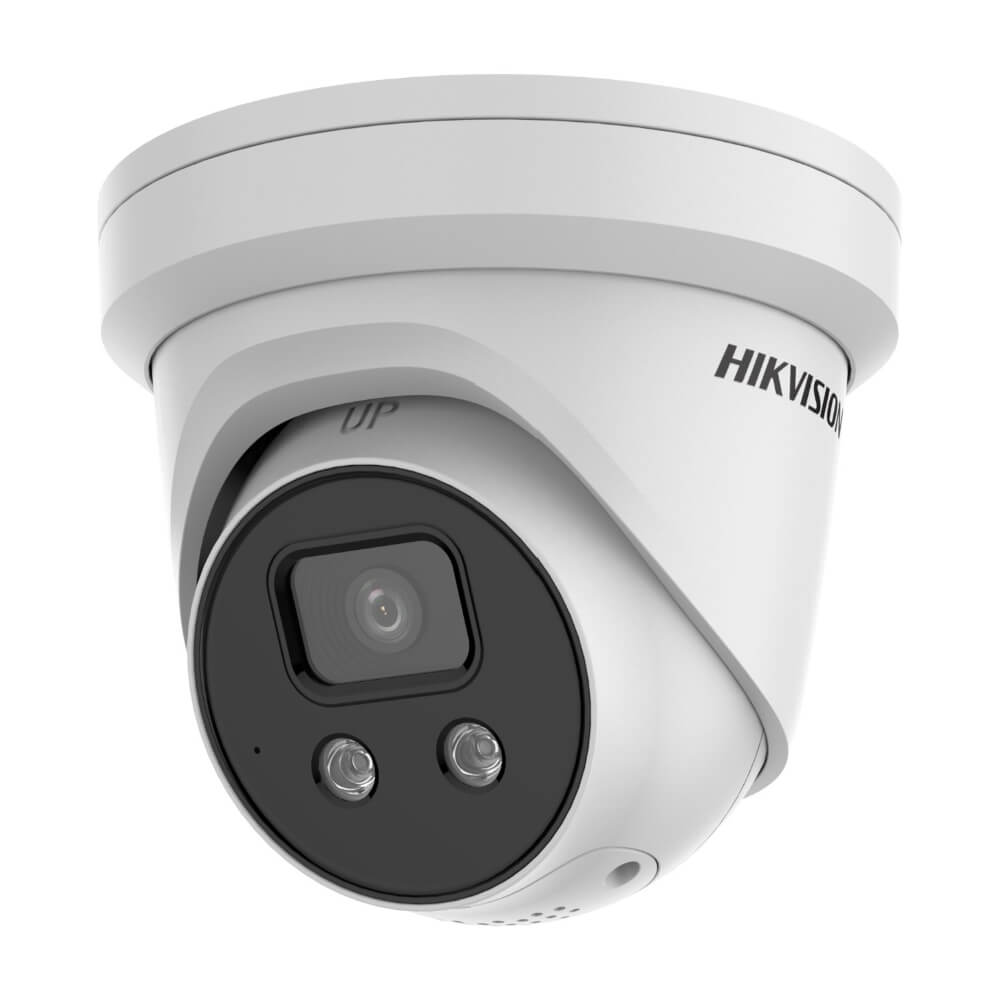

• 2 x Hikvision DS-2CD2366G2-I AcuSense Turret Camera - 6MP, IP67, 30m IR, fixed lens (2.8mm/4mm/6mm), PoE 802.3af
• 1 x Hikvision DS-7604NI-I1/4P NVR - 4-channel, 4 built-in PoE ports, no HDD included

Before You Buy

Quick Fit Check

• Good match if: You are covering 2 outdoor positions - such as a front entry and rear yard - and want AcuSense human and vehicle classification to filter out nuisance alerts from animals or passing traffic.
• Good match if: You want a PoE system where all cameras run on a single Cat cable each back to the NVR, and you want 2 spare channels available for a future 3rd or 4th camera without replacing the recorder.
• You may need a different model if: Your site requires more than 2 cameras now, or you need IR coverage beyond 30 metres - a bullet-format camera kit with extended IR range or a higher-channel NVR bundle would be a better starting point. Browse the full kit range on securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a 2-camera outdoor system with confirmed AcuSense classification, 6MP resolution, and a PoE NVR that is already verified to work with the cameras - and you want room to add 2 more cameras later without replacing the recorder.
• You may need a different model if: Your site has more than 2 coverage points now, or requires IR beyond 30 metres - an 8-channel kit with extended IR bullet cameras or a higher-channel NVR bundle would be a more appropriate starting point. Both options are available on securityaustralia.com.au.
• Pairs well with: A surveillance-grade HDD (2TB or larger, 24/7 rated) to enable recording, and a Cat5e or Cat6 cable for each camera run back to the NVR.

Common Questions

1. Does this kit include a hard drive for recording?

   No. The DS-7604NI-I1/4P NVR ships without an HDD installed. You will need to purchase and fit a compatible surveillance-grade hard drive before the system can record footage. At 6MP resolution with H.265+ compression running across 2 cameras, a 2TB drive is a practical minimum for continuous recording across several days. Standard desktop drives are not designed for the constant write cycles a recorder generates - use a drive rated for 24/7 surveillance workloads.

2. Will this system work with additional Hikvision cameras I already own?

   Yes, in most cases. The DS-7604NI-I1/4P has 4 PoE ports and 2 are unused by this kit. Compatible Hikvision IP cameras can be added to the spare channels. Confirm that any additional cameras use a supported protocol and that the combined bandwidth of all channels does not exceed the NVR's total throughput limit. Mixing camera generations occasionally requires a firmware update on the NVR to ensure full feature compatibility, particularly for AcuSense functions.

3. What does AcuSense actually change compared to standard motion detection?

   AcuSense uses deep learning on the camera's processor to classify detected objects as human or vehicle before triggering an alert. Standard motion detection fires on any pixel change - a passing car's headlights sweeping across a wall, a spider walking across the lens, or a branch moving in wind will all trigger a standard alert. AcuSense filters those out and only sends a push notification when a person or vehicle is confirmed. For a residential install where the camera faces a garden or street, this difference in alert quality is significant day to day.

4. Do the cameras support two-way audio?

   No. The DS-2CD2366G2-I does not have a built-in microphone, so two-way audio is not available on this camera. It does not capture audio at all. If audio recording or intercom-style communication is a requirement for your site, you would need to look at a different camera model that confirms both a built-in microphone and speaker.

5. Which lens should I choose - 2.8mm, 4mm, or 6mm?

   It depends on what you are covering and how far away the subject will be. The 2.8mm lens gives a 105.1 degree horizontal field of view, which suits wide entrances and areas you are monitoring at close range - within 5 to 8 metres. A 4mm lens narrows the field but pushes the useful recognition distance further out. A 6mm lens is appropriate when you want to identify faces or read detail on a narrow target zone at greater distance, such as a pedestrian gate 12 to 15 metres away. Confirm your mounting height and coverage goal before ordering, as the lens is fixed and cannot be swapped after purchase.

6. How does the DarkFighter technology affect night footage compared to a standard camera?

   DarkFighter refers to the sensor and aperture design that achieves a minimum colour illumination of 0.003 Lux. A standard IP camera at this price point typically switches to black-and-white IR mode at ambient light levels around 0.1 to 0.5 Lux - meaning a dim streetlight or single exterior light is already enough to trigger the IR switch. The DS-2CD2366G2-I holds colour footage at much lower light levels before the IR cuts in. In practice, this means a driveway camera will show the colour of a vehicle, clothing, and hair in conditions where a standard camera would already be showing a greyscale IR image. Colour detail is often the most useful information for identifying subjects in recorded footage reviewed after an incident.

7. Can I access footage remotely on my phone?

   Yes. The DS-7604NI-I1/4P NVR supports remote access via Hikvision's mobile application, allowing live viewing and playback of recorded footage from a smartphone or tablet. Remote access requires the NVR to be connected to your network via the onboard Ethernet port and an internet connection. Initial setup is done through the Hikvision app using the NVR's verification code. Note that network configuration, port forwarding, or P2P setup may be required depending on your router and ISP, and this is typically handled during the initial installation.

8. Does 6MP resolution genuinely help with identifying people compared to a 4MP or 2MP camera?

   Yes, in specific conditions. More megapixels mean more detail is captured per frame, which gives you more usable information when you zoom into recorded footage digitally after an event. At 6MP you can crop significantly into the image - to a face in a crowd or a number plate at the edge of frame - and retain enough detail for identification where a 2MP or 4MP crop of the same scene would have already become too pixellated to read. The practical benefit is most noticeable on wide-angle 2.8mm installs where a subject may be to the side of the frame. The improvement over 4MP is meaningful but less dramatic than the jump from 2MP to 4MP.

Cabling Considerations

• Cable Type: Cat5e minimum, Cat6 recommended for each camera run back to the NVR.
• Max Cable Run: Up to 100m per camera using standard PoE over Ethernet. Beyond 100m, a PoE extender or midspan injector is required.
• PoE Notes: The DS-2CD2366G2-I draws power via IEEE 802.3af PoE. The DS-7604NI-I1/4P has 4 built-in PoE ports, so no external switch or injector is needed for up to 4 cameras total.
• Wiring Tips: Run cables before finalising camera mounting positions. For outdoor runs exposed to weather or UV, use external-grade Cat6 with a UV-stabilised jacket and seal cable entry points with conduit or appropriate outdoor glands to prevent moisture ingress at the camera housing.
