6MP 4CH Hikvision CCTV Kit: 4 x Mini Bullet Cameras + 4CH Network Recorder

Model: DS-2CD2066G2 / DS-7604NI-I1-4P

Who This Is For

For small business owners and residential installers who need a complete, ready-to-run outdoor surveillance system without the guesswork of pairing compatible components. This kit combines 4 x Hikvision DS-2CD2066G2-I 6MP AcuSense Gen 2 mini bullet cameras with a 4-channel PoE NVR, giving you everything required to cover driveways, car parks, entry points, and perimeter fencing in a single purchase. The mini bullet form factor keeps installation straightforward on eaves, fascia boards, and external walls, while AcuSense Gen 2 deep learning filters out pets and foliage to deliver alerts that actually matter. If you are specifying a 4-camera system for a small retail premises, a residential property, a warehouse entry, or a light commercial site and want 6MP detail with AI-driven detection built in from day one, this kit is sized and priced for exactly that scope.

What This System Actually Does

Who Buys This Model

• Small retail and hospitality operators: Covering 4 key positions - front entrance, car park, rear access, and till area - in a single kit purchase that ships ready to install without sourcing cameras and an NVR separately.
• Residential property owners with complex sites: Multi-entry homes, acreage properties, or dual-occupancy sites where 4 x 6MP coverage points are needed and AcuSense filtering reduces nuisance alerts from animals and vegetation movement.
• Self-managing strata and body corporate committees: Common area coverage for apartment blocks or townhouse complexes where a fixed 4-channel system with remote Hik-Connect access lets a building manager check footage without attending site.
• Trade installers completing smaller commercial jobs: Specifying a pre-matched 4-channel Hikvision kit that reduces compatibility risk, shortens quoting time, and gives the client a cohesive system from a single manufacturer with matched firmware.
• Warehouse and light industrial sites: Entry points, loading dock approaches, and perimeter gates where the mini bullet form factor mounts discreetly while IP67 and the wide operating temperature range handle exposure to weather and dust.

Honest Assessment

This kit does the core job of a small outdoor system well. Six megapixels across 4 channels is a meaningful step up from budget 2MP kits, and AcuSense Gen 2 at the camera level - not just at the NVR - means smarter filtering without depending on software post-processing. H.265+ compression and up to 8TB HDD support give you real retention capacity at 6MP. The built-in microphone on the cameras provides one-way audio capture, which adds context to recorded events. PoE from the NVR keeps the install clean and the component count low. What this system will not do is scale beyond 4 cameras without replacing the NVR, cover long-range approaches beyond standard IR distance, or provide full-colour night imaging without IR in true darkness - for those requirements, a TiOC or ColorVu variant would be more appropriate. Available through Security Australia, this kit suits defined 4-camera sites rather than phased expansion projects.

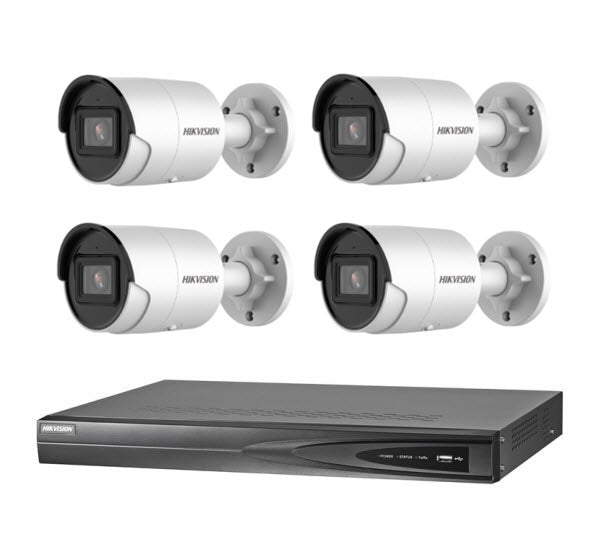

Complete Package Contents

• 4 x Hikvision DS-2CD2066G2-I - 6MP AcuSense Gen 2 Mini Bullet Camera, IP67, IR, Built-in Microphone, PoE
• 1 x Hikvision DS-7604NI-I1/4P - 4-Channel PoE NVR, supports up to 6MP input, up to 8TB HDD capacity

Before You Buy

Quick Fit Check

• Good match if: You need a complete 4-camera outdoor system with AI-filtered alerts and want a single-manufacturer Hikvision solution where cameras, NVR, and firmware are pre-matched and PoE-ready from the box.
• Good match if: Your site has defined external positions - entries, car parks, loading docks - where 6MP mini bullet cameras provide the detail and weatherproofing required without needing pan, tilt, or motorised zoom functionality.
• You may need a different model if: You anticipate adding more than 4 cameras in the near future - an 8-channel or 16-channel NVR kit would be a more practical investment to avoid replacing the recorder when you expand.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a complete 4-camera outdoor system at 6MP with AI-filtered human and vehicle detection, clean single-cable PoE installation, and a matched Hikvision NVR - all in one purchase.
• You may need a different model if: You anticipate expanding beyond 4 cameras, or need full-colour night imaging without IR - an 8-channel kit or a TiOC-based system would serve those requirements better.
• Pairs well with: A surveillance-rated 4TB or 6TB HDD (required - not included), a UPS to protect the NVR from power interruptions, and a wall-mount bracket for installations where soffit mounting is not possible.

Common Questions

1. Does this kit include a hard drive?

   No. The DS-7604NI-I1/4P NVR ships without a hard drive installed. You will need to purchase a surveillance-rated HDD separately and fit it before the system can record. The NVR supports a single HDD of up to 8TB. Standard desktop drives are not recommended for continuous CCTV recording - look for drives marketed specifically for surveillance use, such as those rated for 24/7 operation and high write-cycle workloads.

2. Will this system work if I only connect 2 or 3 cameras initially?

   Yes. The 4-channel NVR operates normally with fewer than 4 cameras connected - unused PoE ports simply remain inactive. You can add cameras to the remaining ports at any time up to the 4-channel limit without any reconfiguration of the recorder. If you already know you will need more than 4 cameras in the future, an 8-channel NVR kit is a more practical starting point.

3. How does AcuSense Gen 2 reduce false alarms compared to standard motion detection?

   AcuSense Gen 2 uses deep learning at the camera level to classify motion events as either a person or a vehicle before an alert is sent. Standard pixel-change motion detection triggers on any movement - insects, headlight sweep across a wall, or foliage moving in wind. AcuSense filters those out at source, so the events that reach your phone or NVR alarm log are specifically human or vehicle detections. This is processed on the camera itself, not dependent on the NVR's processing capacity.

4. Does this system support remote viewing on a phone?

   Yes. The DS-7604NI-I1/4P NVR supports Hik-Connect, Hikvision's remote access platform available for both iOS and Android. Once configured, you can view live feeds, play back recorded footage, and receive push notifications for AcuSense detection events from anywhere with an internet connection. Network configuration - including port forwarding or use of the Hik-Connect P2P service - is required during initial setup.

5. How much footage will a 4TB hard drive hold at 6MP across all 4 cameras?

   Storage duration depends on the recording schedule, compression codec, and scene activity. With H.265+ compression and motion-triggered recording across 4 x 6MP cameras on a typical mixed indoor/outdoor scene, a 4TB drive typically provides between 14 and 30 days of footage before overwriting begins. Continuous 24/7 recording will reduce that figure. Hikvision's online storage calculator gives a more precise estimate based on your specific frame rate and bitrate settings. This kit is stocked by Security Australia and the team can assist with storage planning before you purchase.

6. What cable do I need to run from the NVR to each camera?

   Cat5e or Cat6 cable is required for each camera run. The NVR supplies PoE (IEEE 802.3af) over standard Ethernet, so a single cable per camera carries both power and video. Maximum recommended cable length per run is 100 metres. Beyond that distance, signal and power delivery may degrade - a mid-span PoE extender or injector would be required for longer runs. Use outdoor-rated (UV-stabilised) cable for any runs exposed to sunlight or weather.

7. Do the cameras have two-way audio, or only one-way audio monitoring?

   The DS-2CD2066G2-I cameras include a built-in microphone for audio capture, but there is no built-in speaker on the camera. This means the system supports one-way audio monitoring - you can hear activity captured by the microphone in recorded footage or during live view - but you cannot broadcast audio from the NVR through the camera. If two-way audio is a requirement, a camera with both a built-in microphone and a built-in speaker would be needed.

Cabling Considerations

• Cable Type: Cat5e or Cat6 Ethernet cable for all camera runs. Use outdoor UV-rated cable for any exposed runs.
• Max Cable Run: 100 metres per camera from NVR PoE port. Runs exceeding this length require a PoE extender.
• PoE Notes: The NVR provides IEEE 802.3af PoE on all 4 ports - no separate PoE switch or injector needed for standard installations. No external power supplies are required at the camera end.
• Wiring Tips: Plan cable routes before installation and measure each run. Avoid running Ethernet cables parallel to mains power cables for extended distances to prevent interference. Terminate all outdoor cable entries with weatherproof grommets or conduit to maintain IP67 protection at the camera mount point.
