ZKTeco ZK-EC10 Elevator Controller, Floor Button Control Relay: 10, Fingerprint Capacity (3,000) RFID Card Capacity (30,000) Support up to Three EX16 Boards (Each EX16 Additional 16 Floors)
- Sku: ZK-EC10
- Vendor: SecurityAustralia

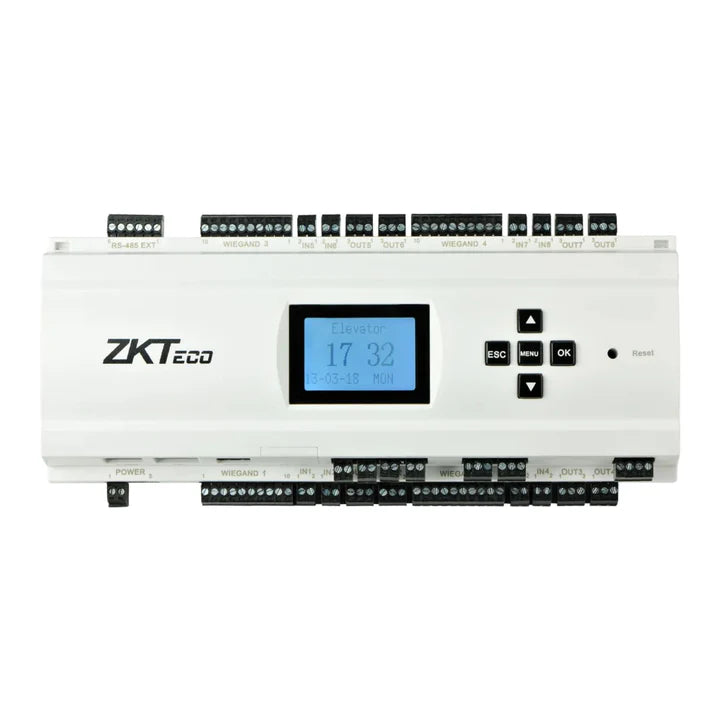

ZKTeco ZK-EC10 Elevator Controller
The ZKTeco ZK-EC10 is a specialized elevator control panel designed to provide secure, scalable, and versatile access control solutions for elevator systems. Paired with the EX16 floor extension boards, the EC10 allows for restricted floor access based on user credentials such as fingerprint, proximity card, or password. Pre-defined time schedules and passage modes can also be configured to control access during specific hours or unrestricted periods.
With the ability to control up to 10 floors directly and expand to 58 floors using EX16 extension boards, the EC10 offers a flexible and cost-effective solution for managing elevator access in buildings of various sizes.
Features:
- Floor Button Control Relay: Controls up to 10 floors directly.
- Scalable Design: Supports up to 3 EX16 extension boards, each adding control for 16 additional floors, allowing a total of 58 floors.
- Multiple Verification Modes: Supports fingerprint, proximity card, and password for secure floor access control.
- Time-Based Access Control: Allows pre-defined time schedules for restricted or unrestricted floor access (Passage mode).
- High Capacity: Stores up to 3,000 fingerprint templates, 30,000 RFID cards, and 100,000 events.
- Easy-to-Use Software: Intuitive software for easy management of the elevator control system.
- SDK Availability: Software Development Kit (SDK) is available for integration with third-party systems.
Code/SKU: ZK-EC10
Quick Specs: Floors Supported: 10 (expandable to 58 with EX16 boards); Verification Modes: Fingerprint, Proximity Card, Password; Capacity: 3,000 fingerprints, 30,000 RFID cards, 100,000 events; Communication: TCP/IP, RS485; Power: 12V DC 1A; Dimensions: 242mm × 95mm × 60mm; Weight: 0.8Kg.
Free shipping - Enjoy free shipping when your order exceeds $100!
All orders are despatched within the next business day!
Best local support in Aus! We back all products with a 3 year manufacturer warranty.
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Product Overview
The ZKTeco ZK-EC10 Elevator Controller is designed specifically for elevator control, offering a secure, scalable, and versatile access control solution. The EC10 panel, combined with EX16 floor extension boards, provides an affordable and efficient way to manage floor access in buildings. Floor access can be restricted based on user credentials such as fingerprint, proximity card, or password, and pre-defined time schedules can also be applied. During normal business hours, unrestricted floor access can be enabled (Passage mode).
The EC10 panel can control up to 10 floors, and each EX16 board extends control to an additional 16 floors. A single EC10 bundle can support up to 58 floors when combined with three EX16 boards. Multiple EC10 panels can be daisy-chained to control even more floors. The system is managed through powerful yet user-friendly software, and an SDK is available for integration with third-party applications.
Features
- Multiple Verification Modes: Supports fingerprint, proximity card, and password for secure floor access control.
- Time-Based Access: Allows pre-defined time schedules to restrict or permit floor access.
- Passage Mode: Enables unrestricted floor access during normal business hours or predefined periods.
- Scalable Design: EC10 panel controls up to 10 floors, and each EX16 board extends control to 16 additional floors.
- High Capacity: A single EC10 bundle can manage up to 58 floors when combined with three EX16 boards.
- Daisy-Chaining: Multiple EC10 panels can be connected to control an unlimited number of floors.
- User-Friendly Software: Easy-to-use software for managing the elevator control system.
- SDK Availability: SDK provided for integration with third-party software applications.
Functions
Secure Access Control:
Restricts floor access using fingerprint, proximity card, or password for enhanced security.
Time-Based Restrictions:
Applies pre-defined time schedules to control floor access based on user credentials.
Passage Mode:
Allows unrestricted floor access during normal business hours or predefined periods for convenience.
Scalable Solution:
EC10 panel controls 10 floors, and EX16 boards extend control to 16 additional floors each, supporting up to 58 floors per bundle.
High Capacity:
Combines EC10 and EX16 boards to manage up to 58 floors, with daisy-chaining for unlimited scalability.
Easy Management:
User-friendly software simplifies system configuration and management.
Integration Options:
SDK available for seamless integration with third-party software applications.
Versatile Deployment:
Ideal for buildings requiring secure and scalable elevator access control solutions.
Technical Specifications:
| Model | ZKTeco ZK-EC10 Elevator Controller |
| Floor Control Capacity | Up to 10 floors (expandable to 58 floors with EX16 boards) |
| Expansion Capability | Supports up to 3 EX16 floor extension boards |
| Floor Button Control Relay | 10 relays |
| Fingerprint Capacity | 3,000 fingerprint templates (optional) |
| RFID Card Capacity | 30,000 RFID cards |
| Event Capacity | 100,000 events |
| Power Supply | 12V DC 1A |
| Communication Protocols | TCP/IP, RS485 (to PC); RS485 (to EX16) |
| Dimensions | 242mm × 95mm × 60mm (L × D × H) |
| Net Weight | 0.8Kg |
