Wireless Bridge 5 GHz 867 Mbps Indoor/Outdoor Access Point
The EAP211-Bridge is built to withstand harsh environments with an IP65-rated weatherproof enclosure, 6 kV lightning protection, and resistance to extreme temperatures ranging from -40°C to 70°C. It is particularly useful for long-range point-to-point connections, providing stable wireless transmission over distances up to 1 km.
Key Features
Code/SKU: VIGI EAP211
Quick Specs:
| HARDWARE FEATURES | |
|---|---|
| Interface | 3x Gigabit Ethernet Ports |
| Button | Reset |
| Power Supply | 12V DC / 24V Passive PoE (Passive PoE adapter included.) |
| Dimensions ( W x D x H ) | 8.8 x 3.1 x 2.4 in (224 × 79 × 60 mm) |
| Antenna Type | Internal 2×2 Dual-polarized directional MIMO antennas5 GHz: 7.0 dBi |
| Mounting | Pole Mounting (Accessories included) |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11 a/b/g/n/ac |
| Frequency | 5 GHz |
| Signal Rate | 5 GHz: Up to 867 Mbps |
| Wireless Functions | • Mesh*4• MU-MIMO: 5G 2x2 MU-MIMO DL • Load Balance• Beamforming• Airtime Fairness• Multiple SSIDs:8 • Wireless Statistics• Wireless Schedule• Reboot Schedule• RADIUS Accounting• MAC Authentication• Static IP/Dynamic IP |
| Wireless Security | • VLAN• Access Control• Rogue AP Detection• Captive Portal Authentication*4• Maximum number of MAC Filter: 4,000• WPA-Personal/Enterprise, WPA2-Personal/Enterprise |
| Transmission Power | • CE: <23dBm (5 GHz, band 1/2, EIRP);<30dBm (5 GHz band3, EIRP);• FCC: <22dBm (5 GHz band1/4) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Hardware Controller (OC300)• Omada Hardware Controller (OC200)• Omada Software Controller• Omada Cloud-Based Controller |
| Cloud Access | Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller. |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based Management | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | • EAP211-Bridge KIT• Passive PoE Adapter• Power Cord• Installation Guide• Mounting Kit |
| Environment | • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);• Operating Humidity: 10%–90% non-condensing;• Storage Humidity: 5%–90% non-condensing |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

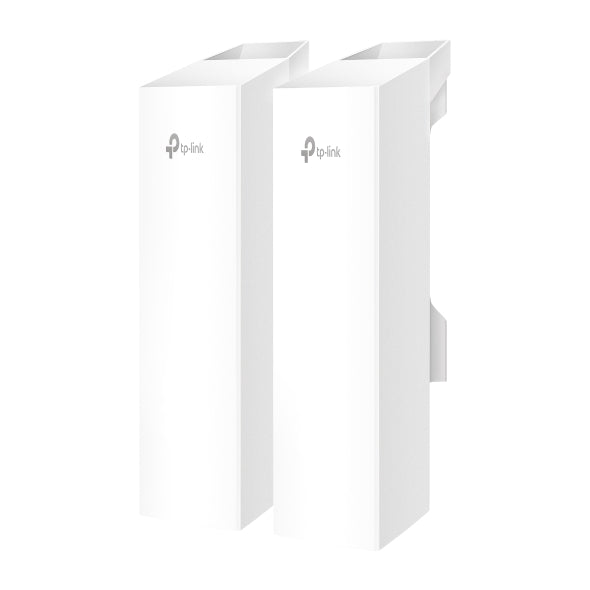

tp-link EAP211-Bridge KIT Point to Point Wireless Bridge 5 GHz 867 Mbps
The TP-Link EAP211-Bridge KIT is a 5 GHz wireless bridge designed for both indoor and outdoor use, offering speeds of up to 867 Mbps. This bridge features 3 Gigabit Ethernet ports, ensuring high-speed data transmission, and supports passive PoE for flexible power options. The EAP211-Bridge is built to withstand harsh environments with an IP65-rated weatherproof enclosure, 6 kV lightning protection, and resistance to extreme temperatures ranging from -40°C to 70°C. It is particularly useful for long-range point-to-point connections, providing stable wireless transmission over distances up to 1 km.
With auto-pairing technology, setting up the bridge is simple and quick, especially for standard configurations. For more complex setups, manual adjustments are supported through the Omada app or web UI. The bridge is compatible with the Omada Software-Defined Networking (SDN) platform, allowing centralized management and batch provisioning of multiple devices. This makes it ideal for use in challenging environments such as construction sites, farms, and remote surveillance.
Features
| HARDWARE FEATURES | |
|---|---|
| Interface | 3x Gigabit Ethernet Ports |
| Button | Reset |
| Power Supply | 12V DC / 24V Passive PoE (Passive PoE adapter included.) |
| Dimensions ( W x D x H ) | 8.8 x 3.1 x 2.4 in (224 × 79 × 60 mm) |
| Antenna Type | Internal 2×2 Dual-polarized directional MIMO antennas5 GHz: 7.0 dBi |
| Mounting | Pole Mounting (Accessories included) |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11 a/b/g/n/ac |
| Frequency | 5 GHz |
| Signal Rate | 5 GHz: Up to 867 Mbps |
| Wireless Functions | • Mesh*4• MU-MIMO: 5G 2x2 MU-MIMO DL • Load Balance• Beamforming• Airtime Fairness• Multiple SSIDs:8 • Wireless Statistics• Wireless Schedule• Reboot Schedule• RADIUS Accounting• MAC Authentication• Static IP/Dynamic IP |
| Wireless Security | • VLAN• Access Control• Rogue AP Detection• Captive Portal Authentication*4• Maximum number of MAC Filter: 4,000• WPA-Personal/Enterprise, WPA2-Personal/Enterprise |
| Transmission Power | • CE: <23dBm (5 GHz, band 1/2, EIRP);<30dBm (5 GHz band3, EIRP);• FCC: <22dBm (5 GHz band1/4) |
