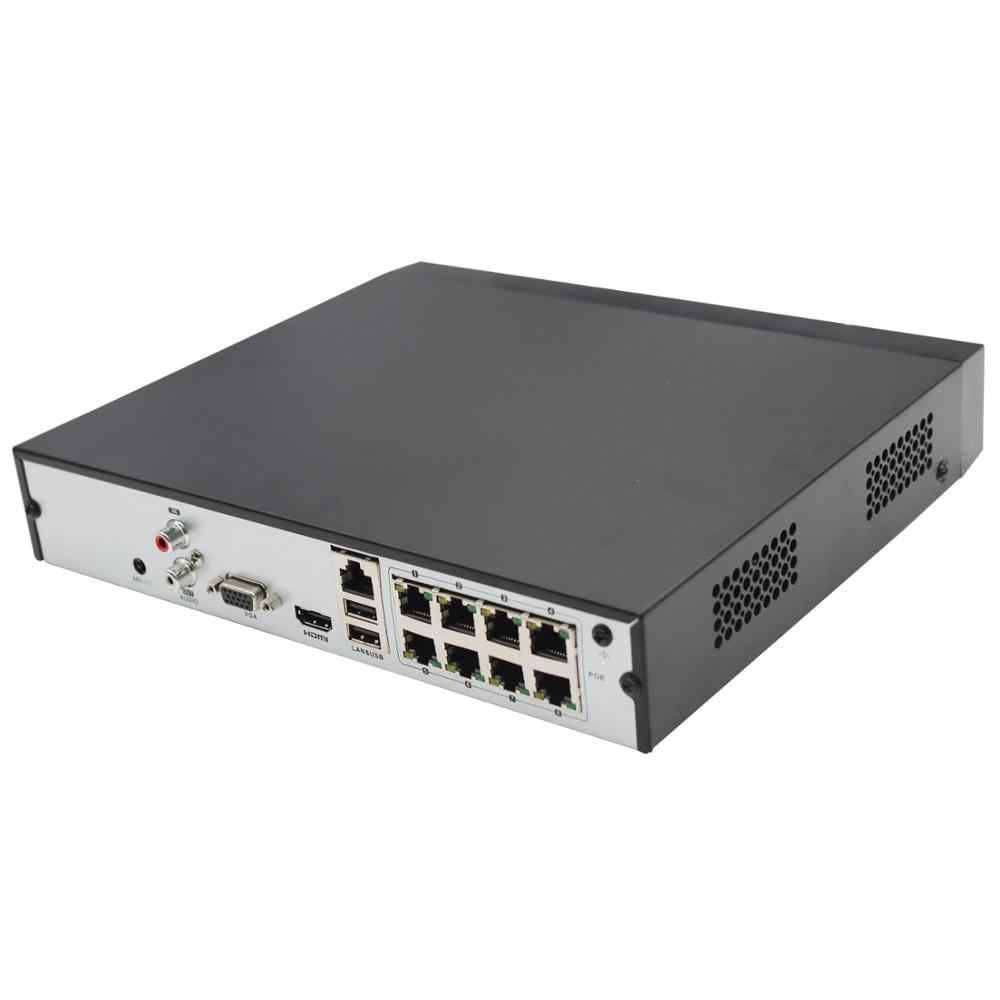

HiLook NVR-108MH-C-8P 8x PoE 8 Channel 4K HDMI, 1x SATA Network Video Recorder

Model: NVR-108MH-C-8P

Who This Is For

When keeping cable runs simple and the head-end compact is the priority, the HiLook NVR-108MH-C-8P is the unit most installers reach for on small-site jobs. It is built for residential installs, small retail premises, childcare centres, and light commercial properties that need up to 8 IP cameras without a separate PoE switch cluttering the comms cabinet. All 8 PoE ports are built directly into the NVR, so each camera needs only a single Cat5e or Cat6 run back to one location. The unit accepts cameras up to 8 MP, outputs to a 4K HDMI display, and supports simultaneous HDMI and VGA output - useful when a secondary monitor or TV is already on-site. With a slim 265 x 225 x 48 mm footprint and a weight under 1 kg (without drive), it fits neatly on a shelf, inside a small cabinet, or wall-mounted with a bracket.

What This NVR Actually Does

Who Buys This Model

• Residential installers: Fitting an 8-camera IP system at a home where a single cable run per camera and a tidy wall-mount installation is expected - no separate switch or additional power adapters.
• Small retail operators: Shops and convenience stores running up to 8 cameras who want 4K monitoring on an in-store display while the owner reviews footage remotely via mobile.
• Childcare and education facilities: Sites needing reliable multi-channel recording with simultaneous HDMI and VGA output for a front-desk monitor and a back-office screen running at the same time.
• Property managers: Small commercial tenancies and strata sites where the comms cabinet space is limited and a slim, low-power NVR with all switching built in makes cabinet management straightforward.
• Self-install buyers upgrading from analogue: Moving from an older DVR to a full IP system using HiLook cameras, where the integrated PoE switch removes the need to understand separate PoE switch configuration.

Honest Assessment

The NVR-108MH-C-8P does a specific job well: it consolidates 8-channel IP recording and camera power delivery into one compact unit that draws less than 90 W total. The 4K HDMI output, H.265+ compression, and 8-channel synchronous playback are genuinely useful at this price point, and the 75 W shared PoE budget handles standard cameras comfortably. H.265+ compression helps stretch a single 6 TB drive further than older codecs would. This unit is available through Security Australia alongside compatible HiLook cameras if you are building a matched system. Where the NVR-108MH-C-8P reaches its limits: the single SATA bay means there is no drive redundancy, so it is not suited to applications requiring RAID or long continuous-retention schedules without careful storage planning. Sites needing more than 8 channels, higher incoming bandwidth, or multiple drive bays should look at a higher-channel NVR model instead.

Before You Buy

Quick Fit Check

• Good match if: You are installing up to 8 IP cameras on a single site and want one device to handle both recording and camera power - the 8 built-in PoE ports eliminate the need for a separate PoE switch entirely.
• Good match if: The monitoring display is a 4K TV or monitor - the HDMI output supports 3840 x 2160 at 30 Hz, so 8 MP camera feeds display at full resolution without downscaling on screen.
• You may need a different model if: The site requires more than 8 camera channels, drive redundancy via RAID, or a higher incoming bandwidth ceiling - a 16-channel or rack-mount NVR with multiple SATA bays would be more appropriate for those requirements.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need an 8-channel PoE NVR with a compact footprint, 4K HDMI output, and H.265+ recording - and want camera power handled by the NVR itself without a separate PoE switch in the rack.
• You may need a different model if: The site needs more than 8 channels, drive redundancy, or a higher PoE power budget - a 16-channel or multi-bay NVR would be more appropriate for those requirements.
• Pairs well with: HiLook or Hikvision PoE IP cameras rated at 8 MP or below - dome, turret, or bullet form factors all connect directly to the built-in PoE ports without additional hardware.

Common Questions

1. Does this NVR come with a hard drive included?

   No. The NVR-108MH-C-8P ships without a hard drive installed. You need to purchase and fit a separate surveillance-rated SATA HDD - up to 6 TB capacity is supported in the single bay. Use a drive rated for 24/7 continuous operation rather than a standard desktop drive to avoid premature failure in a recording application.

2. Will this NVR power all 8 cameras from its PoE ports alone?

   Yes, provided the total power draw across all cameras stays within the 75 W shared PoE budget. IEEE 802.3af cameras draw up to 15.4 W each - 8 af-class cameras come to approximately 75-80 W combined, which sits at the budget limit. If any cameras use 802.3at (up to 30 W each), the number of simultaneously powered cameras will be lower. Confirm per-camera consumption before commissioning a full 8-port build with higher-power devices.

3. Can I run HDMI and VGA monitors at the same time?

   Yes. The NVR-108MH-C-8P supports simultaneous HDMI and VGA output, so two displays can be connected and active concurrently. The HDMI output handles up to 4K (3840 x 2160 at 30 Hz) for a 4K TV or monitor, while the VGA output runs up to 1080p/60Hz for a secondary or legacy display.

4. Does this NVR support remote viewing on a phone or tablet?

   Yes. The NVR-108MH-C-8P supports remote access via supported network protocols including HTTPS and DDNS, and accepts up to 64 simultaneous remote connections. Multiple users - such as a property owner, site manager, and security contractor - can access live or recorded footage concurrently. Remote access requires a working internet connection at the NVR's location. The unit is part of the Security Australia range, which also stocks compatible HiLook cameras if you are building a complete system.

5. What compression formats does this NVR record in?

   H.265, H.265+, H.264, H.264+, and MPEG4 are all supported. H.265+ is the most storage-efficient option - it reduces file sizes significantly compared to H.264 by applying smart compression, which is particularly useful when working with a single 6 TB drive across 8 channels recording continuously.

6. Will this NVR work with cameras from other brands?

   In most cases, yes - provided the cameras use the ONVIF protocol or are Hikvision-compatible. The NVR-108MH-C-8P accepts IP streams up to 8 MP on all 8 channels. Camera compatibility is generally strongest with HiLook and Hikvision-branded cameras. Third-party cameras that support ONVIF Profile S typically work for live view and recording, but advanced features such as smart event triggers may not function with non-HiLook cameras.

7. How many channels can I play back at the same time?

   All 8 channels can be played back simultaneously. The synchronous 8-channel playback means you can review footage from every camera on a single timeline - useful after an incident where you need to cross-reference what was happening at multiple locations at the same moment without switching between individual channels.

Product Video Samples

Downloads & Resources

No downloads available for this product.
