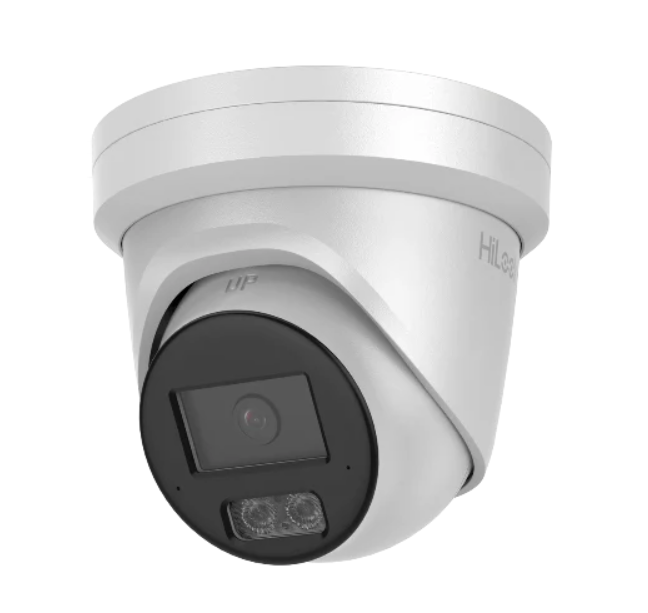

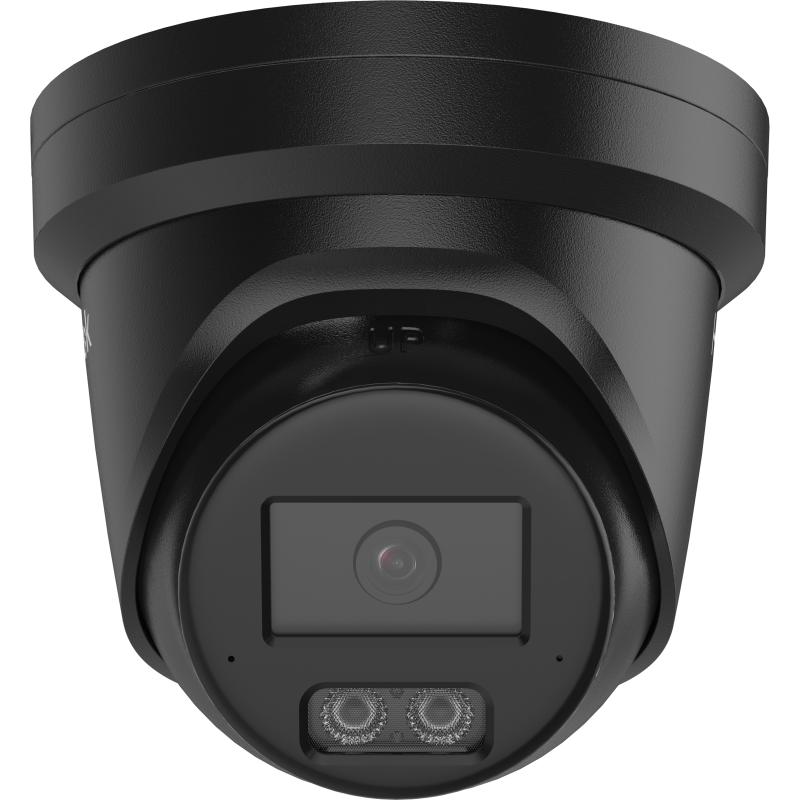

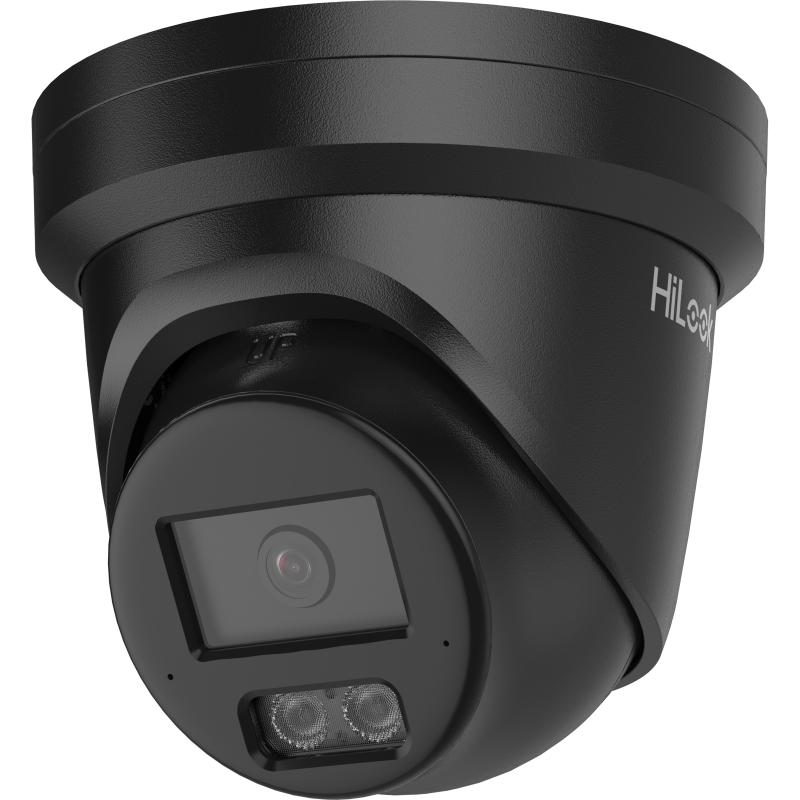

HiLook by Hikvision IPC-T561H-MU 6MP Hi-Color Fixed Turret Network Camera

Model: IPC-T561H-MU

Who This Is For

Property managers specifying cameras for eaves, soffits, and exterior walls where colour image quality after dark is a hard requirement will find the HiLook IPC-T561H-MU worth close attention. This is a 6MP Hi-Color turret built around a sensor designed to retain full-colour imaging in genuinely low-light conditions - not just near streetlights, but in the kind of ambient darkness typical of residential driveways, carpark entries, and side gates. The turret housing suits wall or ceiling mounting with a clean profile that sits comfortably on both domestic and small commercial buildings. The fixed lens keeps setup straightforward, and the 6MP resolution gives operators enough detail to work with when reviewing footage of faces, vehicles, or entry points. If you're specifying a step up from standard 4MP turrets and need colour performance without committing to a TiOC or floodlight-equipped camera, this model sits in a practical middle ground.

What This Camera Actually Does

Who Buys This Model

• Residential installers: Fitting eave and soffit cameras on homes where the client wants colour night footage at the front door, driveway, or side gate without adding external lighting or committing to a higher-cost TiOC unit.
• Small business owners: Covering carpark entries, rear access lanes, and shopfronts where 6MP resolution provides enough detail for after-hours incident review and the Hi-Color sensor handles the low ambient light typical of those environments.
• Strata and property managers: Specifying a consistent camera model across common areas, basement entries, and building perimeters where colour image quality is a stated requirement in the security brief.
• Installers upgrading from 4MP systems: Replacing ageing 4MP cameras on existing HiLook or Hikvision NVR infrastructure where the network and cabling are already in place and only the camera heads need updating.

Honest Assessment

The IPC-T561H-MU does two things well: it delivers 6MP detail from a compact turret housing, and its Hi-Color sensor maintains colour output in low-light conditions where standard cameras would lose chrominance. For eave and wall mounting on residential and small commercial sites, that combination reduces the need for dedicated lighting while still producing footage with identifiable colour information. The fixed lens keeps the install uncomplicated and the turret ball mount gives enough angle adjustment to correct placement after the bracket is fixed. Available through Security Australia, this model fits neatly into HiLook and Hikvision NVR setups without any additional configuration overhead. Where it will not serve as well: if the site has a genuinely dark environment with no ambient light whatsoever, a camera with a dedicated IR array or built-in white-light strobe will outperform a Hi-Color-only sensor. Similarly, if licence plate capture at distance is the primary objective, a varifocal or dedicated ANPR camera is a more appropriate choice.

Before You Buy

Quick Fit Check

• Good match if: You're mounting on a soffit or eave at a front entry or driveway where some ambient light exists at night and you need 6MP colour footage without adding a dedicated floodlight.
• Good match if: You're already running a HiLook or Hikvision NVR and need to add or replace cameras on existing Cat5e or Cat6 PoE runs without changing any recorder-side infrastructure.
• You may need a different model if: The install location is completely unlit after dark with no ambient light source - a turret or bullet camera with a dedicated IR array will give you reliable monochrome coverage in those conditions, and you'll find suitable options across the HiLook and Hikvision range on securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 6MP colour night footage from a compact turret on eave or wall mounting, and the site has at least some ambient light present after dark.
• You may need a different model if: The install location is completely unlit or you need active deterrence - a TiOC turret with a built-in white-light strobe and siren, or a bullet camera with a long-range IR array, would be a more appropriate product type for those conditions.
• Pairs well with: A HiLook Pro series PoE NVR with H.265+ decoding and sufficient channel capacity for 6MP streams across all camera positions.

Common Questions

1. Does the IPC-T561H-MU produce colour footage at night without IR or a floodlight?

   Yes, under low-light conditions where some ambient light is present. The Hi-Color sensor is designed to retain full-colour output in low ambient light - streetlighting, exterior building lighting, or illuminated signage all contribute. In environments with zero ambient light, colour output will degrade as the sensor no longer has enough light to work with, regardless of sensor tuning.

2. Will this camera work on my existing HiLook or Hikvision NVR?

   Yes, in most cases. The IPC-T561H-MU is part of the HiLook Pro range and integrates with HiLook and Hikvision NVRs via standard ONVIF or direct H.265+ stream. The key check before installation is confirming your NVR has available channels and the decoding capacity to handle 6MP streams - older or lower-spec NVRs may cap out at fewer simultaneous high-resolution streams during live view.

3. What does the MU suffix mean on this model?

   The MU suffix indicates the camera includes a built-in microphone. This allows audio to be recorded alongside video footage when connected to an NVR that supports audio input. Note that the MU suffix confirms a microphone - it does not confirm a built-in speaker, so one-way audio capture rather than two-way communication should be assumed unless a speaker is separately confirmed in the hardware datasheet.

4. Does this camera support PoE, and what standard does it use?

   Yes. The IPC-T561H-MU is powered via PoE over a single Cat5e or Cat6 cable. It operates on IEEE 802.3af (standard PoE), which means it is compatible with the majority of PoE switches and NVRs with built-in PoE ports. No separate power supply or additional cabling is required at the camera end. The Security Australia team can advise on compatible PoE NVRs and switches if you're building a new system from scratch.

5. How does 6MP compare to 4MP for identifying faces or vehicles?

   6MP provides meaningfully more pixel data than 4MP from the same field of view. In practical terms, when reviewing footage of a face or a vehicle at mid-range distance, a 6MP image allows more aggressive digital zoom in post without the subject becoming unrecognisable. For applications where identification detail at a reasonable distance matters - entry points, carpark exits, pedestrian areas - 6MP reduces the need to place cameras closer to achieve the same detail level a 4MP camera would require.

6. Is the turret housing suitable for outdoor installation?

   Yes. The turret form factor on the IPC-T561H-MU is designed for outdoor use. For confirmation of the exact IP ingress protection rating for this model, refer to the product datasheet before specifying in exposed or high-moisture environments such as open eaves in high-rainfall areas. The turret housing profile also reduces the likelihood of direct IR washout that can affect dome cameras when mounted close to reflective ceilings.
