HiLook Hikvision 6MP Pro Series CCTV Kit – 8x Turret IPC-T363H-MU + 8CH PoE NVR (NVR-108MH-C/8P)

Model: HiLook 8CH AcuSense Turret Kit 8x IPC-T363H-MU

Who This Is For

Property managers specifying complete surveillance systems for small commercial sites, residential complexes, or multi-tenancy properties will find the HiLook 6MP Pro Series 8-camera kit a practical starting point. This bundle pairs 8 IPC-T363H-MU turret cameras with the NVR-108MH-C/8P, a purpose-matched 8-channel PoE NVR, so every component is confirmed compatible out of the box. The turret form factor suits eave, soffit, and wall mounting across a mix of indoor and outdoor positions - perimeter corners, car parks, entry points, and common areas. AcuSense human and vehicle classification on every camera means the NVR filters motion alerts by subject type, which reduces the volume of irrelevant notifications on a busy site significantly. With PoE powering each camera over a single Cat5e or Cat6 run, the installation is clean and the cabling plan straightforward. This kit is sized for sites that need full perimeter coverage from a single NVR without channel wastage.

What This System Actually Does

Who Buys This Model

• Small business owners: Retail stores, cafes, warehouses, and trade premises needing complete perimeter and internal coverage in a single purchase - 8 channels fills most small commercial footprints without leaving unused ports.
• Residential property investors: Strata complexes, duplexes, and rental properties where management needs reliable footage of entry points, car parks, and shared areas with AcuSense filtering to reduce noise on alert-based monitoring.
• Security installers on budget-conscious jobs: The HiLook Pro Series delivers Hikvision-engineered AcuSense at a lower price point than the full Hikvision Pro range, making it competitive on installs where the end client wants smart detection without the flagship price.
• Childcare and education facilities: The IK10-rated turret housing and IP67 weatherproofing suits covered outdoor play areas and internal corridors, and the built-in microphone captures audio at monitored areas where combined audio-video records are relevant.

Honest Assessment

This kit does a straightforward job well. Eight 6MP AcuSense cameras matched to an 8-port PoE NVR means every channel is in use, cabling is simple, and AI filtering works across the full camera count without needing to configure detection zones on a separate analytics box. H.265+ compression makes the storage maths work reasonably well across 8 simultaneous streams. The built-in microphone on each camera is a genuine practical addition, not a marketing footnote - audio is captured over the existing PoE run with no extra cost. What this kit will not do: it does not include hard drives, so storage must be budgeted separately. The NVR is an 8-channel unit with no expansion path, so sites that may grow beyond 8 cameras should look at a 16-channel NVR system available through Security Australia instead. This kit is also not suited to long-range approaches or open perimeter monitoring where a bullet camera with extended IR would serve better.

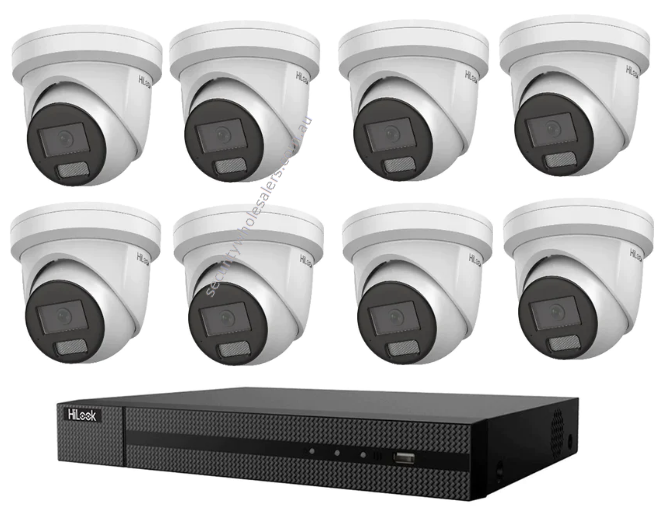

Complete Package Contents

• 8 x HiLook IPC-T363H-MU Turret Camera - 6MP, AcuSense, built-in microphone, IR, IP67, IK10, PoE
• 1 x HiLook NVR-108MH-C/8P Network Video Recorder - 8 channel, 8x PoE ports, H.265+, 2x SATA HDD bays, up to 8MP recording

Before You Buy

Quick Fit Check

• Good match if: You need to cover 8 or fewer camera positions on a single site and want AcuSense human and vehicle filtering across every camera without managing a separate analytics appliance.
• Good match if: Your camera positions are a mixed layout of indoor and outdoor, eave-mounted and wall-mounted - the IP67 and IK10-rated turret housing handles all of these in the same camera model.
• You may need a different model if: Your site has more than 8 camera positions now or is likely to grow - a 16-channel PoE NVR kit will give you room to expand without replacing the recorder.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need exactly 8 camera positions with AcuSense AI filtering on every channel and a clean single-cable PoE installation - the matched 8-port NVR means no channel is wasted and every camera is confirmed compatible.
• You may need a different model if: Your site has long open approaches, driveways over 40m, or industrial perimeter fencing - a bullet camera kit with extended IR range would cover those distances more effectively than a turret-based system.
• Pairs well with: A surveillance-grade SATA hard drive (2TB to 8TB per bay) and a UPS battery backup unit for the NVR to maintain recording during power fluctuations.

Common Questions

1. Does this kit include hard drives?

   No. The NVR-108MH-C/8P ships with 2 empty SATA bays and no drives included. You will need to purchase surveillance-grade hard drives separately before the system can record. For 8 cameras running continuously at 6MP with H.265+ compression, a minimum of 4TB is recommended for short-term retention, with 2x 6TB or 2x 8TB drives providing significantly longer storage before footage loops.

2. Will this system work with my existing IP cameras or can I add more cameras later?

   The NVR-108MH-C/8P is an 8-channel unit with 8 PoE ports - it will not expand beyond 8 cameras. The NVR is compatible with other HiLook and Hikvision IP cameras within its resolution ceiling, so you can mix camera models across the 8 channels if needed. However, if you anticipate growing beyond 8 cameras, a 16-channel PoE NVR is the better foundation.

3. Does the AcuSense detection work at night as well as during the day?

   Yes. AcuSense human and vehicle classification on the IPC-T363H-MU operates in conjunction with the camera's IR illumination, so AI-filtered alerts function at night within the camera's IR range of up to 40m. Subject classification accuracy does depend on adequate IR illumination reaching the target, so positioning cameras to avoid IR obstruction is important for reliable night-time detection.

4. Will this camera record audio, and how is it stored?

   Yes. Each IPC-T363H-MU has a built-in microphone that records audio over the same PoE cable that carries video and power. Audio is stored alongside video on the NVR hard drive with no separate cabling or recorder input required. This applies to all 8 cameras in the kit simultaneously. Note that recording audio in commercial or shared spaces may have legal requirements under Australian state and territory privacy legislation - confirm compliance for your specific application before deployment.

5. How do I view footage remotely on my phone?

   Remote viewing is supported via the Hik-Connect application, available for iOS and Android. The NVR-108MH-C/8P connects to your network via its LAN port, and once registered to a Hik-Connect account, live view and playback are accessible remotely. A stable internet connection at the NVR location and a correctly configured router are required. Security Australia stocks this kit as part of the HiLook Pro Series range for installers and direct buyers who prefer a pre-matched system.

6. What cable do I need, and how far can each camera be from the NVR?

   Cat5e or Cat6 cable is required for all 8 camera runs. The maximum PoE cable length per run is 100 metres from NVR port to camera. Beyond 100m, signal and power degrade beyond usable levels and a PoE extender is needed on that individual run. The NVR does not require a separate network switch for the cameras - all 8 PoE ports are built into the unit itself.

Cabling Considerations

• Cable Type: Cat5e or Cat6 solid core - stranded cable is not recommended for fixed wall and ceiling runs as it causes higher attenuation over distance.
• Max Cable Run: 100 metres per camera run from NVR PoE port to camera. This is a hard limit for PoE power delivery and network signal integrity.
• PoE Notes: All 8 cameras draw PoE power directly from the NVR-108MH-C/8P's built-in PoE switch. No external PoE switch or injector is required for standard installations within the 100m run limit.
• Wiring Tips: Run all 8 cables back to a single NVR location rather than daisy-chaining. Label each cable at both ends during installation. If running cables through external walls, use weatherproof cable conduit to protect against UV degradation and moisture entry at penetration points.

Downloads & Resources

No downloads available for this product.
