HILook 4 x 6MP Cameras & 8CH NVR CCTV Kit: 4 AI Turret Cameras + 8CH NVR Bundle

Model: HL-2268C

Who This Is For

For property owners and small business operators who need a structured starting point for IP camera surveillance without sourcing compatible components individually, the HiLook 4 x 6MP Cameras and 8CH NVR CCTV Kit delivers a matched system with room to grow. The bundle pairs 2 HiLook IPC-T269-MU/SL TiOC turret cameras - which carry built-in strobes and a microphone - with 2 HiLook IPC-T262H-MU AcuSense turrets and a HiLook NVR-108MH-C-8P 8-channel PoE NVR. All cameras connect directly to the NVR's built-in PoE ports, so a single Cat5e or Cat6 run to each camera location handles both power and video. With 4 channels occupied and 4 spare, the system suits homes, small offices, retail shopfronts, and light commercial premises where coverage requirements are likely to expand over time.

What This System Actually Does

Who Buys This Model

• Homeowners installing their first IP system: The 8-port PoE NVR eliminates the need to source a separate switch, and plug-and-play camera detection keeps setup straightforward without networking experience.
• Small retail or cafe operators: 4 cameras cover a typical shopfront - entry, counter, rear access, and carpark - with 4 spare NVR channels available if coverage needs to grow later.
• Installers specifying entry-level commercial sites: The mix of 2 active deterrence cameras and 2 standard AcuSense turrets lets an installer position strobe cameras at high-risk entry points while using the quieter units for interior or low-risk zones.
• Property managers covering multi-tenancy access points: IP67-rated housings on all cameras suit outdoor eave and soffit mounting, and built-in microphones on every unit capture on-site audio alongside video.

Honest Assessment

This kit does the fundamentals well for a 4-camera IP system at this price point. The 6MP resolution across all cameras, combined with deep learning classification on every unit and active deterrence on 2 of them, puts this system above basic motion-triggered kits. The 8-channel PoE NVR with 4K HDMI output gives real headroom for expansion without buying new infrastructure. H.265+ keeps storage consumption reasonable for continuous recording setups. What this system will not do: the NVR ships without a hard drive, so storage must be budgeted separately before the system records anything. There is no PTZ coverage, and the fixed lenses on the turret cameras mean camera placement needs to be planned carefully before installation. If your site requires long-distance identification at 30 metres or more, or wide-area coverage from fewer positions, a PTZ or multi-sensor camera system available through Security Australia would be more appropriate for those specific zones.

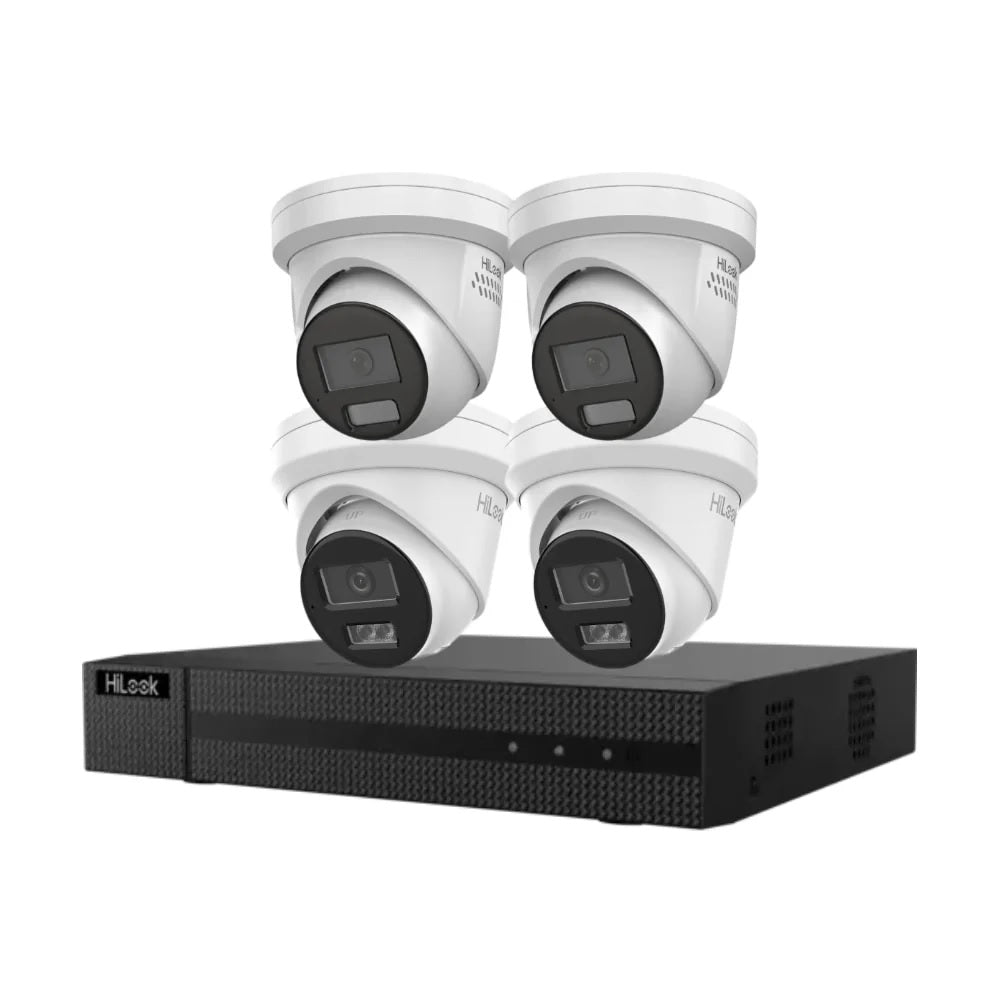

Complete Package Contents

• 2 x HiLook IPC-T269-MU/SL - 6MP AcuSense turret, built-in strobe (red/blue), built-in microphone, IP67, 120dB WDR, PoE, H.265+
• 2 x HiLook IPC-T262H-MU - 6MP AcuSense turret, built-in microphone, IP67, 120dB WDR, PoE, H.265+
• 1 x HiLook NVR-108MH-C-8P - 8-channel NVR, 8x built-in PoE ports, 4K HDMI output, 1x SATA bay (HDD not included), H.265+ decoding

Before You Buy

Quick Fit Check

• Good match if: You need a ready-to-install 4-camera IP system where cameras and NVR are confirmed compatible and the NVR's built-in PoE ports eliminate the need for a separate switch.
• Good match if: Your site has at least 2 high-risk entry points that would benefit from active strobe deterrence alongside standard AI monitoring on interior or lower-priority zones.
• You may need a different model if: Your coverage plan requires more than 8 cameras now or in the near term - a larger-channel NVR kit with a 16-channel recorder would be a better foundation to explore on securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You want 6MP AI cameras with active strobe deterrence and a matched PoE NVR in a single purchase, with 4 spare channels for future expansion built in from day one.
• You may need a different model if: Your site needs more than 8 cameras now or has large open areas that would benefit from PTZ or panoramic coverage - a higher-channel kit or a system incorporating a multi-sensor camera would be worth comparing on securityaustralia.com.au.
• Pairs well with: A 3.5-inch surveillance-grade HDD (4TB or 6TB recommended for this configuration) and a PoE extender or additional unmanaged PoE switch if any camera run exceeds 100 metres from the NVR.

Common Questions

1. Does this kit include a hard drive?

   No. The NVR-108MH-C-8P ships without a hard drive. The NVR has 1 SATA bay that accepts a standard 3.5-inch surveillance-grade HDD. At 6MP across 4 cameras using H.265+ compression, a 4TB drive is a practical starting point for continuous recording. You will need to purchase and install a compatible HDD before the system can record footage.

2. Will the strobe cameras trigger automatically, or do I need to configure them?

   Configuration is required. The IPC-T269-MU/SL cameras use deep learning to detect people and vehicles, but the strobe response behaviour needs to be set up through the camera or NVR interface. You define the detection zones, sensitivity, and whether the strobe activates on every detection event or only within a scheduled after-hours window. The cameras do not strobe by default on first power-up.

3. Can I add more cameras to this system later?

   Yes. The NVR-108MH-C-8P has 8 PoE ports and 8 channels, with 4 in use by this kit. You can add up to 4 more compatible HiLook or Hikvision IP cameras directly to the remaining PoE ports without changing the NVR or adding a switch. If you need more than 8 cameras total, a larger-channel NVR would be required.

4. Do all 4 cameras have a built-in microphone?

   Yes. Both the IPC-T269-MU/SL and the IPC-T262H-MU include a built-in microphone. The cameras capture audio alongside video at each location. Note that neither camera model is confirmed to include a built-in speaker, so two-way audio communication from the camera itself is not a confirmed feature of this kit - audio capture only is confirmed.

5. Will these cameras work outdoors?

   Yes. All 4 cameras carry an IP67 ingress protection rating, which means they are sealed against dust and against sustained water immersion. IP67 suits outdoor eave, soffit, and wall mounting in Australian weather conditions. The cameras are not rated for submerged or continuously wet environments, but rain, humidity, and dust are not a concern with correct mounting.

6. What cable do I need to run to each camera?

   Cat5e or Cat6 to each camera location. PoE carries both power and video data over a single cable, so no separate power cabling is needed for any of the 4 cameras (the IPC-T269-MU/SL also accepts AC/DC if mains power is more practical at that location). Maximum standard PoE cable run is 100 metres per camera. Longer runs require a PoE extender.

7. Does the 120dB WDR actually make a difference compared to standard cameras?

   Yes, particularly in high-contrast scenes. A doorway with strong outdoor light behind a visitor, or a carpark entry where headlights are pointed at the camera, will cause a standard camera to expose for one part of the scene and lose detail in the other. The 120dB true WDR on these cameras processes both the bright and dark areas simultaneously in the same frame, which is relevant for entry points, driveways, and any location where the lighting conditions shift significantly throughout the day. This kit is supplied by Security Australia with 120dB WDR confirmed across all 4 cameras.

8. What is the difference between the 2 camera types in this kit?

   The IPC-T269-MU/SL cameras add a red and blue strobe light to the standard AcuSense AI feature set, and they support AC/DC power in addition to PoE. The IPC-T262H-MU cameras are standard AcuSense turrets with deep learning classification and a built-in microphone, but no strobe. Both models shoot at 6MP and carry IP67 and 120dB WDR. The practical difference is active deterrence at the strobe camera locations versus passive detection and recording at the AcuSense-only positions.

Downloads & Resources

No downloads available for this product.
