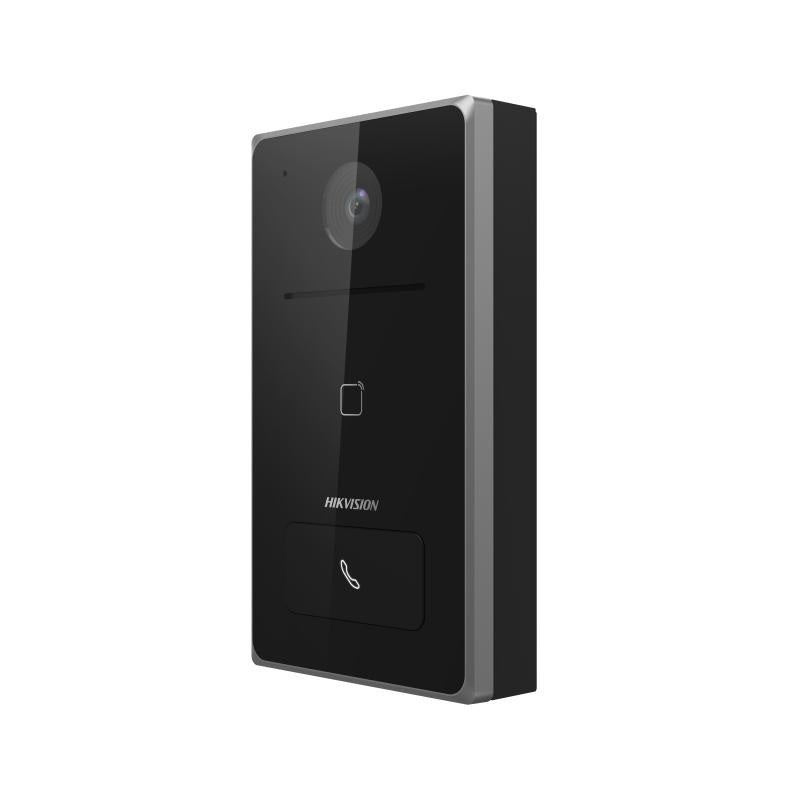

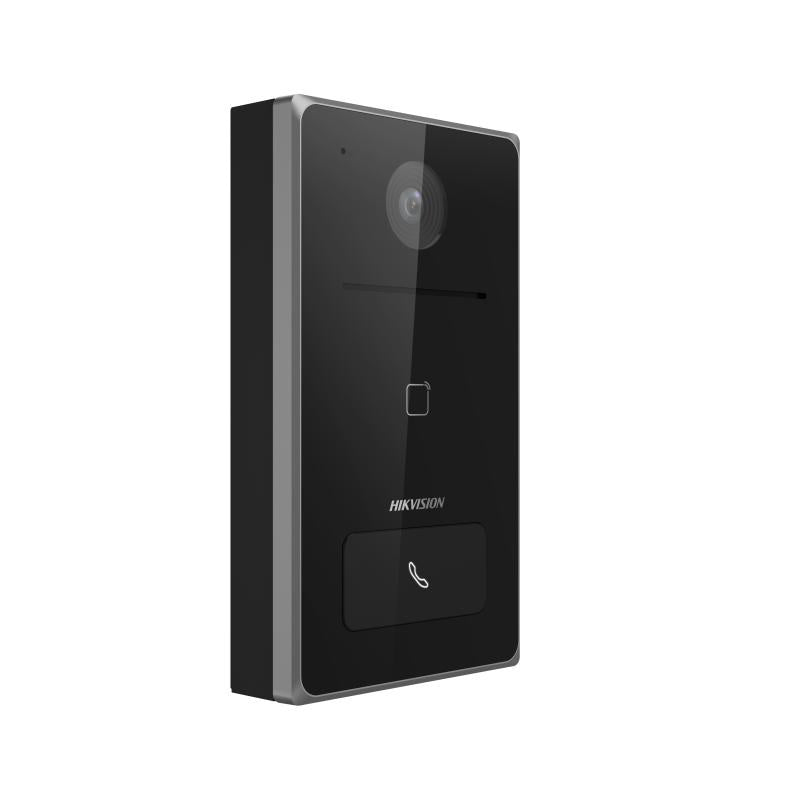

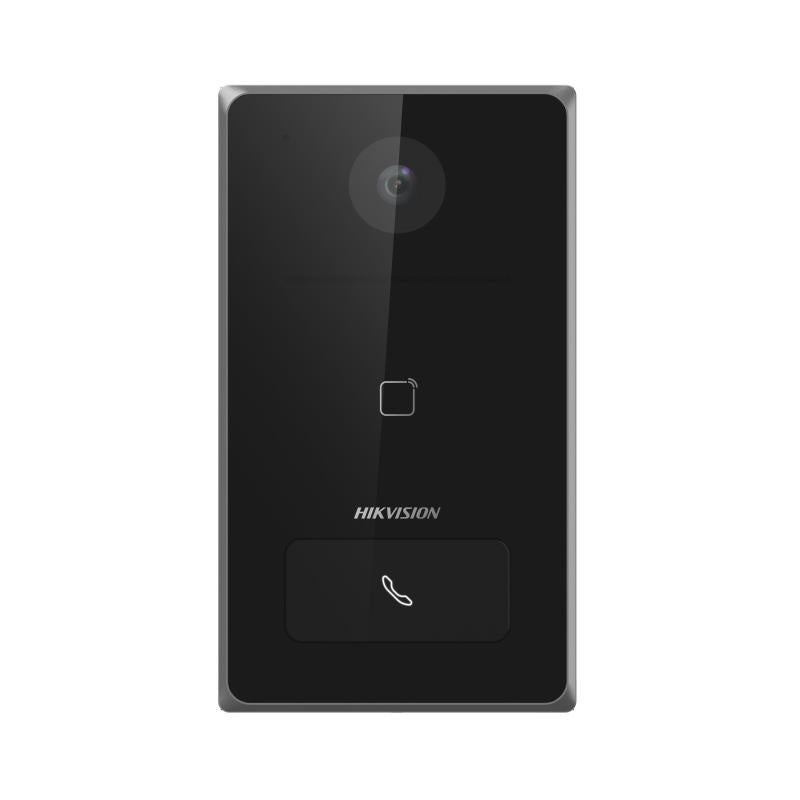

Hikvision Intercom DS-KV6133-WME1-SURFACE G2 2mp Villa Door Stn, Standalone capable, Wi-fi, Metal, Mifare, SURFACE

Model: DS-KV6133-WME1-SURFACE

Who This Is For

For residential and small commercial installers who need a surface-mounted villa door station that can operate independently without a dedicated indoor monitor, the DS-KV6133-WME1-SURFACE G2 is built around that exact use case. This is a Gen 2 Hikvision door station with a 2MP camera, built-in Wi-Fi, Mifare card reading, and a metal housing designed for exposed wall installations where a flush-mount box is not practical or not yet in place. Standalone capability means residents can answer and unlock the door directly from the Hik-Connect app on a smartphone, making it well-suited to single-dwelling homes, small offices, or rental properties where a hard-wired indoor monitor is not part of the brief. Surface mount hardware is included, so installation does not depend on back-box preparation.

What This Intercom Actually Does

Who Buys This Model

• Residential Installers: Specifying a villa-style door station for a single dwelling where the client wants smartphone-based answering rather than a fixed indoor monitor - standalone Wi-Fi operation removes the need for a second device.
• Property Managers: Retrofitting entry control to a rental property or small commercial tenancy where flush-back-box preparation has not been done - the surface mount bracket handles direct wall fixing without remedial work.
• Small Business Owners: Managing keyless staff access at a single entry point using Mifare cards or fobs, combined with video verification of visitors before door release.
• Hikvision System Integrators: Adding a Gen 2-compatible door station to an existing Hikvision intercom or security installation where platform consistency with current indoor monitors is required.

Honest Assessment

The DS-KV6133-WME1-SURFACE G2 covers its intended brief well. Standalone Wi-Fi operation is a genuine advantage for sites where running cable to an indoor monitor is impractical or undesirable, and the included surface mount bracket means the unit can go up on virtually any wall surface without additional hardware. The 2MP camera, Mifare reader, two-way audio, and metal housing give it enough capability for most residential and light commercial entry points. It is available through Security Australia as part of the Hikvision Gen 2 intercom range. Where this unit is not the right fit: sites requiring multiple door stations linked to a single indoor monitor with advanced management, high-volume access control with large card databases, or installations where a flush-recessed aesthetic is a client requirement should look at panel-style or flush-mount variants instead. This is also a villa station, not an apartment panel, so multi-tenant stacked call button configurations are outside its scope.

Before You Buy

Quick Fit Check

• Good match if: You are installing at a single residential or small commercial entry where the client wants to answer the door and release the lock from their smartphone without a fixed indoor monitor - standalone Wi-Fi operation is purpose-built for this scenario.
• Good match if: The mounting surface is an existing rendered or masonry wall with no back box prepared - the included surface mount bracket installs directly to the wall face without any flush-box requirement.
• You may need a different model if: The site requires a multi-tenant door panel with stacked call buttons for individual apartments, or a flush-recessed installation - a Hikvision apartment panel or flush-mount villa station from the Security Australia intercom range would be more appropriate.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single-dwelling door station with Wi-Fi standalone operation, Mifare card access, and a surface mount solution - all in one metal-housed unit without requiring a flush back box.
• You may need a different model if: The installation requires a multi-button apartment panel for stacked individual tenant calls, or the client requires a fully flush-recessed finish - a Hikvision apartment door station or flush-mount villa station would be more appropriate for those scenarios.
• Pairs well with: A Hikvision Gen 2 indoor monitor for sites where a fixed answering station is preferred alongside or instead of the smartphone app, and a separate door strike or magnetic lock power supply for the relay-controlled entry release.

Common Questions

1. Does this door station work without an indoor monitor?

   Yes. The DS-KV6133-WME1-SURFACE is standalone capable, meaning it connects to the Hik-Connect app via built-in Wi-Fi and allows the resident to receive visitor calls, view the 2MP camera image, and trigger the door release entirely from a smartphone - no indoor monitor required. An indoor monitor can still be added if preferred.

2. Will this work with my existing Hikvision indoor monitor?

   It depends on the generation. The DS-KV6133-WME1-SURFACE is a Gen 2 device and is compatible with the Hikvision Gen 2 indoor monitor range. If your existing indoor monitor is a Gen 1 or older Hikvision unit, compatibility is not guaranteed and you should confirm before purchasing. Mixing generations within the same intercom system is not supported.

3. What type of cards does the Mifare reader accept?

   The reader supports Mifare standard cards and fobs operating at 13.56MHz. Standard Mifare Classic and compatible 13.56MHz credentials will work. Older 125kHz EM4100-style proximity cards are not compatible with this reader - if your site uses 125kHz cards, you will need a door station with a 125kHz reader or a dual-frequency model.

4. Does the surface mount version require a separate back box?

   No. The SURFACE variant ships with its own mounting bracket that fixes directly to the wall face, eliminating the need for a separate back box or flush conduit preparation. This makes it suitable for retrofits on rendered, masonry, or timber-clad walls where cutting in a flush box is not practical.

5. Can this door station control a magnetic lock or electric strike?

   Yes, via its relay output. The door station can signal a connected electric strike or magnetic lock to release when the resident presses the unlock button in the app or on an indoor monitor. The relay output controls the release circuit, but the lock itself must be powered by a separate dedicated power supply - the door station does not supply lock operating power directly.

6. Is this door station suitable for outdoor installation?

   Yes. The metal housing is designed for door and entry point installation in exposed outdoor positions. The unit is built to handle typical Australian outdoor conditions at an entry point. For installation in locations with direct heavy rain exposure or coastal salt environments, check that sealing around the cable entry point is completed properly during installation.

7. How is the DS-KV6133-WME1-SURFACE powered?

   The unit supports both PoE (Power over Ethernet) and 12V DC power input, giving installers flexibility depending on what cable infrastructure is available at the door. PoE is the simpler option where network cabling reaches the door, as a single Cat5e or Cat6 cable carries both data and power. Where only power cabling is available, a 12V DC adaptor can be used alongside a separate network connection. This model is stocked by Security Australia as part of the Hikvision Gen 2 intercom range.

Cabling Considerations

• Network Cable: Cat5e or Cat6 recommended for PoE power and data in a single run to the door station.
• Max Cable Run: Up to 100m for PoE on Cat5e or Cat6 from the switch or PoE injector to the door station.
• PoE Notes: Standard PoE (IEEE 802.3af) is sufficient for this unit - a PoE+ switch or injector is not required. Confirm your switch port budget before finalising the run count on multi-device installations.
• Lock Wiring: The door release relay requires a separate 2-core cable run from the door station to the lock. Lock power must come from a dedicated supply - do not attempt to power the lock from the door station terminals.
• Surface Mount Cable Entry: Plan your wall penetration point before fixing the bracket - the cable should enter the wall centrally behind the unit. Seal the penetration with appropriate filler or conduit fitting to prevent moisture ingress behind the bracket.

Downloads & Resources

No downloads available for this product.
