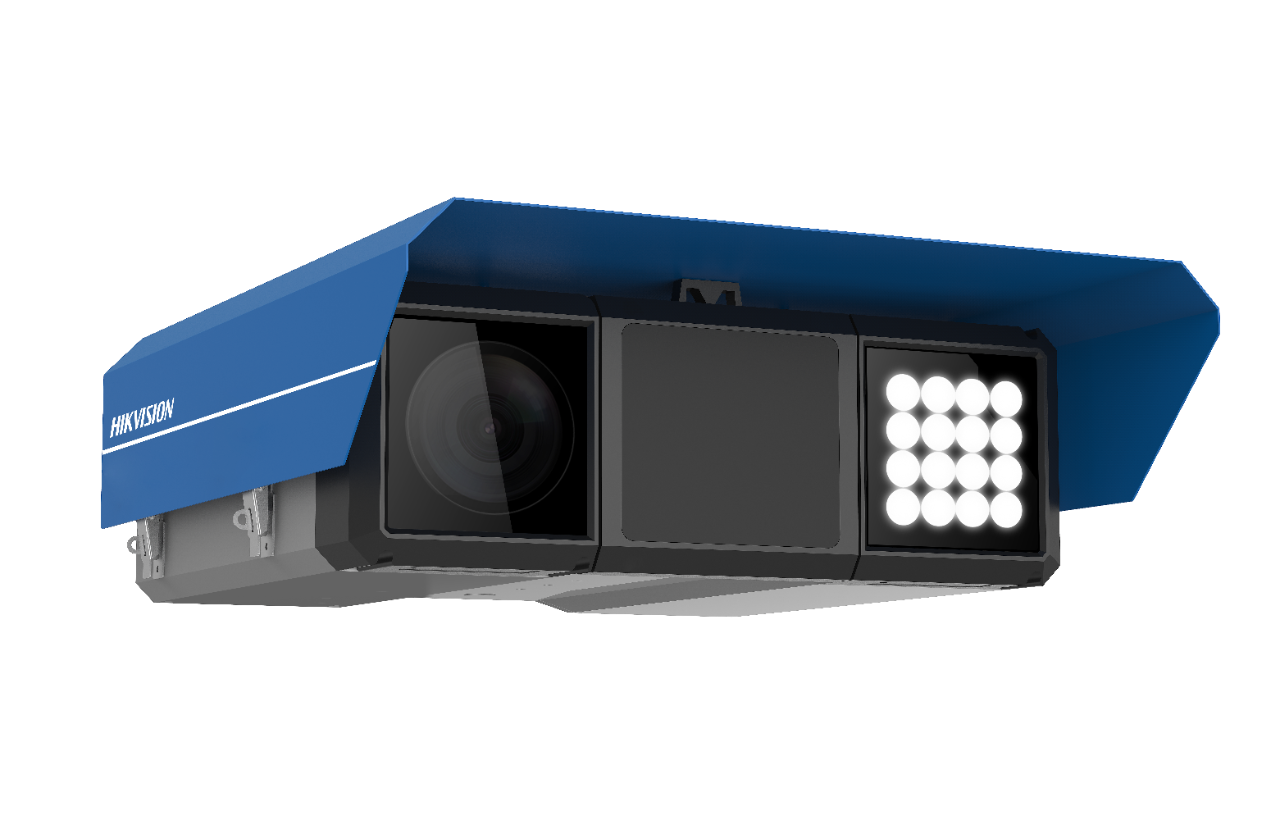

Hikvision iDS-TCV907-BIR 9 MP ANPR All-Rounder Traffic Camera

Model: iDS-TCV907-BIR

Who This Is For

When accurate number plate capture at controlled access points or busy road intersections is the priority, the Hikvision iDS-TCV907-BIR is built specifically for that task. This is a purpose-engineered ANPR traffic camera, not a repurposed general-purpose unit - it combines a 9 MP 1-inch GMOS sensor with a motorised 11 to 40 mm varifocal lens to cover everything from tight carpark entries to multi-lane approaches. Traffic engineers, local councils, logistics operators, and security integrators specifying enforcement or vehicle access systems will find the iDS-TCV907-BIR handles the full classification stack: plate reading, vehicle type, and colour identification in a single unit. Its IP67 weatherproofing and IK10 vandal resistance make it a credible choice for unattended roadside deployments where physical durability is non-negotiable.

What This Camera Actually Does

Who Buys This Model

• Traffic Engineers and Local Councils: Deploying roadside monitoring where vehicle classification data feeds directly into traffic management platforms - the deep learning analytics and H.265 compression keep bandwidth manageable across wide-area deployments.
• Logistics and Industrial Site Operators: Managing controlled vehicle access at depot entries or weighbridge approaches where plate-matched access logs tie into fleet management systems.
• Carpark and Access Control Integrators: Specifying a single-camera solution at boom gate entries that handles both the ANPR trigger and the vehicle classification record in one unit, reducing hardware count per lane.
• Law Enforcement and Enforcement Contractors: Needing a camera that captures no-plate vehicles as a separate event category alongside standard plate reads, with the IK10 vandal resistance required for unattended roadside poles.

Honest Assessment

The iDS-TCV907-BIR does the core ANPR job well. The 9 MP sensor combined with the high-speed shutter range gives you the pixel count and freeze capability needed for moving vehicles, and the 120 dB WDR deals with the high-contrast lighting situations that trip up general-purpose cameras pressed into ANPR roles. Vehicle type classification and colour identification are on-board without requiring an external analytics server, which simplifies smaller deployments. The 40 m IR range and built-in illuminator handle most single-lane night scenarios without additional hardware. What this camera will not do is replace a free-flow highway ANPR system designed for multi-lane high-speed capture - applications above urban traffic speeds or spanning 3 or more lanes simultaneously will need a purpose-built multi-camera enforcement array. It is also not a general-purpose surveillance camera; frame rate and field of view are optimised for detection zones rather than wide-area monitoring. Available through Security Australia, this unit suits controlled-approach and access-point ANPR rather than open-road enforcement.

Before You Buy

Quick Fit Check

• Good match if: You are monitoring a single lane at a boom gate, depot entry, or controlled access point where vehicles approach at reduced speed and you need plate data plus vehicle classification logged per event.
• Good match if: The site operates around the clock and you cannot guarantee ambient lighting - the 40 m built-in IR and 0.0005 Lux minimum illumination with IR means the camera captures legible plates after dark without a separate illuminator.
• You may need a different model if: Your application involves multi-lane free-flow highway capture or vehicles travelling above urban speed limits - a dedicated high-speed enforcement ANPR system with separate triggering infrastructure is a more appropriate product type for those scenarios.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single camera that handles plate recognition, vehicle classification, and colour identification on-board at a controlled-approach lane, without requiring an external analytics server.
• You may need a different model if: Your application spans multiple lanes at highway speeds - a dedicated multi-camera free-flow ANPR enforcement system with external triggering hardware is a more appropriate product type for open-road capture scenarios.
• Pairs well with: A Hikvision-compatible NVR or VMS with ANPR event management support, allowing plate logs, vehicle classification data, and hotlist alerts to be managed and archived centrally.

Common Questions

1. Does this camera work for free-flow highway ANPR at high vehicle speeds?

   Not ideally. While the shutter range of 50 to 20,000 microseconds is capable of freezing fast-moving vehicles, the iDS-TCV907-BIR is designed as a controlled-approach ANPR camera - meaning it performs best at intersections, entry points, and urban traffic speeds rather than open highway free-flow lanes where multi-camera arrays with external loop or radar triggers are the appropriate system type.

2. What vehicle data does the camera actually output per event - is it just the plate number?

   No, it captures significantly more. Each ANPR event from the iDS-TCV907-BIR includes the plate string, vehicle type classification, vehicle colour identification, and a flag for no-plate vehicles. This structured data output means downstream systems receive a richer record per vehicle pass - not just the alphanumeric plate - which is useful for enforcement, access control auditing, and fleet reconciliation.

3. Will this camera capture plates at night without adding a separate external illuminator?

   Yes, in most single-lane controlled-approach scenarios. The built-in IR illuminator covers up to 40 metres, and the sensor reaches a minimum illumination of 0.0005 Lux with IR active. For wide lanes or distances beyond 40 metres, a supplementary IR illuminator should be considered to maintain consistent plate legibility across the full capture zone.

4. How does the 120 dB WDR specifically help with ANPR accuracy?

   It prevents the plate from washing out or going dark when the scene has extreme contrast. A vehicle entering from direct sunlight into a shaded entry, or headlights facing the camera at night, creates a massive dynamic range challenge. At 120 dB, the sensor can hold detail in both the bright and shadow areas simultaneously, which keeps the plate characters readable rather than losing them to blown highlights or underexposure.

5. Does the varifocal lens need to be adjusted on-site, or can it be set remotely?

   The 11 to 40 mm focal length is motorised, meaning it can be adjusted remotely via the camera's web interface or VMS during commissioning - you do not need to physically access the lens housing to change the zoom level. This is practical for pole-mounted installations where physical access after initial mounting is inconvenient. Final focus and zoom should still be confirmed with a live view at the capture distance during setup.

6. What approach angle and lane configuration does this camera suit?

   It is designed for a fixed-approach single-lane configuration where vehicles travel toward the camera at a controlled angle - typically 0 to 30 degrees off-axis to the camera's optical axis. Multi-lane simultaneous capture is not within the intended design of this unit. For a two-lane entry, 2 cameras positioned per lane is the correct approach. The stocked range at Security Australia includes compatible mounting hardware for standard pole and wall configurations.

7. Does this camera need a separate server or on-premise device to process the ANPR analytics?

   No. The deep learning ANPR processing - including plate recognition, vehicle classification, and colour identification - runs on-board the iDS-TCV907-BIR itself. You do not need a separate analytics server or edge computing appliance for the recognition function. You will, however, need a compatible NVR or VMS to receive, store, and manage the structured event data and trigger downstream actions such as access control responses or hotlist alerts.

8. How does the no-plate vehicle capture feature work?

   When the camera detects a vehicle passing through the detection zone that does not return a readable plate - whether obscured, missing, or unregistered - it logs this as a discrete no-plate event rather than simply producing no record. The event still includes vehicle type and colour data where detectable. This means unregistered or deliberately obscured vehicles are flagged in the system rather than silently ignored, which is relevant for enforcement and security access applications.

Downloads & Resources

No downloads available for this product.
