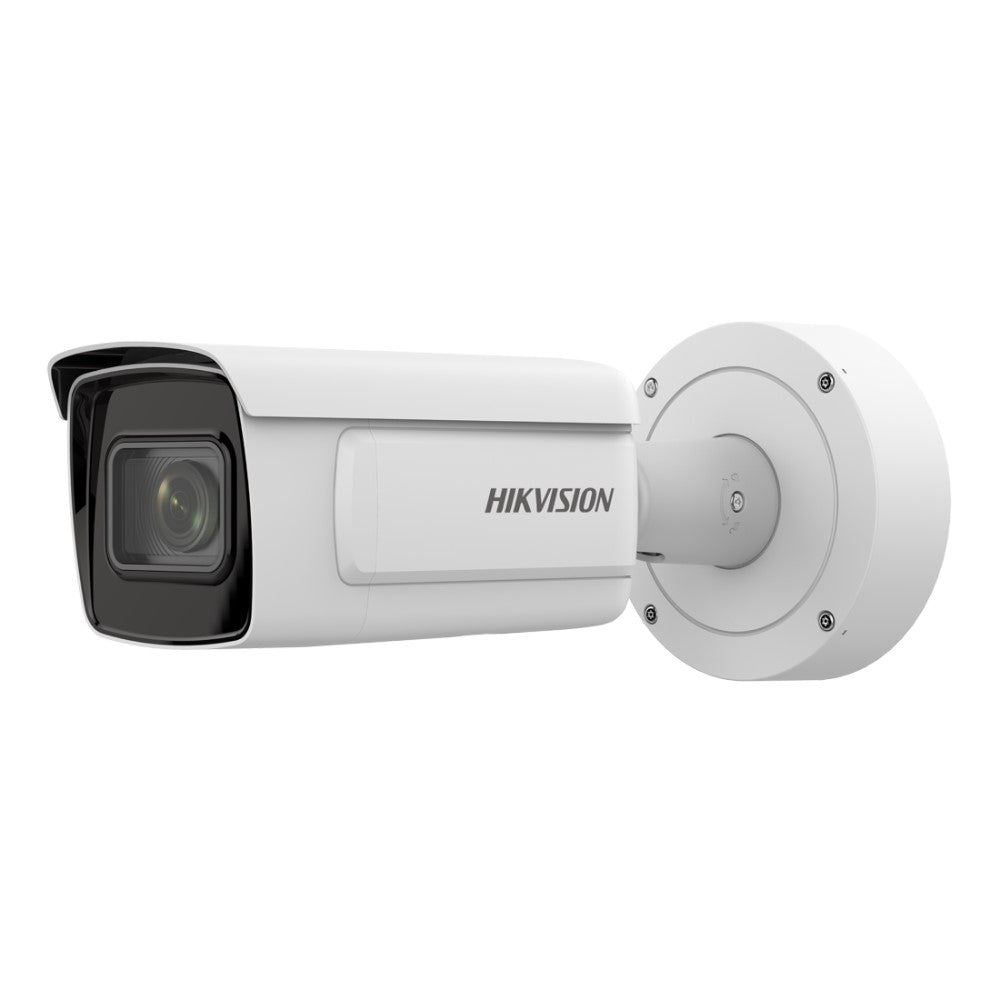

Hikvision iDS-2CD7A46G2-P-IZHSY 4MP DeepinView ANPR Bullet Camera (2.8-12 mm Varifocal Lens)

Model: iDS-2CD7A46G2-P-IZHSY (2.8-12mm)

Who This Is For

For security integrators and site managers who need reliable automatic number plate recognition at vehicle entry and exit points, the Hikvision iDS-2CD7A46G2-P-IZHSY is a purpose-built ANPR bullet camera designed for controlled-approach lanes, carparks, boom gates, and facility perimeters. The 2.8-12mm motorised varifocal lens allows installers to fine-tune the capture zone remotely from a VMS or browser without physically repositioning the camera - a practical advantage when the mounting point is fixed but the lane width or approach distance changes during commissioning. The DeepinView deep learning engine processes plate reads on-board, reducing reliance on server-side processing and enabling faster event triggers for access control integration. The outdoor housing is rated for Australian conditions, making it a workable choice for exposed installations where temperature swings, dust, and direct weather exposure are factors.

What This Camera Actually Does

Who Buys This Model

• Carpark Operators: Needing plate-based entry and exit logging at boom gate lanes where vehicle throughput needs to be tied to a plate record for billing, validation, or access dispute resolution.
• Industrial Facility Managers: Controlling contractor and delivery vehicle access at site entry points, where a whitelist/blacklist plate comparison needs to happen before a gate or barrier is released.
• Security Integrators: Specifying ANPR as part of a wider access control project where the camera's structured metadata output needs to feed into a VMS, PSIM, or access control platform without additional server-side licence overhead.
• Body Corporate and Strata Managers: Managing resident and visitor parking access in mixed-use or residential developments where plate-linked access removes the need for fobs or swipe cards at the entry.
• Logistics and Freight Sites: Logging all truck and vehicle movements through loading dock entries for compliance and chain-of-custody records, where a motorised varifocal allows the capture zone to be tuned to wide vehicle entries.

Honest Assessment

The iDS-2CD7A46G2-P-IZHSY does the core ANPR job well in controlled-lane environments. The motorised varifocal lens is a genuine practical benefit during commissioning, the 4MP sensor gives useful detail at typical approach distances, and on-board DeepinView processing means the plate read happens at the camera rather than depending entirely on server resources. The 120dB WDR handles the entry/exit lighting contrast that regularly defeats general-purpose cameras used as makeshift ANPR devices. Where this camera has limits: it is designed for low-speed, controlled-approach scenarios - not free-flow traffic or multi-lane road capture at speed. If the application involves vehicles travelling above approximately 30 km/h through an unsignalled lane, or requires simultaneous multi-lane capture, a dedicated free-flow ANPR system will serve better. For the right installation type, this camera is available through Security Australia with compatible Hikvision NVR and VMS options if full system integration is needed.

Before You Buy

Quick Fit Check

• Good match if: You are installing at a single controlled-lane entry point - boom gate, carpark entrance, or facility access lane - where vehicles slow to a stop or near-stop and a single camera position covers one lane of traffic.
• Good match if: Your integration platform supports Hikvision ANPR metadata and you need on-board plate reading to reduce server processing load - the DeepinView engine outputs plate data directly as structured events from the camera itself.
• You may need a different model if: The application involves free-flow vehicle capture at road speed, multi-lane simultaneous reads, or vehicles exceeding approximately 30 km/h through the capture zone - in those cases, a purpose-built free-flow ANPR system with higher shutter speed capability and specialised lens options is the appropriate product type.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your application is a single controlled-approach lane with vehicles slowing or stopping, and you need on-board ANPR metadata output to feed an access control or VMS platform without server-side AI processing overhead.
• You may need a different model if: The site involves multiple simultaneous lanes, free-flow traffic at road speed, or vehicles exceeding approximately 30 km/h through the capture zone - those scenarios are better served by a dedicated free-flow ANPR system with a higher-speed shutter and multi-lane capture architecture.
• Pairs well with: A Hikvision DeepinView-compatible NVR or ANPR-enabled VMS with plate search and whitelist/blacklist management, and a PoE network switch to simplify cabling at the entry point.

Common Questions

1. Does this camera read number plates on its own, or does it need special software on the NVR?

   Yes, the plate reading happens on the camera itself. The DeepinView processor built into the iDS-2CD7A46G2-P-IZHSY performs the plate recognition on-board and outputs the result as structured ANPR metadata over the network. A compatible Hikvision NVR or VMS with ANPR channel support receives and acts on that data - but the plate read itself is not dependent on the recording device doing the AI work.

2. Will this camera work for free-flow traffic at road speed?

   No, not reliably. This camera is designed for controlled-approach, low-speed ANPR - typically vehicles that are slowing to stop at a boom gate or managed entry point. Free-flow capture at highway or arterial road speeds requires a specialised system with dedicated high-speed shutter control, purpose-built illuminators, and multi-lane architecture. Using this camera for free-flow applications will produce inconsistent plate reads at higher vehicle speeds.

3. What is the maximum vehicle speed this camera handles for accurate plate reads?

   Approximately 30 km/h is the practical upper limit for consistent ANPR accuracy in controlled-lane applications. Below that speed, with the camera correctly angled and the lens zoomed to fill the frame with the capture zone, the 4MP sensor and on-board DeepinView engine produce reliable reads. At higher speeds, motion blur and shorter dwell time in the capture zone reduce read accuracy.

4. What angle can the camera be mounted at relative to the plate?

   Keep the horizontal angle within approximately 30 degrees of the plate face, and the vertical angle within approximately 30 degrees. The 2.8-12mm varifocal lens allows you to adjust the capture frame from a fixed mounting point, but angle to the plate is a physical constraint the lens cannot compensate for. Plates captured at steep angles produce character distortion that reduces ANPR accuracy regardless of resolution or AI processing quality.

5. Does this camera work in complete darkness at the entry lane?

   Yes. Built-in IR illuminators allow the camera to capture usable plate images in complete darkness. The IR output is aligned to the capture zone established by the lens focal length. Supplementary lighting is not required for plate recognition, though general-purpose scene lighting may still be needed for other security purposes at the entry point.

6. Is the motorised varifocal lens adjustable after installation without getting back up on a ladder?

   Yes. The motorised varifocal lens on the iDS-2CD7A46G2-P-IZHSY is remotely adjustable via the camera's web interface or a compatible Hikvision NVR menu. Once the camera is physically fixed and cabled, zoom and focus can be tuned from ground level during commissioning - and re-adjusted later if the lane layout or entry point configuration changes. This is a practical benefit on pole or high-wall installations where physical access is inconvenient.

7. Does this camera support PoE, and what cable is needed?

   Yes. The camera supports IEEE 802.3af PoE, so a single Cat5e or Cat6 cable to a PoE-capable switch or NVR carries both power and data. No separate power supply or conduit run is required at the camera end, which simplifies installation at boom gate posts and lane entry points where running a separate power circuit is difficult. Maximum recommended cable run is 100m per PoE standard. Security Australia stocks compatible PoE switches and NVRs if a full system is being specified.

8. Does the camera distinguish between the plate read image and the full scene video?

   Yes. The camera captures both a full 4MP video stream and a cropped plate capture image as separate outputs. The plate capture is optimised for recognition - it is the image the DeepinView engine processes and the metadata record that is stored alongside the plate string. The full scene stream provides context for the plate event, such as vehicle type, colour, and surrounding environment, which is useful for access dispute review or post-incident investigation.
