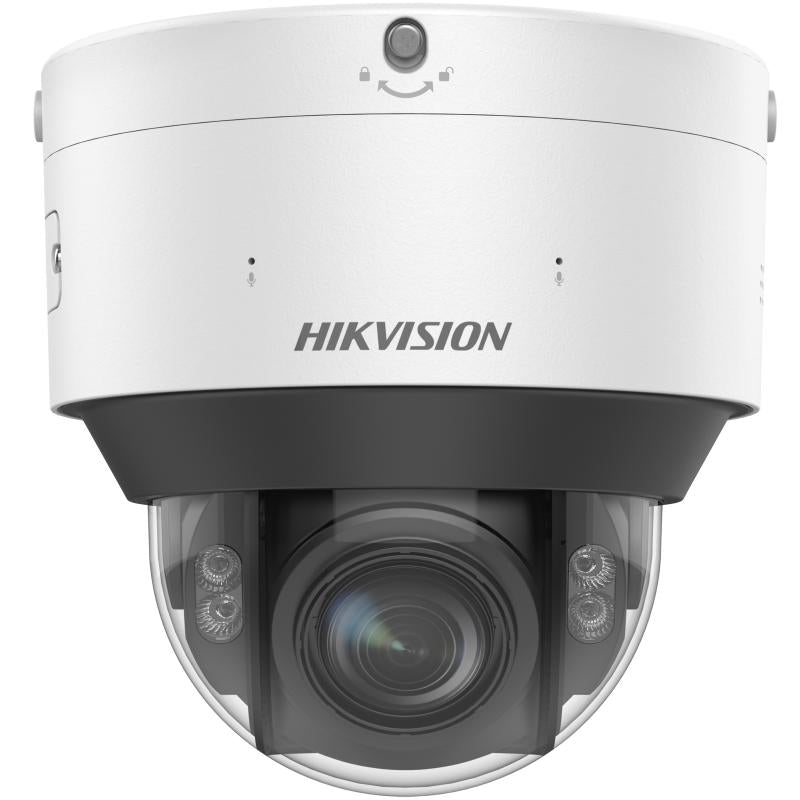

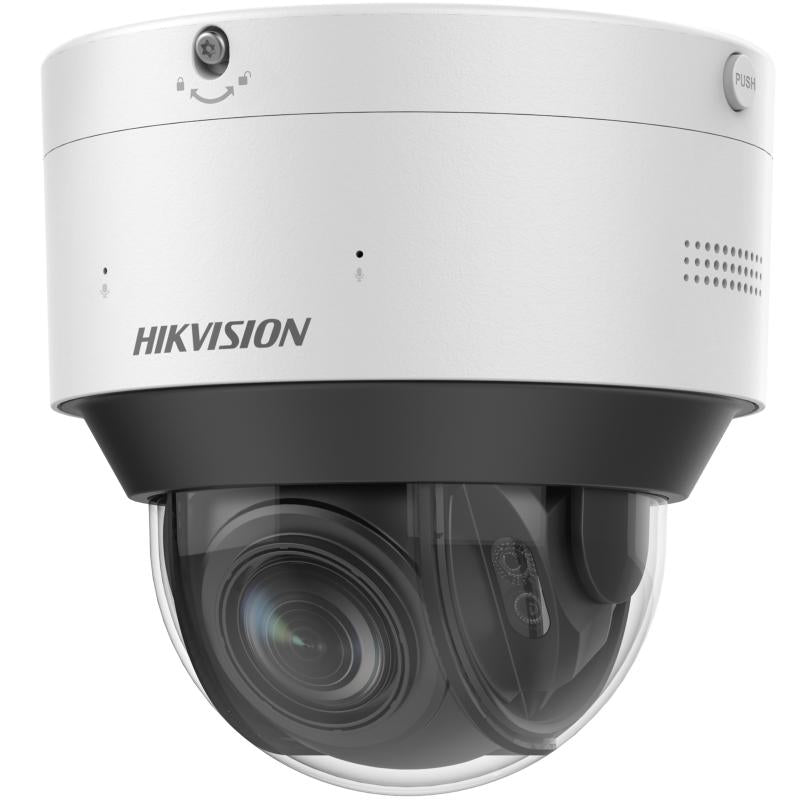

Hikvision iDS-2CD7547G0/P-XZHS(Y) DeepinView 4MP ANPR Moto Varifocal Dome Camera 2.8-12 mm

Model: iDS-2CD7547G0/P-XZHSY

Who This Is For

Property managers specifying number plate capture at controlled entry and exit points will find the Hikvision DeepinView iDS-2CD7547G0/P-XZHSY built specifically for that task. This is not a general-purpose dome pressed into ANPR duty - it is an iDS-series deep learning camera with dedicated ANPR processing built into the hardware. The 2.8-12mm motorised varifocal lens lets installers dial in the correct field of view from ground level without physically repositioning the dome, which matters when the capture lane geometry is fixed by a boom gate or parking structure. At 4MP, there is enough pixel density to read plates cleanly even when vehicles are not perfectly centred in frame. Suited to car parks, gated residential complexes, warehouse entry points, and commercial vehicle yards where a permanent, accurate plate capture record is the primary requirement rather than broad area surveillance.

What This Camera Actually Does

Who Buys This Model

• Car Park Operators: Deploying at entry and exit boom gate lanes where ceiling mounting under a canopy is available and motorised lens adjustment is needed to frame a single vehicle lane precisely.
• Gated Residential Complex Managers: Logging all visitor and resident plates at the main entry point, using Hikvision NVR allowlist functions to trigger automated gate release for registered vehicles.
• Industrial and Warehouse Security Teams: Recording every vehicle entering a goods receiving or dispatch yard, with the ANPR log used for retrospective incident investigation or dispute resolution with transport contractors.
• Hikvision-Ecosystem Integrators: Specifying a camera that delivers native ANPR event data directly to an iDS-compatible NVR or Hik-Connect platform without requiring a separate analytics server or licence fee per channel.

Honest Assessment

The iDS-2CD7547G0/P-XZHSY does a specific job well: it reads number plates in a controlled lane environment using on-camera deep learning, and it does this without requiring external analytics software or a high-end server NVR. The motorised 2.8-12mm lens is a genuine practical advantage during commissioning, and the dome housing keeps the install tidy in undercover locations. The two-way audio on the Y model adds a useful communication layer at unmanned access points. Where this camera is not the right choice: open car parks with no overhead mounting position will be better served by a bullet-style ANPR camera on a side pole, and multi-lane or free-flow environments at highway speeds require a dedicated multi-sensor or long-range ANPR platform. This model is supplied by Security Australia and is best suited to single-lane, low-to-moderate speed, covered installations paired with a compatible Hikvision NVR.

Before You Buy

Quick Fit Check

• Good match if: You have a single-lane entry or exit point under a canopy or ceiling where the camera can be mounted overhead and aimed at approaching vehicles at a shallow angle - exactly the scenario the dome housing and motorised varifocal lens are designed for.
• Good match if: Your site runs a Hikvision iDS-compatible NVR and you need on-camera plate recognition with allowlist/blocklist event outputs without adding a separate analytics server or per-channel software licence.
• You may need a different model if: Your entry point is in an open, uncovered area with no overhead mounting position - a bullet-style ANPR camera on a side pole will give you better approach angle geometry and more suitable weatherproofing orientation for that scenario. Check the ANPR bullet range on securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your entry point has an overhead mounting position under a canopy or ceiling, you need on-camera ANPR without a separate analytics server, and you are running a Hikvision iDS-compatible NVR for event integration.
• You may need a different model if: Your lane has no overhead structure and requires a side-pole mount - a bullet-style ANPR camera is purpose-built for that geometry and will deliver better approach angles in open environments.
• Pairs well with: A Hikvision iDS-series NVR with ANPR channel licensing, and an access control relay module for automated gate or boom gate triggering based on ANPR events.

Common Questions

1. Does this camera read number plates on its own, or does it need software on the NVR?

   The ANPR processing runs on the camera itself. The iDS-series DeepinView chip handles plate recognition at the edge, so plate character data and capture images are generated by the camera without depending on the NVR to perform the analysis. However, to action ANPR events - such as triggering a relay, checking against an allowlist, or raising an alarm for a blocklisted plate - you need a Hikvision NVR or VMS that supports iDS ANPR integration. A standard Hikvision NVR will record video but will not process the ANPR event stream.

2. Will this camera work for free-flow traffic on a busy road or car park entry at speed?

   No - not reliably above low vehicle speeds. This dome camera is designed for controlled lane environments where vehicles stop or slow to boom gate speed (typically under 20-30 km/h). Free-flow ANPR at higher vehicle speeds requires a dedicated long-range ANPR camera with a much longer focal length, purpose-built supplemental IR illumination, and often a higher shutter speed configuration. This model suits car park entries, gated driveways, and goods receiving yards rather than through-lanes at road speed.

3. What mounting angle gives the best plate capture results with this camera?

   A shallow approach angle of roughly 15 to 25 degrees off the vehicle's axis is the target. The dome housing allows ceiling mounting directly above the approach lane. If the camera is mounted too steeply overhead, the plate face becomes foreshortened and recognition accuracy drops. Mount at a height and forward offset that keeps the plate in the camera's view at a low angle as the vehicle approaches the stop point, then use the motorised 2.8-12mm lens to tighten the frame around the plate zone.

4. Does the 4MP resolution actually make a difference for ANPR versus a 2MP camera?

   Yes, in practical terms. 4MP gives you more pixels across a standard lane width, which means the plate characters occupy more pixels in the captured image. This matters when a vehicle is not perfectly centred, when the plate is partially obscured, or when you need to cover a slightly wider capture zone. With a 2MP camera at the same field of view, the plate characters are smaller in the image and recognition accuracy is more sensitive to positioning and lighting variation.

5. Does the two-way audio on the Y model require any extra cabling?

   No additional cabling is required. The built-in microphone and speaker on the Y variant operate over the same network connection used for video. Audio is accessed through the Hikvision NVR interface or VMS. If your NVR supports two-way audio channels, operators can speak to and hear drivers at the entry point without a separate intercom cable run to the camera location.

6. Can the allowlist and blocklist be managed directly on the camera, or only through the NVR?

   Basic plate list management can be configured through the camera's own web interface, but full allowlist/blocklist administration, event rule building, and alarm output configuration are most practically handled through a compatible Hikvision iDS NVR or VMS. Managing individual plate entries camera-by-camera through the web interface becomes impractical on a multi-camera site. For anything beyond a single entry point, use the NVR as the central management point. The full range of compatible Hikvision iDS NVRs is available through Security Australia.

7. Will this camera read plates from all Australian states without reconfiguration?

   The DeepinView deep learning engine is designed to handle multiple plate formats, including the varying character sets, background colours, and font styles used across Australian states and territories. Unlike older OCR-based ANPR systems that required a separate profile per state, the deep learning model handles format variation without manual per-state configuration. Performance remains subject to plate condition, lighting at the capture point, and approach angle consistency.
