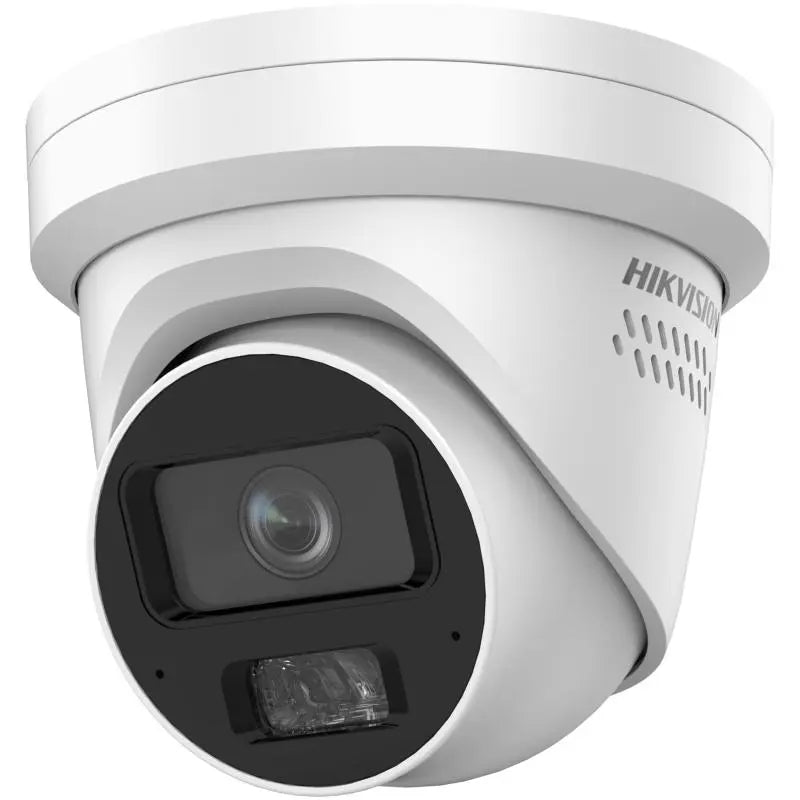

Hikvision iDS‑2CD7347G0‑P‑XS 4 MP DeepinView ANPR Hybrid Light Turret Camera (Fixed 4 mm)

Model: iDS-2CD7347G0-P-XS

Who This Is For

Property managers specifying entry and exit control for car parks, gated communities, or commercial driveways will find the Hikvision DeepinView ANPR Hybrid Light Turret Camera a focused tool built around one job: reading number plates accurately in real conditions. The iDS-2CD7347G0-P-XS combines a 4MP sensor with Hikvision's deep learning-based plate recognition engine in a compact turret housing, making it suited to fixed-approach lanes where a dedicated ANPR camera needs to fit into a tighter mounting position. The 4mm fixed lens targets the close-to-medium entry distances typical of boom gate approaches, carport entries, and single-lane driveways. If your project requires automated access logs, allow and block list enforcement, or vehicle capture tied to a VMS, this camera is built around those outcomes rather than being a general-purpose camera with plate recognition bolted on as a secondary feature.

What This Camera Actually Does

Who Buys This Model

• Car park operators: Single-lane entry and exit points where a dedicated plate-capture camera needs to integrate with a boom gate or parking management system using allow/block list logic built into the camera.
• Residential complex managers: Gated communities or apartment buildings requiring automated vehicle access logs and the ability to flag unregistered or blocked plates at the entry driveway without a full server-side ANPR deployment.
• Commercial premises with controlled vehicle access: Warehouses, industrial yards, or office parks where vehicle type and plate are both relevant to site access rules, and where 24-hour operation across mixed lighting conditions is required.
• Security integrators specifying Hikvision VMS projects: Sites running Hik-Connect or iVMS-4200 where adding a dedicated ANPR point to an existing camera network means the DeepinView data feeds directly into the same management platform already in use.

Honest Assessment

The iDS-2CD7347G0-P-XS does one thing that general-purpose cameras do not: it processes number plate recognition on-camera using a dedicated deep learning engine, removing the need for a separate ANPR server on smaller sites. The 4MP sensor combined with Hybrid Light gives it credible performance across day and night conditions at a fixed entry lane. The turret housing is genuinely practical for installations where a bullet camera would look out of place or require a separate mounting arm. Where it will not serve you well is on multi-lane approaches, high-speed through-traffic, or locations where the vehicle angle to camera varies significantly - those scenarios require a purpose-built long-range ANPR bullet camera or a multi-camera setup. The fixed 4mm lens also means capture distance is constrained; do not expect reliable reads at distances suited to a longer focal length. Available through Security Australia, this camera suits controlled, fixed-approach entry points rather than open-road or free-flow traffic monitoring.

Before You Buy

Quick Fit Check

• Good match if: You have a single fixed-approach entry lane - a car park boom gate, driveway, or gated entry - where vehicles slow or stop and you need on-camera plate recognition with allow/block list outputs without a separate ANPR server.
• Good match if: Your project runs on a Hikvision VMS and you need ANPR data - plate string, vehicle type, and list-match events - feeding into the same platform as your general surveillance cameras.
• You may need a different model if: Your entry point involves vehicles travelling at open-road speeds, multiple parallel lanes, or approach angles that cannot be tightly controlled - a long-range ANPR bullet camera with a varifocal lens is better suited to those conditions and is available on securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need dedicated on-camera ANPR at a single fixed-approach entry point and want the compact turret form factor rather than a larger bullet-style camera - particularly where the site already runs Hikvision infrastructure.
• You may need a different model if: Your entry point involves vehicles at open-road speeds, wide multi-lane approaches, or variable angles - a long-range varifocal ANPR bullet camera is engineered for those conditions and is available on securityaustralia.com.au.
• Pairs well with: A Hikvision DeepinView-compatible NVR to store plate capture events with searchable ANPR logs, and a boom gate or door controller wired to the camera's alarm output for automated access control.

Common Questions

1. Does this camera read number plates without a separate ANPR server or software licence?

   Yes. The iDS-2CD7347G0-P-XS processes plate recognition on-camera using the built-in DeepinView deep learning engine. For single-point or small-site deployments, you do not need a dedicated ANPR server or a per-channel software licence - the plate read, vehicle type classification, and list-match logic all run at the camera level. For large multi-lane sites requiring centralised plate databases and advanced analytics, a server-side ANPR platform may still be the better approach.

2. Will this camera work for vehicles travelling at normal road speed, or does it require slow or stationary vehicles?

   It is designed for fixed-approach, controlled-entry scenarios - not open-road or free-flow traffic. ANPR performance is optimised for vehicles that are slowing for a gate, boom, or driveway entry. At open-road speeds or on through-traffic lanes, plate blur and the brief capture window make reliable reads unlikely with a fixed 4mm lens. If your application involves moving traffic rather than a controlled entry point, a dedicated high-speed ANPR camera with appropriate shutter and lens specifications is required.

3. What is the practical capture distance for the 4mm fixed lens?

   The 4mm lens is suited to close-to-medium approach distances - typically in the range of 3 to 6 metres depending on plate size, vehicle height, and mounting position. Beyond that range, the plate occupies too few pixels in the frame for the character recognition engine to read reliably. The 4mm focal length is the right choice when the camera can be positioned close to the entry point. If your mounting position is further back, a longer focal length lens variant would be more appropriate for the approach distance involved.

4. How does the allow list and block list work, and can it trigger a relay output?

   The camera maintains configurable plate lists stored on-device. When a detected plate matches the allow list, a specified output is triggered - this can be wired to a boom gate relay or door controller for automated access. Block list matches trigger a separate alarm output or network event. Unknown plates - those not in either list - can also be configured to generate their own alert. This means basic automated access control is achievable with the camera and a boom gate controller alone, without middleware software in the loop. Check your specific VMS or controller documentation to confirm relay wiring compatibility.

5. What angle to the plate face does ANPR require for reliable reads?

   For dependable results, the horizontal angle between the camera's line of sight and the face of the number plate should be kept as low as possible - generally under 30 degrees. As the angle increases, character distortion compounds and the AI engine's read accuracy drops. Vertical angle should similarly be minimised; mounting the camera too high looking steeply down at the plate degrades performance. The iDS series is designed for cameras positioned near the approach lane and facing into traffic, not mounted overhead or at a wide side angle. Geometry planning before installation is essential with any fixed-lens ANPR camera.

6. Does this camera support two-way audio?

   This is not confirmed for the iDS-2CD7347G0-P-XS. The iDS series is engineered around ANPR and vehicle detection rather than intercom or audio functions. If two-way audio at an entry point is required - for example, to communicate with drivers before gate release - a separate intercom or audio-capable device should be specified alongside this camera. The plate recognition and access control outputs handle the automated side; visitor communication is a separate requirement.

7. Is this a free-flow ANPR camera or a fixed-approach ANPR camera, and what is the practical difference?

   This is a fixed-approach ANPR camera. Free-flow ANPR is designed for vehicles travelling at full road speed through open lanes - those systems use very short shutter speeds, high-powered strobes, and precisely engineered optics to freeze a plate in motion. Fixed-approach ANPR targets vehicles that are decelerating and stopping or near-stopping at a controlled entry point, where exposure time is longer and the geometry is predictable. The iDS-2CD7347G0-P-XS - stocked as part of the Security Australia range - is designed and priced for the fixed-approach use case. Attempting to use it for free-flow traffic will result in significantly degraded read accuracy.
