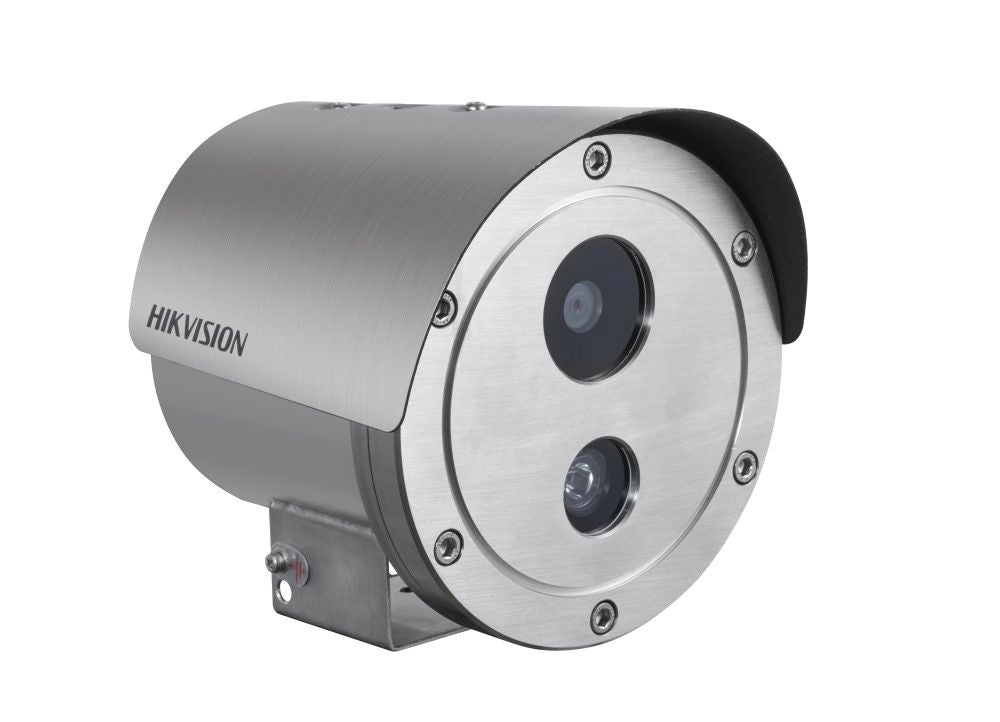

Hikvision HIK-2XE6242FIS16 4MP Explosion Proof Bullet Camera, 120dB WDR, 30m IR, IP68, 16mm

Model: HIK-2XE6242FIS16

Who This Is For

Property managers and HSE engineers specifying surveillance for Zone 1 and Zone 2 hazardous areas will find the Hikvision HIK-2XE6242FIS16 purpose-built for exactly these conditions. This is a 4MP explosion-proof bullet camera carrying both ATEX and IECEx certification, housed in 304 and 316L stainless steel and rated IP68 for complete dust and water ingress protection. The 16mm fixed lens suits medium-range corridor, pipe run, and access point monitoring across gas and oil processing facilities, chemical plants, offshore marine structures, and deep mining sites. DarkFighter low-light imaging and 120dB wide dynamic range handle the high-contrast lighting conditions common in industrial environments, while H.265 encoding keeps storage demands manageable on existing network infrastructure. This is a procurement-grade camera for sites where standard IP cameras are simply not compliant.

What This Camera Actually Does

Who Buys This Model

• Oil and gas facility operators: ATEX and IECEx certification satisfies the mandatory compliance requirements for Zone 1 and Zone 2 classified areas around processing equipment, storage tanks, and pump stations.
• Chemical plant HSE and security teams: The stainless steel housing and IP68 rating withstand the corrosive airborne compounds and frequent high-pressure washdown cycles common across chemical manufacturing floors.
• Mining operations managers: Deep mine environments with combustible dust or methane present require explosion-rated equipment; the 30m IR range covers tunnel approaches and equipment bays where ambient lighting is minimal or absent.
• Offshore and marine facility managers: Salt spray, humidity, and explosive atmosphere requirements are all addressed simultaneously by the 316L stainless steel construction and dual hazardous area certifications.
• Industrial EPC contractors and security integrators: Specifying compliant cameras for new hazardous area builds where the site safety plan mandates certified equipment and documentation under ATEX or IECEx schemes.

Honest Assessment

The HIK-2XE6242FIS16 does what very few cameras can - operate legally and safely in explosive atmosphere zones. The dual ATEX and IECEx certifications are genuine compliance credentials, not marketing language, and the 316L stainless steel housing with IP68 protection is appropriate engineering for petrochemical, mining, and offshore environments. The 4MP sensor with DarkFighter and 120dB WDR delivers useful image quality in the difficult lighting conditions typical of industrial sites, and H.265 keeps storage requirements in check across multi-camera systems. Available through Security Australia, it is one of the few stocked explosion-proof options with this specification combination. Where this camera is not the right choice: standard commercial or light industrial sites that do not require hazardous area certification - the cost and weight of the explosion-proof housing is unnecessary there, and a conventional IP67-rated industrial bullet will perform the same imaging task at significantly lower cost.

Before You Buy

Quick Fit Check

• Good match if: Your site is classified as a hazardous area under ATEX or IECEx schemes and you need a compliant 4MP bullet camera with IP68 protection and corrosion-resistant stainless steel housing for outdoor or washdown-exposed positions.
• Good match if: You are monitoring a medium-range approach, corridor, or access lane in a low-light industrial environment where DarkFighter performance and 30m IR coverage are needed in a single certified housing.
• You may need a different model if: Your site does not carry a hazardous area classification - a standard industrial-grade IP67 bullet camera will deliver equivalent or better imaging performance at considerably lower cost, and a wider lens selection will be available.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your installation site carries a formal hazardous area classification requiring ATEX or IECEx certified equipment, and you need a fixed-lens 4MP bullet with IP68 and corrosion-resistant stainless steel construction in a single unit.
• You may need a different model if: Wide-area coverage is the priority - a standard industrial PTZ or multi-sensor camera without the explosion-proof housing will provide pan, tilt, and zoom flexibility not available with this fixed 16mm lens format, and may be more appropriate for non-classified industrial perimeters.
• Pairs well with: A Hikvision-compatible NVR with H.265 support and sufficient channel capacity for multi-camera hazardous area deployments, ideally with ATEX-rated conduit and junction box accessories for a fully compliant installation.

Common Questions

1. Is this camera certified for use in Zone 1 explosive atmosphere areas?

   Yes. The HIK-2XE6242FIS16 carries both ATEX and IECEx certifications, which are the primary internationally recognised schemes for equipment approved in explosive atmosphere locations. Before installation, confirm the specific zone classification, gas group, and temperature class of your site against this model's certification documentation to verify it matches your classified area.

2. What is the difference between ATEX and IECEx certification?

   Both cover explosive atmosphere compliance, but they apply in different regulatory regions. ATEX is the European Union and UK scheme and is widely referenced across Australian and international industrial standards. IECEx is the international IEC scheme recognised in Australia and many Asia-Pacific jurisdictions. This camera holds both, which supports procurement across multiple regulatory environments without needing separate certified alternatives.

3. Will this camera work in a marine or offshore environment?

   Yes. The 316L stainless steel housing is specifically chosen for its superior corrosion resistance to salt spray and high-humidity environments, making it appropriate for offshore platform decks, marine terminals, and coastal industrial structures. The IP68 ingress protection rating prevents water entry under sustained exposure conditions common on marine installations.

4. Does the 16mm lens suit wide-area coverage, or is it for longer-distance monitoring?

   The 16mm fixed lens is suited to medium-to-longer-distance monitoring in a narrower field of view. It is not the right choice for covering a wide entry point or large open area from a single camera position. It works well on access lanes, pipe corridors, doorways, and equipment approaches where the target is at distance and width coverage is less critical than reach and detail.

5. Does this camera perform in complete darkness?

   Yes. The built-in 30m IR illuminators allow the camera to capture monochrome footage in zero ambient light conditions. Before switching to full IR, DarkFighter technology extracts colour information at very low light levels, which is useful in partially lit industrial environments where some residual lighting exists but is insufficient for standard imaging.

6. What NVR or recording system does this camera require?

   Any Hikvision-compatible NVR supporting H.265 video compression and the camera's resolution will work. For multi-camera hazardous area installations, confirm the NVR has sufficient channel capacity and that the network infrastructure between the camera location and the recording point is installed in accordance with your site's hazardous area electrical requirements. The camera itself connects over a standard IP network interface. The HIK-2XE6242FIS16 is stocked by Security Australia alongside compatible Hikvision NVR options.

7. How does 120dB WDR improve image quality in industrial environments?

   120dB WDR handles high-contrast scenes where standard cameras lose detail. On industrial sites, this commonly occurs where bright outdoor light is visible through openings in a darker interior, where high-intensity work lighting creates strong shadows, or where reflective equipment surfaces sit next to dark backgrounds. At 120dB, the camera retains usable detail in both bright and dark areas of the same frame simultaneously.

Downloads & Resources

• Download Specification Sheet - HIK-2XE6242FIS16
• Download User Manual - HIK-2XE6242FIS16
