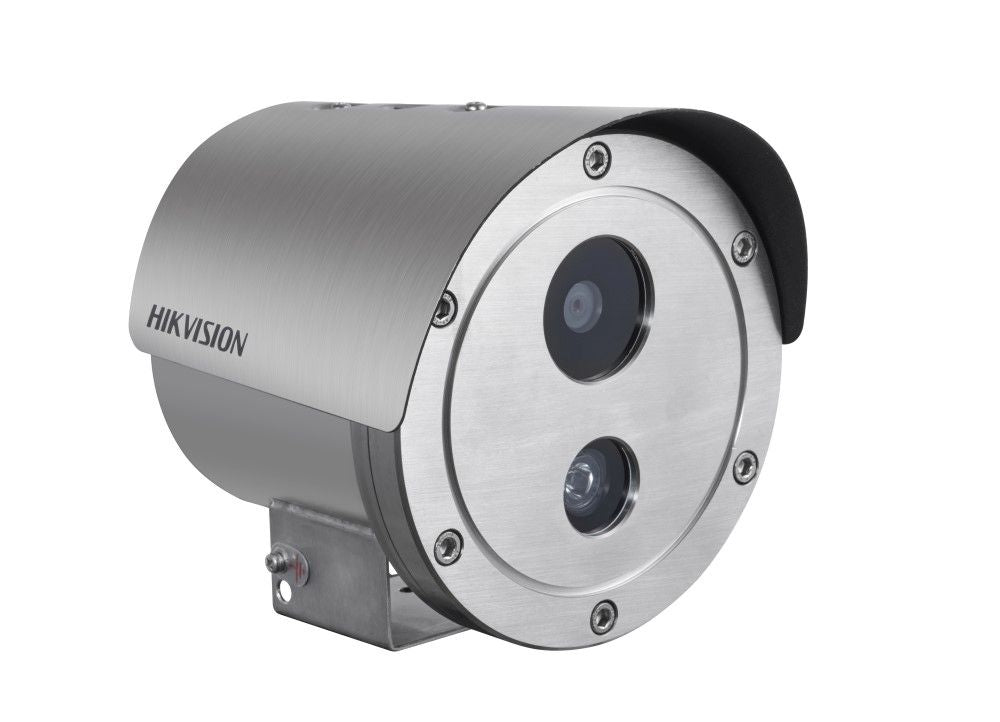

Hikvision HIK-2XE6222FIS6 2MP Explosion Proof Bullet Camera, 120dB WDR, 30m IR, IP68, 6mm

Model: HIK-2XE6222FIS6

Who This Is For

When the installation environment itself is the hazard, standard IP cameras are not an option. The Hikvision HIK-2XE6222FIS6 is engineered specifically for locations where flammable gases, combustible dust, or volatile chemical vapours create an explosion risk - environments where camera housing integrity is a safety requirement, not a marketing feature. This is the camera specified by engineers and project managers working on oil and gas processing plants, chemical storage facilities, deep mining operations, and marine applications where corrosive saltwater exposure compounds the risk. The 304 and 316L stainless steel housing is ATEX and IECEx certified, the IP68 rating handles complete dust and water ingress, and Hikvision's DarkFighter technology ensures the sensor performs in the low-light conditions common to these environments. If your project requires a certified explosion-proof camera with documented compliance credentials, this is the model to specify.

What This Camera Actually Does

Who Buys This Model

• Oil and Gas Site Engineers: Specifying cameras for processing plants, storage tank farms, and pipeline monitoring where Zone 1 or Zone 2 ATEX/IECEx certification is a mandatory compliance requirement - not a preference.
• Mining Operations Managers: Installing surveillance in underground shafts or surface processing facilities where combustible coal dust, methane, or other hazardous particulates create an explosive atmosphere classification.
• Chemical Plant Safety Teams: Monitoring storage and production areas where solvent vapours, chemical gases, or flammable liquid handling make standard camera housings a liability rather than a safety tool.
• Marine and Offshore Project Managers: Deploying cameras on vessels, offshore platforms, or coastal facilities where 316L stainless steel corrosion resistance and IP68 protection are required to survive the operating environment long-term.
• Industrial CCTV Integrators: Completing a hazardous area compliance package for a client site and requiring a camera that arrives with documented ATEX and IECEx certification to satisfy the site's safety sign-off process.

Honest Assessment

The HIK-2XE6222FIS6 does one thing that almost no other camera can: it operates legally and safely inside a certified explosive atmosphere. The combination of ATEX and IECEx certification, 316L stainless steel housing, IP68 ingress protection, and DarkFighter low-light performance addresses a genuinely narrow and demanding set of requirements. For any site where hazardous area classification applies, this camera removes the compliance problem entirely. The 6mm fixed lens and 30m IR cover a practical range for process area monitoring without being excessive in bandwidth or power demand, and H.265 keeps storage manageable on constrained site networks. What this camera will not do is serve as a cost-effective general-purpose outdoor camera - the specialised housing carries a significant cost premium that is only justified where explosion-proof certification is actually required. For standard industrial outdoor applications without hazardous area classification, a conventional heavy-duty bullet camera available through Security Australia will deliver comparable image quality at considerably lower cost.

Before You Buy

Quick Fit Check

• Good match if: Your site has a formal hazardous area classification requiring ATEX or IECEx certified equipment - this camera arrives with both certifications documented and is built into a 316L stainless steel housing designed specifically for that compliance requirement.
• Good match if: You are installing in a deep mine, offshore marine platform, or chemical processing area where IP68 ingress protection and DarkFighter low-light performance are both needed simultaneously in a corrosion-resistant package.
• You may need a different model if: Your site is a general industrial or outdoor environment without a formal explosive atmosphere classification - a standard heavy-duty IP67-rated bullet camera will provide equivalent image performance at significantly lower cost and without the compliance overhead of hazardous area hardware.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site carries a formal ATEX or IECEx zone classification and your equipment schedule requires certified explosion-proof cameras - this is one of very few 2MP bullet cameras that satisfies both schemes simultaneously in a 316L stainless steel housing.
• You may need a different model if: Your environment is a general industrial or harsh outdoor site without a hazardous area classification - a heavy-duty IP67-rated industrial bullet camera will match the image performance at a fraction of the cost and without the compliance overhead.
• Pairs well with: ATEX and IECEx rated cable glands, explosion-proof junction boxes, and network video recorders with H.265 decoding capability housed in a safe area control room outside the classified zone.

Common Questions

1. Is the HIK-2XE6222FIS6 certified for use in Zone 1 explosive atmospheres?

   Yes. The camera holds both ATEX and IECEx certifications, which are the two primary international schemes covering equipment safety in explosive atmospheres. ATEX is the European directive most commonly referenced in Australian hazardous area projects, and IECEx is the global scheme - holding both means the camera meets the requirements of most Australian site safety management plans that specify certified hazardous area equipment.

2. Why does this camera use 316L stainless steel rather than standard aluminium?

   316L stainless steel is chosen for its resistance to chloride and chemical corrosion - the same reason it is used in marine fittings, chemical processing equipment, and food-grade hardware. Standard camera housings use die-cast aluminium, which corrodes rapidly when exposed to saltwater, chlorine, or industrial chemical vapours. In offshore, marine, or chemical plant installations, an aluminium housing would fail in conditions where 316L remains serviceable for years.

3. Will this camera work in complete darkness without any ambient lighting?

   Yes, up to 30m using the built-in infrared illuminator. The DarkFighter sensor also performs in very low ambient light conditions before switching to IR, which means the transition to night mode is less abrupt than on standard sensors. In underground or enclosed hazardous areas where no artificial lighting exists, the 30m IR range covers the immediate process area and access approaches relevant to most monitoring tasks.

4. Does the 120dB WDR make a practical difference in industrial environments?

   Yes, noticeably so. Industrial sites often place cameras where one side of the frame faces direct sunlight or floodlighting and the other faces a darker interior - tank farms, loading docks, and facility entry points are typical examples. At 120dB, the camera compresses a much wider contrast range into a readable image than a standard 60-80dB WDR camera, which tends to blow out bright areas or lose detail in shadow. For compliance recording where legibility of personnel and vehicle activity matters, the difference is significant.

5. Does H.265 encoding require a specific NVR or recording platform?

   Yes. Your NVR or recording software must support H.265 decoding to take advantage of the reduced bitrate. Most current-generation NVRs support H.265, but older platforms may only decode H.264, in which case the camera would need to be configured to stream H.264 instead - removing the bandwidth and storage efficiency advantage. Confirm your recording infrastructure is H.265 compatible before deployment. Security Australia can assist with NVR compatibility queries.

6. Is a 6mm lens the right choice for all explosion-proof installations, or should I consider a different focal length?

   Not always. A 6mm lens on a 2MP sensor provides a moderate angle of view suited to monitoring defined process areas, equipment clusters, or access points at roughly 10-25m. For longer approaches - perimeter roads, extended walkways, or wide open process yards - a longer fixed focal length would provide better subject detail at range. The lens focal length should be matched to the geometry of each installation point rather than defaulting to a single value across an entire site.

7. Does the IP68 rating mean this camera can be permanently submerged?

   IP68 confirms protection against continuous water submersion under conditions defined by the manufacturer - typically a specified depth and duration. For surface-mounted applications in washdown areas, outdoor monsoon conditions, or areas subject to regular flooding, IP68 provides a higher level of confidence than IP66 or IP67. For permanently submerged installation, confirm the manufacturer's specific submersion depth and duration rating with the datasheet, as IP68 parameters vary between products.

Downloads & Resources

• Download Specification Sheet - HIK-2XE6222FIS6
• Download User Manual - HIK-2XE6222FIS6
