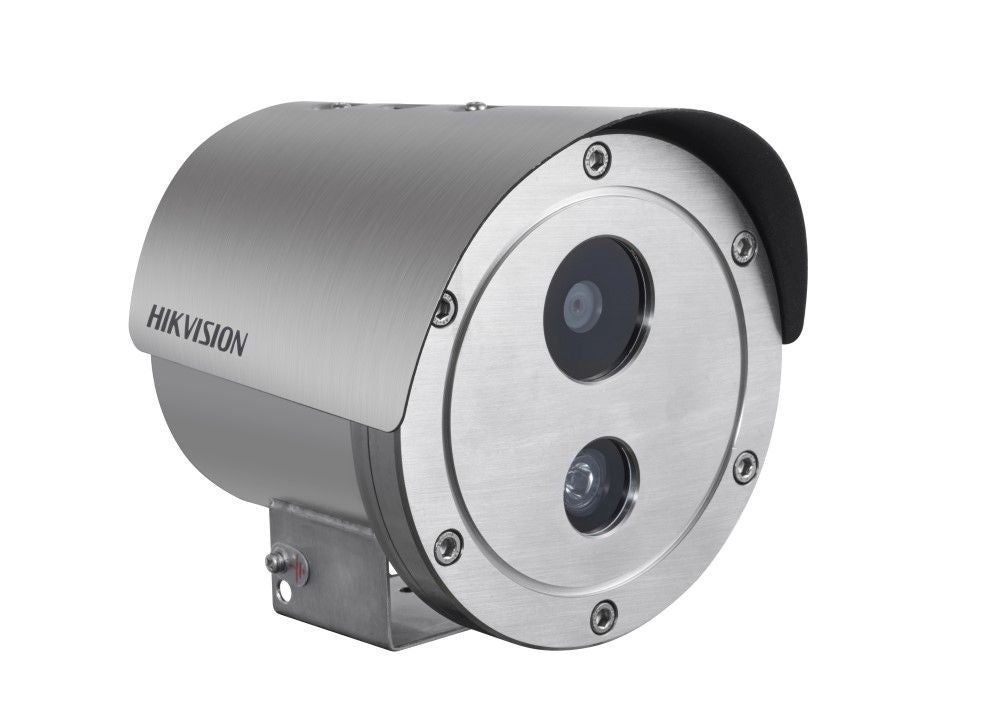

Hikvision HIK-2XE6222FIS16 2MP Explosion Proof Bullet Camera, 120dB WDR, 30m IR, IP68, 16mm

Model: HIK-2XE6222FIS16

Who This Is For

When the installation environment itself presents an explosion or ignition risk, standard IP cameras are not an option. The Hikvision HIK-2XE6222FIS16 is built specifically for hazardous-area deployments - oil and gas processing facilities, chemical storage plants, deep mines, marine vessels, and any site classified under ATEX or IECEx zone requirements. The 304 and 316L stainless steel housing resists both blast force and corrosion, while IP68 certification means complete protection against dust ingress and sustained water immersion. The 16mm fixed lens suits medium-distance monitoring across defined approaches - pipelines, access gates, pump stations, and dock areas - where a narrow, focused field of view is preferred over wide coverage. At 2MP with Darkfighter low-light technology and 120dB WDR, it captures usable footage under the difficult lighting conditions common to industrial night operations and high-contrast process environments.

What This Camera Actually Does

Who Buys This Model

• Oil and Gas Facility Operators: Sites handling flammable gases or volatile liquids require ATEX/IECEx-certified equipment in designated hazardous zones - this camera meets that classification requirement directly.
• Chemical Plant Safety and Security Teams: Processing facilities with corrosive atmospheric exposure need 316L stainless steel construction to prevent housing degradation that would compromise both certification and performance over time.
• Mining Operations: Deep mine environments with combustible dust or methane require explosion-proof rated equipment - the IECEX certification covers these underground applications specifically.
• Marine and Offshore Installers: Vessels, offshore platforms, and port infrastructure expose equipment to saltwater spray and chloride-rich air. The 316L stainless steel and IP68 rating address both corrosion and immersion risks that eliminate standard camera options.
• Industrial Security Integrators Specifying Compliant Systems: Integrators managing compliance documentation for hazardous-area projects need cameras that arrive with the relevant international certifications already confirmed - not retrofitted protection after the fact.

Honest Assessment

The HIK-2XE6222FIS16 does one thing that almost no other camera does: it is certified safe to operate inside hazardous-area zones. The ATEX and IECEx certifications, 304/316L stainless steel housing, and IP68 rating are genuine engineering credentials - not marketing designations. The Darkfighter sensor and 120dB WDR give it strong imaging capability for the low-light, high-contrast conditions typical of industrial night operations. H.265 compression keeps storage and bandwidth requirements manageable at remote sites. The 16mm fixed lens is a deliberate choice for medium-distance focused monitoring - pipeline approaches, access control points, tank farm entries - not wide-area coverage. If broad-angle surveillance of a large open area is the priority, a different lens focal length or camera type would serve better. For any installation where zone classification is a legal or safety requirement, this is the correct product category. Available through Security Australia.

Before You Buy

Quick Fit Check

• Good match if: Your site requires ATEX or IECEx certification for cameras installed in a classified hazardous zone - this camera carries both certifications and the stainless steel housing to back them.
• Good match if: The installation environment involves saltwater, chemical vapour, or high-pressure washdown exposure where 316L stainless steel and IP68 are needed to maintain housing integrity long-term.
• You may need a different model if: Your site is a standard industrial or commercial outdoor environment without a formal hazardous area classification - a heavy-duty IP67-rated bullet camera would cover the application at significantly lower cost and with more flexible lens options.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your installation falls within an ATEX or IECEx classified hazardous zone and certification compliance is a hard requirement - no standard outdoor camera can substitute here regardless of its IP rating.
• You may need a different model if: Your site is a general industrial or outdoor environment without a formal hazardous area classification - a heavy-duty outdoor bullet camera with IP67 or IP68 rating delivers strong performance at considerably lower cost and with more lens options.
• Pairs well with: An IECEx-rated network video recorder or a certified zone-compliant network switch and junction box system - all cabling and enclosures entering the hazardous zone must carry equivalent certifications to the camera itself.

Common Questions

1. What does ATEX and IECEx certification actually mean for this camera?

   Both certifications confirm this camera has been independently tested and rated safe to operate in environments where explosive atmospheres may be present. ATEX is the European Union directive standard and IECEx is the internationally recognised scheme - together they cover hazardous area installations across most global jurisdictions. The stainless steel housing contains any internal ignition source so it cannot ignite the surrounding atmosphere.

2. Will this camera work in a Zone 1 or Zone 2 classified gas hazard area?

   Yes, provided the specific zone classification matches the camera's certified rating - confirm the exact zone number from the product's ATEX/IECEx documentation against your site's area classification register before installation. The certifications cover classified hazardous atmospheres including those involving flammable gases and vapours, which are the basis of Zone 1 and Zone 2 designations.

3. Does the 16mm lens give wide coverage or is it more of a narrow, focused view?

   Narrow and focused. A 16mm fixed lens produces a tighter angle of view than the 2.8mm or 4mm lenses used on most general-purpose outdoor cameras. It is suited to monitoring a defined lane, gate approach, or pipeline section at medium-to-long distance rather than covering a broad open area. If you need wide-angle coverage from a single mounting point, a shorter focal length would be required.

4. Why does this camera use both 304 and 316L stainless steel rather than one grade?

   304 stainless steel provides the structural strength and cost efficiency for the main housing body, while 316L adds molybdenum content that resists chloride-induced corrosion - the primary cause of stainless steel degradation in marine and chemical environments. Using 316L where corrosive exposure is highest extends the camera's service life in saltwater and acid-vapour atmospheres that would degrade 304 over time.

5. Does the IP68 rating mean this camera can be permanently submerged?

   IP68 confirms protection against continuous water immersion at a depth specified by the manufacturer - review the datasheet for the rated submersion depth and duration. For most industrial applications including high-pressure washdown, marine splash, and flooding exposure, IP68 provides a higher level of protection than IP66 or IP67. It does not mean the camera is designed for underwater operation as a standard use case.

6. Does H.265 compression make a difference for long-term recording at a remote site?

   Yes. H.265 reduces file sizes by approximately 50% compared to H.264 at equivalent image quality. For remote industrial sites where storage is physically limited or where data transmission over constrained networks is a factor, this directly reduces the NVR storage capacity required and the bandwidth needed to transmit footage back to a central monitoring point. Part of the Hikvision range stocked by Security Australia, this camera ships with H.265 encoding enabled by default.

7. Does the camera's certification cover the cable glands and conduit entering the hazardous zone as well?

   No. The ATEX and IECEx certifications apply to the camera unit only. All associated cabling infrastructure - cable glands, conduit, junction boxes, and switching equipment - that enters the classified hazardous zone must independently carry equivalent certifications for the relevant zone. Your installation's overall compliance depends on every component in the zone meeting the classification, not just the camera.

Downloads & Resources

• Download Specification Sheet - HIK-2XE6222FIS16
• Download User Manual - HIK-2XE6222FIS16
