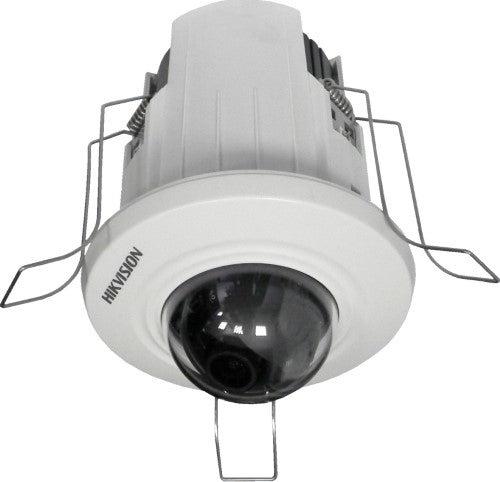

Hikvision DS-2CD2E20F 2MP Indoor Mini Dome Camera, Recessed Mount, D/N, 6mm Fixed Lens
- Sku: HIK-2CD2E20F6
- Vendor: SecurityAustralia
Free shipping - Enjoy free shipping when your order exceeds $100!
All orders are despatched within the next business day!
Best local support in Aus! We back all products with a 3 year manufacturer warranty.
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Product Overview
- Up to 1920x1080 resolution
- Full HD 1080p real-time video
- 4mm fixed lens
- Efficient encoding capability
- Supports SH/SDHC/HDXC card, up to 128GB
- Tool-free installation
- Electronic day/night
- 3D digital noise reduction
- Digital WDR
- Backlight compensation
| Camera | ||
|---|---|---|
| Image Sensor: | | | 1/3" Progressive Scan CMOS |
| Min. Illumination: | | | 0.01 Lux @ F1.2, AGC ON |
| Shutter time: | | | 1/3s ~ 1/100,000s |
| Lens: | | | 4mm fixed lens (2.8mm/6mm lens optional) Angle of view: 4mm: 85°, 2.8mm: 106°, 6mm: 52° |
| Lens Mount: | | | M12 |
| Day& Night: | | | Electronic |
| Wide Dynamic Range: | | | Digital WDR |
| Digital noise reduction: | | | 3D DNR |
| Compression Standard | ||
| Video Compression: | | | H.264/MJPEG |
| H.264 code profile: | | | Baseline Profile / Main Profile |
| Video bit rate: | | | 32Kbps~8Mbps |
| Dual Stream: | | | Yes |
| Image | ||
| Max. Image Resolution: | | | 1920 x 1080 |
| Frame Rate: | | | 50Hz: 25fps (1920 x 1080, 1280 × 960,1280 × 720)60Hz: 30fps (1920 x 1080, 1280 × 960,1280 × 720) |
| Image Settings: | | | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| BLC: | | | Yes, zone configurable |
| ROI: | | | Support |
| Day/Night Switch: | | | Auto/Schedule/Triggered by Alarm In |
| Network | ||
| Network Storage: | | | NAS (Support NFS,SMB/CIFS), ANR |
| Protocols: | | | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Security: | | | One-key reset, flash-prevention, dual streams, heartbeat, mirror, password protection, privacymask, Watermark, IP address filtering, Anonymous access |
| System Compatibility: | | | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Interface | ||
| Communication Interface: | | | 1 RJ45 10M / 100M Ethernet interface |
| On-board storage: | | | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Wi-Fi Specification (-W) | ||
| Wireless Standards: | | | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range: | | | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth: | | | 20/40MHz Support |
| Modulation Mode: | | | 802.11b: CCK, QPSK, BPSK802.11g/n: OFDM |
| Security: | | | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transmit Power: | | | 11b: 17±1.5dBm @ 11Mbps11g: 14±1.5dBm @ 54Mbps11n: 12.5±1.5dBm |
| Receive Sensitivity: | | | 11b: -90dBm @ 11Mbps (Typical)11g: -75dBm @ 54Mpbs (Typical)11n: -74dBm (Typical) |
| Transmission Rate: | | | 11b: 11Mbps11g: 54Mbps11n: up to 150Mbps |
| Wireless Range: | | | 50m(depend on environment) |
| General | ||
| Operating Conditions: | | | -10 °C ~ 40 °C (14 °F ~ 104 °F)Humidity 90% or less (non-condensing) |
| Power Supply: | | | 12 VDC ± 10%, PoE (802.3af) |
| Power Consumption: | | | Max. 4.2W |
| Dimensions: | | | Φ93.9×121.6 |
| Weight: | | | 200g |
