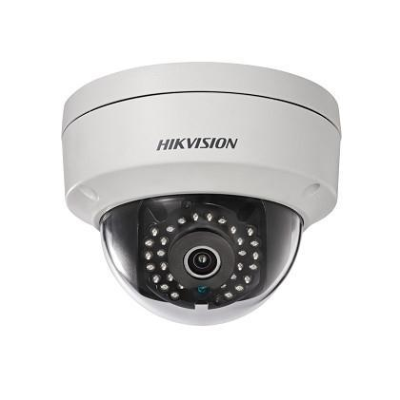

Hikvision DS-2CD2142FWD 4MP Outdoor Dome, H.264+, 30m IR, 3DDNR, 120dB WDR, IP67, IK10, PoE, 4mm

Model: DS-2CD2142FWD

Who This Is For

When vandal resistance and true wide dynamic range are both on the specification list, the Hikvision DS-2CD2142FWD is the kind of camera installers reach for. It is designed for outdoor dome positions where the housing may take a knock - think car parks, building entrances, stairwells, and loading bays - and where lighting shifts between harsh sunlight and deep shadow throughout the day. The 4MP sensor at a 4mm fixed focal length gives a broad field of view suited to monitoring open areas rather than zooming into a single narrow lane. The IK10 vandal-resistant dome and IP67 weatherproof rating mean it can be surface-mounted in exposed external positions without concern. PoE powering simplifies the install to a single Cat5e or Cat6 run, and the onboard microSD slot adds a local storage fallback where NVR connectivity is interrupted.

What This Camera Actually Does

Who Buys This Model

• Commercial installers: Specifying IP dome cameras for strata car parks, retail back-of-house, and building entrances where IK10 impact resistance and IP67 weatherproofing are minimum requirements on the brief.
• Small business owners: Running a PoE NVR system and adding dome cameras to external positions - the single-cable PoE install avoids the cost of separate power runs at each mounting point.
• Body corporate managers: Replacing failed analogue domes in common areas where a vandal-resistant housing is necessary and the H.264+ compression helps keep NVR storage costs manageable across multiple cameras.
• Light industrial operators: Mounting cameras at yard access points, loading areas, or demountable buildings where the IP67 rating handles rain and dust exposure without requiring a separate weatherproof enclosure.

Honest Assessment

The DS-2CD2142FWD delivers genuinely useful specifications for the price bracket. The 120dB true WDR is not a marketing figure - it performs well in high-contrast outdoor scenes that defeat cameras with lower WDR ratings. IK10 is a real engineering distinction at this price point, and the combination of IP67, PoE, and 4MP resolution makes this a practical outdoor dome for a wide range of commercial installations. The H.264+ compression provides tangible storage savings that add up across a multi-camera NVR system. Where it falls short: the 4mm fixed lens cannot be adjusted after installation, so it is not suited to long-approach monitoring where a narrower angle is needed, and there is no motorised zoom or optical varifocal option in this model. Sites needing detailed identification at distance beyond 15-20 metres or wide-area pan coverage would be better served by a different camera type. The DS-2CD2142FWD is part of the Security Australia range and suits buyers who need a proven, no-compromise outdoor dome without moving to a higher product tier.

Before You Buy

Quick Fit Check

• Good match if: You are mounting at a building entrance, car park column, or covered external area within 30 metres of the subject and need IK10 vandal resistance plus IP67 weatherproofing as confirmed housing ratings.
• Good match if: You are running a multi-camera PoE NVR system and storage capacity is a constraint - the H.264+ compression meaningfully reduces per-camera storage consumption compared to standard H.264 streams.
• You may need a different model if: Your site requires identification of subjects at distances beyond 20-25 metres, or you need to adjust the focal length after installation - a varifocal bullet or varifocal dome would be more appropriate for those requirements.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a confirmed IK10 vandal-resistant outdoor dome with 120dB true WDR and H.264+ compression in a fixed 4mm wide-angle configuration - it delivers all three without moving to a premium product tier.
• You may need a different model if: The installation requires a longer IR throw beyond 30 metres, a varifocal lens to dial in focal length after mounting, or subject identification at distance - a varifocal dome or bullet camera with extended IR range would better suit those requirements.
• Pairs well with: A Hikvision PoE NVR with H.264+ decoding support to take full advantage of the reduced bitrate, and a PoE switch or NVR with 802.3af ports for single-cable installation across multiple camera positions.

Common Questions

1. Does this camera work with a standard PoE switch, or does it need PoE+?

   Standard 802.3af PoE is all this camera requires - it does not need PoE+. Any switch or NVR PoE port supplying 802.3af (up to 15.4W) will power it correctly. This means it works with budget 8-port unmanaged PoE switches as well as the built-in PoE ports on most Hikvision NVRs, without needing to upgrade the switch or injector.

2. Will this camera handle the lighting conditions at a building entrance with strong backlight?

   Yes, the 120dB true WDR is specifically designed for that scenario. At entrances with glass facades where sunlight enters behind subjects, the 120dB WDR processes both the bright background and the shadowed foreground simultaneously. Standard cameras without WDR, or those with lower-rated WDR, typically blow out the background or underexpose the subject in the same conditions.

3. What does H.264+ actually save compared to standard H.264 on my NVR?

   H.264+ reduces bitrate by analysing static background areas between frames and encoding only meaningful change, which can cut storage consumption by up to 50% versus standard H.264 at equivalent quality. For a 4-camera system running 24/7, that difference could halve the hard drive size required in the NVR, or double the usable retention period on the same drive.

4. Is the IK10 rating genuinely significant, or is it a minor upgrade from IK08?

   IK10 is a meaningful step up. IK08 is rated to 5 joules of impact, while IK10 is rated to 20 joules - 4 times the energy resistance. In practical terms, IK10 domes withstand direct blows from tools or deliberate vandalism that would crack or shatter an IK08 or unrated dome. For cameras in publicly accessible positions, the difference in housing durability is real.

5. Can I record to the microSD card without an NVR connected?

   Yes. The DS-2CD2142FWD supports standalone recording to a microSD card of up to 128GB without requiring an NVR or network connection. It can be configured to record continuously or on motion detection, making it viable for remote or temporary locations where running a full NVR is not practical. The footage is accessible directly from the card or via the camera's web interface when connected to a network.

6. Does this camera have audio recording capability?

   Yes, it includes audio and alarm I/O. This allows connection of an external microphone or speaker via the audio terminals for sites where audio capture alongside video is required. Note that audio recording laws vary by state in Australia - confirm your legal obligations before enabling audio capture in any occupied premises. The team at Security Australia can advise on compatible audio accessories for this model.

7. Will the 4mm lens cover a standard single-car garage entrance or is it too wide?

   Yes, a 4mm lens is well suited to a single-car garage entrance at typical mounting heights of 2.5-3.5 metres. At 3 metres mounting height, the 4mm angle of view captures a wide scene that includes the driveway approach and the person at the door. If the garage is a double-width entry or you want the camera mounted further back to capture a larger driveway area, the 4mm focal length remains appropriate. A narrower focal length would only be necessary for a long single-lane driveway where identification at 30 metres or more is the goal.
