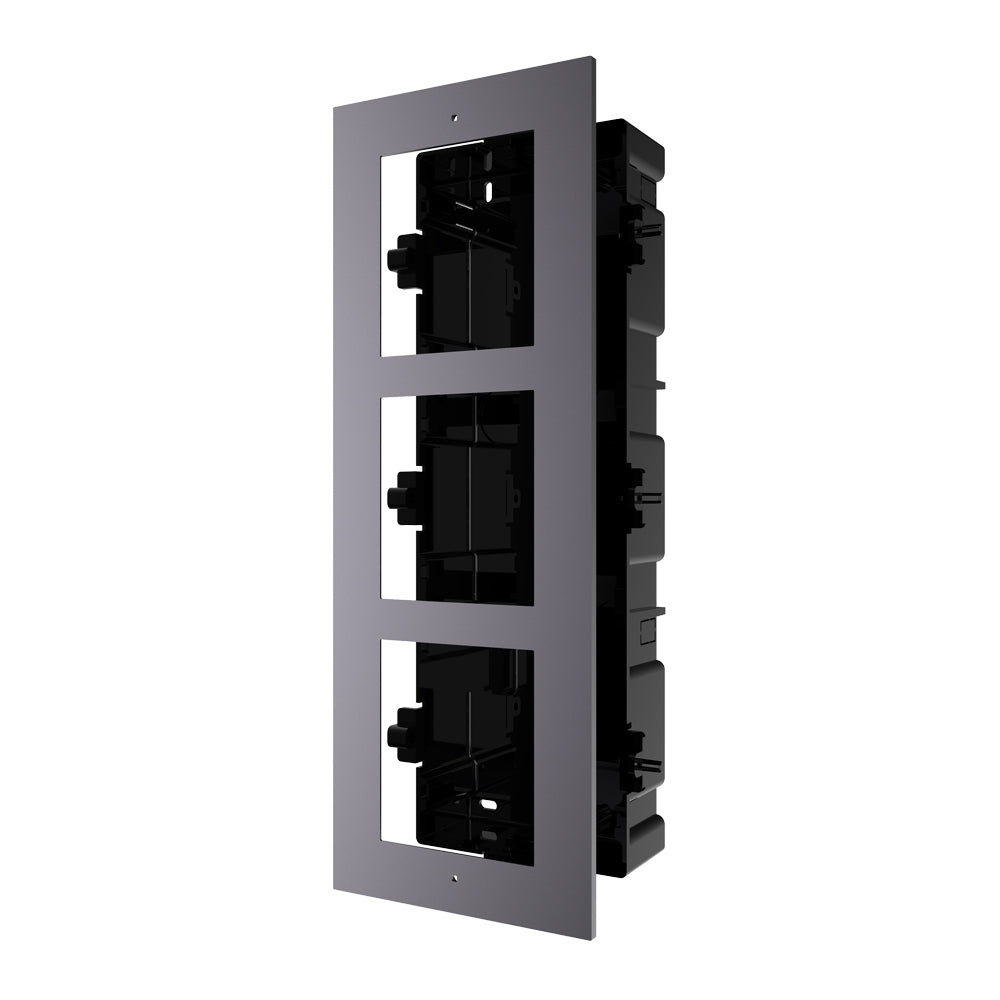

Hikvision DS-KD-ACF3 Gen2 Video Intercom Flush Mount Housing - 3 Module

Model: DS-KD-ACF3

Who This Is For

Property managers specifying a Hikvision Gen2 modular video intercom installation will need to decide early whether modules are surface-mounted or recessed into the wall. The DS-KD-ACF3 flush mount housing is the answer for recessed installs carrying 3 modules - pairing directly with the DS-KD8003-IME1 Gen2 door station. The aviation aluminium cover gives a low-profile, finished appearance against the wall face, while the plastic gang box sits inside the wall cavity at 56 mm deep. This is the housing chosen when the entry point requires a neat, built-in look - common in apartment buildings, commercial lobbies, and gated residential estates where exposed surface-mount brackets are not acceptable. If the installation is three modules and flush-finish is a requirement, this is the specific housing component to specify.

What This Housing Actually Does

Who Buys This Model

• Apartment and residential complex builders: Specifying flush-mounted intercom entry stations where the finish must integrate cleanly with rendered or tiled wall surfaces at lobby and gate entries.
• Commercial fitout installers: Installing Gen2 modular door stations in office building lobbies or corporate reception entries where an exposed surface-mount housing would not meet the fitout standard.
• Security integrators on gated estate projects: Using the DS-KD8003-IME1 Gen2 at pedestrian gates and needing a housing matched to exactly 3 modules - camera, call, and access reader - without excess space.
• Strata and facilities managers: Replacing or upgrading existing flush-mount intercom housings on multi-residential sites already running Hikvision Gen2 video intercom infrastructure.

Honest Assessment

The DS-KD-ACF3 does one thing well: it provides a properly engineered, flush-recessed mounting solution for 3-module Gen2 Hikvision intercom configurations. The aviation aluminium cover is a genuine upgrade over plastic alternatives at public-facing entry points, and the -40°C to +60°C operating range means it handles Australian outdoor installations without compromise. The gang box depth of 56 mm is a practical installation consideration - walls with insufficient cavity depth or existing conduit congestion may require additional planning before the box can be recessed cleanly. This housing is compatible specifically with the Hikvision Gen2 modular platform; it will not suit Gen1 door stations or third-party intercom systems. If the installation requires more than 3 modules, a different housing size is needed - the DS-KD-ACF3 is not expandable. Available through Security Australia alongside the full range of compatible Gen2 intercom modules and door stations.

Before You Buy

Quick Fit Check

• Good match if: You are installing a Hikvision Gen2 modular door station with exactly 3 modules and need a flush-recessed finish - the DS-KD-ACF3 is the correct housing component for this configuration.
• Good match if: The entry point is exposed to outdoor conditions or public contact - the aviation aluminium cover and -40°C to +60°C rating make this housing suitable for external wall installations in Australian climates.
• You may need a different model if: Your module count is anything other than 3 - Hikvision's Gen2 flush mount housing range includes other sizes, and selecting the wrong module count means the cover plate will not fit the installed modules correctly.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a flush-recessed finish for exactly 3 Gen2 modules at any entry point where an exposed surface-mount housing is not acceptable.
• You may need a different model if: Your door station configuration requires more or fewer than 3 modules - Hikvision produces flush mount housings in other module counts, and using the wrong size will prevent the cover from fitting the installed modules correctly.
• Pairs well with: Hikvision Gen2 modular door station main unit, Gen2 camera modules, call button modules, card reader modules, and a compatible Gen2 video intercom indoor station or NVR-based IP intercom system.

Common Questions

1. Will the DS-KD-ACF3 work with the DS-KD8003-IME1 Gen2 door station?

   Yes. The DS-KD-ACF3 is designed specifically for the Hikvision Gen2 modular video intercom platform, of which the DS-KD8003-IME1 is the main door station unit. The DS-KD8003-IME1 supports up to 8 additional modules, and this housing mounts 3 of those modules in a flush-recessed configuration.

2. Does this housing work for surface mounting, or is it flush-only?

   This housing is flush-mount only. The DS-KD-ACF3 gang box recesses into the wall cavity with the cover sitting 4 mm proud of the wall surface. If a surface-mounted installation is required - where the full housing sits on top of the wall - a surface-mount housing variant is the correct product to specify instead.

3. How deep does the wall cavity need to be for this housing?

   The gang box is 56 mm deep. The wall cavity at the installation point must accommodate at least 56 mm of clear depth behind the face of the wall. For brick, rendered masonry, or tiled surfaces, this typically requires a chased recess. Confirm cavity depth and any obstruction from conduit or framing before cutting.

4. What is the DS-KD-ACF3 cover made from, and does it matter?

   The cover is aviation aluminium. At a public-facing entry point, the cover material is relevant - aluminium is significantly harder than standard plastic faceplates and resists surface damage from everyday contact, keys, and opportunistic tampering. The gang box itself is plastic, which is standard for the recessed cavity component that is not exposed after installation.

5. Will this housing suit an outdoor installation in Australian conditions?

   Yes, based on its temperature rating. The DS-KD-ACF3 is rated from -40°C to +60°C, which covers Australian outdoor extremes including north-facing walls in summer heat. Working humidity is rated to 95%. Note that the weather resistance of the overall installation also depends on the modules fitted - confirm the IP rating of the specific Gen2 modules being used for fully exposed outdoor positions. The team at Security Australia can assist with module selection for outdoor door station builds.

6. Can I use this housing with the older Gen1 Hikvision intercom modules?

   No. The DS-KD-ACF3 is designed for the Gen2 modular platform. Gen1 Hikvision door station modules use a different physical format and will not fit this housing. If an existing installation uses Gen1 hardware, the housing must also be Gen1-compatible.

Cabling Considerations

• Cable Type: Cat5e or Cat6 for IP network connection to the Gen2 door station main unit. Individual module interconnects use the internal connectors within the door station platform.
• Cable Entry: Route network cabling through the gang box cavity before securing the box in the wall recess. Plan conduit entry points during the rough-in stage - the gang box must be fully set before modules and the cover plate are fitted.
• PoE Notes: Power to the Gen2 door station is delivered via PoE through the network cable to the DS-KD8003-IME1 main unit. Confirm PoE budget at the switch for the number of door stations on the installation.
• Wiring Tips: Leave sufficient cable slack inside the gang box cavity to allow module connection and any future servicing without pulling the cable tight against the back of the box. A minimum of 200 mm of free cable inside the cavity is a practical allowance.

Product Video Samples

Downloads & Resources

• User Manual - Video Intercom Module Door Station
• DS-KD-ACF3 Datasheet
