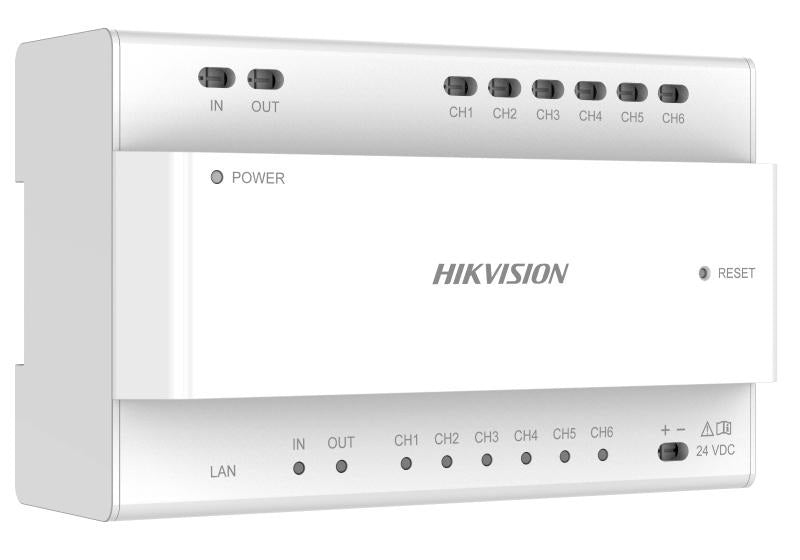

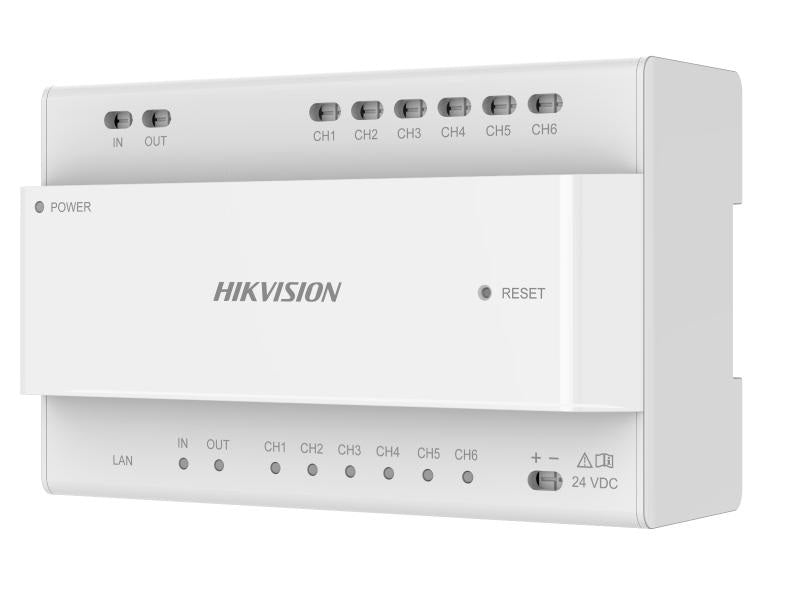

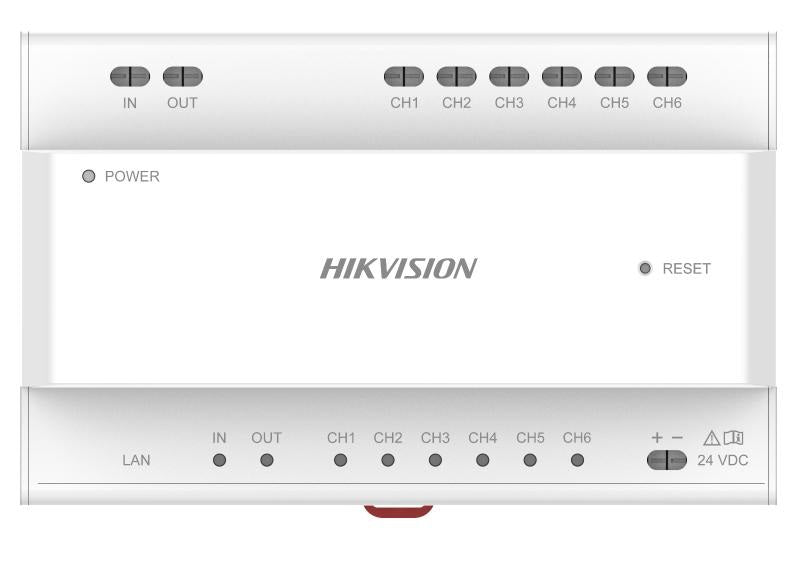

Hikvision DS-KAD706Y-SP 2-Wire IP Distributor with 6-Port Cascade Interfaces, 1 RJ45 Port, 8 Interface Indicators & DIN Rail Mounting

Model: DS-KAD706Y-SP

Who This Is For

For installers specifying Hikvision 2-wire video intercom systems in apartment buildings or multi-dwelling villa complexes who need a reliable signal distribution point between the main entrance panel and individual indoor stations. The DS-KAD706Y-SP acts as the backbone of a 2-wire IP intercom network, accepting a single 2-wire input and distributing it across 6 cascade interface ports to reach multiple floors or zones. The onboard RJ45 port allows network integration, while 8 interface indicators give technicians a clear visual reference for port status during commissioning and fault-finding. DIN rail mounting keeps the unit seated neatly inside a standard electrical enclosure, making it a practical choice for comms rooms, meter board spaces, and riser cabinets in residential and mixed-use developments.

What This Device Actually Does

Who Buys This Model

• Apartment Complex Integrators: Installers wiring multi-floor residential buildings who need a clean distribution point to branch 2-wire intercom signal from the entry panel to individual apartment indoor monitors across each level.
• Villa and Townhouse Developers: Builders or security contractors fitting out villa subdivisions or townhouse clusters where a single 2-wire intercom backbone needs to split into multiple dwelling connections from a central enclosure.
• Electrical Contractors on Hikvision Systems: Electricians working on Hikvision 2-wire intercom projects who need a DIN-rail-mounted distributor that fits neatly into the switchboard or comms cabinet already specified for the build.
• Security System Maintenance Teams: Service technicians who rely on the 8 interface indicators to quickly identify which port or zone has dropped during a fault-call, reducing time spent tracing cable runs through risers.

Honest Assessment

The DS-KAD706Y-SP does its job well as a purpose-built distribution component for Hikvision 2-wire intercom systems. The 6 cascade interfaces give meaningful scalability within a single building, DIN rail mounting suits the cabinet environments where this unit will actually be installed, and the 8 interface indicators are a practical detail that saves real time during commissioning and fault-finding. The RJ45 port keeps the network integration clean without requiring an additional bridging device at the distribution layer. What this unit will not do is operate as a standalone product - it is one component within a Hikvision 2-wire intercom ecosystem and must be paired with compatible door stations, indoor monitors, and any required floor distributors or master stations. It is also not cross-compatible with standard PoE camera networks or traditional 4-wire intercom systems. Buyers specifying a mixed or brand-agnostic intercom system should confirm Hikvision 2-wire compatibility across all connected devices before ordering. The DS-KAD706Y-SP is stocked by Security Australia as part of the broader Hikvision intercom range.

Before You Buy

Quick Fit Check

• Good match if: You are installing a Hikvision 2-wire video intercom system in an apartment or multi-dwelling building and need a DIN-rail-mounted distributor to split the intercom signal across multiple floors or zones from a central cabinet.
• Good match if: Your project requires visual fault indication at the distribution layer - the 8 interface indicators make port-level fault isolation faster during commissioning and service calls without additional diagnostic equipment.
• You may need a different model if: Your intercom system uses traditional 4-wire or CAT-only architecture, or if you are working with a non-Hikvision intercom platform - a compatible distributor from your chosen intercom brand's ecosystem will be the appropriate fit.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your project runs Hikvision 2-wire intercom and you need a DIN-rail-mounted distributor with 6 cascade ports and onboard status indicators for a clean, serviceable installation inside a standard cabinet.
• You may need a different model if: Your building requires more than 6 downstream branches from a single distribution point - a higher-port-count distributor or a cascaded multi-unit configuration from the Hikvision 2-wire range will suit a larger-scale layout better.
• Pairs well with: Hikvision 2-wire video door stations, Hikvision 2-wire indoor monitors, and compatible Hikvision 2-wire master stations or management software platforms.

Common Questions

1. Will this distributor work with any brand of intercom, or only Hikvision?

   Hikvision 2-wire systems only. The DS-KAD706Y-SP is designed specifically for Hikvision's 2-wire video intercom architecture and is not cross-compatible with 4-wire intercom systems or intercoms from other manufacturers. All connected door stations and indoor monitors must be from the compatible Hikvision 2-wire product family.

2. Does this unit need its own power supply, or does it draw power from the intercom line?

   The power source for the DS-KAD706Y-SP is not specified in the confirmed product data available through Security Australia. Confirm power requirements - whether the unit is bus-powered from the 2-wire line or requires a separate power input - directly with the Hikvision 2-wire system documentation or your supplier before installation.

3. How many indoor monitors can one DS-KAD706Y-SP support?

   The unit provides 6 cascade interface ports. The exact number of indoor monitors supported per port depends on the downstream wiring topology and whether additional floor-level distributors are used in cascade. For multi-floor or high-density buildings, cascading additional distributor units from each port extends coverage further. Refer to the Hikvision 2-wire system design guide for maximum device counts per topology.

4. What does the RJ45 port on the DS-KAD706Y-SP actually connect to?

   The RJ45 port connects the distributor to the building's IP network via a standard network switch. This allows the 2-wire intercom system to communicate with IP-side management platforms, door stations operating in IP mode, or network video management systems, depending on the overall Hikvision intercom system configuration in use.

5. Does the DIN rail mounting fit a standard 35mm DIN rail?

   Yes, DIN rail mounting on Hikvision intercom components uses standard 35mm (TS35) DIN rail, which is the industry-standard profile used in Australian switchboards and comms cabinets. Confirm cabinet depth is sufficient to accommodate the DS-KAD706Y-SP alongside other DIN-rail equipment before installation.

6. What do the 8 interface indicators show, and are they useful during a fault call?

   Yes, the indicators are practically useful on a fault call. The 8 interface indicators display the status of the distributor's ports and connections, giving technicians a visual reference for which ports are active, which have lost signal, and where to begin fault tracing - without needing additional diagnostic tools or pulling cable through risers to identify a dead run.

Cabling Considerations

• Cable Type: 2-wire intercom cable as specified by Hikvision for the 2-wire video intercom system; confirm cable specification (gauge and shielding requirements) in the Hikvision 2-wire system design documentation for your specific installation.
• Network Connection: Standard Cat5e or Cat6 patch cable from the RJ45 port to the nearest network switch for IP network integration.
• Max Cable Run: Maximum 2-wire run lengths are determined by the Hikvision 2-wire system architecture - consult the system's installation guide for maximum distances between door station, distributor, and indoor monitor based on cable gauge used.
• Wiring Tips: Mount the DS-KAD706Y-SP on 35mm DIN rail inside the riser cabinet or switchboard before terminating cables. Label each cascade port clearly at installation time to map ports to specific apartments or floors - the 8 interface indicators become significantly more useful when port labelling matches the building floor plan during a service call.

Downloads & Resources

No downloads available for this product.
