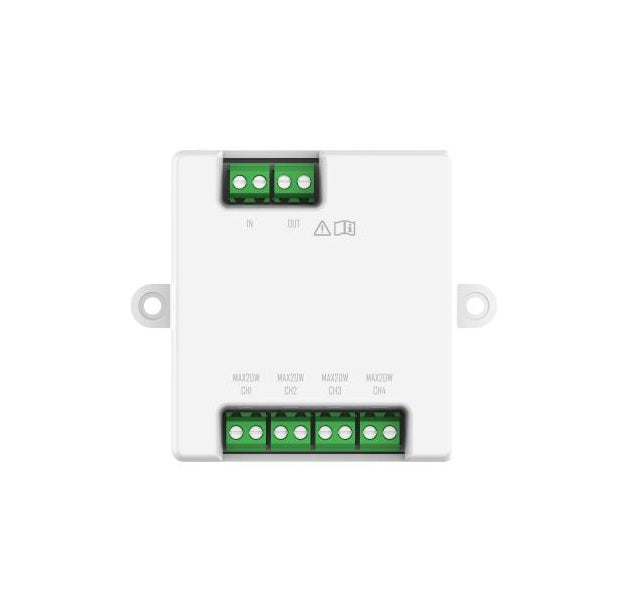

Hikvision DS-KAD7061EY 2-Wire HD Distributor with 4 Indoor Station Channels, 2 Cascade Interfaces, 6 Status Indicators & No Power Supply Required

Model: DS-KAD7061EY

Who This Is For

Property managers specifying 2-wire intercom infrastructure for residential apartments, multi-dwelling units, or villa complexes will recognise the DS-KAD7061EY as the distribution layer that makes scalable 2-wire HD intercom systems practical. When a single 2-wire bus needs to branch out to multiple indoor stations across floors or wings, this distributor handles that split cleanly - supporting up to 4 indoor station channels per unit and 2 cascade interfaces for linking additional distributors downstream. Because it draws power directly from the 2-wire bus itself, there is no need to source a local power supply at the distribution point, which simplifies ceiling-void and riser installations considerably. The 6 onboard status indicators let installers verify link state per channel during commissioning without guesswork. It suits integrators building out Hikvision 2-wire HD intercom systems in low-rise apartments, townhouse developments, or larger residential sites where a tiered distribution topology is required.

What This Intercom Actually Does

Who Buys This Model

• Intercom Integrators on Apartment Projects: Installers building out Hikvision 2-wire HD intercom systems in low-rise apartments use the DS-KAD7061EY to branch the riser cable to individual unit indoor stations without needing separate home-runs from the controller.
• Builders and Developers - Townhouse and Villa Complexes: Multi-dwelling villa and townhouse developments where each dwelling needs its own indoor station benefit from the cascade interface, allowing distributors to be chained to cover larger sites in a structured topology.
• Electrical Contractors - Riser Installations: Contractors who need to terminate intercom wiring in a comms cabinet or riser cupboard value bus-powered operation because it removes the need to provision a mains outlet or power supply at each intermediate distribution point.
• Facility Managers - Staged Rollouts: Sites adding indoor station coverage incrementally can use the cascade interfaces to extend an existing distributor network without rewiring the upstream bus, keeping the expansion clean and structured.

Honest Assessment

The DS-KAD7061EY does its job well within the Hikvision 2-wire HD intercom ecosystem. Bus-powered operation is a genuine installation advantage - removing the local power supply requirement at distribution points is a real materials and labour saving on multi-storey or multi-wing projects. The 4-channel output combined with 2 cascade interfaces makes it a practical building block for tiered topologies, and the 6 status indicators are a useful commissioning aid that experienced installers will appreciate when troubleshooting signal paths on larger sites. This unit is stocked by Security Australia as part of the Hikvision intercom component range. What it will not do is operate outside the Hikvision 2-wire HD intercom platform - it is not a universal distributor and will not integrate with other manufacturers' systems or with Hikvision's older 4-wire intercom range. It is also purely a distribution component, not an access controller, so door release, card reader, or lift control functions require separate Hikvision intercom controllers upstream.

Before You Buy

Quick Fit Check

• Good match if: You are installing a Hikvision 2-wire HD intercom system and need to branch a single riser cable to up to 4 indoor stations on a floor or wing - the DS-KAD7061EY handles that split without a local power supply.
• Good match if: Your project is a multi-storey or staged development where the cascade interfaces allow you to add distributor units downstream as additional floors or dwellings are commissioned, without reworking the upstream wiring.
• You may need a different model if: Your intercom system is not part of the Hikvision 2-wire HD platform - this distributor is designed specifically for that ecosystem. For other Hikvision intercom product types or a different manufacturer's system, check the compatible distributor or hub models in the broader intercom accessories range at Security Australia.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You are building a Hikvision 2-wire HD intercom system and need a bus-powered distribution point that branches to up to 4 indoor stations per unit with cascade expansion for larger sites.
• You may need a different model if: Your site requires more than 4 indoor station outputs from a single distribution point - a higher-channel Hikvision 2-wire distributor with greater port capacity would better suit large-floor-plate or high-density installations.
• Pairs well with: Hikvision 2-wire HD door stations, Hikvision 2-wire HD indoor stations, and a compatible Hikvision 2-wire intercom controller or power supply as the upstream device on the bus.

Common Questions

1. Does the DS-KAD7061EY need a separate power supply at the installation point?

   No. The DS-KAD7061EY is bus-powered, drawing its operating power directly from the 2-wire HD intercom bus. No local power adapter, 12V supply, or mains outlet is required at the distributor location. This is a practical advantage in riser installations or ceiling voids where provisioning a power outlet would add cost and require an electrician's involvement.

2. How many indoor stations can one DS-KAD7061EY support?

   4 indoor stations per unit. Each of the 4 indoor station channels on the distributor connects to a single indoor station. For sites with more than 4 indoor stations in a zone, the 2 cascade interfaces allow additional distributor units to be linked downstream, extending the system's reach without reconfiguring the upstream bus wiring.

3. Will this work with any intercom brand or is it Hikvision-only?

   Hikvision-only. The DS-KAD7061EY is designed specifically for the Hikvision 2-wire HD intercom platform. It is not a universal 2-wire distributor and will not function correctly with other manufacturers' intercom systems or with Hikvision's older 4-wire product range. Confirm your indoor stations, door stations, and controller are all from the Hikvision 2-wire HD ecosystem before specifying this unit.

4. What do the 6 status indicators show?

   The 6 onboard LEDs provide per-channel link status visibility. During commissioning, installers can confirm which channels are active at the distributor itself rather than tracing faults back to the controller or testing cable runs from another location. This is particularly useful on multi-floor sites where the distributor is installed in a riser or ceiling void that may be closed after handover.

5. Can I chain multiple DS-KAD7061EY units together for a larger site?

   Yes. The 2 cascade interfaces are specifically provided for linking distributor units in series to serve larger indoor station counts across a site. Each unit in the cascade adds 4 more indoor station channels. The maximum cascade depth depends on the current budget of the upstream Hikvision controller or power supply - refer to the Hikvision 2-wire system design documentation for your specific controller model to confirm the supported cascade limit before designing the topology.

6. Does this unit handle door release or access control functions?

   No. The DS-KAD7061EY is a signal distribution component only - it carries 2-wire HD video, audio, and control data between the bus and connected indoor stations. Door release, access control, and lift integration functions are managed by the Hikvision intercom controller upstream of the distributor. This unit does not add, process, or relay any access control outputs of its own.

7. Is the DS-KAD7061EY suitable for both apartment blocks and villa or house intercom installations?

   Yes. The DS-KAD7061EY is listed as compatible with both apartment-style multi-dwelling intercom configurations and villa or house intercom setups within the Hikvision 2-wire HD platform. The bus-powered design and compact form factor make it adaptable to both riser-based apartment topologies and distributed villa layouts where intermediate distribution points need to be placed discreetly. The full range of compatible Hikvision intercom components is available through Security Australia.

Cabling Considerations

• Cable Type: 2-core unshielded or shielded twisted pair as specified by Hikvision for the 2-wire HD intercom platform. Refer to Hikvision's 2-wire system installation guide for recommended cable specifications for your site's total bus length.
• Upstream Bus Connection: Connect the incoming 2-wire bus from the controller or upstream distributor to the bus input terminals. Do not connect the bus input to an indoor station output terminal - incorrect wiring can affect the entire branch.
• Power Notes: No separate power cable required. The distributor is powered entirely from the 2-wire bus. Ensure the upstream controller or power supply is rated to support the cumulative current draw of all distributors and indoor stations on the bus.
• Cascade Wiring: When linking a second distributor via the cascade interface, treat the cascade output as a continuation of the bus - not as a standard indoor station channel. Label cascade connections clearly during installation to avoid confusion during future fault-finding or expansion work.
• Cable Run Length: Maximum cable run lengths between the controller, distributors, and indoor stations are governed by the Hikvision 2-wire system specification. Confirm maximum supported distances for your controller model before routing cable, particularly on larger sites where cascade chains extend the total bus length.
