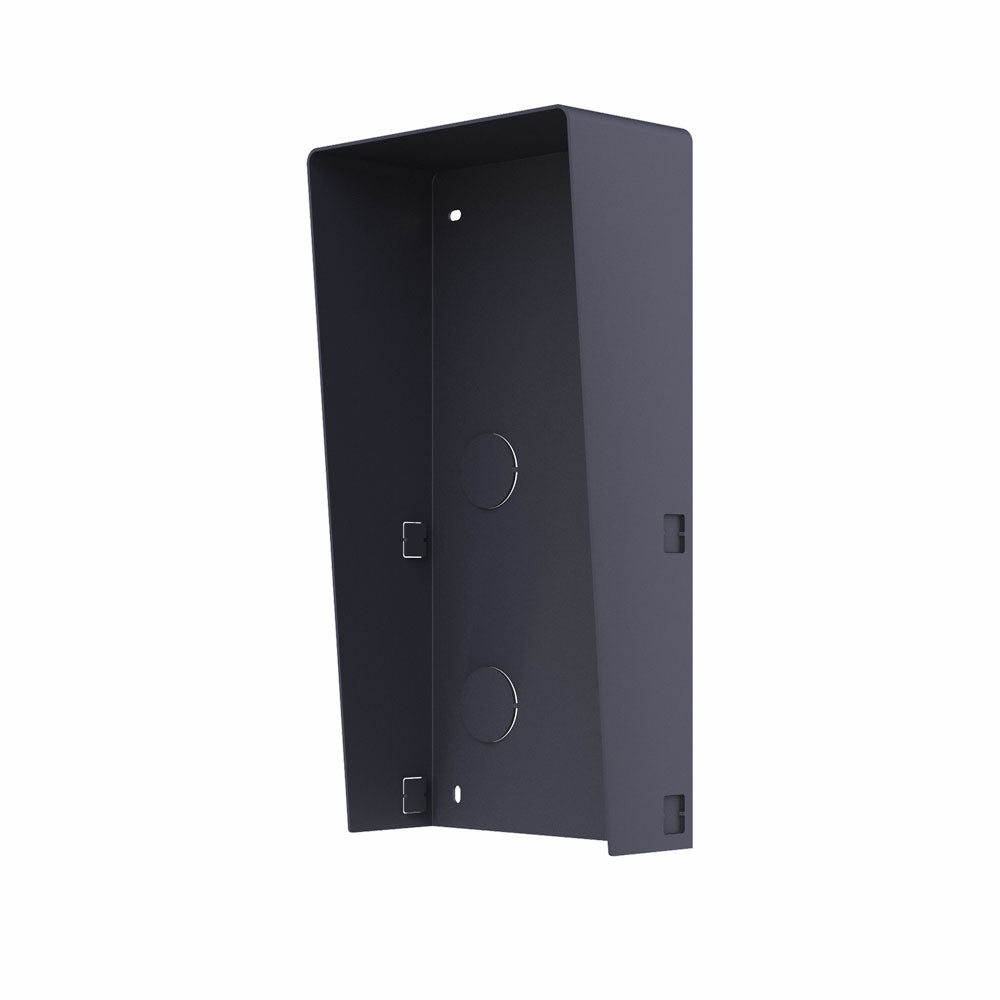

Hikvision DS-KABD8003-RS2 2nd Gen Door Shroud to suit DS-KD-ACW2
Rain Shield of Module Door Station
The Hikvision DS-KABD8003-RS2 is a rain shield designed for use with Hikvision’s modular door stations. Its primary function is to provide protection for door modules, specifically for two-module surface-mounted setups like the DS-KD8003-IME1 or DS-KD8003-IME2 models. Constructed from durable SECC (galvanized steel), this rain shield is designed to withstand various weather conditions, operating in temperatures ranging from -40°C to 60°C. It offers robust defense against rain, ensuring reliable outdoor performance of intercom systems, and is particularly suited for environments with harsh weather conditions
Key Features
- Convenient design available for the 2 module surface mounting of the modular door station (DS-KD8003-IME1 or DS-KD8003-IME2)
- Material: SECC
Code/SKU: DS-KABD8003-RS2
Quick Specs:
- Working Temperature: -40° C to +60° C (-40° F to 140° F)
- Working Humidity: 10% to 95%
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The DS-KABD8003-RS2 is a rain shield designed for Hikvision's modular door stations. It is specifically made for 2-module surface mount setups like the DS-KD8003-IME1 and DS-KD8003-IME2, providing protection against environmental elements. Constructed from SECC (galvanized steel), it offers durability while maintaining a sleek design. The shield is suitable for various weather conditions, with a working temperature range from -40°C to 60°C. Its primary function is to safeguard the door station modules from rain and moisture, enhancing longevity and performance.
Features
- Designed for surface mounting of 2 modules.
- Compatible with modular door stations like DS-KD8003-IME1 or DS-KD8003-IME2.
- Made of SECC (Stainless Electro-galvanized Cold Rolled Steel).
- Offers protection against rain and external elements.
- Sleek, convenient design for easy installation.
- Durable, corrosion-resistant material.
- Operates in temperatures from -40°C to 60°C.
- Works in humidity levels from 10% to 95%.
- Compact dimensions: 224 x 116.4 x 58 mm.
- Lightweight, approximately 500 grams
Technical Specifications
| General | |
|---|---|
| Working temperature | -40° C to +60° C (-40° F to 140° F) |
| Working humidity | 10% to 95% |
| Weight | 500g |
| Dimension (W × H × D) | 224x 116.4×58 mm (8.82" x 4.58" x 2.28") |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
Rain Shield of Module Door Station
The Hikvision DS-KABD8003-RS2 is a rain shield designed for use with Hikvision’s modular door stations. Its primary function is to provide protection for door modules, specifically for two-module surface-mounted setups like the DS-KD8003-IME1 or DS-KD8003-IME2 models. Constructed from durable SECC (galvanized steel), this rain shield is designed to withstand various weather conditions, operating in temperatures ranging from -40°C to 60°C. It offers robust defense against rain, ensuring reliable outdoor performance of intercom systems, and is particularly suited for environments with harsh weather conditions
Key Features
- Convenient design available for the 2 module surface mounting of the modular door station (DS-KD8003-IME1 or DS-KD8003-IME2)
- Material: SECC
Code/SKU: DS-KABD8003-RS2
Quick Specs:
- Working Temperature: -40° C to +60° C (-40° F to 140° F)
- Working Humidity: 10% to 95%
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| General | |
|---|---|
| Working temperature | -40° C to +60° C (-40° F to 140° F) |
| Working humidity | 10% to 95% |
| Weight | 500g |
| Dimension (W × H × D) | 224x 116.4×58 mm (8.82" x 4.58" x 2.28") |
| Installation | |
| 1. Paste the installation Sticker 1 onto the wall. Make sure the sticker is placed leveled via measuring with the gradienter. Chisel 4 holes with drill align to the screw holes on the sticker. The suggested size of hole is 6 (diameter) × 25 (depth) mm. 2. Remove the sticker and insert the expansion sleeves into the screw holes. Fix the mounting frame and protective shield onto the wall with 4 expansion bolts. Thread the module-connecting line across the thread hole of the frame. Pass the main unit connecting lines across the thread hole to the upper grid. Connect the cables and module-connecting line to the corresponding interfaces of the main unit, then place the main unit into the upper grid. Connect the other end of the module-connecting line to the input interface of the sub module. Organize the line with cable tie in the package. 3. Insert the modules into the frame after wiring. Main unit must be placed in the top grid. 4. Use the hexagon wrench in the package to fix the cover onto the frame. | |
| Material | |
| SECC | |
