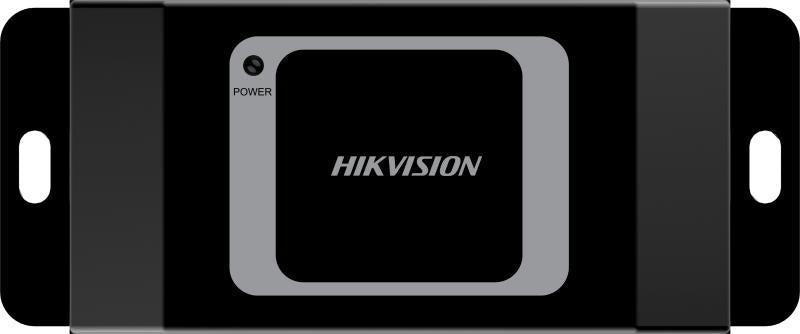

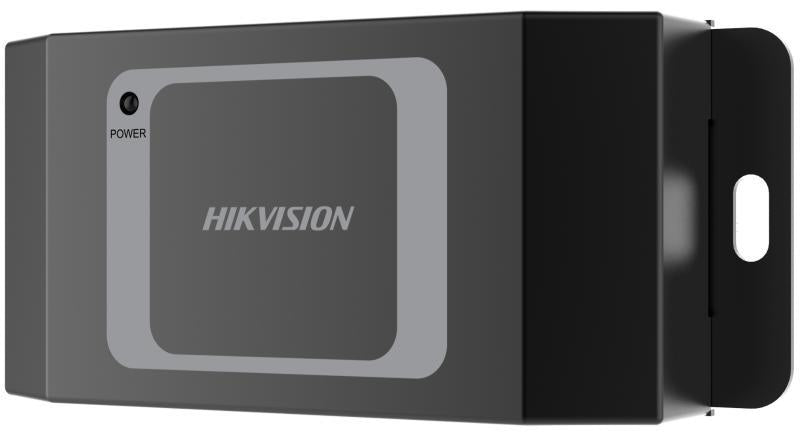

Hikvision DS-K2M061 Secure Door Control Module

Model: DS-K2M061

Who This Is For

When encrypted door control at the hardware level is the priority, the Hikvision DS-K2M061 Secure Door Control Module is the component integrators reach for. Designed for single-door access control installations that require a dedicated, tamper-resistant controller, this module sits between your access readers and the broader Hikvision access control system. It suits security integrators commissioning corporate offices, server rooms, data centres, and any controlled-entry environment where the integrity of the door controller itself - not just the credential - must be verified. The DS-K2M061 supports RS-485 reader communication and Wiegand input, making it compatible with a wide range of card and PIN readers already common in Australian commercial installs. If you are building out a layered Hikvision access control architecture and need a dedicated secure module rather than a multi-door panel, this is the purpose-built component for that role.

What This Controller Actually Does

Who Buys This Model

• Security Integrators: Commissioning layered Hikvision access control systems across corporate tenancies where each door requires an independently secure, dedicated controller rather than sharing capacity on a multi-door panel.
• IT and Data Centre Managers: Specifying controlled-entry hardware for server rooms and comms rooms where hardware-level secure control is a compliance or audit requirement.
• Commercial Fit-Out Contractors: Integrating Wiegand-compatible readers already on-site into a new Hikvision access control platform without replacing the reader hardware at each door.
• Facilities Managers: Adding individual door control to a growing site incrementally, where a modular single-door approach makes more sense than over-specifying a large panel for a small number of access points.

Honest Assessment

The DS-K2M061 does its core job well: it provides a dedicated, hardware-level secure control point for a single door within the Hikvision access control ecosystem. The Wiegand input and RS-485 communication make it straightforward to integrate into sites that already have compatible readers installed, and the modular single-door design means deployments can grow door by door without over-investing in panel capacity. For integrators already working within Hikvision's platform, this module adds a secure, purpose-built layer without introducing a new management system. Where it is not the right fit is on multi-door sites where a consolidated door control panel would reduce installation complexity and cabling overhead - in those cases, a Hikvision multi-door access control panel will serve better. It is also not a standalone solution; it requires integration with Hikvision's broader access control infrastructure to operate. The DS-K2M061 is available through Security Australia.

Before You Buy

Quick Fit Check

• Good match if: You are deploying Hikvision access control and need a dedicated secure module for individual doors - particularly server rooms or controlled entry points where hardware-level credential verification matters.
• Good match if: Your site already has Wiegand-output readers installed and you want to integrate them into a Hikvision platform without replacing the reader hardware at each door.
• You may need a different model if: You are controlling 4 or more doors from a single location - a Hikvision multi-door access control panel will consolidate wiring, management, and power distribution more efficiently than individual single-door modules.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a dedicated secure control module for a small number of individual doors within a Hikvision access control system, particularly where hardware-level security at the door controller is a requirement.
• You may need a different model if: You are controlling 4 or more doors in a single zone - a Hikvision multi-door access control panel will consolidate management, reduce cabling complexity, and provide better value at higher door counts.
• Pairs well with: Hikvision Wiegand-compatible card readers, Hikvision access control software platform, and a dedicated access control power supply with battery backup for lock and module power.

Common Questions

1. Will the DS-K2M061 work with my existing Wiegand card readers?

   Yes, provided your readers output a standard Wiegand format. The DS-K2M061 supports Wiegand input, which is the most common output protocol used by access control card and PIN readers in Australian commercial installations. Confirm the specific Wiegand bit format your current readers use - common formats include 26-bit, 34-bit, and 37-bit - and verify compatibility with the module's supported formats before installation.

2. Does this module work as a standalone access controller without other Hikvision equipment?

   No. The DS-K2M061 is a module designed to operate within Hikvision's access control architecture. It requires integration with a compatible Hikvision access control platform or upstream panel to manage credentials, access rules, and event logging. It is not a self-contained standalone controller and should not be purchased as the only component in an access control installation.

3. How many doors can the DS-K2M061 control?

   1 door. The DS-K2M061 is a single-door module. If you need to control 4 or more doors from a centralised controller, a Hikvision multi-door access control panel will be a more practical and cost-effective solution. The single-door design of this module is best suited to sites where individual doors require dedicated, isolated control.

4. What communication protocol does the DS-K2M061 use to connect to readers?

   RS-485. This is a two-wire, differential signalling protocol that supports longer cable runs and is resistant to electrical noise - both practical advantages in commercial building environments. RS-485 allows the module to communicate reliably with readers located some distance away, and multiple RS-485 devices can share a bus, though bus length and device count should be kept within specification.

5. Is the DS-K2M061 suitable for a server room or data centre door?

   Yes, it is well suited to that application. Server rooms and data centre entries are a primary use case - environments where a dedicated, hardware-level secure controller at a single critical door is preferred over sharing panel capacity with lower-security doors. The module's position within the Hikvision access control ecosystem also means events at that door are logged and manageable through the broader platform. Contact Security Australia if you need guidance on pairing this module with compatible readers or power supplies for that environment.

6. What power supply does the DS-K2M061 require?

   Confirm the exact power input specification from the product datasheet before ordering. Access control modules in this category typically require a 12V DC supply, but the module's power requirement must be calculated separately from any connected lock hardware - electric strikes and magnetic locks draw significant current and should be powered from a dedicated access control power supply with battery backup, not directly from the module's supply rail.

Cabling Considerations

• Reader Cable: Use shielded twisted pair (STP) cable for Wiegand reader connections to reduce interference on signal lines, particularly in environments with high electrical noise such as plant rooms or near HVAC equipment.
• RS-485 Cable: Use twisted pair cable for RS-485 runs. Keep total bus length within RS-485 specification and terminate the bus correctly at each end to prevent signal reflections that can cause communication errors between the module and connected devices.
• Power Cabling: Run power cabling for the module and lock hardware separately. Use appropriately rated cable for the lock supply, and ensure the access control power supply is located within the recommended distance to minimise voltage drop across the lock power run.
• Wiring Tips: Label all cable runs at both ends during installation. RS-485 polarity (A/B lines) must be consistent across all devices on the bus - reversing polarity at any single device will disrupt communication for all devices sharing that bus segment.

Downloads & Resources

No downloads available for this product.
