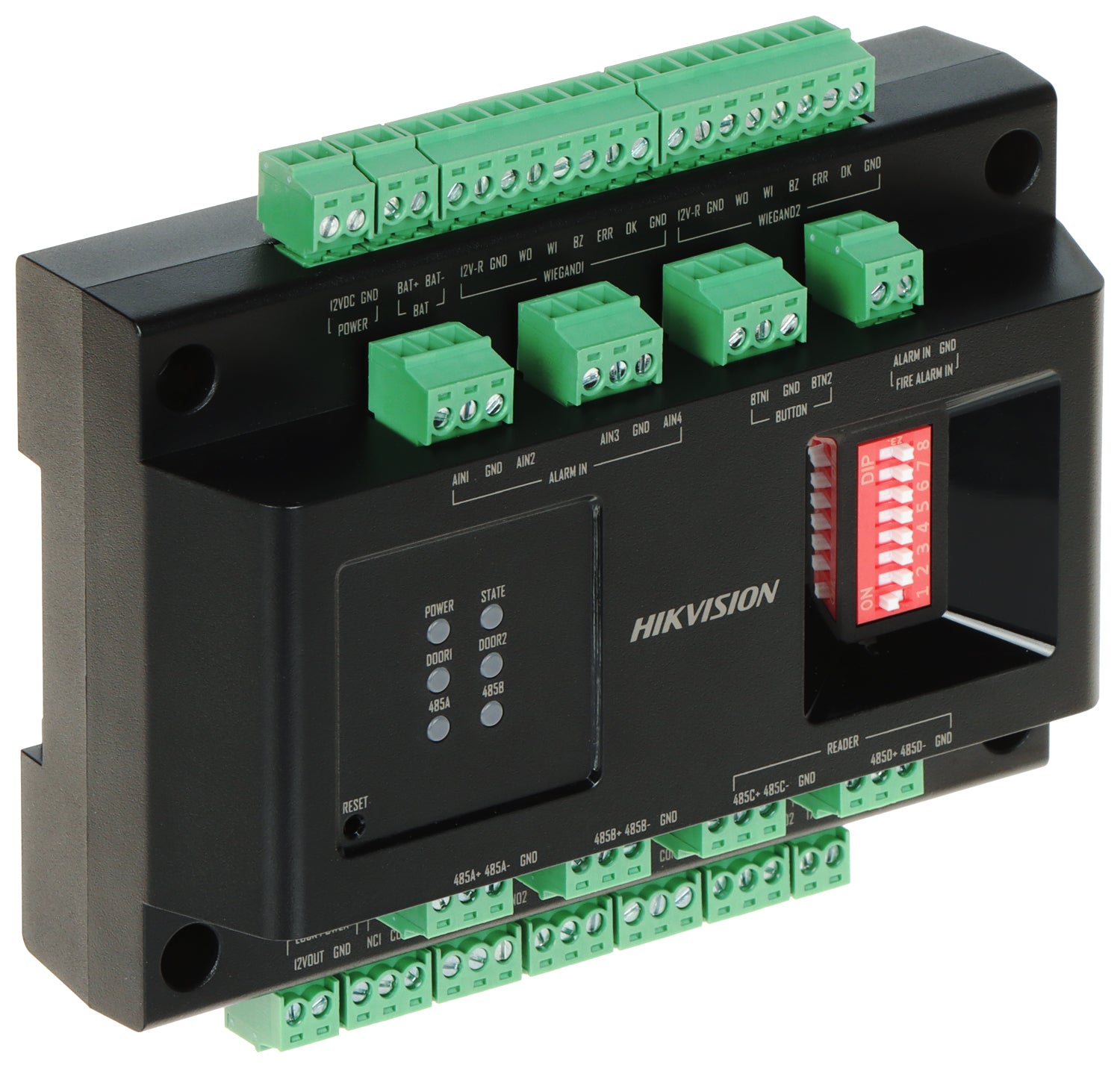

Hikvision DS-K2M002X Access Control - 2 Door Control Module

Model: DS-K2M002X

Who This Is For

For integrators and facility managers who need centralised control over 2 independent door points without deploying a full access controller per entry. The Hikvision DS-K2M002X is a 2-door control module designed to sit within a broader Hikvision access control deployment, handling door relay outputs, Wiegand reader inputs, and RS-485 communication in a compact, panel-mount form factor. It suits commercial fit-outs where a small number of controlled doors need to be brought under a single management platform - think internal office suites, server room entries, staff-only corridors, or secondary building entrances that extend an existing Hikvision system. Installers already working within the Hikvision ecosystem will find the DS-K2M002X a straightforward expansion point rather than a standalone solution.

What This Module Actually Does

Who Buys This Model

• Commercial Fit-Out Integrators: Installers adding controlled internal door points - server rooms, HR suites, stockrooms - to an existing Hikvision deployment without installing a full standalone controller at each location.
• Facility Managers Expanding Access Points: Sites that already run iVMS-4200 and need to bring 1 or 2 additional doors under central management during a refurbishment or building extension.
• Security Consultants Specifying Hikvision Systems: Consultants designing multi-door commercial access systems who need a cost-effective door module that integrates cleanly into a Hikvision head-end controller architecture.
• Electrical Contractors on Fitout Projects: Trades working on commercial office fitouts where the head contractor specifies Hikvision access and the DS-K2M002X is the designated sub-door module for secondary entry points.

Honest Assessment

The DS-K2M002X does its core job well: it cleanly extends a Hikvision access control system to cover 2 additional door points using RS-485 and Wiegand - technology that is proven, widely understood by Australian installers, and requires no specialist commissioning tools beyond the existing iVMS-4200 setup. The compact module form factor suits panel-mount installations where space is limited, and Wiegand compatibility means existing readers can typically be retained. What this module will not do is operate as a standalone access controller - it requires a Hikvision host controller to function, so it is not a fit-and-forget solution for a site with no existing Hikvision access infrastructure. It is also not suited to high-security doors requiring multi-factor or biometric credentials at the module level. Buyers specifying a first-time access system with no existing Hikvision head-end should look at a complete Hikvision access control kit, available through Security Australia, before selecting individual modules.

Before You Buy

Quick Fit Check

• Good match if: You already have a Hikvision access control host controller on site and need to extend coverage to 1 or 2 additional internal door points using existing Wiegand-compatible card readers.
• Good match if: Your project specifies RS-485 sub-module architecture for a multi-door commercial fitout and all doors will be managed centrally through iVMS-4200.
• You may need a different model if: There is no existing Hikvision access control infrastructure on site - a complete access control kit including a host controller and readers will be the more appropriate starting point for a new installation.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need to expand an existing Hikvision access control deployment to cover 2 additional doors using RS-485 sub-module architecture, and a full standalone controller at each location is not required.
• You may need a different model if: There is no existing Hikvision host controller on site - a complete access control panel or kit with its own standalone controller will better suit a new installation starting from scratch.
• Pairs well with: A compatible Hikvision access control host panel, Wiegand card readers or keypads, and electric strike or magnetic lock hardware appropriate to each door type.

Common Questions

1. Will the DS-K2M002X work as a standalone access controller without a Hikvision host panel?

   No. The DS-K2M002X is a sub-module that requires a compatible Hikvision access control host controller to operate. It communicates via RS-485 back to the head-end panel and cannot process credentials, store access rules, or manage door schedules independently. If no host controller exists on site, a complete Hikvision access control system is required first.

2. Does this module work with my existing Wiegand card readers?

   Yes. The DS-K2M002X accepts standard Wiegand reader inputs at each door position, so existing Wiegand-compatible card readers or keypads can typically be retained. This makes it a practical expansion option when site infrastructure already includes deployed readers and the goal is to bring additional doors under central control rather than replace hardware.

3. How many DS-K2M002X modules can I connect to a single host controller?

   This depends on the specific Hikvision host controller model you are using. Each controller specifies a maximum number of RS-485 sub-modules and total door count it can support. Confirm your host panel's capacity specification before adding modules - exceeding the supported sub-module count will prevent reliable communication. The technical documentation for your host controller is the correct reference point for this.

4. What types of door locks does the DS-K2M002X support?

   The module provides relay outputs, making it compatible with electric strikes, magnetic locks, and electric bolts. The relay switches the lock circuit but does not supply lock power directly, so each lock type will require an appropriately rated external power supply. Magnetic locks in particular need a separate power source sized to the lock's current draw, which should be confirmed during the design stage.

5. Is the DS-K2M002X managed through iVMS-4200?

   Yes. When connected to a compatible Hikvision host controller, the DS-K2M002X is managed through the same Hikvision platform - including iVMS-4200 - used for the rest of the access control system. Door schedules, access levels, cardholder management, and event logs for the module's doors are all handled centrally, consistent with other doors on the same system. The DS-K2M002X is stocked by Security Australia as part of the Hikvision access control range.

6. Does the DS-K2M002X include tamper detection?

   Yes. The module includes tamper detection that generates an alert through the connected management platform if the housing is opened or disturbed. This is particularly relevant for installations where the module is located in an accessible plant room, communications cupboard, or corridor ceiling void, as it provides an audit event without requiring additional hardware.

Cabling Considerations

• RS-485 Bus Cable: Use shielded twisted-pair cable (typically 0.5 mm2 or heavier for longer runs) for the RS-485 communication run back to the host controller. Keep the shield grounded at one end to reduce interference.
• Max RS-485 Run: RS-485 supports up to 1200 m in ideal conditions, but practical distances in building environments will vary depending on cable quality, number of devices on the bus, and interference sources. Keep runs as short as practicable and test communication at commissioning.
• Wiegand Reader Cables: Standard Wiegand cable (multi-core shielded) is appropriate for reader runs. Keep Wiegand cable runs within the reader manufacturer's specified distance to avoid signal degradation - typically no more than 150 m for standard Wiegand readers.
• Lock Power Wiring: Lock circuits require a dedicated power supply cable run from the external lock power supply to each door hardware position. Size the cable to the lock's current draw and confirm the relay contact rating of the DS-K2M002X is compatible with the lock's operating voltage and current before finalising the design.
