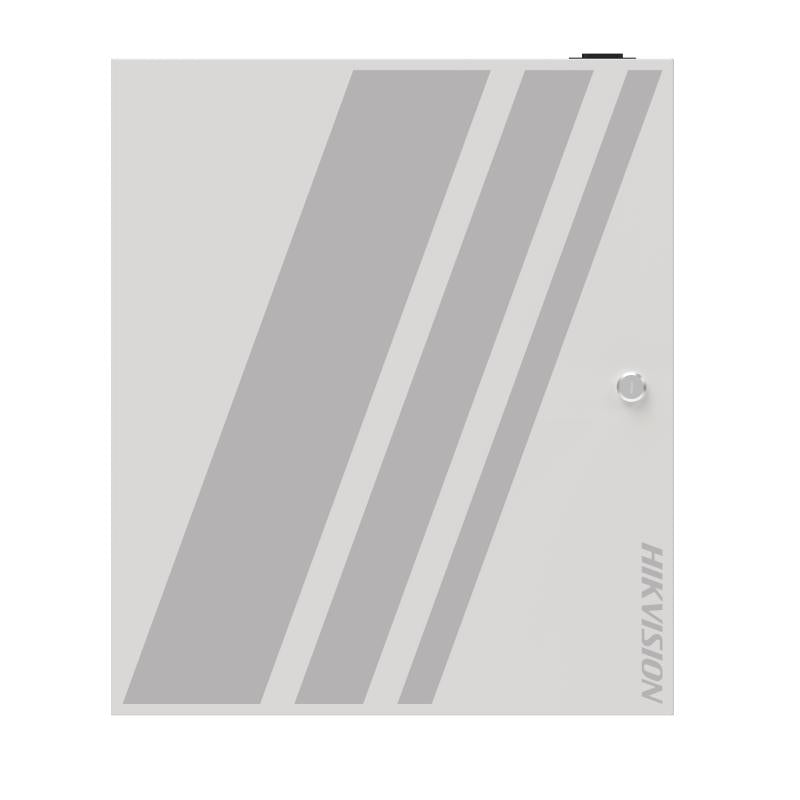

Hikvision DS-K2708X: Ultra Series 8-Door Access Controller for Enterprise-Grade Security

Model: DS-K2708X

Who This Is For

Property managers specifying access control across multi-door commercial environments need a controller that handles credential management, door interlocking, and event logging at scale without deploying multiple smaller units. The Hikvision DS-K2708X Ultra Series 8-Door Access Controller is built for exactly that - consolidating up to 8 door control points into a single panel, suited to office buildings, data centres, warehouses, and education facilities where centralised credential management and audit trails are non-negotiable. The DS-K2708X supports card and PIN-based access, anti-passback enforcement, and linkage with Hikvision video surveillance systems, making it a natural fit for sites already running Hikvision NVRs or IP cameras. It is aimed at security integrators and facilities teams who need a structured, scalable access platform rather than standalone door hardware pieced together across a building.

What This Controller Actually Does

Who Buys This Model

• Security integrators: Specifying a single controller for multi-door commercial fitouts where running separate dual-door panels to each access point would add significant labour and termination costs.
• Facilities managers at medium-to-large offices: Needing centralised credential management, scheduled access times, and audit trail reporting across multiple floor entry points and internal secure zones.
• Data centre and IT infrastructure operators: Requiring anti-passback enforcement and card-plus-PIN dual authentication on server room and communications room doors.
• Education and campus administrators: Managing staff and contractor access across buildings with multiple entry doors, where one controller panel per building simplifies both installation and ongoing administration.
• Existing Hikvision CCTV users: Looking to integrate access control into iVMS-4200 or HikCentral so access events link directly to camera footage without adding a third-party platform.

Honest Assessment

The DS-K2708X does the work of consolidation well. Managing 8 doors from one panel genuinely reduces installation complexity on medium-sized commercial projects, and the native integration with Hikvision's software platform means sites already running Hikvision cameras get a unified view of access and video events without custom middleware. Anti-passback and multi-authentication modes add practical depth for controlled environments beyond standard office use. What it will not do is function well as a standalone product - the DS-K2708X requires compatible Hikvision card readers, door hardware, and either iVMS-4200 or HikCentral for full configuration and reporting. It is not a plug-and-play solution for someone without an integrator or existing Hikvision infrastructure. It is also not suited to very large enterprise deployments requiring hundreds of doors, where a higher-tier platform controller would be more appropriate. The DS-K2708X is available through Security Australia alongside compatible Hikvision readers and door hardware.

Before You Buy

Quick Fit Check

• Good match if: You are specifying access control for a commercial site with 3 to 8 doors and want a single panel to manage all points, reducing the number of controllers, power supplies, and network connections compared to deploying multiple dual-door units.
• Good match if: The site is already running Hikvision IP cameras and the client wants access events and camera footage managed from the same platform without adding a separate access control software stack.
• You may need a different model if: The project involves more than 8 doors - a higher-channel Hikvision access controller or a networked multi-panel configuration would be more appropriate; check the broader access control range on securityaustralia.com.au for larger-site options.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need to manage 3 to 8 doors from a single controller panel on a commercial site, particularly where Hikvision cameras are already installed and a unified management platform is the goal.
• You may need a different model if: The project has more than 8 controlled doors - a higher-channel access controller or a multi-panel networked deployment will serve a larger site better; the full Hikvision access control range is available on securityaustralia.com.au.
• Pairs well with: Hikvision card readers (Wiegand or RS-485), electromagnetic or electric strike door locks, door position sensors, and Hikvision IP cameras connected to the same HikCentral or iVMS-4200 management platform.

Common Questions

1. Can the DS-K2708X control fewer than 8 doors if my site only has 4 or 5?

   Yes. The controller supports up to 8 doors but can be deployed with any number from 1 to 8. Unused door ports simply remain unwired. This makes it a practical choice for sites that are expanding - you can bring additional doors online later without replacing the controller hardware.

2. Does this controller work offline if the network goes down?

   Yes. The DS-K2708X stores cardholder credentials onboard, so the controller continues to make local access decisions during a network outage. Doors will grant or deny access based on the last synchronised credential database. Event logs are stored locally and uploaded to the management platform when connectivity is restored.

3. What reader types does the DS-K2708X support?

   The controller supports readers communicating via Wiegand protocol or RS-485. Most Hikvision access card readers are compatible. Before purchasing readers separately, confirm the communication protocol of your chosen reader model matches the port configuration on the DS-K2708X to avoid rewiring on site.

4. Will this controller integrate with non-Hikvision cameras or VMS platforms?

   Not natively. The DS-K2708X is designed to integrate with Hikvision iVMS-4200 and HikCentral. Linking access events to camera footage from third-party VMS platforms would require custom integration work outside the standard product configuration and is not a supported out-of-box function.

5. How does anti-passback work on this controller and which zones does it apply to?

   Anti-passback works by tracking whether a cardholder has exited a zone before allowing re-entry using the same credential. The DS-K2708X enforces this rule at the door level, flagging or blocking an access attempt if the system log shows the card did not record a valid exit. This is configured per door zone through the management software and is particularly effective for controlled rooms with both entry and exit readers installed.

6. Does the DS-K2708X require a separate power supply for the door locks?

   Yes. The controller itself requires a power supply, and door locks - whether electromagnetic locks or electric strikes - require a separate dedicated power supply sized for the total lock load across all 8 doors. The controller provides the switching signal to release each lock but does not supply lock power directly. Factor in a correctly rated access control power supply as part of your bill of materials.

7. Can I configure different access schedules for different staff groups using this controller?

   Yes. Access schedules and access groups are fully configurable through iVMS-4200 or HikCentral. You can create separate groups - for example, permanent staff, contractors, and cleaning crews - and assign each group different permitted doors and permitted access hours. Changes take effect across all 8 doors simultaneously after a database synchronisation to the controller.

Cabling Considerations

• Reader Cable: Use shielded 6-core or 8-core cable for Wiegand reader connections. Keep runs under 100 metres to maintain signal integrity on Wiegand lines; RS-485 readers support longer runs up to 1,200 metres with appropriate cabling.
• Network Connection: Standard Cat5e or Cat6 to the controller panel for TCP/IP communication to the management server or local network switch.
• Lock Power: Run a separate 2-core cable from the access control power supply to each door lock. Use cable rated for the lock's current draw; electromagnetic locks typically draw 500 mA to 600 mA at 12 V DC.
• Wiring Tips: Run all door loom cables (reader, door contact, REX button, lock) together in conduit to each door frame before controller installation to avoid disruptive cable routing later. Label each cable at both ends during rough-in - an 8-door panel with full wiring produces a significant number of terminations and correct labelling saves hours during commissioning.
