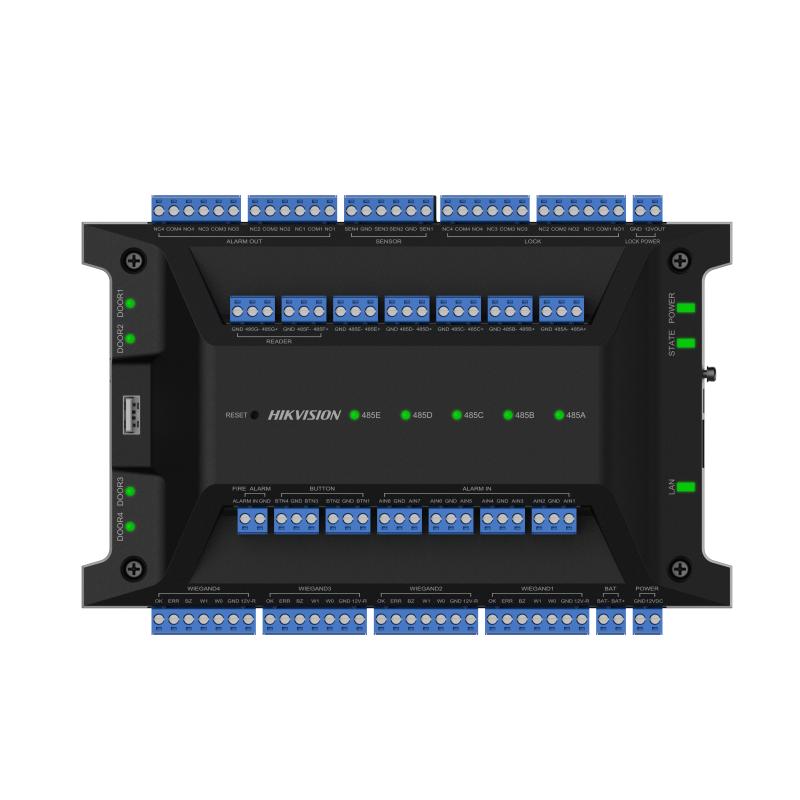

Hikvision DS-K2704X 4 door Access Controller

Model: DS-K2704X

Who This Is For

When managing entry points across multiple doors from a single controller is the priority, the Hikvision DS-K2704X is built for exactly that task. Security integrators and facility managers specifying access control for commercial buildings, office suites, warehouses, and multi-tenancy sites will find this controller handles up to 4 independent doors from one centralised unit. It suits TCP/IP networked installations where the controller needs to sit on an existing LAN and be managed through software such as Hikvision iVMS-4200. Wiegand and RS-485 reader compatibility means it works with a broad range of card readers already deployed in the field. Whether you are commissioning a new build or upgrading an existing system with a controller that supports anti-passback, door interlocking, and large cardholder databases, the DS-K2704X is a workhorse panel that fits mid-scale commercial access requirements without overcomplicating the design.

What This Controller Actually Does

Who Buys This Model

• Security Integrators: Commissioning multi-door commercial fitouts where a single networked panel covering 4 doors reduces cabinet space, cabling runs, and ongoing management overhead versus multiple single-door controllers.
• Facility Managers in Medium Commercial Buildings: Managing controlled entry to server rooms, storerooms, staff-only corridors, and reception barriers from one controller on the building LAN, administered through iVMS-4200.
• Warehouse and Industrial Site Operators: Needing anti-passback and time-schedule control across loading dock entries, plant room doors, and staff access gates where credential sharing or tailgating is a genuine operational risk.
• Healthcare and Pharmaceutical Facilities: Specifying mantrap or airlock interlocking between dispensary and public areas, where door interlocking logic must be enforced at the hardware level rather than relying on software rules alone.

Honest Assessment

The DS-K2704X does its core job well: it is a stable, network-connected 4-door panel with a large local cardholder database, solid Wiegand and RS-485 reader compatibility, and practical access logic including anti-passback and door interlocking. For mid-scale commercial installations that fall within the 4-door boundary and already use or plan to use iVMS-4200, it is a sensible and well-supported choice available through Security Australia. The TCP/IP architecture makes remote management and software integration straightforward for experienced integrators. Where it will not serve you is on larger sites requiring more than 4 doors under a single controller - those projects need a higher-capacity panel or a distributed controller architecture. It is also not a standalone product; it requires compatible readers, locking hardware, and a power supply, all of which need to be specified and costed separately. Buyers who want a fully managed cloud-based access platform may also find a different product category more appropriate.

Before You Buy

Quick Fit Check

• Good match if: Your project has up to 4 doors that need centrally managed, networked access control with anti-passback and a large cardholder database that holds decisions locally when the server is offline.
• Good match if: You are integrating with an existing Hikvision iVMS-4200 deployment and need a controller that slots into that software ecosystem without additional middleware or third-party integration work.
• You may need a different model if: Your site has more than 4 controlled doors - a higher-capacity access control panel or a multi-controller networked architecture available on securityaustralia.com.au will be the appropriate solution.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need to control exactly 4 doors from a single networked panel with local anti-passback, door interlocking, and a 100,000-card database that operates independently during server downtime.
• You may need a different model if: Your site exceeds 4 controlled doors - a higher-capacity access controller or networked multi-panel architecture available on securityaustralia.com.au will be the more appropriate fit.
• Pairs well with: Hikvision Wiegand or RS-485 card readers, electromagnetic or electric strike locking hardware, a dedicated access control power supply with battery backup, and a managed PoE or standard network switch for clean LAN integration.

Common Questions

1. Does this controller work with third-party card readers?

   Yes, in most cases. The DS-K2704X supports Wiegand inputs from 26-bit to 37-bit, which covers the majority of card readers in the Australian market. It also supports RS-485 readers. If your existing readers output a format within that Wiegand range or communicate over RS-485, they will connect directly without additional hardware.

2. Will this controller keep working if the network goes down?

   Yes. The DS-K2704X stores up to 100,000 cardholder records locally on the controller. Access decisions are made at the panel, so doors will continue to grant or deny access based on stored data even if the connection to the iVMS-4200 server is lost. Event records are stored locally and sync back when the connection is restored.

3. How does anti-passback actually work on this controller?

   Anti-passback on the DS-K2704X is enforced locally at the controller level. Once a cardholder uses their credential to enter through a monitored door, the system registers that they are inside. If the same credential is presented at the entry again before an exit has been recorded, access is denied. This prevents one card being passed back out to allow a second person to enter.

4. Does this controller support a mantrap or airlock setup?

   Yes. The door interlocking feature allows you to configure a sequence where Door 2 cannot release until Door 1 has closed and latched. This is the standard hardware requirement for a mantrap or airlock configuration. The logic is enforced at the controller, not at the software level, which means it remains active even during a server or network interruption.

5. What software is used to manage the DS-K2704X?

   Hikvision iVMS-4200 is the primary management platform for the DS-K2704X. Through iVMS-4200 you can add and remove cardholders, configure access schedules and time zones, view real-time door status, run audit reports, and manage alarm inputs and relay outputs across all 4 doors from a single interface. Ensure you are running a current version of iVMS-4200 for full feature compatibility.

6. What power supply does the DS-K2704X require?

   The DS-K2704X operates on 12V DC. This is not a PoE device - it requires a dedicated 12V DC power supply, which must be sourced and specified separately. For installations where uptime is critical, pairing the controller with a power supply that includes battery backup will keep access control operational during mains power interruptions. The controller itself and the locking hardware each have their own power requirements, so plan your power budget accordingly. The DS-K2704X is stocked by Security Australia along with compatible access control power supplies.

7. What is the duress card function and when would you use it?

   A duress card is a separately programmed credential that opens the door normally but simultaneously sends a silent alarm signal to the management software. It is used when a cardholder is being coerced into granting access and needs to alert security without the threat being aware. The DS-K2704X supports this as an authentication mode, making it relevant for banks, pharmacies, jewellers, and any site where staff may be at risk of forced entry scenarios.

Cabling Considerations

• Reader Cable: Shielded cable recommended for Wiegand reader runs - use minimum 6-core shielded (such as 0.5mm2 per core) to carry power, data lines (D0/D1), LED, and buzzer signals to the reader. RS-485 reader runs use twisted pair shielded cable.
• Max Reader Cable Run: Wiegand signal integrity degrades over distance - keep Wiegand reader runs under 150m. RS-485 supports longer runs, up to 1200m in ideal conditions, making it preferable for readers positioned far from the controller.
• Network Cable: Cat5e or Cat6 for the TCP/IP connection from the controller to the network switch. Keep cable runs within standard Ethernet limits (100m from switch to panel).
• Lock Output Cable: Each door lock output carries 12V DC to the locking device. Use cable rated for the current draw of your chosen lock hardware. Electromagnetic locks draw significantly more current than electric strikes - confirm cable cross-section and run length against lock specifications before installation.
• Wiring Tip: Plan all cable home-runs to the controller cabinet location before any wall or ceiling work is completed. The DS-K2704X connects 4 doors, each requiring independent cable runs for reader, lock, door contact, and exit button - confirm the cabinet location is accessible for all 4 door positions without excessive cable lengths on Wiegand runs.
