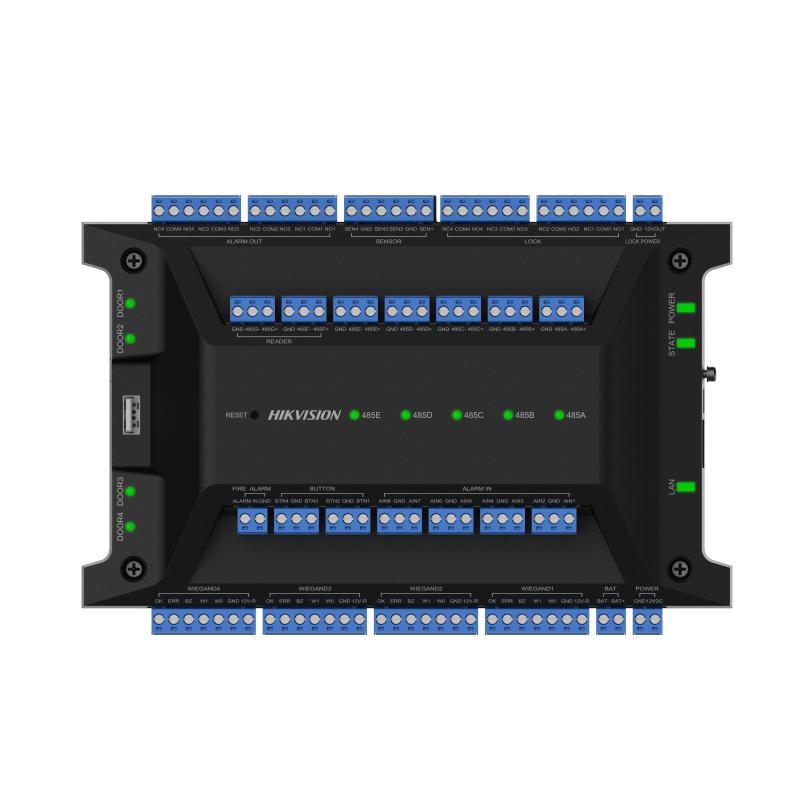

Hikvision DS-K2704X-P 4 door Access Controller Module (no panel)

Model: DS-K2704X-P

Who This Is For

Property managers specifying access control for multi-door commercial or institutional environments will find the Hikvision DS-K2704X-P a practical fit for installations where an existing enclosure or custom panel is already in place. This is the controller module only - no housing is included - which makes it the right pick for integrators building into their own cabinets or replacing an ageing controller inside an existing enclosure. Supporting up to 4 doors from a single module, it suits office suites, warehouses, aged care facilities, and education buildings where door-by-door access permissions need to be managed centrally. The -P designation indicates PoE support, reducing the wiring burden at each door position. If you are commissioning a new system from scratch and need the full enclosure, check the panelled variant before ordering.

What This Controller Actually Does

Who Buys This Model

• Security Integrators: Professionals building custom access control panels for commercial clients who need a 4-door controller that fits into a specified enclosure without paying for a duplicate housing.
• IT and Facilities Teams: In-house technical staff managing Hikvision-based sites who are replacing a failed or outdated controller module and need a direct swap-in without sourcing an entirely new panelled system.
• Education and Healthcare Facility Managers: Sites with multiple controlled zones - staffrooms, server rooms, medication storage, plant rooms - where a 4-door module per zone keeps cabling tidy and management centralised.
• Commercial Fit-Out Electricians: Tradies working on new office or retail fit-outs who are supplying the enclosure themselves and need a controller module that supports PoE to minimise the number of power points required at each door.

Honest Assessment

The DS-K2704X-P does its job well as a clean, scalable 4-door controller for integrators and technical buyers who already have an enclosure sorted. The PoE-capable design genuinely reduces cabling complexity at each door position, and the Hikvision ecosystem compatibility is a real advantage on sites already running Hikvision cameras or intercoms. The module format means experienced installers are not paying for hardware they do not need. What it will not do is install itself into a finished surface - you need an appropriate enclosure, a PoE switch or injector, and compatible Hikvision door stations or readers for it to function. It is not suited to a buyer who wants a ready-to-mount, out-of-box solution. If you need the controller, enclosure, and readers as a complete bundle, a panelled kit would be a better starting point. The DS-K2704X-P is available through Security Australia for trade and direct buyers.

Before You Buy

Quick Fit Check

• Good match if: You are a trade installer building a custom access control cabinet and need a 4-door PoE-capable controller module that integrates into an existing Hikvision-managed site.
• Good match if: You are replacing a failed controller module on a Hikvision DS-K27 series installation and need a like-for-like module without purchasing a full panelled unit.
• You may need a different model if: You want a complete out-of-box access control solution with enclosure, power supply, and readers included - a full panelled access control kit from the Security Australia range would be more appropriate.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You are mounting into your own enclosure or replacing an existing DS-K27 module, and you need 4-door PoE-capable control without paying for a redundant housing.
• You may need a different model if: You need an enclosure included - a panelled access controller from the Hikvision DS-K27 series would be the more appropriate product type for a standalone new install.
• Pairs well with: Hikvision PoE-capable door stations and card readers from the DS-K series, a managed PoE network switch, and a Hikvision iVMS-4200 access control client for user and schedule management.

Common Questions

1. Does this controller include an enclosure or housing?

   No. The DS-K2704X-P is supplied as a module only - no panel or enclosure is included. This is intentional for integrators mounting into a custom cabinet or an existing housing. If you need the module pre-installed in a Hikvision enclosure, look at the panelled variant of the DS-K2704 series before ordering.

2. What does the -P in DS-K2704X-P mean?

   It indicates PoE support. The -P variant can power compatible Hikvision door stations and readers over the network cable, removing the need for a separate 12V power supply run at each door position. You will need a PoE-capable network switch or PoE injector to take advantage of this - the controller does not generate PoE power itself from a standard DC supply.

3. How many doors can the DS-K2704X-P control?

   4 doors per module. Each door connection is independent, with its own reader interface, lock output, door sensor input, and exit button input. For sites with more than 4 controlled doors, additional DS-K2704X-P modules can be deployed in the same cabinet and managed from a single software platform.

4. Will this controller work with non-Hikvision card readers?

   It depends on the reader interface. The DS-K2704X-P supports standard Wiegand reader interfaces, which are common across many third-party card readers. However, for full feature integration - including OSDP-based readers or readers that pass additional data - Hikvision-native door stations are recommended. Verify the specific reader's interface type against the DS-K2704X-P datasheet before committing.

5. What software is needed to manage this controller?

   Hikvision iVMS-4200 with the Access Control module is the primary management platform for the DS-K2704X-P. It handles user enrolment, card assignment, access level configuration, time schedules, and event logs. Third-party VMS platforms with Hikvision access control integration can also be used. The controller does not have a standalone web GUI for full configuration - software setup is required. Information on compatible software versions is available through Security Australia at the time of purchase.

6. Can multiple DS-K2704X-P modules be managed from one platform?

   Yes. Multiple modules across a site are each added to iVMS-4200 as separate controllers, then managed from a single interface. This makes the DS-K2704X-P well-suited to campus or multi-floor deployments where one module handles each zone or building wing, with all access events and user permissions visible from a central client.

7. Does this controller integrate with Hikvision CCTV cameras or intercoms?

   Yes, as part of the Hikvision DS-K27 series. The controller integrates with Hikvision IP cameras and video intercoms under the iVMS-4200 unified management platform. This means access events at the controller can trigger camera recordings or be linked to door station video, which is a practical advantage on sites already running Hikvision CCTV infrastructure.

Cabling Considerations

• Network Cable: Cat5e minimum, Cat6 recommended for PoE runs to door stations. Maintain standard 100m maximum Ethernet run lengths from the PoE switch to each door station.
• Lock Wiring: Electric strikes and magnetic locks require separate power wiring to the lock relay output on the module. Confirm lock power requirements (12V or 24V DC) and size the lock power supply accordingly - the module provides the relay switching, not the lock power itself.
• PoE Requirements: A PoE-capable switch or injector is required to power connected door stations via the Cat6 run. Confirm the PoE wattage budget of your switch against the total draw of all connected door stations before installation.
• Wiring Tips: Run door sensor and exit button cabling in the same conduit as the reader Cat6 where possible to reduce labour. Label all cable runs at both ends before termination - on a 4-door controller, troubleshooting becomes significantly easier when cables are clearly identified by door number and function.
