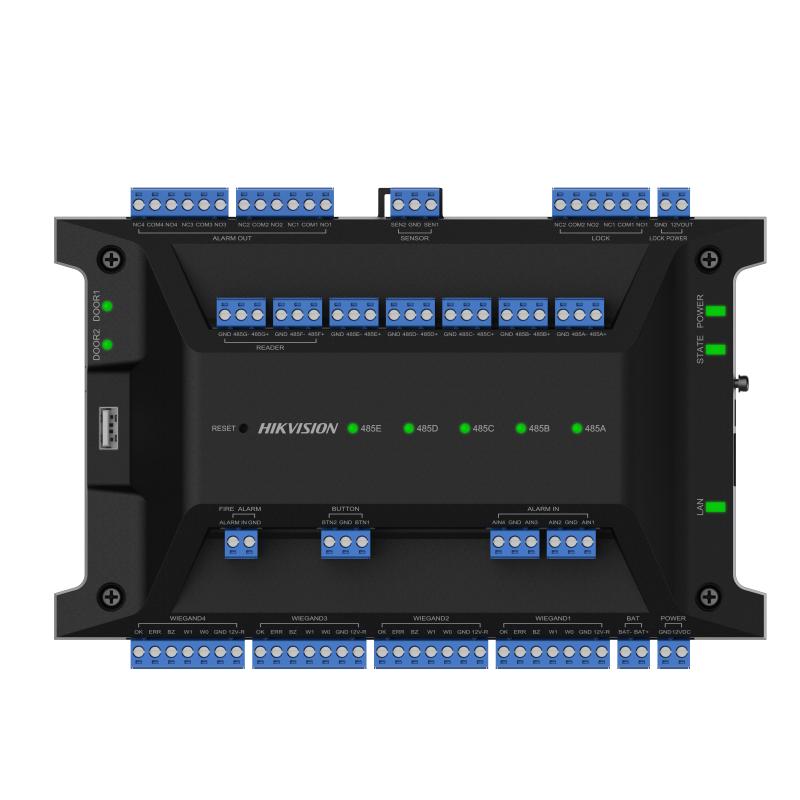

Hikvision DS-K2702X-P 2 door Access Controller

Model: DS-K2702X-P

Who This Is For

For integrators and facilities managers who need structured, server-based access control across 2 doors without compromising on reader flexibility or network integration. The DS-K2702X-P is built around TCP/IP communication and PoE output to readers, which removes the need for separate reader power supplies at each door position. That makes it a practical fit for small commercial builds, office fit-outs, and light industrial facilities where 2 controlled entry points cover the core requirement - a main entry plus a server room, warehouse door, or internal security zone. The controller manages up to 100,000 cards and 300,000 event records locally, so it holds meaningful history even during network interruptions. It suits sites running Hikvision's iVMS-4200 or DS-K2600 series platforms where the controller slots into an existing architecture rather than standing alone.

What This Controller Actually Does

Who Buys This Model

• Commercial fit-out contractors: Specifying a clean 2-door solution for office tenancies where a main entry and an IT room or records area need controlled access, and where PoE to readers keeps the wiring run count down.
• Facilities managers at multi-tenant buildings: Running Hikvision iVMS-4200 across the site and adding a self-contained 2-door controller for a new tenancy or annex without expanding the head-end panel.
• Light industrial operators: Controlling a warehouse entry and an internal secure store, where anti-passback and event buffering matter for accountability and the 100,000-card local store handles shift rosters without live server dependency.
• Security integrators building Hikvision-native systems: Pairing the DS-K2702X-P with DS-K series readers and an iVMS platform to deliver a fully integrated access and CCTV system under one software interface.

Honest Assessment

The DS-K2702X-P does the 2-door controller job efficiently - PoE output to readers, substantial local card and event storage, and clean TCP/IP management integration all make commissioning and day-to-day operation straightforward on Hikvision platforms. The anti-passback and interlocking logic are genuine security functions rather than checkbox features, and the event buffering means audit trails stay intact through network interruptions. Where it reaches its limit is scale: this is a 2-door device, and sites that need to grow beyond that should plan for a higher-channel controller from the outset rather than adding units piecemeal. It is also best suited to Hikvision-native environments - mixed-brand access ecosystems may require additional integration work. Supplied by Security Australia, the DS-K2702X-P suits sites where the door count is fixed and the priority is a clean, manageable installation over expansion headroom.

Before You Buy

Quick Fit Check

• Good match if: You are controlling exactly 2 doors on a site already running Hikvision iVMS-4200, and you want PoE to readers to reduce the wiring component count at each door position.
• Good match if: Your site requires anti-passback or interlocking (mantrap) logic and needs events buffered locally through network outages - the 300,000 record capacity handles extended offline periods without data loss.
• You may need a different model if: Your door count is likely to grow beyond 2 - a higher-channel access controller will serve that requirement better and avoid the need to manage multiple 2-door units across the same site.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your door count is fixed at 2, you want PoE to readers to simplify wiring, and you are operating in a Hikvision iVMS-4200 environment where native integration matters.
• You may need a different model if: Your site needs to control 4 or more doors - a higher-channel access controller will manage all doors from a single unit without multiplying controller hardware and network registrations.
• Pairs well with: Hikvision DS-K series card readers, electric strikes or magnetic locks on a dedicated lock power supply, and a Hikvision NVR or IP camera system sharing the iVMS-4200 platform for integrated video verification.

Common Questions

1. Does the DS-K2702X-P work with third-party card readers?

   Partially. The controller supports RS-485 and Wiegand interfaces, which are common across many reader brands, so basic card read and access grant/deny functions will work with compatible third-party readers. However, the PoE output to readers is designed for Hikvision DS-K series readers specifically - third-party readers will not draw power via that output and will need their own power supply. Advanced features tied to the Hikvision reader-controller handshake will also not be available.

2. Will this controller still work if the network or server goes offline?

   Yes. The DS-K2702X-P stores up to 100,000 card records and 300,000 events locally on the controller. All access decisions - grant, deny, anti-passback checking - are made at the controller itself, not by the server. During a network outage, doors continue operating normally against the stored card list and events are buffered locally until the connection restores, at which point records upload automatically to the management platform.

3. Does this controller support anti-passback and door interlocking?

   Yes, both are built in. Anti-passback requires a credential to be used on the exit reader before it can be used on the entry reader again, which reduces tailgating risk on controlled doors. Door interlocking (mantrap logic) prevents the second door from releasing until the first has closed - this is configured directly in iVMS-4200 without additional hardware between the 2 door positions.

4. How many cardholders can the DS-K2702X-P manage?

   Up to 100,000 cardholder records. For a 2-door deployment this is a large margin above what most commercial or light industrial sites will use. Card records are stored on the controller and synchronised from the iVMS-4200 management platform - adding, modifying, or revoking cards is done centrally in the software and pushed to the controller over the network.

5. What software does the DS-K2702X-P require for management?

   It is managed through Hikvision's iVMS-4200 platform, which is available through Security Australia alongside the controller. iVMS-4200 handles cardholder enrolment, time schedules, access level assignments, event reporting, and integration with Hikvision IP cameras. The controller communicates via TCP/IP over a standard LAN connection - no proprietary cabling to a management workstation is required.

6. Can I expand this system beyond 2 doors later?

   Not by upgrading this unit - the DS-K2702X-P is a fixed 2-door controller. If your site grows to require 4 or more controlled doors, the practical approach is to either add a second DS-K2702X-P for 2 additional doors or specify a higher-channel controller from the outset. Both options integrate into the same iVMS-4200 platform. If there is any possibility of expansion, it is worth planning for a higher-channel model before installation to avoid duplicating controller hardware later.

7. What type of locks does the DS-K2702X-P control?

   It uses relay outputs to control door locks, which is compatible with electric strikes, electromagnetic locks (maglocks), and electric deadbolts. The relay closes or opens on access grant depending on how the lock circuit is wired. For maglocks or high-current strikes, check the relay's rated current against the lock's power draw - higher-draw locks typically need a dedicated lock power supply rather than sourcing current through the controller relay, with the relay switching the lock power supply instead.

Cabling Considerations

• Network Cable: Cat5e or Cat6 for the TCP/IP connection between the controller and the LAN switch. Standard straight-through patch or field-terminated run to the nearest switch port.
• Reader Cable: For RS-485 readers, use shielded twisted-pair cable (minimum 22 AWG) between the controller and each reader. Keep RS-485 runs under 1,200 m and away from high-voltage cable runs to avoid interference. For Wiegand readers, use 18 AWG multi-conductor cable - Wiegand runs should generally be kept under 150 m.
• PoE to Readers: Compatible Hikvision DS-K series readers draw power over the reader cable from the controller - confirm reader power consumption is within the controller's PoE output budget before finalising the design. No separate reader power supply is needed for compatible readers.
• Lock Wiring: Run a separate 2-core cable (18 AWG minimum) from the controller relay output to each lock position. If using a high-current maglock, run power from a dedicated lock power supply to the lock and wire the controller relay to switch the power supply output - do not run lock current through the controller relay directly.
• Door Sensor and Exit Button: Allow for additional 2-core runs from each door position back to the controller for the door position sensor (reed switch) and request-to-exit button - these are separate from the lock and reader wiring.
• Controller Power: The DS-K2702X-P requires a 12 VDC supply. Use a regulated access control power supply with battery backup at the controller location to maintain operation during mains power interruptions.
