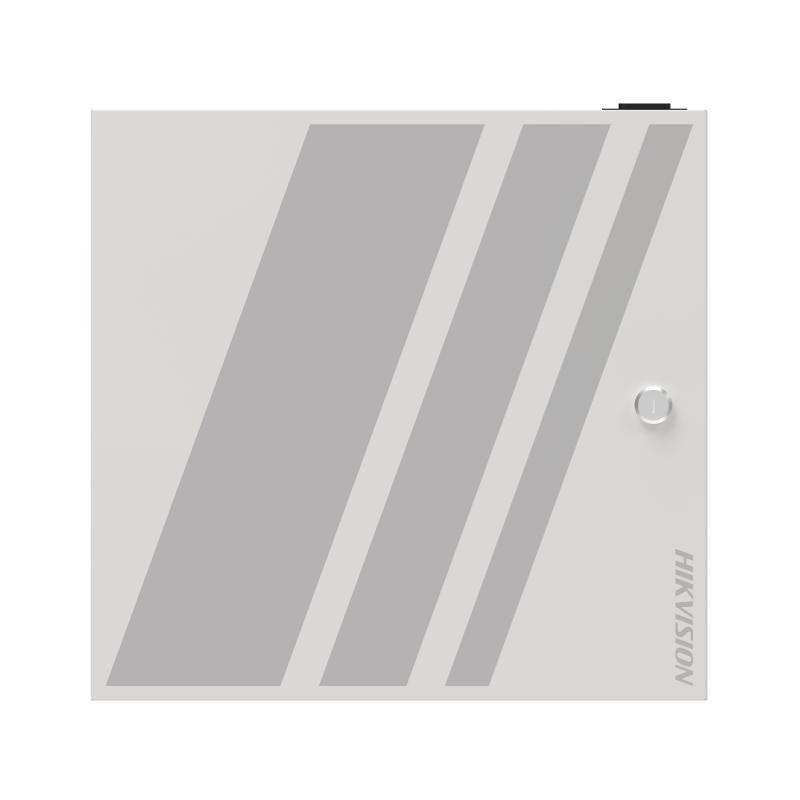

Hikvision DS-K2702WX-E1 2 door Access Controller Kit

Model: DS-K2702WX-E1

Who This Is For

For facilities managers and security integrators who need a straightforward, wired 2-door access control solution without building out a complex enterprise system. The Hikvision DS-K2702WX-E1 is a 2-door access controller kit designed for small commercial premises, offices, warehouses, and light industrial sites where controlling entry to 2 independent access points is the primary requirement. It suits environments where staff movement between controlled zones needs to be logged and managed - think server rooms with a reception entry, small medical suites, or a depot with a staff gate and storage access. The kit format means the core hardware arrives together, reducing component sourcing time for installers working under tight project schedules. If you are managing a single building with up to 2 controlled doors and want reliable card-based access without a full enterprise deployment, this controller kit is sized for that task.

What This Controller Actually Does

Who Buys This Model

• Office Fitout Contractors: Installing a 2-door system into a small tenancy where reception and a back-of-house or server room both need controlled access with separate cardholder permissions.
• Warehouse and Depot Operators: Managing staff entry at 2 distinct points - such as a pedestrian gate and a goods storage area - where logging access events is required for WHS or insurance compliance.
• Medical and Allied Health Practices: Restricting patient areas from staff-only zones such as dispensaries or records rooms using card credentials that can be quickly deactivated when staff leave.
• Security Integrators on Fixed-Scope Projects: Specifying a Hikvision-native controller that connects into an existing Hikvision IP camera and NVR environment, keeping the entire system within one management platform.

Honest Assessment

The DS-K2702WX-E1 does what a 2-door controller is supposed to do - manage credential-based entry at 2 points, log events, and sit on a network for remote administration. Its value is in the Hikvision ecosystem fit: if you are already running Hikvision cameras and an NVR, adding this controller keeps everything under one software platform. The kit packaging also suits installers who want to avoid mixing hardware from multiple sources on a small job. Where this will not serve you well is on larger sites needing more than 2 controlled doors - you would need to add controllers or step up to a multi-door enterprise-grade panel, which Security Australia also stocks. It is not a standalone cloud-managed system and will require proper network configuration and Hikvision client software to manage effectively. Buyers expecting plug-and-play mobile app control should research whether the software environment suits their team before purchasing.

Complete Package Contents

• 1 x DS-K2702WX-E1 Access Controller - 2-door, TCP/IP, Wiegand interface, alarm I/O

Note: Confirm exact kit inclusions with the product listing or contact the supplier prior to purchase, as kit configurations can vary by batch. Additional card readers, exit buttons, and power supply may be required separately depending on site requirements.

Before You Buy

Quick Fit Check

• Good match if: Your site has exactly 2 controlled access points and you are already operating Hikvision cameras or NVRs - the controller integrates into the same management platform, keeping administration centralised.
• Good match if: You need card-based access with an auditable event log and the ability to manage cardholder permissions remotely over TCP/IP without investing in a large enterprise access control system.
• You may need a different model if: Your site requires 4 or more controlled doors - a multi-door access controller panel will serve that requirement more efficiently and is worth reviewing on the Security Australia website before committing to multiple 2-door units.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a 2-door wired access controller that operates within the Hikvision ecosystem and connects to your existing network for remote credential management and event logging.
• You may need a different model if: Your site requires control of 4 or more doors - a multi-door access controller panel will handle larger deployments more efficiently and cost-effectively than running multiple 2-door units in parallel.
• Pairs well with: Hikvision card readers (Wiegand-compatible), Hikvision NVR systems, electric strike or magnetic lock hardware, and a UPS for controller and lock power continuity during outages.

Common Questions

1. Does this controller work with any card reader, or only Hikvision readers?

   It works with any Wiegand-compatible card reader. The DS-K2702WX-E1 uses a standard Wiegand interface for reader input, so third-party Wiegand readers can be used if needed. That said, using Hikvision readers keeps the installation within one ecosystem and simplifies configuration through the management software.

2. Will this controller manage 2 completely independent doors with different access schedules?

   Yes. Each of the 2 doors can be configured with its own access time schedule, cardholder permissions, and unlock behaviour independently. A staff member can be granted access to door 1 only, door 2 only, or both - and on different time windows if required.

3. Does the DS-K2702WX-E1 require a dedicated PC to operate, or does it work standalone?

   It can store credentials and operate standalone once programmed, but initial setup and ongoing management of cardholders and schedules requires Hikvision's access control client software (such as iVMS-4200) running on a networked PC. It is not a purely autonomous plug-and-play device.

4. What happens to door access if the network goes down?

   Stored credentials remain active on the controller during a network outage, so valid cardholders can still access doors. The network connection is required for real-time event syncing and remote management changes - not for day-to-day door operation. A UPS protecting the controller and lock power supply is recommended to maintain access during a power interruption.

5. Does this controller integrate with Hikvision CCTV cameras and NVRs?

   Yes. The DS-K2702WX-E1 integrates with Hikvision's IP camera and NVR platform through iVMS-4200 or Hik-Connect, allowing access events to be viewed alongside camera footage in the same software interface. This is one of the main reasons integrators specify this controller on sites that already run Hikvision surveillance equipment. The full range is available through Security Australia for customers building out a unified Hikvision system.

6. Can I expand beyond 2 doors later by adding a second controller?

   You can add a second DS-K2702WX-E1 to the same software installation to manage additional doors. However, if you are planning for 4 or more doors from the outset, evaluating a single multi-door controller panel is worth doing before purchase - it typically provides a cleaner and more cost-effective architecture than stacking multiple 2-door units.

Cabling Considerations

• Network Cable: Cat5e or Cat6 for the TCP/IP connection between the controller and your network switch. Use a shielded cable in environments with electrical interference.
• Reader Wiring: Wiegand reader cable runs should be kept as short as practical - typically under 100 metres - to avoid signal degradation. Use shielded twisted pair cable for reader connections where possible.
• Lock Power: Electric strikes and magnetic locks require a separate power supply - do not draw lock power from the controller itself. Size the lock power supply to the combined current draw of both locks plus a safety margin.
• Wiring Tips: Plan cable runs to the controller location before installation to confirm conduit or trunking paths suit both reader cable and lock power wiring. Keeping reader cables and high-voltage power cables separated reduces interference risk on long runs.
