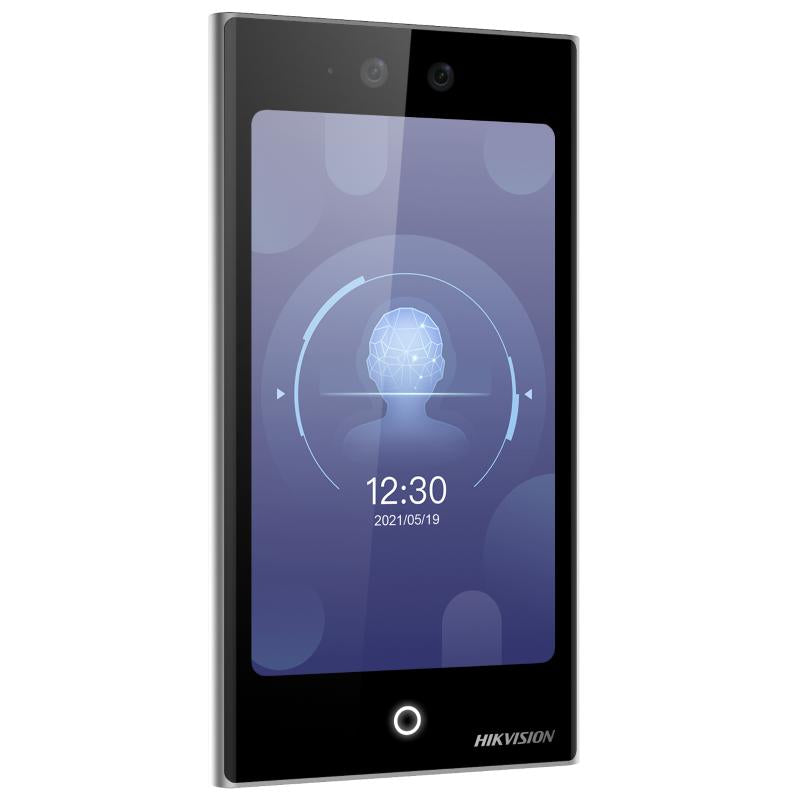

Hikvision DS‑K1T673DWX 7″ Pro Face Recognition Terminal – Mask Detection, Card & Multi‑Auth

Model: DS-K1T673DWX

Who This Is For

Facilities teams managing controlled entry across commercial buildings, aged care facilities, schools, or corporate campuses where hygiene compliance and touchless access are both operational requirements - this is the terminal to specify. The Hikvision DS-K1T673DWX is a 7-inch Pro Face Recognition Terminal that combines deep-learning face recognition with mask detection, card reading, and configurable multi-factor authentication in a single wall-mounted unit. Rather than bolting separate readers and intercoms together, integrators get one device that handles identity verification, door release signalling, and event logging simultaneously. The 7-inch touchscreen simplifies user interaction at the door, and the terminal integrates directly with Hikvision access control platforms for centralised management across multiple entry points. It suits both single-door installs and larger multi-reader deployments managed through iVMS-4200 or HikCentral Professional.

What This Terminal Actually Does

Who Buys This Model

• Aged care and healthcare facility managers: Specifying touchless entry at restricted ward or medication room doors where both hygiene compliance and reliable identity verification are mandatory requirements.
• Corporate fit-out integrators: Installing multi-factor authentication at server rooms, executive floors, or HR areas where a card alone is considered insufficient and face-plus-card combinations are required by the client's security policy.
• School and childcare security coordinators: Controlling access to staff-only zones and after-hours entry points where a large touchscreen and clear visual confirmation improve usability for non-technical staff.
• Commercial property managers migrating from legacy card systems: The built-in Mifare and EM card reader allows existing credentials to keep working while face recognition is introduced progressively across the site.

Honest Assessment

The DS-K1T673DWX handles the most common gap in mid-market access control installations: sites that need more than a card reader but cannot justify a full biometric enrolment system. The combination of on-device face recognition, mask detection, and multi-factor authentication modes in a single housing reduces the number of devices on the door frame and simplifies wiring. The 7-inch screen is genuinely useful in high-traffic entry points where staff need immediate visual confirmation. Available through Security Australia as part of the Hikvision access control range, it integrates cleanly with HikCentral and iVMS-4200 for multi-door deployments. Where it will not suit is any application requiring ANPR, outdoor perimeter camera coverage, or intercom two-way audio as a primary function - those requirements call for dedicated products. It is also a Hikvision-ecosystem device, so mixed-brand access control panels will require Wiegand output configuration rather than native integration.

Before You Buy

Quick Fit Check

• Good match if: You need touchless multi-factor authentication at a controlled entry point and the site already runs or plans to run Hikvision access control hardware and management software.
• Good match if: The site has an existing Mifare or EM card programme that must remain active while face recognition is introduced - both credential types can operate simultaneously on this terminal.
• You may need a different model if: Your primary requirement is video intercom with two-way audio and remote door release from a mobile app - a dedicated video intercom terminal would be better suited to that use case.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need deep-learning face recognition with mask detection, multi-factor authentication, and an integrated card reader in a single terminal that manages up to 6,000 face templates on-device.
• You may need a different model if: Two-way audio intercom and remote door release via a mobile app are primary requirements - a dedicated video intercom station is the more appropriate product type for that use case.
• Pairs well with: A Hikvision DS-K series access control panel for door relay management, PoE+ network switch for single-cable installation, and HikCentral Professional for multi-door centralised management.

Common Questions

1. Does the DS-K1T673DWX work as a standalone door controller, or does it need a separate access control panel?

   It requires a separate access control panel for door relay output. The terminal handles identity verification and sends the access decision, but the actual lock release signal is managed by a connected Hikvision DS-K series access controller. The terminal communicates with the panel via TCP/IP, RS-485, or Wiegand output depending on how your door hardware is wired.

2. Will this terminal work with our existing Mifare staff cards?

   Yes. The DS-K1T673DWX has a built-in reader that supports Mifare 1K and 4K card formats as well as EM cards. Existing credentials can continue to function as the primary or secondary authentication factor while face recognition is introduced, which avoids a full credential re-issue during transition.

3. What PoE standard does the DS-K1T673DWX require?

   It requires IEEE 802.3at PoE+, not standard 802.3af. Standard PoE switches supply a maximum of 15.4W per port, which is insufficient for the 7-inch display and face recognition processor. Confirm your switch supports PoE+ (up to 30W per port) before running cable, or plan for a 12V DC power supply at the door.

4. How does the mask detection actually work - does it block access or just alert?

   Both behaviours are configurable. The terminal can be set to deny access entirely when no mask is detected, allow access with a logged alert, or display a prompt asking the user to put on a mask before re-attempting. The rule is set per-device during configuration and applies to all users presenting at that terminal.

5. How are face templates enrolled - do staff have to stand at the door one by one?

   No. Batch enrolment via iVMS-4200 or HikCentral Professional is the recommended method for sites with more than a handful of users. Templates and access permissions are pushed to the terminal over the network, so enrolment can be completed from a management workstation. On-device enrolment at the terminal is available but is practical only for small user counts. Security Australia recommends confirming your platform licence covers the number of terminals in your deployment before ordering.

6. Is the DS-K1T673DWX rated for outdoor installation in Australian conditions?

   Yes. The terminal carries an IP65 ingress protection rating, which means it is dust-tight and protected against water jets - suitable for covered outdoor entrance areas. The operating temperature range of -10°C to 60°C covers conditions across Australian climate zones, including exposed installations in northern Queensland heat. It is not rated for direct prolonged submersion, so avoid installation where standing water can pool against the unit.

7. What happens to stored face templates and event logs if the network goes down?

   Recognition and access decisions continue to operate locally. The terminal processes face matching on-device against its stored library of up to 6,000 templates, so a network outage does not prevent authenticated users from gaining access. Event logs are stored locally up to 300,000 records and sync back to the management platform once connectivity is restored.

Cabling Considerations

• Network Cable: Cat5e minimum, Cat6 recommended - carries both data and PoE+ power in a single run to the terminal.
• Max Cable Run: 100 metres for standard Cat6 PoE+ runs. Beyond this, use a PoE+ extender or local 12V DC power supply with a separate data cable.
• PoE Notes: IEEE 802.3at PoE+ required (up to 30W per port). Standard 802.3af switches will not supply sufficient power for the display and processor - verify switch specifications before installation.
• Door Controller Wiring: RS-485 or Wiegand cable required between the terminal and the access control panel for lock release signalling. Plan conduit runs to accommodate both the network cable and the door controller cable in the same wall chase where possible.
• Wiring Tips: Install a surface-mount back box rated for outdoor use if the wall surface is uneven or the cable entry point cannot be sealed. The tamper alarm triggers if the terminal is removed from the mounting surface, so ensure the back box is anchored securely to the structure, not just the cladding.
