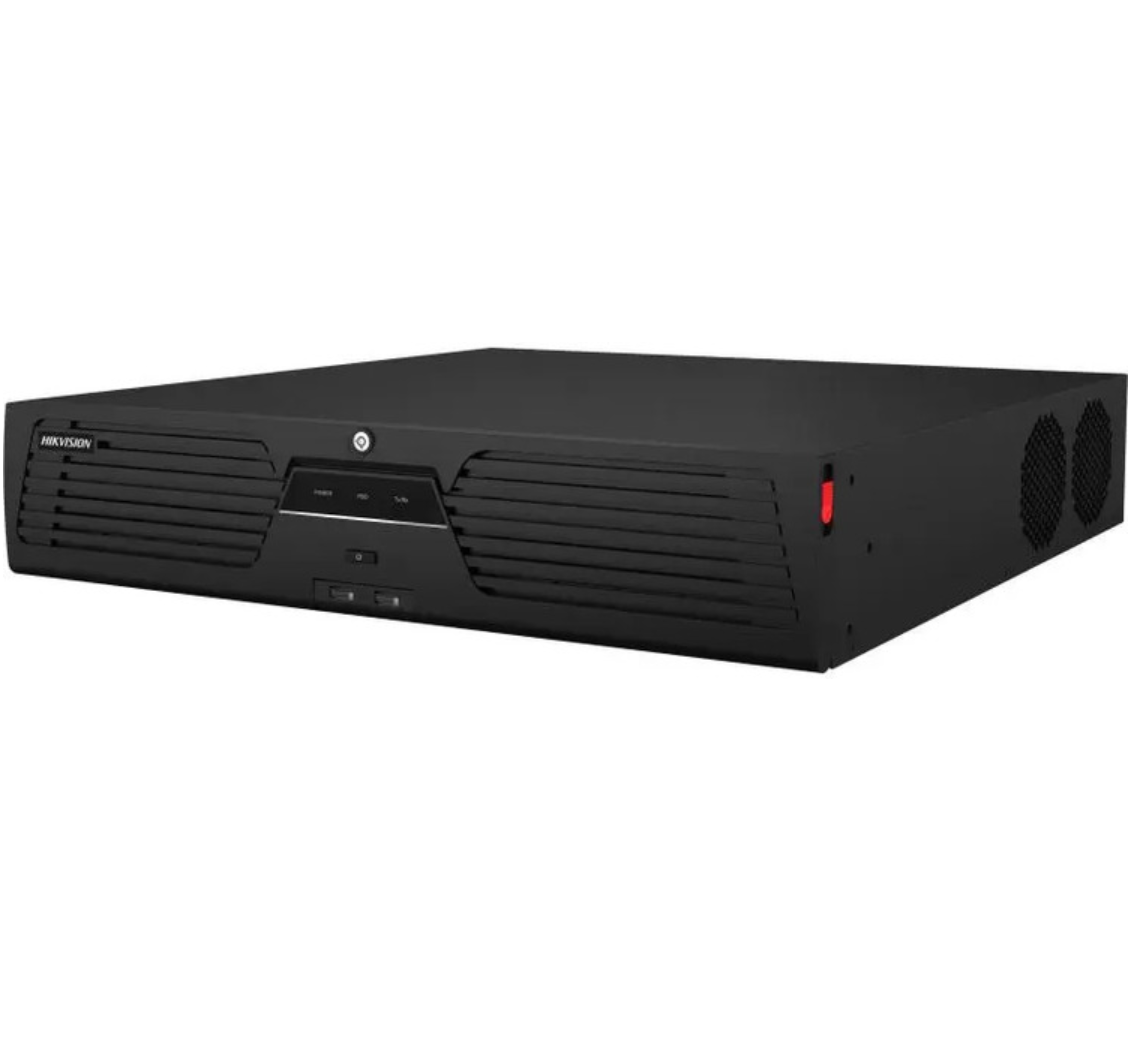

Hikvision DS-9664NI-M8 64ch M-Series NVR, 400Mbps, 8K, VGA/HDMI, 8 Bay, 3RU, No HDD

Model: DS-9664NI-M8

Who This Is For

For integrators and security managers specifying a high-channel NVR backbone for large commercial, industrial, or multi-site deployments, the Hikvision DS-9664NI-M8 is a rack-mount unit built around serious channel density. At 64 channels, 400Mbps throughput, and 8K display output, this is not an entry-level recorder - it sits at the top of a planned system where camera counts are high, resolution demands are pushing beyond 4K on key positions, and the equipment room has rack space allocated. The 8-bay HDD configuration means storage can be scaled to match retention requirements, and the 3RU chassis slots into a standard 19-inch rack without compromise. If you are quoting a carpark, a large warehouse complex, a hospital campus, or a multi-tenancy commercial building where 32 channels simply is not enough, this is the recorder the design starts from.

What This NVR Actually Does

Who Buys This Model

• Security integrators on large commercial contracts: Quoting 30-64 camera systems for office towers, shopping centres, or industrial facilities where a single high-channel recorder simplifies the design and the equipment room layout.
• Facilities managers at hospitals and university campuses: Sites with high camera counts spread across multiple buildings where centralised 64-channel recording into a rack-mounted unit keeps footage management in one place.
• Warehouse and logistics operators: Large footprint sites with loading docks, internal aisles, perimeter fencing, and office areas that collectively push camera counts well past what a 32-channel unit can handle.
• IT and infrastructure teams specifying a rack environment: Projects where the security system needs to share a comms room with networking and server equipment - the 3RU rack chassis fits that environment by design.
• Installers future-proofing a system build: Sites currently running 40-50 cameras that want room to grow without replacing the recorder - 64 channels gives headroom without committing to a second unit immediately.

Honest Assessment

The DS-9664NI-M8 does what a top-tier Hikvision M-Series recorder is designed to do - it handles 64 channels of IP camera recording with 400Mbps of throughput, which is enough headroom for a mixed camera deployment running high-resolution streams without frame rate compromises. The 8-bay storage configuration and rack-mount chassis make it a logical fit for professionally installed systems in equipment rooms. The 8K output is a genuine capability for control room installations with compatible displays.

It will not suit small or medium sites with 8 to 32 cameras - the cost and physical footprint are not justified at those channel counts, and a mid-range NVR will serve that use case better. It also ships without HDDs, so storage must be budgeted and specified separately. Available through Security Australia, this unit is positioned as part of a professionally designed system rather than a plug-and-play solution for end users self-installing.

Before You Buy

Quick Fit Check

• Good match if: Your project requires 33 to 64 IP cameras recorded from a single unit, and the installation site includes a rack-mount equipment room where a 3RU chassis is practical.
• Good match if: You are specifying a high-resolution system with 4K or 8MP cameras across most positions and need the 400Mbps throughput to sustain full frame rates without stream compromise.
• You may need a different model if: Your camera count is 32 or below - a mid-range 32-channel NVR will deliver the same recording capability at a lower cost and in a smaller footprint more suited to that scale of deployment.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your project requires 33 to 64 channels in a single recorder with 400Mbps throughput to support high-resolution cameras at full frame rate, and the site has rack infrastructure to house a 3RU unit.
• You may need a different model if: Your camera count sits at 32 or below - a 32-channel mid-range NVR covers that deployment at a lower cost and smaller physical footprint without any capability trade-off for that scale.
• Pairs well with: High-resolution IP turret or bullet cameras (4K or 8MP) on managed PoE switches, feeding into the NVR via a dedicated VLAN on your network infrastructure.

Common Questions

1. Does the DS-9664NI-M8 come with hard drives installed?

   No. The DS-9664NI-M8 is supplied with no HDDs. The 8 internal bays accept surveillance-rated hard drives specified and sourced separately. This allows the storage capacity to be sized precisely for your retention period, camera count, and resolution mix rather than being fixed to a pre-loaded configuration that may not suit your project.

2. Will this NVR handle 64 cameras recording at 4K simultaneously?

   Yes, within the 400Mbps bandwidth limit. Whether 64 simultaneous 4K streams fit within 400Mbps depends on the bitrate per camera, which varies by compression type, scene complexity, and frame rate setting. At typical H.265+ bitrates for 4K cameras, 64 channels at moderate frame rates is achievable - but confirm your total stream load during system design rather than assuming maximum resolution on every channel at maximum frame rate.

3. Does this NVR fit in a standard server rack?

   Yes. The 3RU chassis is built to mount in a standard 19-inch equipment rack. For installations where the NVR needs to share rack space with networking switches, patch panels, or UPS units, the 3RU height needs to be accounted for in your rack space planning before the unit arrives on site.

4. What display outputs does the DS-9664NI-M8 support?

   HDMI and VGA. The HDMI output supports up to 8K resolution, making it suitable for connection to a high-resolution monitor or display wall in a control room environment. The VGA output provides a secondary display connection for local configuration or a second monitor position. Both outputs are available simultaneously depending on your setup.

5. Does this NVR have built-in PoE ports for cameras?

   No. The DS-9664NI-M8 is a standalone NVR without integrated PoE switching. Camera power is delivered via separate managed PoE switches on your network infrastructure. For a 64-camera deployment this is standard practice - dedicated PoE switches give you better control over power budgets, VLAN segmentation, and switch placement across large sites than integrated PoE on the recorder.

6. How much storage do I need for 64 cameras over 30 days?

   It depends heavily on resolution, bitrate, and frame rate, but at typical H.265+ settings the storage requirement for 64 cameras over 30 days is substantial - often in the range of 60TB to 120TB or more depending on camera configuration. The 8-bay chassis allows you to install high-capacity surveillance drives to meet that requirement. Use a storage capacity calculator during the design phase and confirm drive compatibility with the DS-9664NI-M8 before purchase. Security Australia can assist with storage planning for this model.

7. Is the DS-9664NI-M8 suitable for a self-install by an end user?

   Not typically. This unit is designed for professionally installed systems. Configuring a 64-channel NVR with correct network settings, storage configuration, RAID setup across 8 drives, display output, and camera onboarding requires installer-level knowledge. It is best commissioned by a licensed security integrator with experience in large Hikvision deployments.
