  • Sku: DS-9664NI-M16
  • Vendor: SecurityAustralia

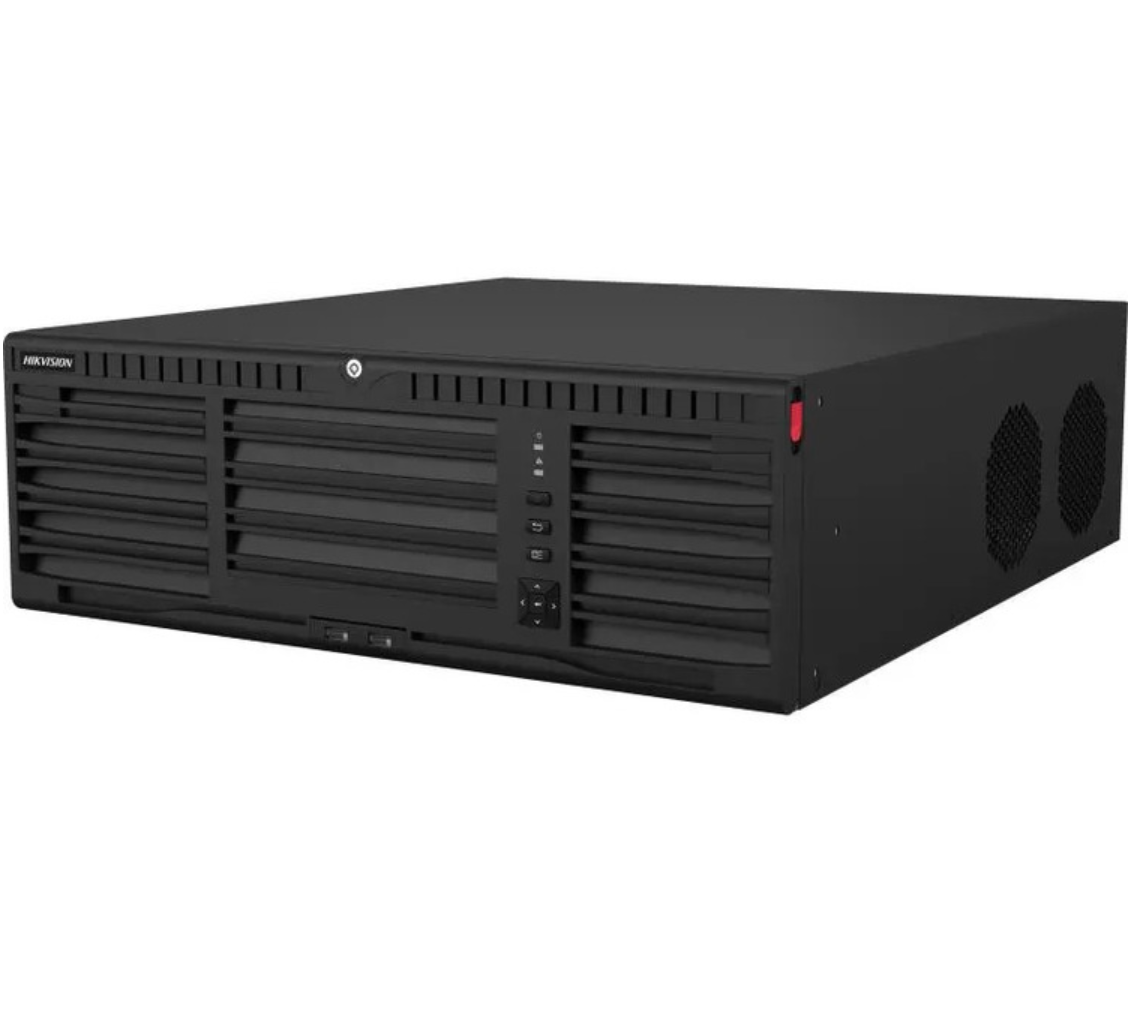

Hikvision DS-9664NI-M16 64ch M-Series NVR, 400Mbps, 8K, VGA/HDMI, 16 Bay, 3RU, No HDD

$5,807.00 AUD
$4,758.00 AUD
 per
In stock!
Spend $100.00 to FREE SHIPPING

64-ch 3U 4K NVR

The DS-9664NI-M16 is equipped with advanced video compression technologies, including H.265+, to optimize storage efficiency while maintaining high video quality. It features multiple storage options, supporting large-capacity hard drives to accommodate extensive recording requirements. The device supports remote access and management through Hikvision's intuitive software and mobile apps, enabling users to monitor their security system from anywhere. Its robust build and reliable performance make it suitable for a wide range of applications, from large enterprises to critical infrastructure projects.

Key Features

  • Up to 64-ch IP camera inputs
  • Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity
  • Up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth
  • 2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs
  • Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera
  • Advanced streaming technology enables smooth live view in poor network conditions
  • Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks
  • Up to 8-ch IP speakers can be connected

Code/SKU: DS-9664NI-M16
Quick Specs:

  • Dimension (W × D × H): 445 × 496 × 150 mm (17.5" × 19.5" × 5.9")
  • Weight: ≤ 12.5 kg (without HDD, 27.6 lb.)

Specifications

Video and Audio
IP Video Input 64-ch
Incoming Bandwidth 400 Mbps
Outgoing Bandwidth 400 Mbps
HDMI 1 Output 8K (7680 × 4320)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
HDMI 2 Output 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
VGA 1 Output 1920 × 1080/60 Hz
VGA 2 Output 1920 × 1080/60 Hz
Video Output Mode HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output 2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Decoding Format H.265+/H.265/H.264+/H.264
Recording Resolution 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback 16-ch
Decoding Capability 2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
Network
Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF (Version 2.2), OTAP
Network Interface 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Camera Access Protocol ONVIF (Version 2.5), RTSP
RAID
RAID Type RAID0, RAID1, RAID5, RAID6, RAID10
Auxiliary Interface
Serial Interface 1 RS-485 (full-duplex), 1 RS-232
SATA 16 SATA interfaces supporting hot-plug
eSATA 1 eSATA interface
Capacity Up to 16 TB capacity for each disk
Alarm In/Out 16/9
USB Interface Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
Ctrl 12V Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.
DC 12V 12 VDC, 1 A power output
General
Power Supply 100 to 240 VAC, 50 to 60 Hz
Consumption ≤ 50 W (without HDD)
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Chassis 3U chassis
Dimension (W × D × H) 445 × 496 × 150 mm (17.5" × 19.5" × 5.9")
Weight ≤ 12.5 kg (without HDD, 27.6 lb.)
Certification Obtained Certification: CE, FCC
CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Hikvision DS-9664NI-M16 64ch M-Series NVR, 400Mbps, 8K, VGA/HDMI, 16 Bay, 3RU, No HDD

$5,807.00 AUD
$4,758.00 AUD
 per

The Hikvision DS-9664NI-M16 is a powerful 64-channel 3U 4K Network Video Recorder (NVR) designed for high-performance video surveillance systems. It supports up to 64 IP cameras simultaneously, allowing for extensive coverage and detailed monitoring. With its 4K resolution capability, it provides crystal-clear image quality, making it easier to identify important details. The NVR offers a high-bandwidth recording capacity, ensuring smooth playback and real-time recording of all video streams. Its 3U rack-mountable design facilitates easy integration into existing server racks, saving valuable space. The DS-9664NI-M16 is equipped with advanced video compression technologies, including H.265+, to optimize storage efficiency while maintaining high video quality. It features multiple storage options, supporting large-capacity hard drives to accommodate extensive recording requirements.

The device supports remote access and management through Hikvision's intuitive software and mobile apps, enabling users to monitor their security system from anywhere. Its robust build and reliable performance make it suitable for a wide range of applications, from large enterprises to critical infrastructure projects. The NVR also includes advanced features like motion detection, alarm management, and smart search capabilities to enhance overall security operations. Additionally, it offers redundancy options such as RAID configurations to ensure data integrity and system reliability. With its comprehensive set of features, the DS-9664NI-M16 is designed to meet the demands of modern, high-resolution surveillance environments. Its user-friendly interface and extensive connectivity options make it a versatile choice for professional security installations.

Features

Professional and Reliability

  • H.265+ compression reduces storage space by up to 75%
  • Dual-stream recording saves bandwidth
  • Stream over TLS encryption for secure transmission
  • Double verification for playback and downloading
  • Solar-powered camera with OTAP protocol; NVR retrieves and schedules video streams

HD Video Output

  • Independent HDMI and VGA outputs
  • HDMI output up to 8K or dual 4K resolution

Storage and Playback

  • 16 SATA interfaces for HDD connection (up to 16 TB per HDD)
  • 1 eSATA interface for HDD connection
  • 16-channel synchronous playback

Smart & POS Function

  • Supports multiple VCA (Video Content Analytics) events
  • Configurable smart functions including motion detection, line crossing, intrusion, heat map, ANPR, and people counting
  • POS information overlay on live view and playback; POS-triggered recording and alarm

Network & Ethernet Access

  • 2 self-adaptive 10/100/1000 Mbps Ethernet interfaces
  • Hik-Connect & DDNS for network management
  • Smooth streaming technology
  • Web access without plug-in
Technical Specifications
Video and Audio
IP Video Input 64-ch
Incoming Bandwidth 400 Mbps
Outgoing Bandwidth 400 Mbps
HDMI 1 Output 8K (7680 × 4320)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
HDMI 2 Output 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
VGA 1 Output 1920 × 1080/60 Hz
VGA 2 Output 1920 × 1080/60 Hz
Video Output Mode HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output 2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Decoding Format H.265+/H.265/H.264+/H.264
Recording Resolution 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback 16-ch
Decoding Capability 2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
