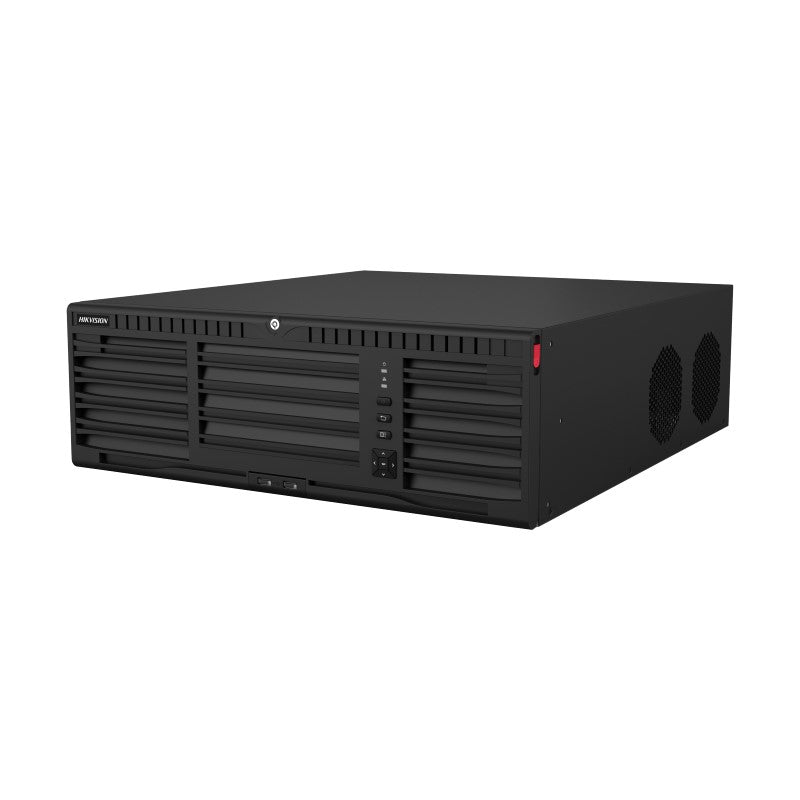

Hikvision DS-9632NI-M16 32ch M-Series NVR, 320Mbps, 8K, VGA/HDMI, 16 Bay, 3RU, No HDD

Model: DS-9632NI-M16

Who This Is For

When centralising a large IP camera deployment into a single rack-mounted recorder is the priority, the Hikvision DS-9632NI-M16 is built for exactly that. This is a 32-channel, 3U rackmount NVR designed for enterprise integrators, facilities managers, and security contractors specifying systems across corporate campuses, warehouses, hospitals, multi-level car parks, and large commercial premises. It accepts up to 32 IP cameras at 320 Mbps incoming bandwidth, supports decoding up to 32 MP per channel for specialist high-resolution cameras, and delivers dual HDMI outputs - one at 8K (7680 x 4320) and one at 4K (3840 x 2160) - for large-format monitoring walls or dedicated security control rooms. With 16 SATA bays supporting up to 16 TB per drive and RAID configuration for redundancy, this NVR suits deployments where storage depth and data protection are non-negotiable requirements alongside camera capacity.

What This NVR Actually Does

Who Buys This Model

• Enterprise Security Integrators: Specifying rack-based NVRs for corporate campuses or multi-building sites that require 32 channels, RAID storage, and 8K output for a dedicated control room display wall.
• Facilities Managers - Large Commercial Sites: Managing hospitals, shopping centres, or logistics hubs where long-term footage retention across 16 HDD bays and drive redundancy via RAID is a compliance or insurance requirement.
• Car Park and Traffic Operators: Sites deploying Hikvision ANPR cameras that need an NVR capable of decoding high-resolution plate-capture feeds at up to 32 MP alongside standard surveillance channels.
• IT and Infrastructure Teams: Deploying into existing server room racks where a 3U form factor, 100-240 VAC power supply, and up to 128 simultaneous remote connections match managed infrastructure standards.
• Security Consultants Designing Scalable Systems: Specifying a foundation NVR that supports mixed camera types - people counting, ANPR, and standard IP cameras - under one interface without needing separate recording infrastructure.

Honest Assessment

The DS-9632NI-M16 handles the specific demands of large, high-resolution IP camera deployments well. The 16-bay SATA configuration with RAID support is genuinely useful in enterprise environments where footage integrity matters, and the dual HDMI outputs - one at 8K and one at 4K - mean you are not compromising on display quality in a control room setup. 320 Mbps incoming bandwidth is sufficient to run a full 32-camera system at high resolution without throughput bottlenecks, and ANPR and people-counting camera compatibility extends its usefulness beyond basic recording.

This NVR ships without hard drives, so storage must be budgeted and sourced separately - factor that into project costings. It is a 3U rack unit designed for server room or security rack installation; it is not suited to small wall-mount enclosures or residential installs. If your deployment is under 16 channels or does not require RAID redundancy, a smaller NVR from the Security Australia range will likely serve better at a lower cost.

Before You Buy

Quick Fit Check

• Good match if: You are deploying 17-32 IP cameras across a large commercial or enterprise site and need RAID-protected storage across 16 SATA bays with 8K output for a control room display.
• Good match if: Your camera mix includes Hikvision ANPR or people-counting models that output at up to 32 MP and you need an NVR that can decode and record those feeds natively without external decoding hardware.
• You may need a different model if: Your deployment is 16 channels or fewer - a smaller NVR with fewer bays and a more compact form factor will deliver the same recording performance at a lower cost and without the 3U rack footprint.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 32 channels, 16 SATA bays with RAID redundancy, dual high-resolution HDMI outputs (8K and 4K), and compatibility with Hikvision ANPR and people-counting cameras in a single 3U rackmount unit.
• You may need a different model if: Your deployment is 16 channels or fewer - a smaller Hikvision NVR with 8 or 16 SATA bays will cover the camera count at lower cost without the 3U footprint or the overhead of managing unused bays.
• Pairs well with: Enterprise-grade surveillance hard drives (NAS or NVR-rated), 4K and 8 MP Hikvision IP cameras, a managed PoE switch for IP camera connectivity, and a dedicated 19-inch server rack with active ventilation.

Common Questions

1. Does this NVR include hard drives?

   No. The DS-9632NI-M16 ships with no HDDs installed. It has 16 SATA interfaces each supporting drives up to 16 TB, giving a theoretical maximum of 256 TB raw capacity before RAID overhead. You will need to source compatible surveillance-rated drives separately and calculate the number of drives based on your camera count, resolution, frame rate, and required retention period before purchase.

2. Will this NVR work with non-Hikvision IP cameras?

   Yes, with limitations. The DS-9632NI-M16 supports ONVIF-compatible IP cameras, so many third-party cameras can connect and record. However, intelligent analytics features - including people counting, ANPR event integration, and AI-based motion classification - are confirmed to function fully with compatible Hikvision cameras. Third-party cameras on ONVIF will record but may not pass analytics event data through to the NVR interface.

3. What does the 320 Mbps incoming bandwidth actually mean for camera selection?

   It defines the total data throughput the NVR can accept across all 32 camera channels simultaneously. At 320 Mbps across 32 cameras, you have an average of 10 Mbps per channel - sufficient for 4K cameras at standard H.265+ compression. If you deploy a large proportion of 4K cameras at maximum bitrate without H.265+ enabled, you will approach the bandwidth ceiling faster. Confirm camera bitrate settings with your installer to ensure the total does not exceed 320 Mbps.

4. What RAID modes does this NVR support and how do they affect usable storage?

   The DS-9632NI-M16 supports RAID configuration for storage redundancy, though the specific RAID levels available (such as RAID 0, 1, 5, 6, or 10) should be confirmed in the full Hikvision technical datasheet for this model. As a practical guide: RAID 5 across multiple drives sacrifices the equivalent of 1 drive's capacity to parity data but protects against a single drive failure. RAID 6 protects against 2 simultaneous drive failures but costs 2 drives of usable space. For enterprise deployments where footage continuity is critical, RAID 5 or RAID 6 is typically specified rather than RAID 0. Plan usable capacity accordingly when sizing your HDD purchase.

5. Does this NVR support ANPR camera integration and how does it decode those high-resolution feeds?

   Yes. The DS-9632NI-M16 is confirmed compatible with Hikvision ANPR cameras and supports decoding up to 2 channels at 32 MP simultaneously. This is significant because ANPR cameras typically operate at very high resolutions to capture legible plate images at distance. The NVR decodes these feeds natively for live viewing and playback without requiring a separate decoding appliance. ANPR event data - including triggered alerts based on plate reads - integrates into the NVR's intelligent alert system when using compatible Hikvision ANPR cameras. For deployments combining ANPR with a full 32-channel standard camera system, confirm the total bandwidth across all channels remains within the 320 Mbps incoming limit.

6. How many people can remotely access this NVR at the same time?

   Up to 128 simultaneous remote connections are supported. This makes the DS-9632NI-M16 suited to enterprise environments where multiple security operators, managers, and remote monitoring stations need concurrent access to live feeds or recorded footage. Remote access is available via the Hik-Connect app and through DDNS, with TLS encryption applied to transmissions. Note that high numbers of concurrent remote streams at full resolution will draw on the 400 Mbps outgoing bandwidth - factor this in if your site has a constrained uplink.

7. Is the DS-9632NI-M16 suitable for installation outside a server rack?

   No. This is a 3U rackmount unit designed for a standard 19-inch server or comms rack. It is not suited to desktop, wall-mount bracket, or cabinet installations outside a proper rack enclosure. The unit requires adequate front-to-back airflow for the drive bays and internal components. If your site does not have an existing rack, factor a 19-inch rack enclosure with ventilation into the project scope. The DS-9632NI-M16 is available through Security Australia and is intended for professional rack-based security infrastructure rather than compact standalone installs.
