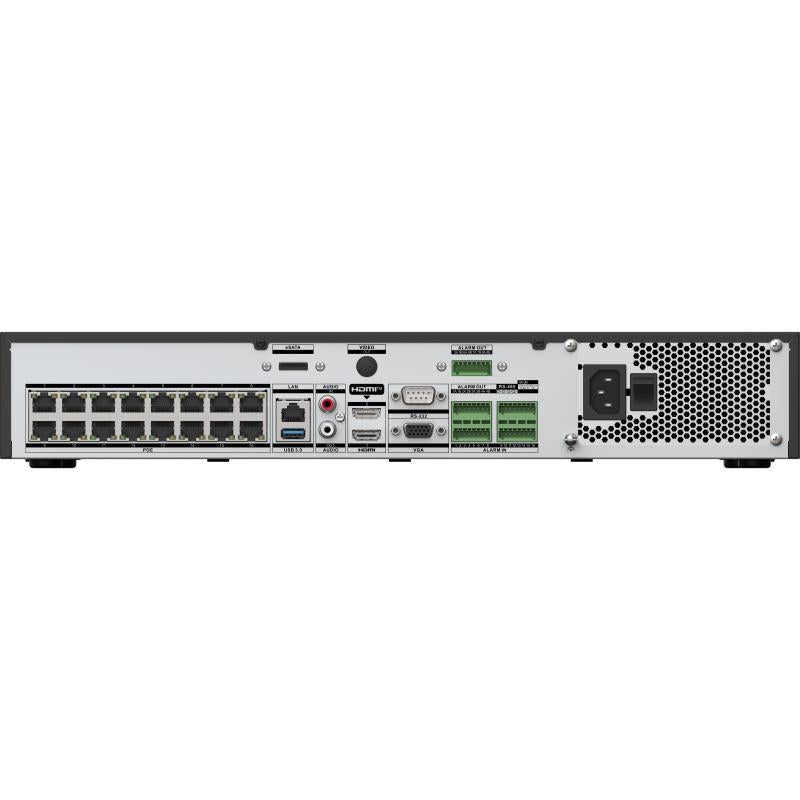

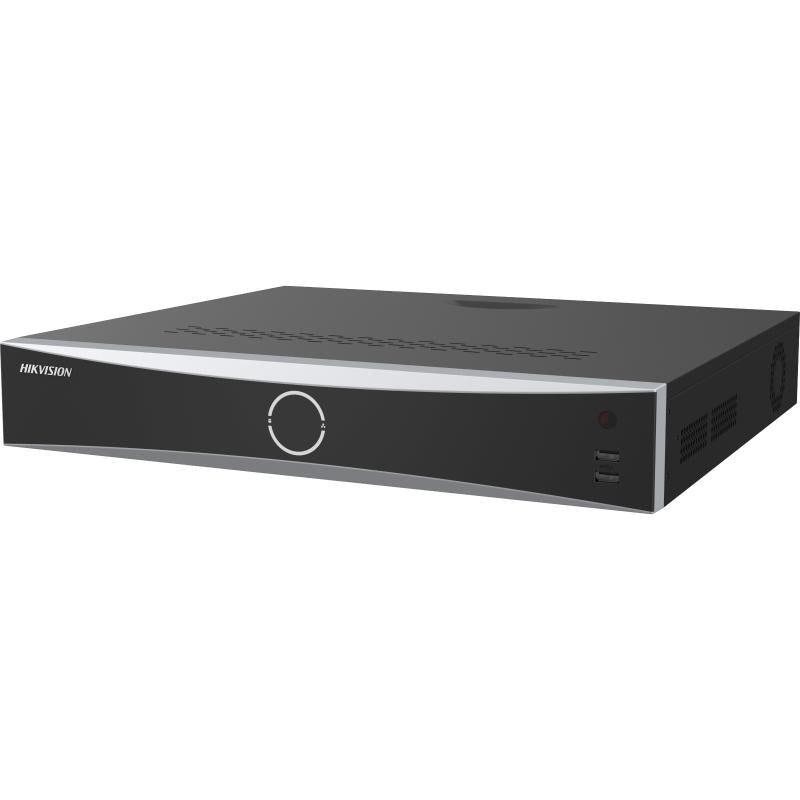

Hikvision DS-7732NXI-I4/16P/VPRO (32ch, NO HDD ) Network Video Recorder with Acuseek

Model: DS-7732NXI-I4/16P/VPRO

Who This Is For

When scaling a mixed-site surveillance network without multiplying false alarms is the priority, the Hikvision DS-7732NXI-I4/16P/VPRO delivers the channel count and AI filtering to make it practical. This 32-channel NVR sits within Hikvision's V-PRO series and combines 16 built-in PoE ports with AcuSense human and vehicle classification, making it a serious consideration for integrators designing mid-to-large commercial, industrial, or multi-tenancy installations. With support for cameras up to 12MP and 4K HDMI output, it suits sites where image quality across a large number of positions matters as much as managing alert fatigue. The recorder ships without a hard drive, giving installers full control over storage capacity from the outset. Four SATA bays support up to 10TB each, allowing storage to be sized properly for the recording schedule and retention requirements of each specific deployment.

What This NVR Actually Does

Who Buys This Model

• Security integrators managing commercial fit-outs: Sites with 20-32 cameras where AcuSense filtering is specified to reduce control room alert load - warehouses, logistics facilities, and manufacturing sites where vehicle and human events are distinctly different in significance.
• Retail and hospitality operators with multiple zones: Multi-tenancy buildings, shopping centres, or hotel properties that need a single recorder handling both internal PoE-connected cameras and external IP cameras on a network switch without splitting systems.
• Education and healthcare facilities: Campuses or multi-building sites where 32 channels cover a complete perimeter plus internal zones, and where the V-PRO perimeter detection can be configured to trigger alerts on after-hours human detection only.
• Installers building expandable systems: Projects where the client wants to start with 16-20 cameras and add positions over time - the 32-channel licence headroom and mix of direct PoE and network channels supports phased rollouts without replacing the recorder.

Honest Assessment

The DS-7732NXI-I4/16P/VPRO handles what most 32-channel commercial installations actually need: high channel count, PoE convenience for up to half those cameras, AI-filtered alerts that don't require a separate AI server, and storage capacity that can be matched precisely to retention requirements. The AcuSense classification is particularly well-suited to outdoor-facing cameras where wind and lighting frequently trigger standard motion detection. H.265+ compression keeps storage manageable across all 32 channels simultaneously. Where this recorder won't be the right fit is any project requiring advanced facial recognition or ANPR processing at the edge - those applications call for a dedicated DeepinMind server-class recorder rather than a V-PRO NVR. It also ships without HDDs, so the full system cost needs to factor in storage separately. The team at Security Australia can assist with HDD sizing based on your camera count, resolution, and retention period before purchase.

Before You Buy

Quick Fit Check

• Good match if: You are specifying a 20-32 camera commercial or industrial system where AcuSense human and vehicle classification is required to manage alert volume, and at least half those cameras are within direct cable run of the NVR location.
• Good match if: The installation uses a mix of high-resolution cameras (4K or 12MP) and the monitoring station requires 4K HDMI output for full-detail live viewing or incident review.
• You may need a different model if: The project specification includes ANPR, facial recognition database matching, or multi-server AI aggregation - these requirements point toward a DeepinMind-class recorder rather than a V-PRO NVR. Browse the Hikvision DeepinMind range on securityaustralia.com.au for those applications.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 32 channels with integrated PoE for half those cameras, AcuSense AI filtering without a separate AI appliance, and the V-PRO feature set including perimeter detection and smart search - all in a single 2U rackmount unit.
• You may need a different model if: The project requires facial recognition search across a database, licence plate recognition, or structured analytics at scale - these capabilities are handled by Hikvision's DeepinMind series recorders rather than V-PRO NVRs.
• Pairs well with: AcuSense-capable IP cameras (turret, bullet, or dome) at 4MP, 6MP, or 8MP resolution - the AI classification in this recorder works most effectively when the connected cameras also carry AcuSense labelling to pass event metadata through to the NVR.

Common Questions

1. Does the AcuSense AI work with any IP camera connected to this NVR?

   Not fully. The DS-7732NXI-I4/16P/VPRO performs best with AcuSense-capable Hikvision cameras that pass AI-classified metadata through to the recorder. When connected to standard IP cameras, the NVR can still perform basic motion detection, but the human and vehicle classification filtering - and the smart search by target type - relies on cameras that support AcuSense at the device level.

2. Will this NVR record all 32 channels at full resolution simultaneously?

   Yes, with appropriate HDD capacity. The recorder supports up to 256 Mbps incoming bandwidth across all 32 channels simultaneously. Whether that bandwidth supports all cameras at maximum resolution simultaneously depends on the bitrate of each connected camera - this should be confirmed during system design by calculating the total stream bitrate across your camera mix.

3. How much HDD storage do I need for 32 cameras?

   It depends entirely on camera resolution, compression, recording mode, and required retention period. As a general guide, 32 cameras at 4MP H.265+ on motion-triggered recording will consume significantly less daily storage than 32 cameras at 8MP on continuous recording. The 4 SATA bays support up to 40TB total, which is sufficient for most 30-day retention scenarios at mid-resolution - but calculate your specific requirement before ordering drives. The team at Security Australia can assist with storage planning for your camera configuration.

4. Does this NVR support remote viewing on a phone?

   Yes. The DS-7732NXI-I4/16P/VPRO is compatible with the Hik-Connect mobile app on iOS and Android, allowing live view and playback remotely. It also supports Hikvision's iVMS-4200 desktop client for multi-site management and web browser access for configuration and monitoring from a PC.

5. What is the total PoE power budget across the 16 built-in ports?

   The 16 PoE ports are IEEE 802.3at (PoE+), supporting up to 30W per port. The unit has a shared PoE power budget across all active ports - confirm the total watt draw of your connected cameras does not exceed this when designing a system that includes higher-draw devices such as PTZ cameras or models with built-in heaters on multiple ports simultaneously.

6. Does this NVR support 4K camera recording?

   Yes. The DS-7732NXI-I4/16P/VPRO supports recording from cameras up to 12MP resolution, which includes 4K (8MP) models. The 4K HDMI output on the recorder also means you can monitor and review 4K footage at full resolution on a compatible 4K display without downsampling at the output stage.

7. Can I use the remaining 16 channels that don't have PoE ports?

   Yes. The 16 non-PoE channels connect IP cameras via your existing network infrastructure - the cameras plug into a separate PoE switch on the same network, and the NVR discovers and records them over the LAN. This gives you flexibility to run longer cable distances via a managed switch while still managing all 32 channels from a single recorder interface.
